DELEM DA58T CNC control System
Powered Depth Y-axis&Back gauge X-axis
DELTA Inverter controlled back gauge
HIWIN Ball screws & Polished rod with 0,05mm accuracy.
Plate Support Arms
Germany Bosch-Rexroth Hydraulic
Germany EMB Tubing connector
Germany Siemens Main Motor
Tele mecanique/Schneider Electrics
Hydraulic &Electrical overload protection
Top and Bottom Tooling(86°,R0.6mm)
|SPECIFICATIONS FOR WE67K-160T/3200 HYDRAULIC PRESS BRAKE|
|3||Distance between columns||2600mm|
|8||Length x Width x Height||2500x2200x2600|
1. Totally EU streamlined design. Monobloc by welding robots & apparatus and stress relief process by annealing treatment.
2. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch Rexroth, Germany.
3. Travel limit protection, full machine guarding with safety interlocker.
4. Hydraulic synchronous mechanism and the complex compensation are designed so as to raise the workpieces precision.
5. The stroke and distance of the back gauge is adjusted by the motor.
6. Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays
7. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.
8. Standard punches and dies. Front arm material support. Foot pedal with emergency stop.
9. Control system: Estun NC E21, CNC DELEM DA41, DA52, DA66T, DA58T.(optional)
RAYMAX Servo Hydraulic Press Brake
This is servo hydraulic press brake with DELEM DA58T control system, it's CNC. You can input the drawing on the controller by yourself. The machine can work according to the drawing automaticlly.
DELEM DA58T Control System
Controller cantilever device, referring to man-machine engineering design, easy operation of CNC controller interface, higher accuracy and more comfortable. And this DELEM DA58T controller is from Netherlands.
France Schneider Electrics
Adopting France Schneider electric to ensure the machine stability, using Estun servo drive and control X-axis and axis, and the speed of X-axis and R-axis are adjustable.
Germany EMB Tube
Using Germany EMB casing tube and connectors to reduce the odds against welding slag jamming the valves or affect oil flowing.
NOK Sealing Ring

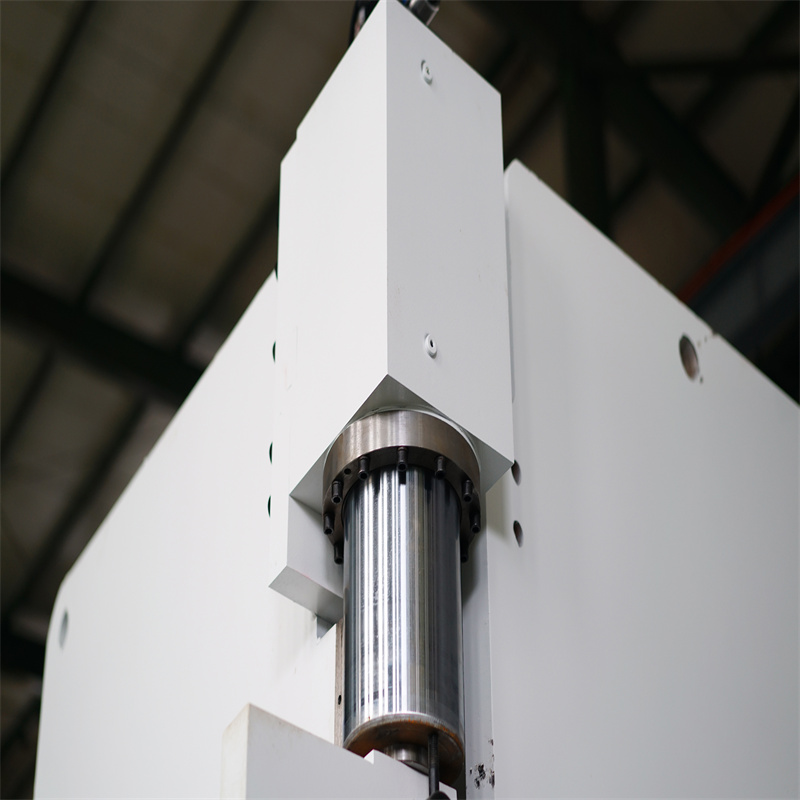

Using Japan NOK sealing ring, improving the service life of oil cylinder, guaranteeing long-term use without leakage.
Precisely control the positioning of the back gauge to ensure the accuracy of the back gauge.
Using mechanical quick clamps, improving the clamping accuracy.

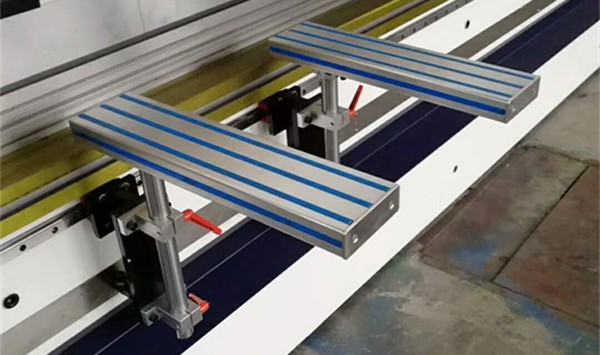

Front arm with features of simple structure, powerful functions, can be adjusted up and down, or moved along the workbench from side to side.
- Slider Stroke (mm): 250 mm
- Automatic Level: Fully Automatic
- Throat Depth (mm): 400 mm
- Machine Type: Synchronized
- Length of Working Table (mm): 4000
- Width of Working Table (mm): 320 mm
- Dimension: 4500x2200x2600mm
- Condition: New
- Place of Origin: Jiangsu, China
- Brand Name: RAYMAX
- Material / Metal Processed: Brass / Copper, Stainless Steel, ALLOY, Carbon steel, Aluminum
- Automation: Automatic
- Extra Services: End Forming
- Weight (KG): 20000
- Motor Power (kw): 22 kw
- Key Selling Points: Automatic
- Warranty: 2 years
- Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
- Showroom Location: Italy, France, Viet Nam, Peru, Indonesia, Thailand, Australia
- Marketing Type: New Product
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- Core Components: Bearing, Motor, Pump
- After-sales Service Provided: Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
- Color: Customer Requirement
- Certification: CE/ISO9001, ce
- Usage: Sheet Metal Processing
- Keyword: Press Brake
- Feature: CNC Controller
- Advantage: Easy Operate
- Nominal Pressure (kN): 2500
- After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
