Products Description

100ton Hydraulic Press Brake Machine For Metal Wc67y Press Brake Machine


WC67Y Hydraulic Press brake

1. Steel-welded construction, vibration to eliminate stress, with high strength and good rigidity.
2. Hydualic top-drive, steadiness and reliability. Mechanical stop, steel torsion bar maintain synchronization, high precision.

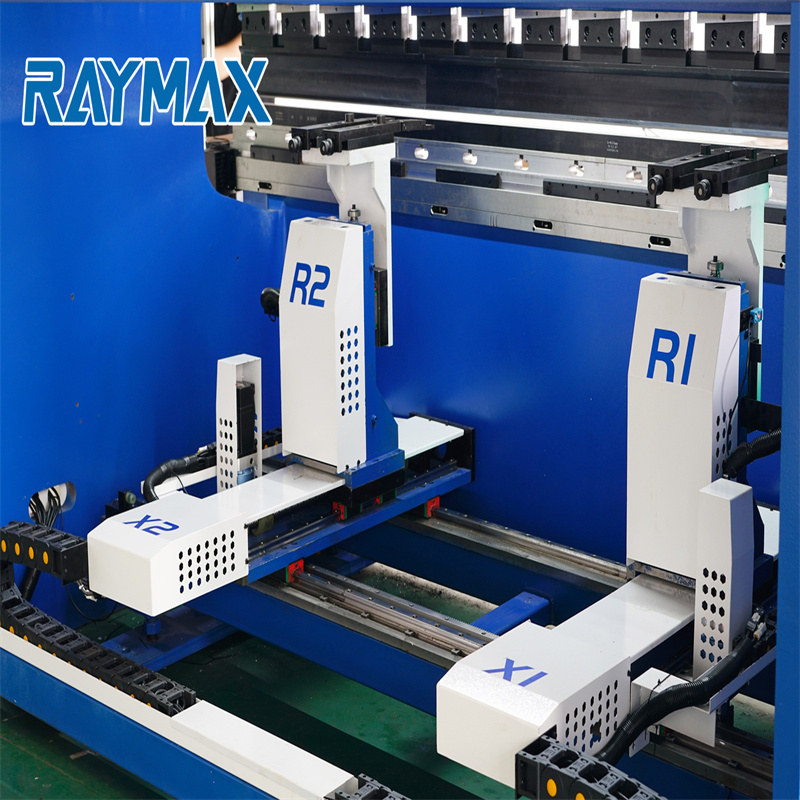

3. Motorize-adjustinf device of backgauge and rams stroke, fine adjusting by handwheel, numberical display.
100ton Hydraulic Press Brake Machine For Metal Wc67y Press Brake Machine

1. Adopt integrated hydraulic control system, more reliable and easy for maintenance.main hydraulic valves from Bosch (Germany)
2. All pipes, flange and joint with vibrations proof and leakage proof design and setting .
3. Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly.
4. The hydraulic system is made in compliance with current regulations.


1. Electrical Cabinet under the international Standard, safe and reliable, strong anti interference capability.
2. Protective fence to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
100ton Hydraulic Press Brake Machine For Metal Wc67y Press Brake Machine

1. Patented system for exact parallelism and a high repeat accuracy
2. The worktable adopts the particular design,reducing the crowning distortion amount of lower tool effectively.
3. Adopt steel torsion bar synchro system,simple in structure and high in accuracy,ensures the parallelism between beams is used for the synchronism.


1. The equipped difference standard Dies according machine’s model, special non-standard mold is available under client's
requirement according to real workpiece situation.
2. Upper and buttom die can be sectioned according to customer’s requirement.
3. The Machine By CNC Controller or NC Control With the point of programming, can calculate thebending angle bending depth.

Product main technical specifications:

Machine model100T-2500100T-3200100T-4000
Nominal forceKN100010001000
Length of working tableMm250032004000
Distance between columnsMm190026003200
Throat depthMm320320320
Max. slide strokeMm120120120
Max. shut heightMm370370370
Travel timesTime/min151515
Main motor powerKw7.57.57.5
Max. hydraulic pressureMpa252525
Outline dimensionsmm2500*1600*24003200*1600*25004000*1600*2500


1. What is your minimum order quantity and warranty?

A: MOQ is one set, and warranty is one year.

2. What CNC system do you use?

A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.

3. When is the delivery time?

A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will be some longer.we will give you the answer accordingly.

4. What is the package of the machines?

A: The machines standard packed by iron pallets with plastic films.

5. How can I choose the most suitable machines ?

A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .

6. What is your trade terms?

A : FOB, CFR,CIF or others terms are all acceptable.

7. What is the payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment; Irrevocable LC at sight .


  • Slider Stroke (mm): 120 mm
  • Automatic Level: Semi-automatic
  • Throat Depth (mm): 320 mm
  • Machine Type: Torsion Bar, 100ton Hydraulic press brake machine WC67Y press brake machine
  • Length of Working Table (mm): 2500 mm
  • Width of Working Table (mm): 2500 mm
  • Dimension: According to machine model
  • Condition: New
  • Material / Metal Processed: Brass / Copper, Stainless Steel, ALLOY, Carbon steel, Aluminum
  • Automation: Automatic
  • Extra Services: Cut To Length
  • Weight (KG): 5000
  • Motor Power (kw): 7.5 kw
  • Key Selling Points: Competitive Price
  • Warranty: 13 months
  • Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Factory
  • Showroom Location: Indonesia, Russia
  • Marketing Type: New Product 2020
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 1 Year
  • Core Components: Motor
  • Raw Material: Sheet / Plate Rolling
  • After-sales Service Provided: No overseas service provided
  • Product name: Hydraulic press brake machine price WC67Y cnc press brake
  • Nominal force: 1000kn
  • Length of working table: 2500mm , 3200mm, 4000mm
  • Distance between columns: 1900mm, 2600mm, 3200mm
  • Usage: Hydraulic press brake
  • Function: Steel Metal Bending
  • Control system: E21/DElEM/CYBELEC
  • Certification: CE
  • After Warranty Service: Video technical support, Online support
  • Local Service Location: Indonesia, Russia
