10mm Steel Automatic Die Card Deep Throat Number Plate Punching Machine On Metal

Product Description

J23 Series Presses is one of the new generation of plate process and developed by RAYMAX, The press is for cutting, punching, blanking, bending and light stretching work

1. C- frame provides maximum rigidity and minimum deflection for accurate parts and long tool life.Steel-welded frame, high rigidity and less deformation Compact.Thick plates and large columns provide you with the stable platform you need for your demanding application.

2. Wide body frame eliminating vibration for improved ide life and machine,which means economical and practical. Operation space is wide, and the movable bolster could be moved out of frame to set the die. The structure is simple and the appliance is also beautiful.

3. High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.

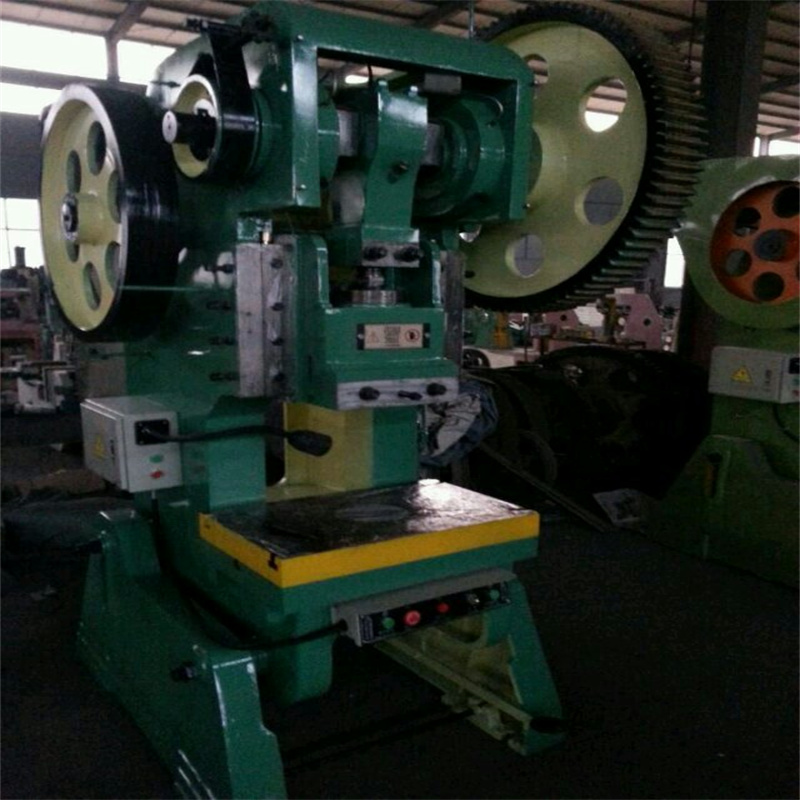

10mm Steel Automatic Die Card Deep Throat Number Plate Punching Machine On Metal

Transmission control and brake systems:

1. Use the combine of dry friction clutch and brake pneumatic,rigid interlocking, reliable piece of friction material semi-metallic friction material SMFM-88, less pollution, long life. With the transfer torque, rotational inertia is small, smooth transmission, flexible operation, convenient of installation andmaintenance

2. Die height adjustment of slider with manual mode, the scale display. Extended by four triangular rail, easy adjustment.

3. Use double safety valve to ensure the accurate implementation of the clutch instruction.

4. Electrical control is installed PLC, 8 group cam controller, reliable action.

5. Electrical control adopts Omron PLC for centralized control, improved machine reliability

6. Proximity switch with 8 groups consisting of Schneider cam controller, reliable synchronization detection and monitoring.

7. Machine is with both hands button and foot switch to achieve continuous, single and inching practices.

8. Can move the ram up slowly,which allows the operator to control Mold adjustment conveniently.

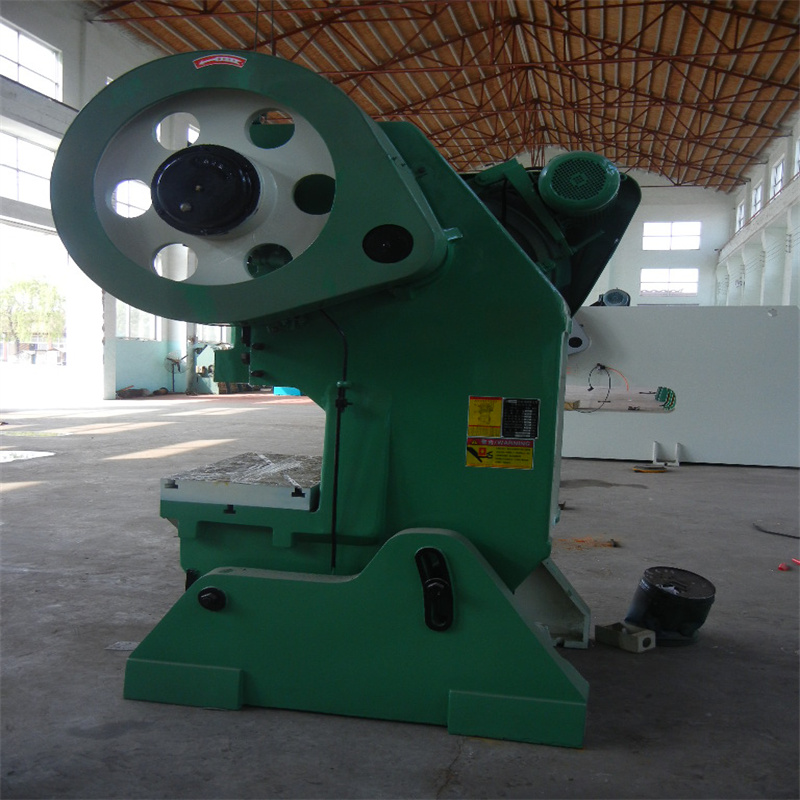

10mm Steel Automatic Die Card Deep Throat Number Plate Punching Machine On Metal

Ram adjustment and Structure:

1. Adjustable stroke machine, slide stroke to achieve a certain level within the range of adjustable, body steel plate welded structure, the whole body is tempered, use the secondary transmission, the transmission part of the crankshaft horizontal placement, flywheel and gear are the external open style, easy maintenance.

2. Slider is a cast box structure and rigid. Collapse of the slider-style installation of pressure overload protection device, simple structure, if the slider overload, the fuse collapse is damaged, then protect the machine tool and die from damage.

Electrical system and the safety interlock:

1. Electrical components are imported or from Sino-foreign joint Venture, in accordance with international standards, reliable safety, long life, good anti-interference ability, a radiation unit is fitted in electrical cabinet.

2. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch, easy to operate.

3. The machine by the European Union CE certification and ISO quality system certification.

Details

  • CNC or Not: Normal
  • Condition: New
  • Machine Type: Punching Machine
  • Slide Stroke (mm): 110
  • Power Source: Mechanical
  • Voltage: 220V/380V/415/600V
  • Dimension(L*W*H): 1700x1280x2470mm
  • Motor Power (kW): 4
  • Model Number: J23-63T
  • Weight (T): 4000
  • Key Selling Points: Competitive Price
  • Warranty: 1 Year
  • Applicable Industries: Manufacturing Plant, Machinery Repair Shops
  • Showroom Location: Viet Nam, Peru, Kenya
  • Marketing Type: New Product 2020
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 1 Year
  • Core Components: Gear, Motor
  • Nominal Force (kN): 630
  • After-sales Service Provided: Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
  • After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
  • Local Service¬†Location: Viet Nam, Peru, Kenya, Algeria
  • Certification: CE
