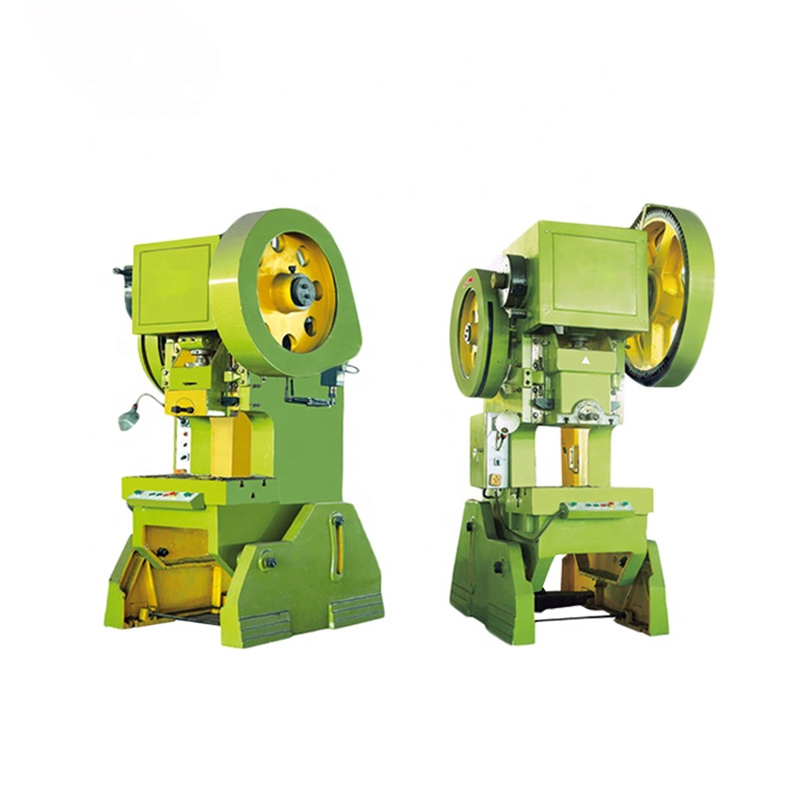

40 Ton Sheet Metal CNC Punching Machine For Metal Working

Features

1. This series of press adopts rotating key positive clutch,which has a simple structure and is convenient to operate and
maintain,achieving smooth operation, low impact and low noise.

2. J23-25 open type inclinable press machine is the first to adopt rolling bearing rather than the commonly used sliding bearing(copper bearing) for the transmission gear, making the transmission gear more wear-resistant and avoiding loud noises of gears caused by the quickly worn copper bearing;

3. The 80T level and above press machine all adopt the structure of pneumatic dual balance cylinder, chich has small fluctuation of the balancec force and it balances the slider and the upper die, chich can cause the lathe unstable.

4. And it can also avoide the clsah and noise caused by the converse force of gears in transmission, and avoid accidents cause by the falling of slider when the brake fails or the connecting rod ruptures.
40 Ton Sheet Metal CNC Punching Machine For Metal Working

Specification

SpecificationsJ23-35J23-40J23-63J23-80
Nominal force350400630800
Nominal Stroke3.5667
Slide Stroke8090110120
Slide Strokes Per MinuteH-Speed
L-Speed50455038
Maximum Die Set Height290320360440
Die Height Adjustment60658090
Throat Depth220250260350
Distance Between Uprights280340350450
Bottom size of slideL×R250300300430
F×B220260260360
Shank Hole SizeDia40505060
Depth60707075
Bolster sizeL×R610700760950
F×B400460480650
Blanking Hole Diameter130150180200
Bolster Thickness606580100
Max Angle of Inclination30302020
Bolster Surface Height815850810850
Overall DimensionsF×B1460172118102060
L×R1058133513501715
H2225248827403290
Distance Between Foundation BoltsF×B1020106011801360
L×R6507508501010
MotorPower45.55.57.5
Weight(Approximate)2650354045507390

40 Ton Sheet Metal CNC Punching Machine For Metal Working

FAQ

Q1: How is the warranty?

A1: Warranty time is 13 months after BL date.

Q2: Can we visit your factory before order?

A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3: Do you have a stock?

A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4: What’s the MOQ?

A4:One set only.

Q5: How about your quality?

A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6: Do you have professional engineers?

A6: Yes.we have professional engineers and designers. We can provide OEM services.

Q7: Can you provide customized machines?

A7: Yes, we can design and manufacture according to your specific requirements.

Details

  • CNC or Not: Normal
  • Condition: New
  • Machine Type: Punching Machine, Target Hole Punching Machine
  • Slide Stroke (mm): 90
  • Power Source: Mechanical
  • Place of Origin: Anhui, China
  • Voltage: 220v/380v
  • Dimension(L*W*H): 1721x2335x2488mm
  • Motor Power (kW): 5.5
  • Model Number: J23-40
  • Weight (T): 3.54
  • Key Selling Points: Competitive Price
  • Warranty: 1 Year
  • Applicable Industries: Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Construction works , Other
  • Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Japan, Malaysia, Australia
  • Marketing Type: New Product 2022
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 1 Year

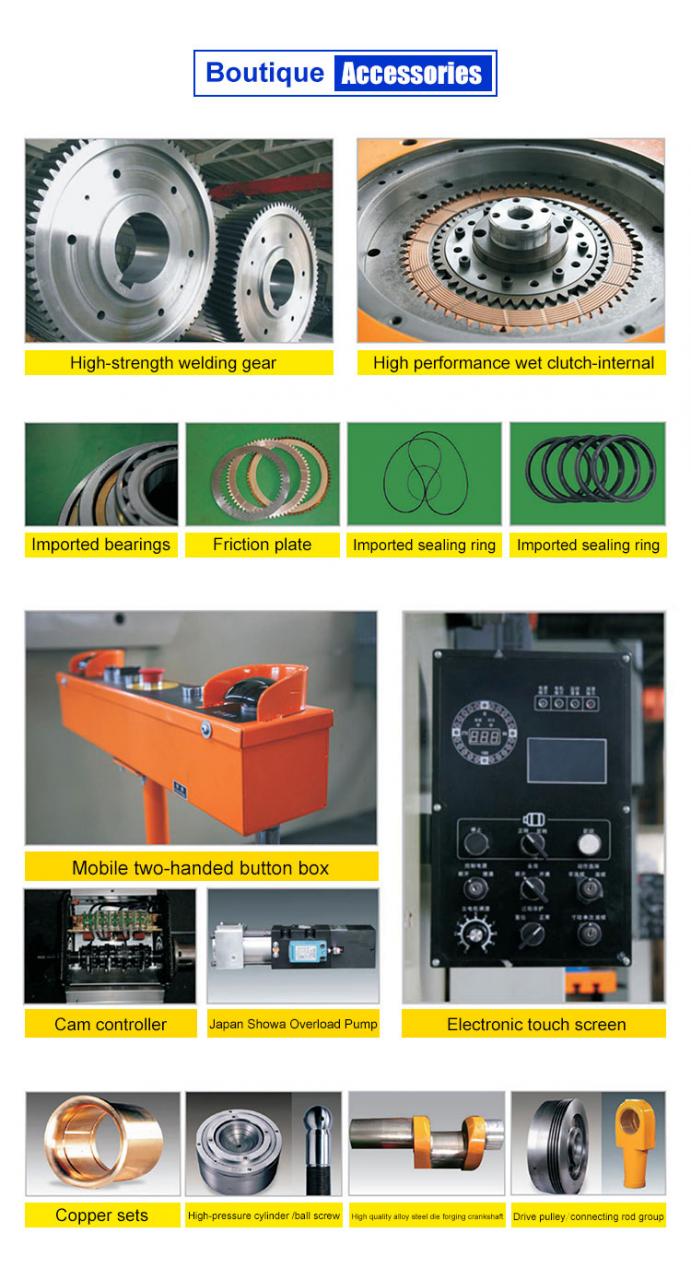

  • Core Components: Bearing, Pump, Gear, Motor, Gearbox, PLC, Pressure vessel, Engine, Other
  • Product Name: Punching Pressing Machine
  • Keyword: J23 Mechanical Punching Machine
  • Application: Metal Sheet
  • Color: Optional Color
  • Name: Punch Press
  • Function: Steel Metal Punching
  • Usage: Pressing Metal Products
  • Material: Steel Material
  • Precision: High Precision
