100 Ton Stamping Punch Press Machine Mechanical Presses Punching Machine For Metal

Product Description

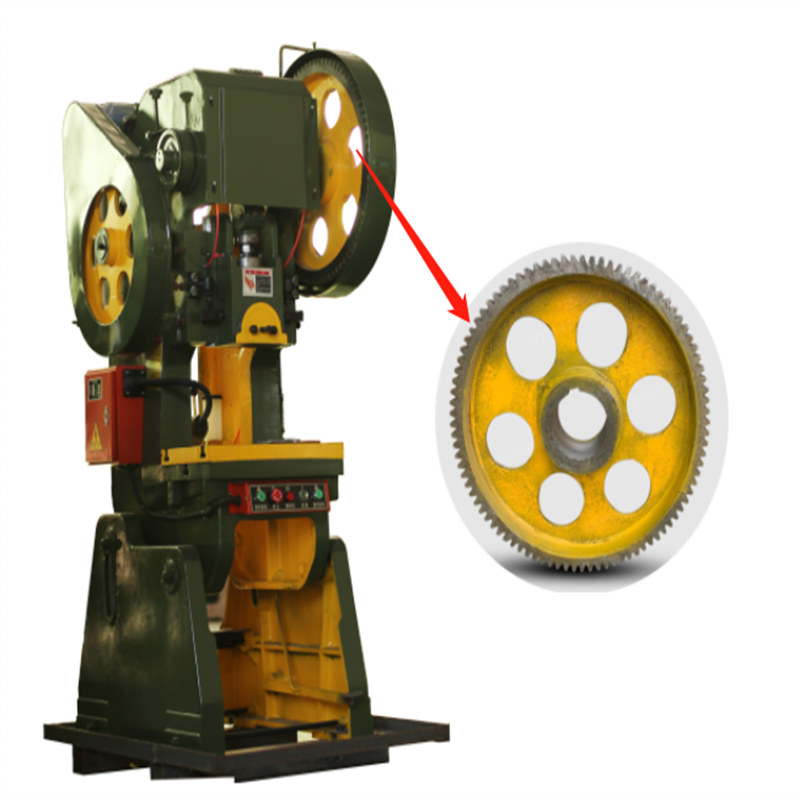

1. It adopts horizontal crankshaft and open external gear, which is convenient for maintenance.

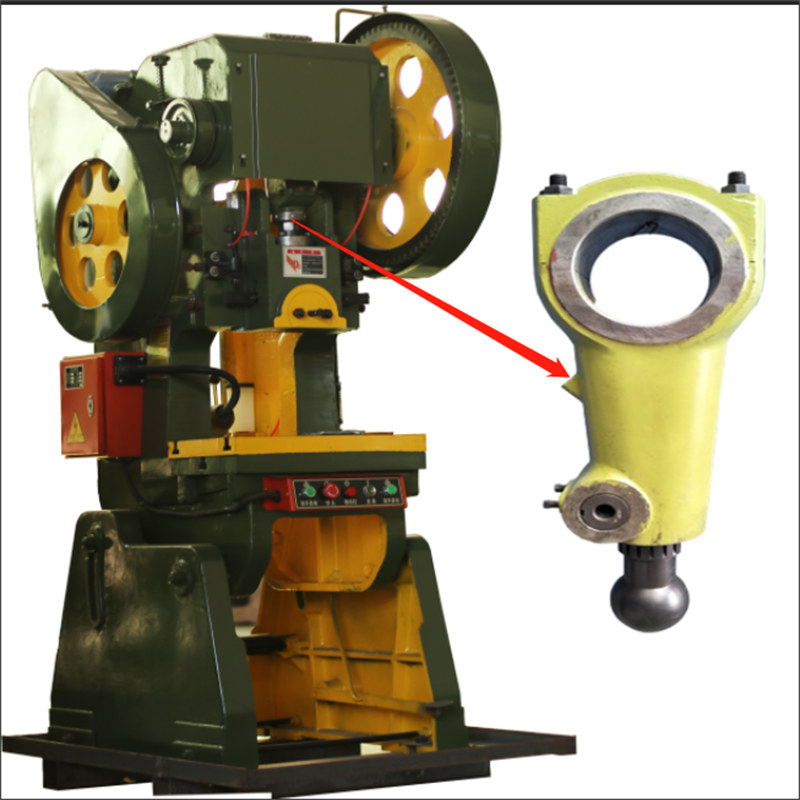

2. The sliding block of the cast box structure has good rigidity.

3. Built-in block collapsed overload protection device, the structure is simple if slider after overload, fuse collapsed destroyed to protect the machine and mold from damage.

4. It adopts hand and foot switch operation button design, which is convenient for continuous, single and adjustment operation.

5. Compatible with the automatic feeding system of corresponding presses, with feeding error detection, pre-cutting and pre-breaking devices, low cost and high efficiency.
100 Ton Stamping Punch Press Machine Mechanical Presses Punching Machine For Metal


Norminal forceKN1000
Norminal strokemm6
Slide strokemm160
Between slide center and framemm760
Slide area (F·B*L·R)mm500*650
Shank hole (Dia*Depth)mmφ60*80
Main motor powerKW11

100 Ton Stamping Punch Press Machine Mechanical Presses Punching Machine For Metal
The open press is a universal press for sheet metal for cutting, punching, blanking, bending and shallow drawing. Usually used for stamping and forming of metal parts (communication, computers, household appliances, furniture, vehicles, automobiles, motorcycles, bicycles, etc.).

This punching press machine can be cooperated with automatic feeding machine. It is suitable for blanking, trimming, punching hole, forming, bending, shallow stretching and other cold stamping process. The machine is not only used for the SUS cutlery items, but also for different kinds of materials, including metal, copper, aluminum, brass, alloy, steel, iron etc..


Q: How to select the right machine for your project?

A: Please just help send the below information, our engineers will help make the best solution for you. 1. Items information: photo, material, size, thickness 2, capacity equipment and how automatically do you need. Where is your location? We are in jieyang city, which is very famous on the sus material and cutlery making. Air port name is: chaoshan air port. High speed train station: chaoshan station.

Q: Are you factory or not?

A: We are factory specializing on cutlery making machine making for over 13years, but also help clients purchase some related machine or material for cutlery/tableware items.

Q: If I want to set up a factory, could you help?

A: Yes, our engineers will help you analysis on the samples situation, your capacity request and your project plan then we will help give the best suggestion on layout, design, quotation.

Q: Trade terms?

A: EXW or CIF, FOB are acceptable.

Q: Terms of payment?

A: 30% T/T deposit, 70% balance payment before shipment.

Q: Delivery time?

A: 15~60 days depend on the orders.

Q: Warranty?

A: One year of guarantee except the easy - damaged parts and engineers will provide the online technical supports all the time.


  • Condition: New
  • Machine Type: Punching Machine
  • Slide Stroke (mm): 160
  • Power Source: Mechanical
  • Voltage: 380V/220V Optional
  • Motor Power (kW): 11
  • Model Number: JC23-100A
  • Weight (T): 11.5
  • Key Selling Points: automatic
  • Warranty: 1 Year
  • Applicable Industries: Manufacturing Plant, stainless steel products
  • Showroom Location: None
  • Marketing Type: New Product 2020
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 1 Year
  • Core Components: Motor
