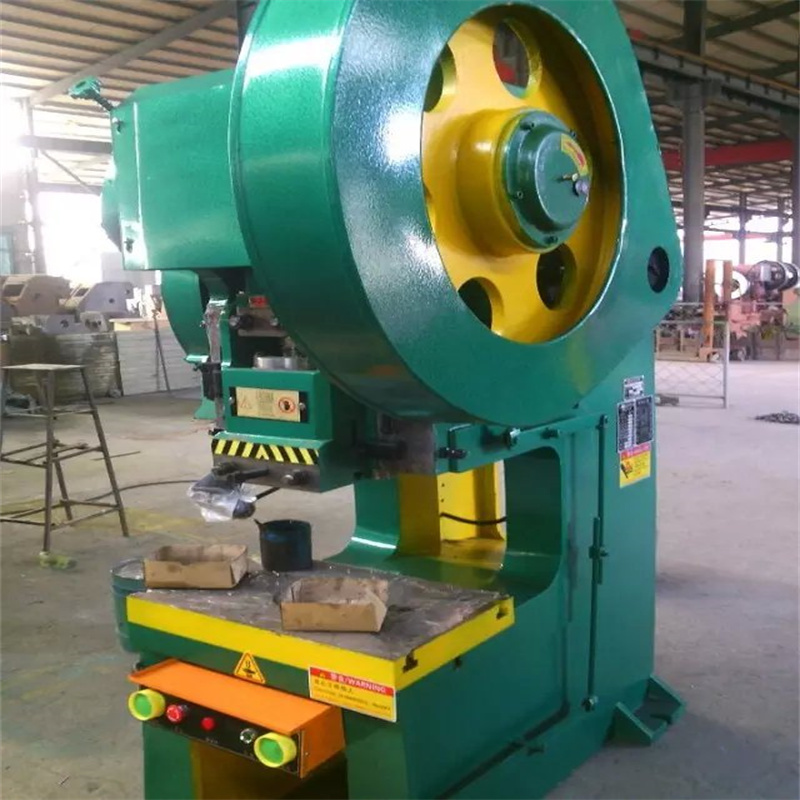

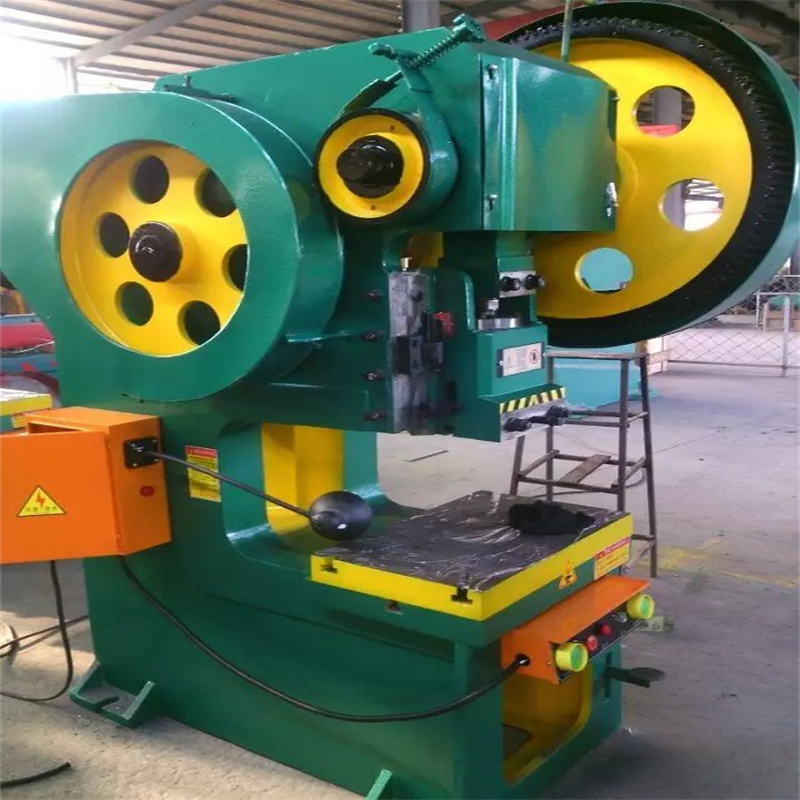

10ton C Type Frame Punching Machine Small Hydraulic Power Press

The machine of whole structure and characteristics :

1. J23 Series High Precision Presses punching machine is one of the new generation of plate process and developed by RAYMAX, The punching machine is for cutting, punching, blanking, bending and light stretching work.

2. C Type Steel welded frame, high rigidity and less deformation Compact, wide body frame eliminating vibration for improved ide life and machine.

3. Rigid construction guarantees exact die mating, Six side long rectangle guides of the slide with high moving precision and high accuracy, extending the service life of the die.

4. Highly advanced, rigidly supported gears, operate in oil bath without any noise saves space, reduces, shaft deflection,
increases gear life.

5. High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.

Size Information

Model		Unit	J23-16	J23-25	J23-40	J23-63	J23-80	J23-100	J23-160
Normial Force		KN	160	250	400	630	800	1000	1600
Slipper Stroke		mm	70	90	100	120	120	130	160
Slipper stroke times		次/min	120	100	55	50	50	45	50
Max.Closing Height		mm	220	250	300	360	360	400	450
Connecting Rod adjuster		mm	60	70	80	90	90	100	120
Throat Depth		mm	160	190	240	260	260	320	380
Pole Distance		mm	220	250	300	350	400	420	440
Angle of inclination		°	30	30	30	25	25	0	0
Worktable size	L-R	mm	450	560	700	710	710	900	1120
	F-B	mm	300	360	460	480	480	600	710
Slipper underside bore	L-R	mm	200	250	320	320	320	390	510
	F-B	mm	180	210	270	280	280	340	370
Size of die handle bore	Diameter	mm	40	40	50	50	50	50	80
	Depth	mm	60	60	70	80	80	85	80
Dimension	F-B	mm	1140	1350	1500	1810	1800	2100	2175
	L-R	mm	900	950	1180	1400	1480	1740	1288
	Height	mm	1890	2200	2300	2750	2820	3240	3047
Motor Power		Kw	1.5	2.2	4	5.5	7.5	11	15
Weight		Kg	850	1300	2700	3500	4500	5500	7800
