● CNC Series machines redesigned based on users preferences to become a unique machine with its individual electronic and mechanical features.
● CNC Series are among the highest rated machines which will help you increase your productivity and keep costs at minimum level
● With its user friendly CNC controller and low cost hydraulic maintenance.
● New CNC is exactly what you need for your production where complicated, sensitive, single or multiple bends on high speed are paramount.
● High quality and repetitive bending is obtained by using synchronized cylinders and valves.
●Automatic utilisation of all axes on startup.
●Rigid upper beam runs on 8-point bearings with bending precision of 0,01 mm.
● Well-known top and bottom tool brands are long lasting hardened and provide precise bending.
● All Bamboo machines are designed using SOLID WORKS 3D programming and made with enhanced ST44-1 quality steel using the latest Technology.

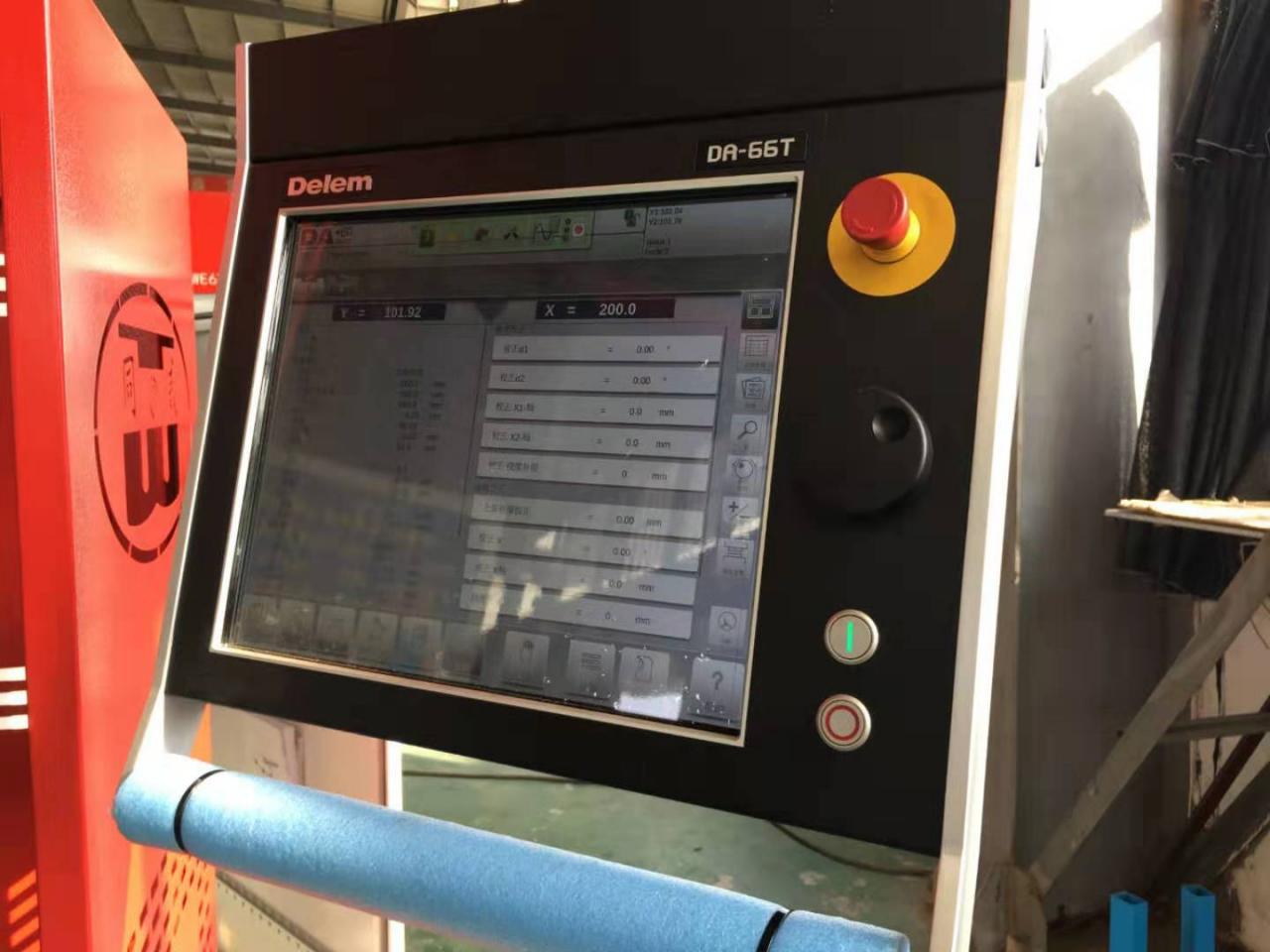

Delem DA66T Controller
● 17" high resolution colour TFT / Full touch screen control (IR-touch)
● 2D graphical touch screen programming mode
● 3D visualisation in simulation and production
● Storage capacity 1 GB - 3D graphics acceleration
● Delem Modusys compatibility (module scalability & adaptivity)
● The basic machine control functions are Y1 Y2 X R Z1 Z2-axis, Optionally a second back gauge axis can be used as X1 X2 or R2 axis
Quick Clamp Front Support Mould
●Up punching dies will be cut into section as the requirement as below:
●25mm 30mm 40mm 45mm 50mm 170mm 100mm right 100mm left.
●The equipped standard Dies, special non-standard mold is available under client's requirement according to real workpiece situation

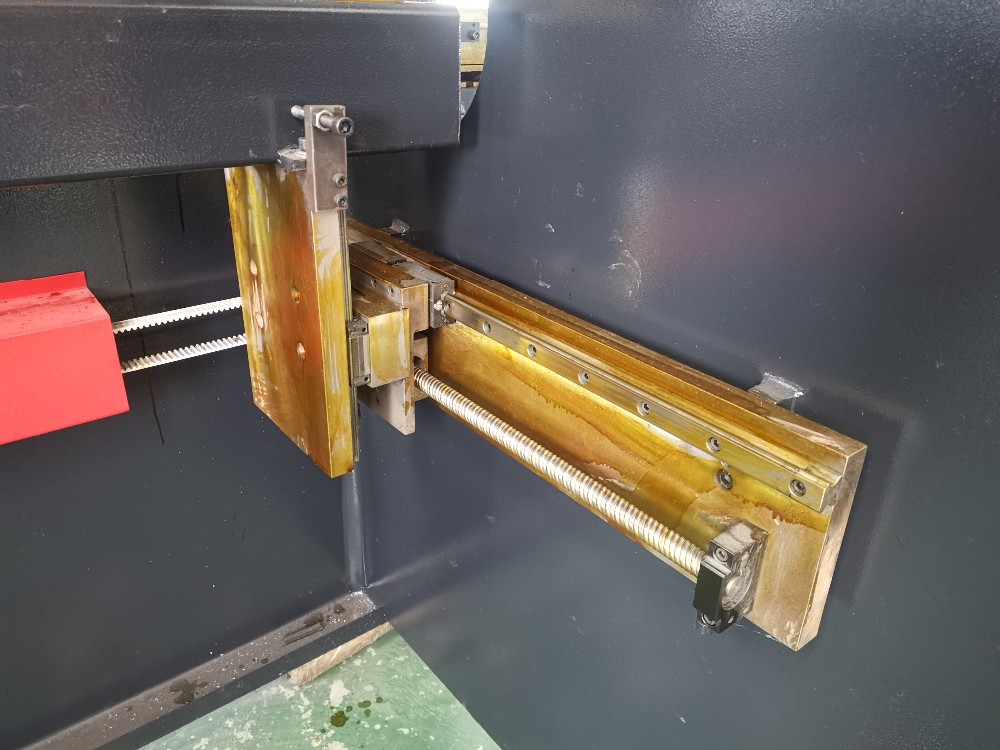

Backgauge of CNC Press Brake
FULL CNC BACKGAUGE movements are driven by YASKAWA Servo Motors & Drives.

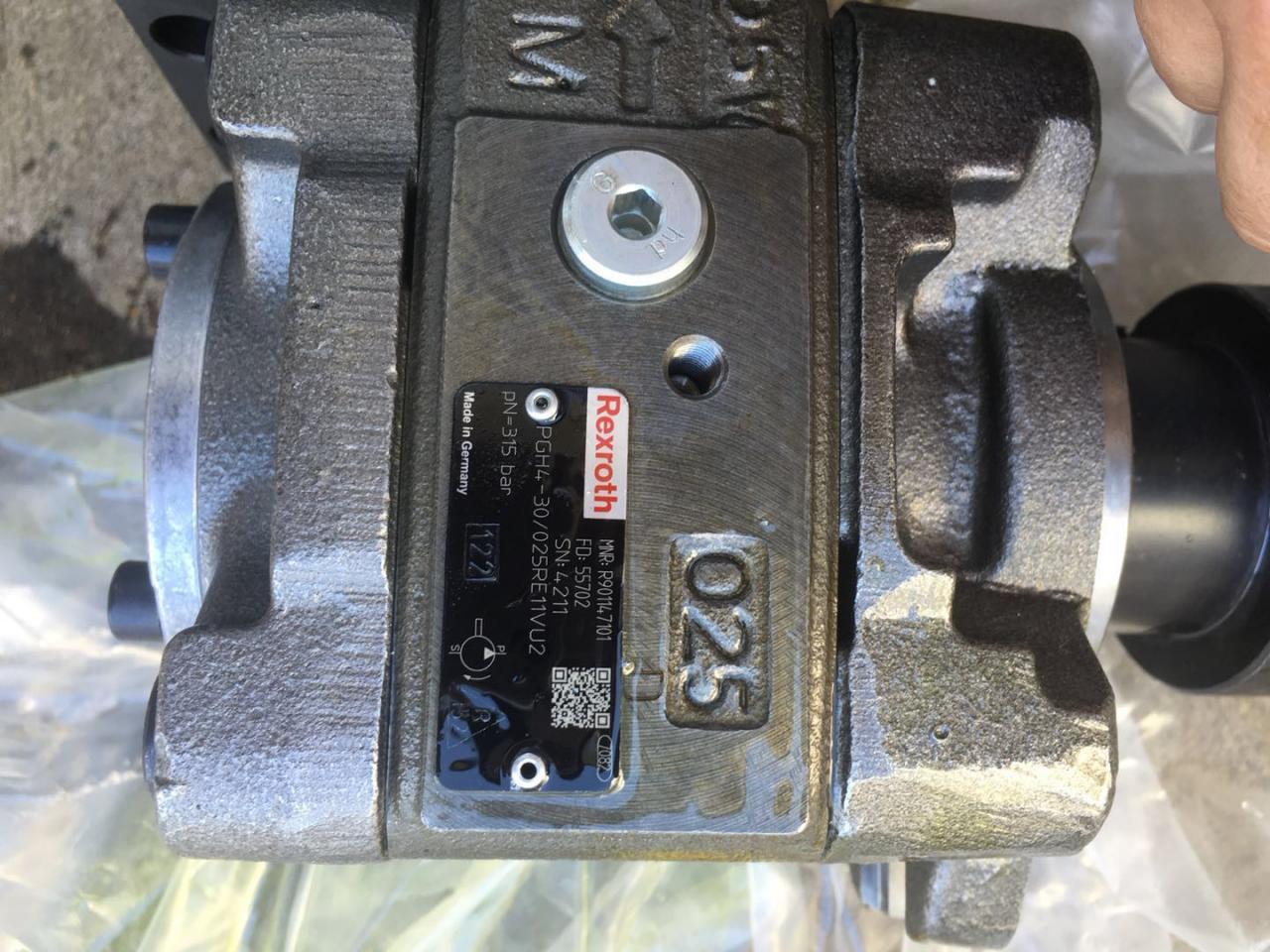

Bosch Rexroth Hydraulic System
● Adopt integrated hydraulic control system, more reliable and easy for maintenance.
● Reduced noise: the particular installation choices allow to obtain especially moderate noise levels both on machines of average capacity
● Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly.
Ball screw and linear guide
High precision, low noise
CNC ESA S630
We are factory, and was set up in 2003! Our factory mainly production shearing machine, press brake machine, rolling machine, punching machine, hydraulic press machine ,iron worker, welding machine .
Our product quality guarantee period is 12 months from B/L date. During guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by customers' incorrect operations, we will provide customers spare parts at cost price. We also can offer flexible extended warranties according to the actual situation.
Our engineer can go to your factory for installation and showing operation details on condition of you provide the round-trip air tickets, visa formalities, food and accommodation. In turn, your engineers can come to our factory for learning the installation, operation and maintenance for free.
Why Choose Us:
1. We will run the machine for a few days, and use your materials to do the test. Only guarantee the machine shows best performance, and then we will ship out.
2. Our elite teams can provide you professional, customized, and all-round services around the clock. If you need any help, contact us by WHATSAPP, Skype, Email or Telephone.
How can we provide you efficient services (metal processing solution):
There are Three Steps as following:
1. Gather your requirements based on your real working situation.
2. Analyze your information and provide our feedback.
3. Offer options based on your specific needs. For instance, reg. standard products, we can offer professional recommendations; reg. non-standard products, we can offer professional designing.
- Slider Stroke (mm): 120 mm
- Automatic Level: Fully Automatic
- Throat Depth (mm): 320 mm
- Machine Type: Synchronized, Press Brake Machine
- Length of Working Table (mm): 4000
- Width of Working Table (mm): 2500 mm
- Condition: New
- Material / Metal Processed: Brass / Copper, Stainless Steel, ALLOY, Carbon steel, Aluminum
- Automation: Automatic
- Extra Services: Machining
- Weight (KG): 18000
- Motor Power (kw): 22 kw
- Key Selling Points: Automatic
- Warranty: 3 years
- Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
- Showroom Location: Egypt, Canada, France, Peru, Algeria, Sri Lanka
- Marketing Type: Ordinary Product
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 3 years
- Core Components: PLC
- Application: Stainless Plate Bending
- Color: Customer choose
- Name: Hydraulic Press Brake
- Voltage: 220V/380V/415V/440V/customized
- Certification: CE ISO
- Ball Screw: Hiwn From Taiwan
- Control system: DA41 DA56 DA66 Option
- Power: Hydraulic
- Nominal Pressure (kN): 3000
