3+1 Axis Cnc Hydraulic Press Brake With Esa System

Main features:

* 3 1 Axis,Y1 Y2 X axis crowing

* Fast Released Clamp

* Synchronized cylinders for Y1 & Y2 axis. * Schneider Electrics, Yaskawa Servo Motor and Driver

* Imported ball bearing lead screw and linear guide rail

Controller	DELEM 52S
Motor	Siemens
Valve	BOSCH Rexroth
Electrics	Schneider
Pump	Sunny
Servo	Yaskawa
Foot Pedal	Kacon

Controller

DELEM DA52S

* Quick, one page programming
* Hotkey navigation
* 7” VGA colour TFT
* Up to 4 axes (Y1, Y2, and 2 auxiliary axes)
* Crowning control* Tool/material/product library
* USB, peripheral interfacing
* Advanced Y-axis control algorithms for closed loop as well as open loop valves

Main Parameters

Series	Name	PB-CNC 63T/1600	Unit
1	CNC Controller	DA52S
2	Axis	Y1 Y2 X Crowing
3	Bending Force	63	Ton
4	Max. Bending Width	1600	mm
5	Max. Bending Thickness	5(MS,L=1600mm),3(SS,L=1600mm)	mm
6	Stroke	200	mm
7	Column Distance	1000	mm
8	GAP	480	mm
9	Throat Depth	320	mm
10	Worktable Width	110	mm
11	Main Motor Power	5.5	KW
12	Back Gauge Stroke	600	mm
13	X axis Accuracy	0.01	mm
14	Oil Pump	13-MCY
15	Max. Hydraulic Pressure	30	Mpa
16	Hydraulic Oil need	100(L-HM 46)	L
17	Crowing	Electric Crowing
18	Voltage	220/380/415/440	V
19	Length	2000	mm
20	Width	1700	mm
21	Height	2100	mm
22	Weight	3000	KG

Detailed Images

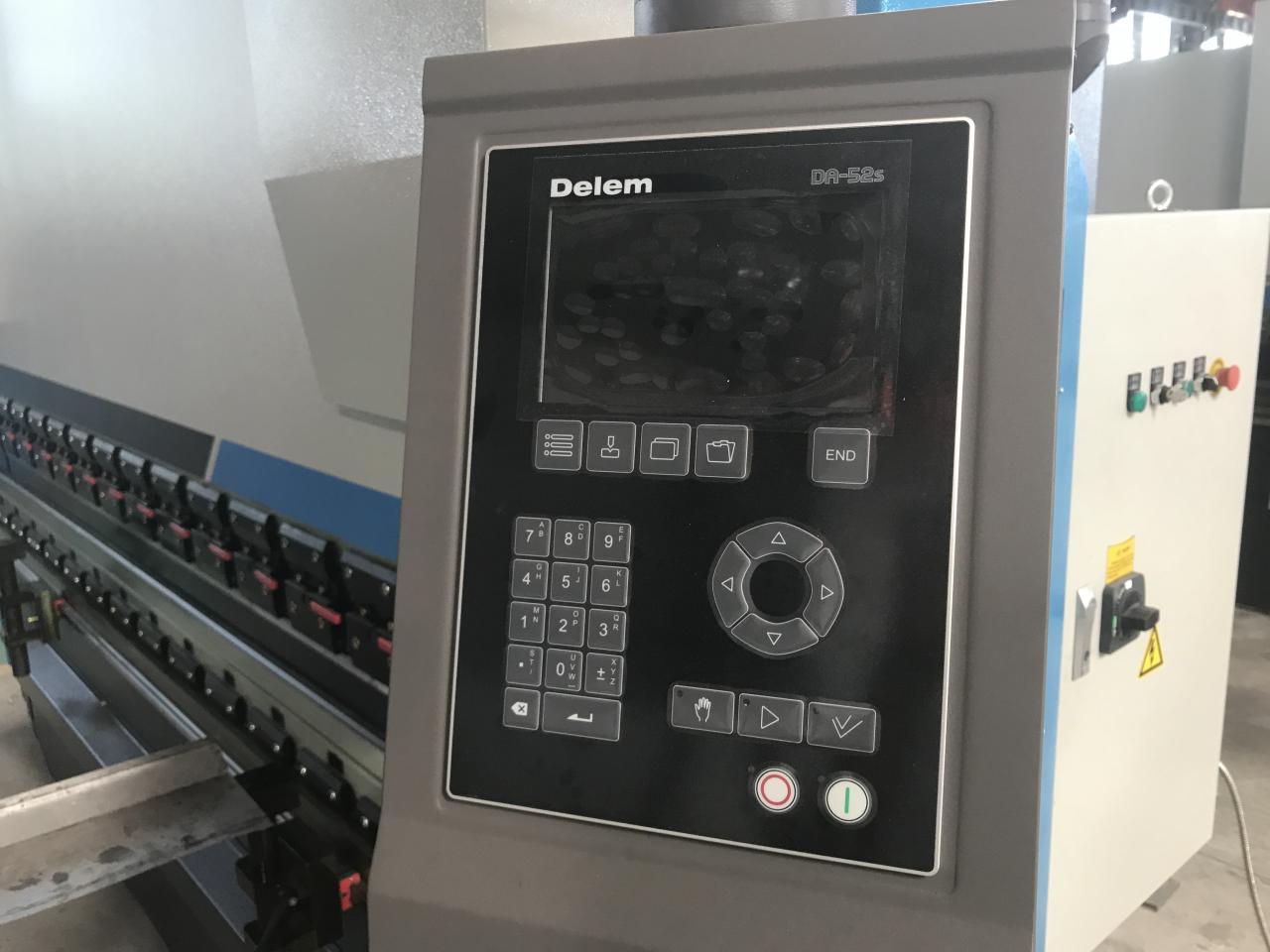

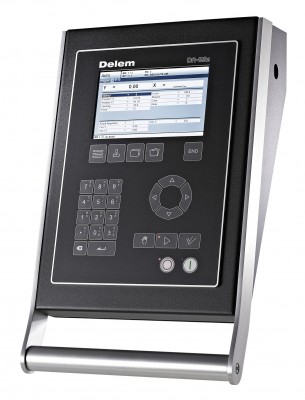

DA52S Controller

Top quality and grade in the world

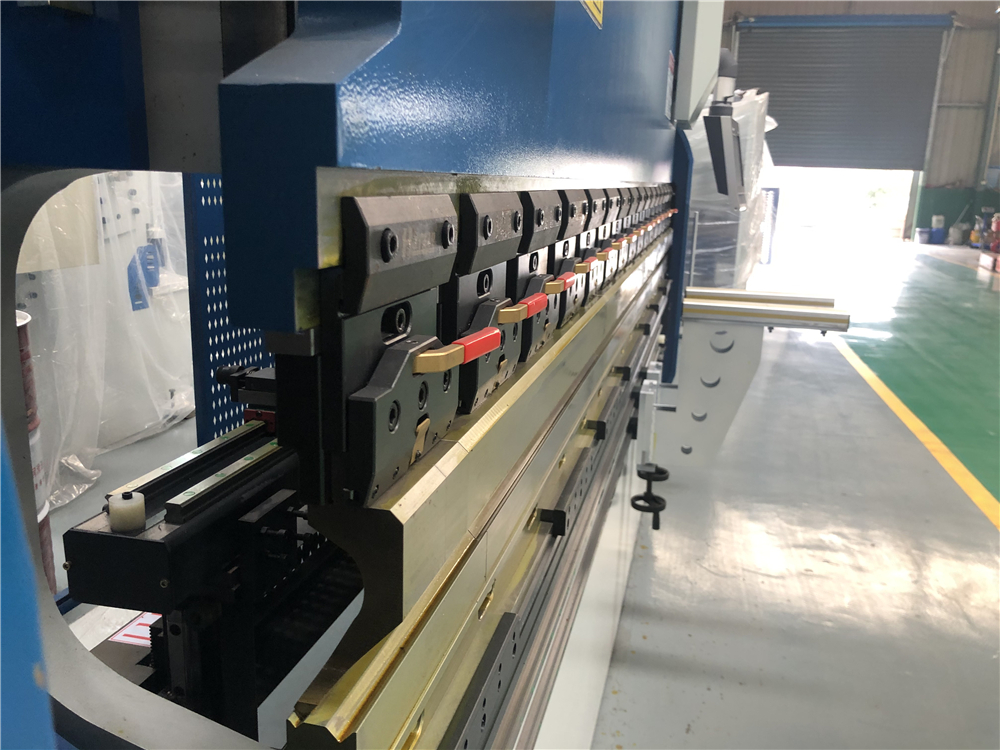

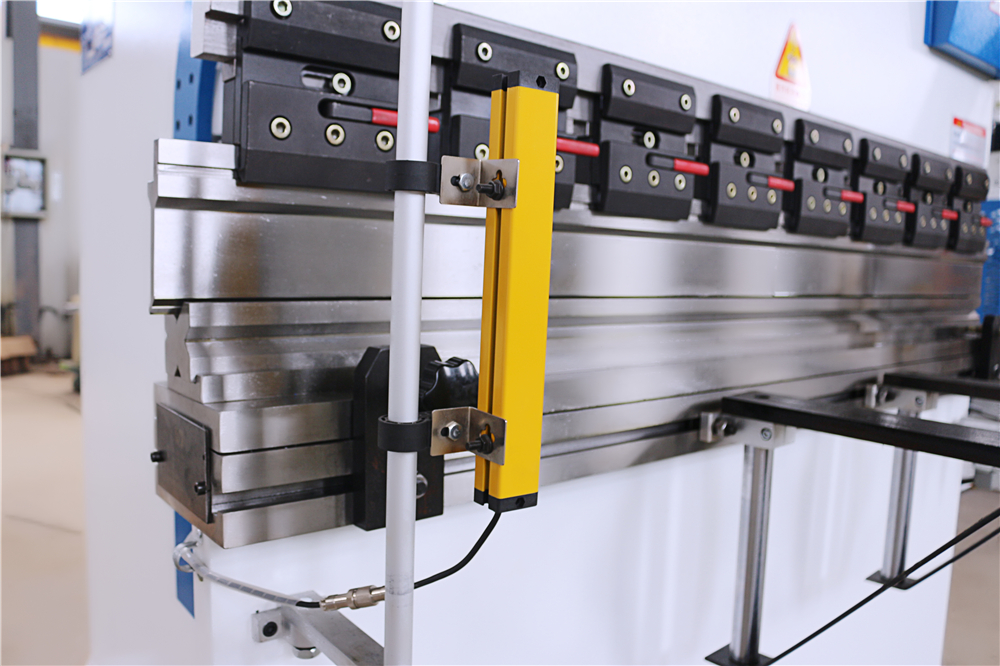

Fast Released Tool Clamp

One Key loosen and fix

Electric Crowing

Automatic crowing table controled by system

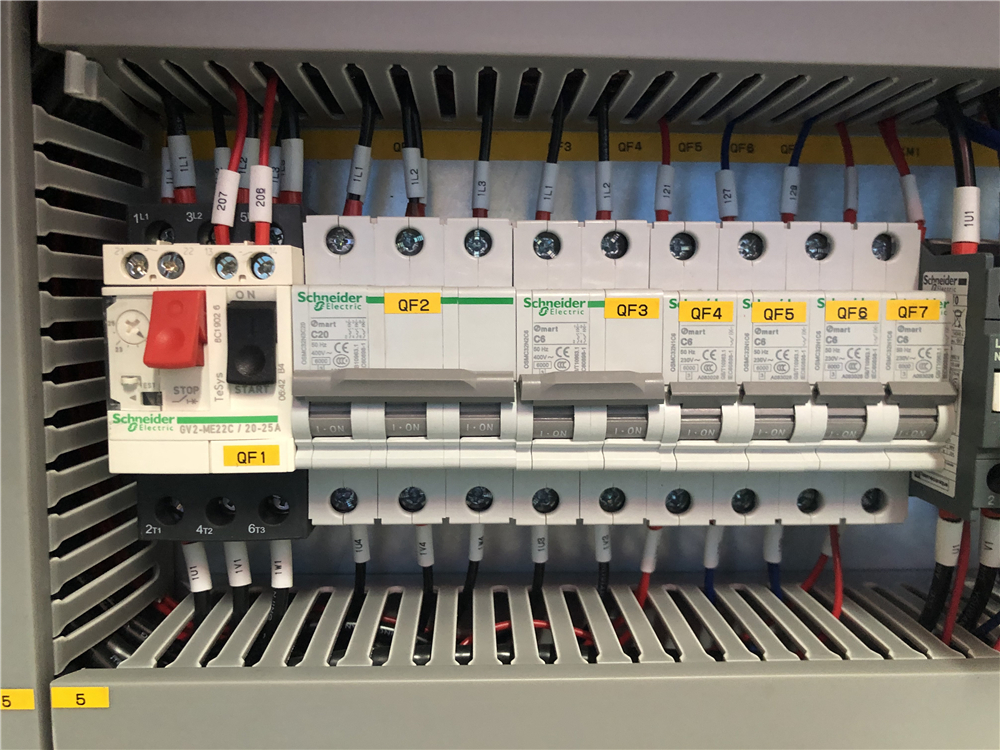

Schneider Electrics

World famous bran, Stable quality. easy to get replace parts

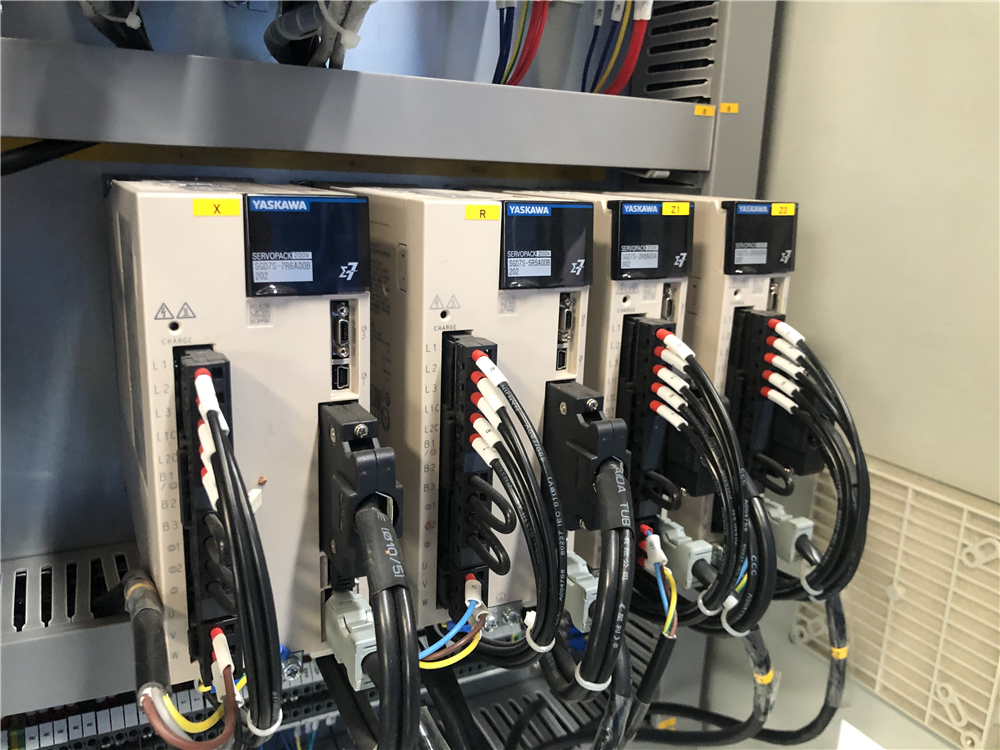

Yaskawa Servo

Japanese Brand, High quality.

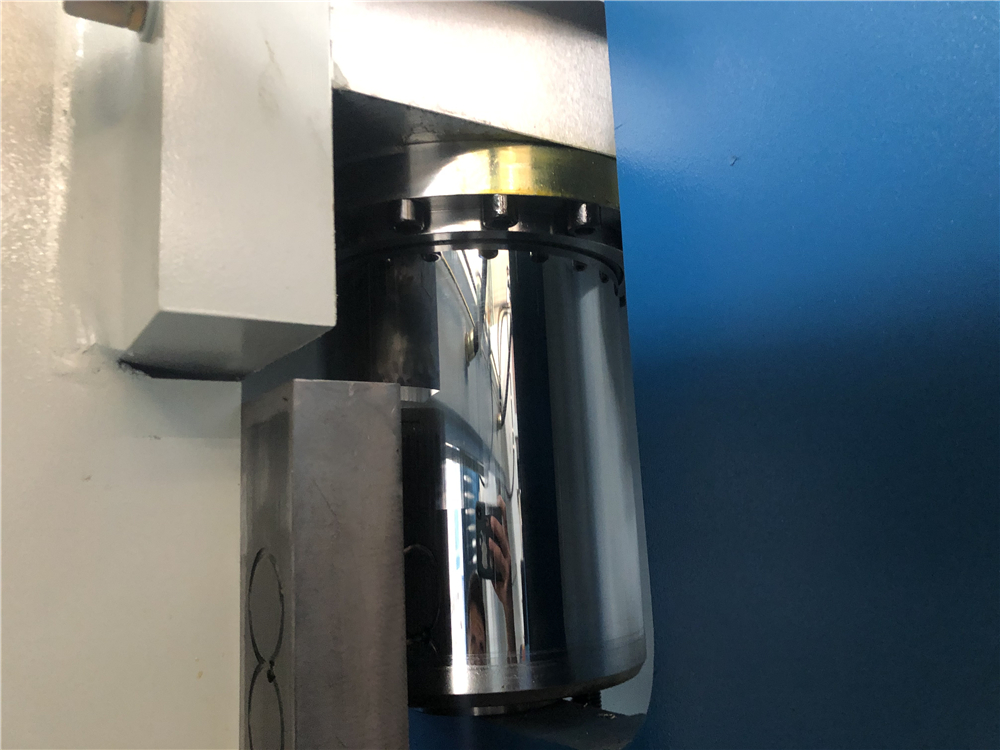

Taifeng Cylinder

Most Famous brand in China. Life-long time aftersale maintance.

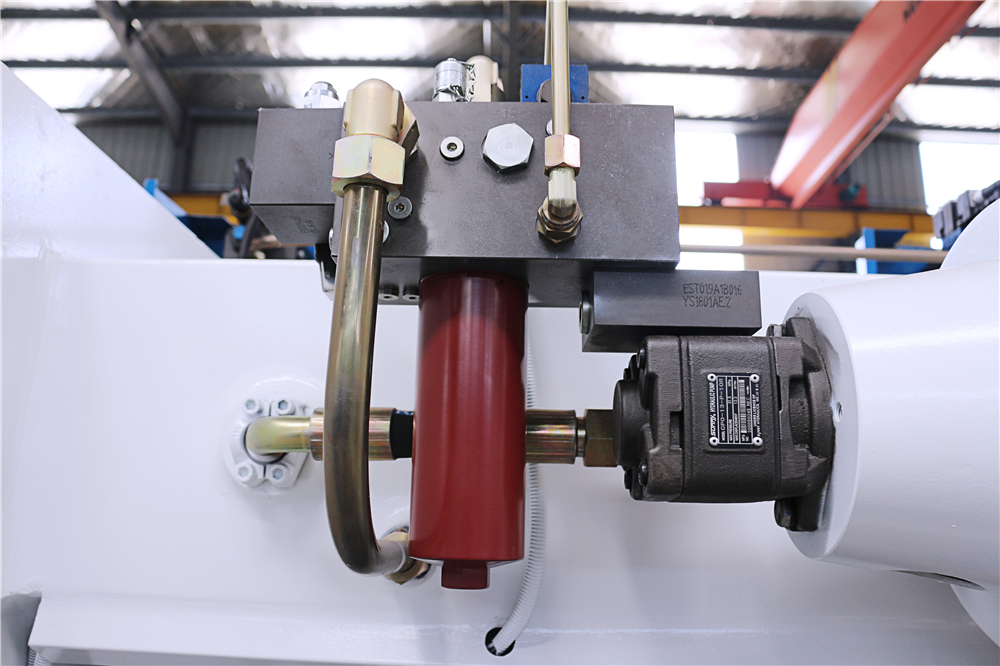

Rexroth Valve

Germany BOSCH Valve. Simple Structure,Easy to repaire

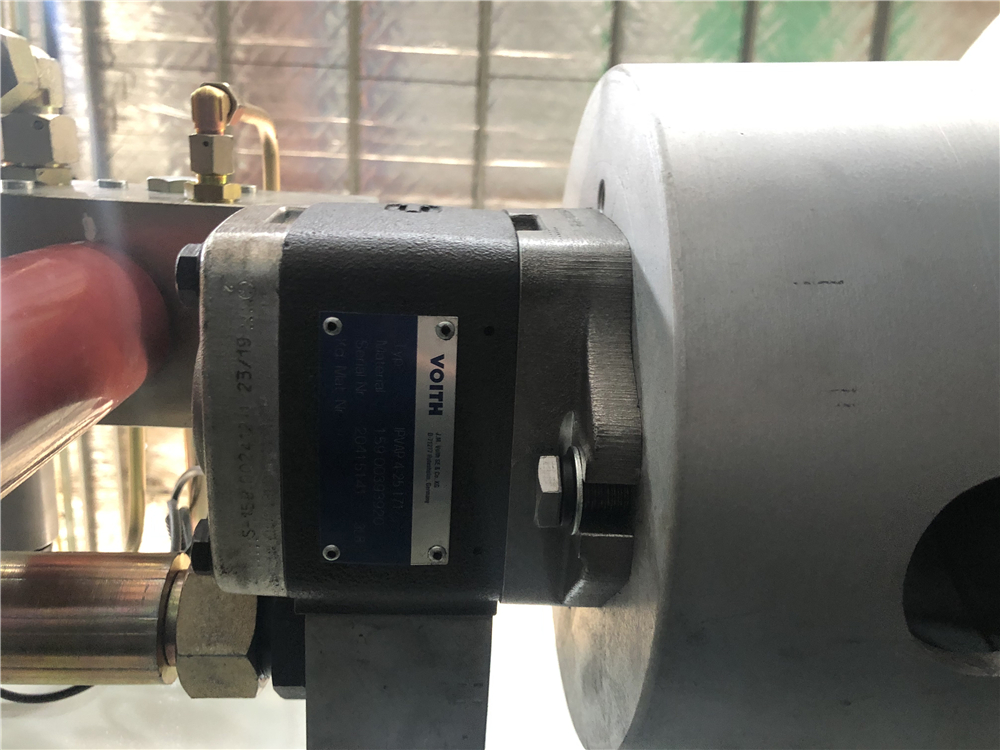

Sunny Oil Pump

American most famous pump brand.High quality

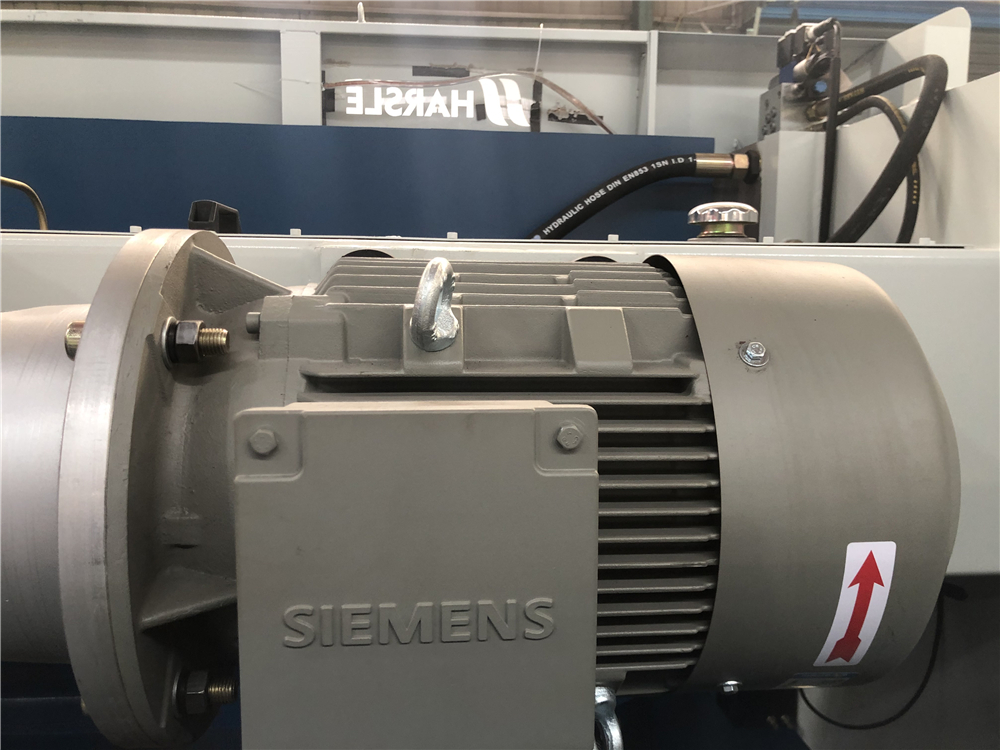

Siemens Motor

Original Germany Siemens imported motor

Side Light Curtain

SDKELI Brand, CE satandard

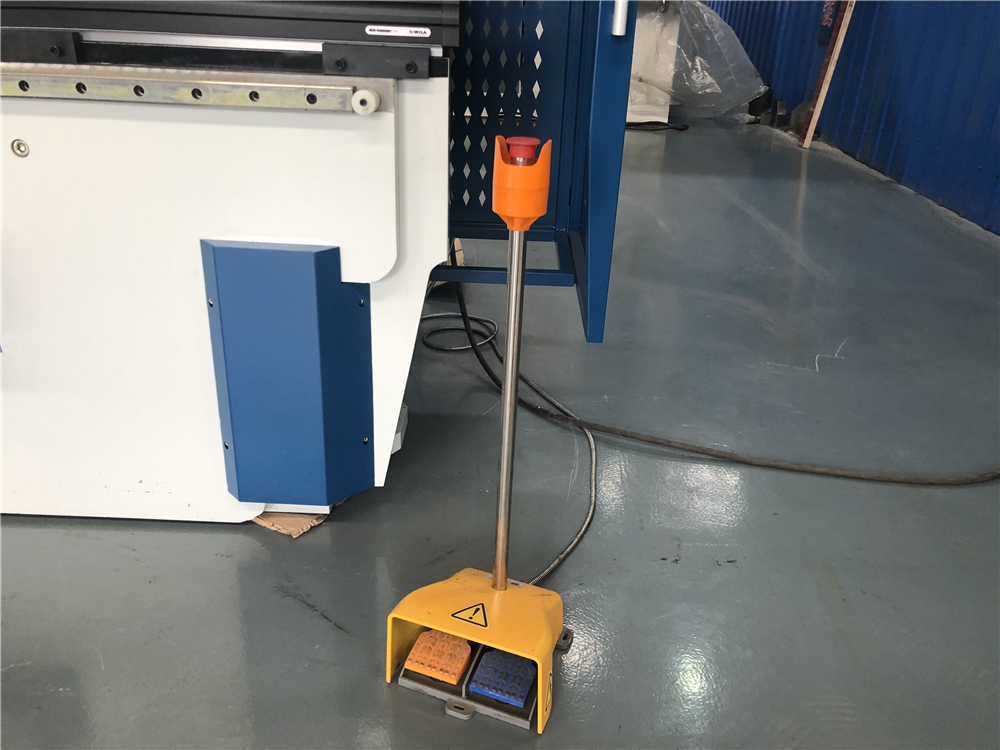

Kacon Foot Switch

South Koera CE Standard Foot Switch

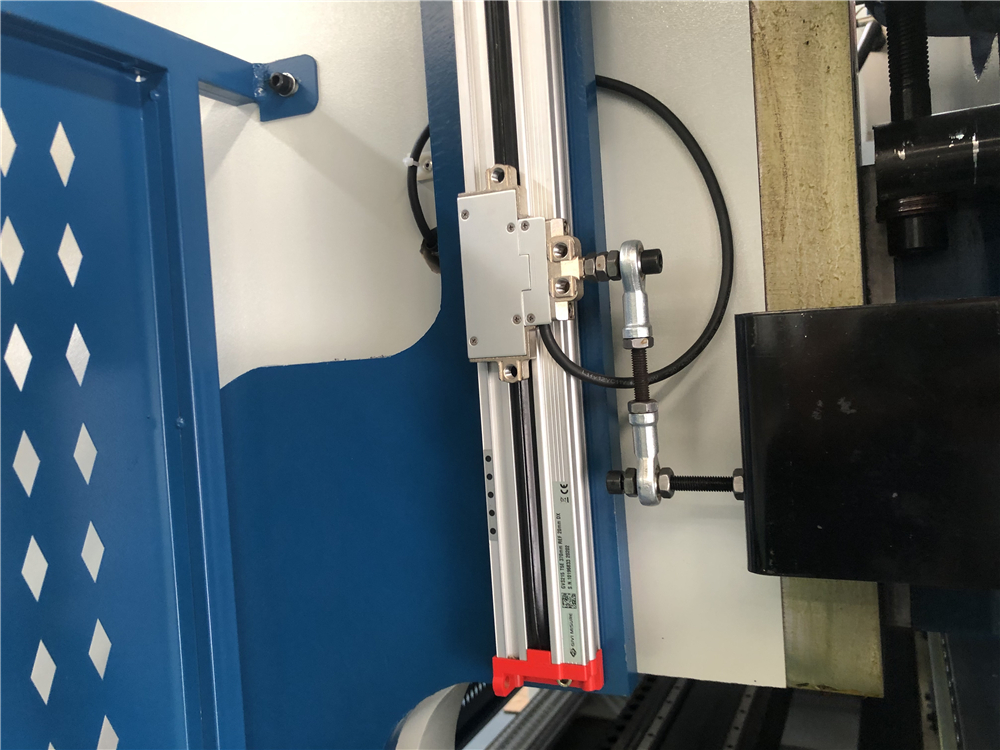

GIVI Linear Encoder

High accuracy,stable quality.

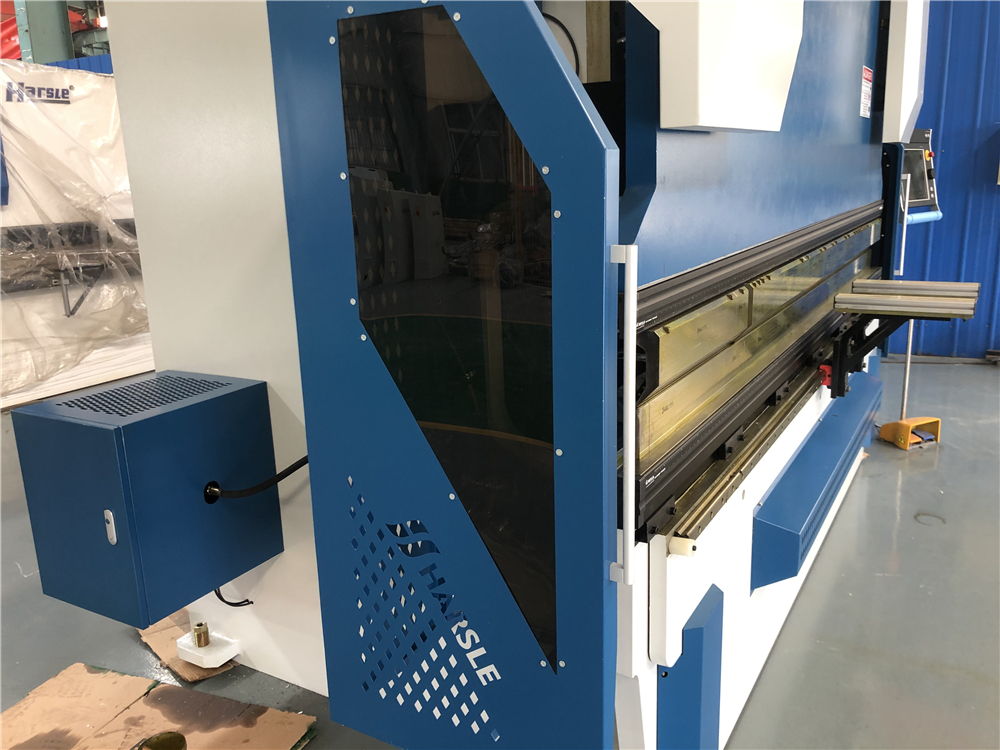

Side Fence

CE Safety Standard. Power off when open

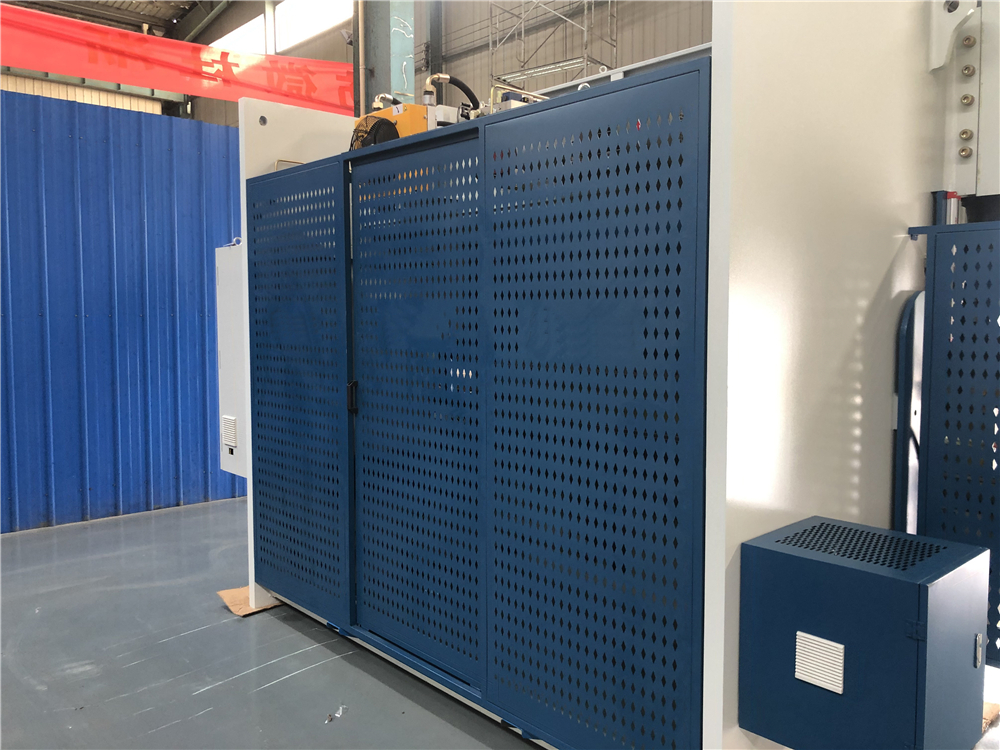

Back Fence

Movable Door. Power off when open the door

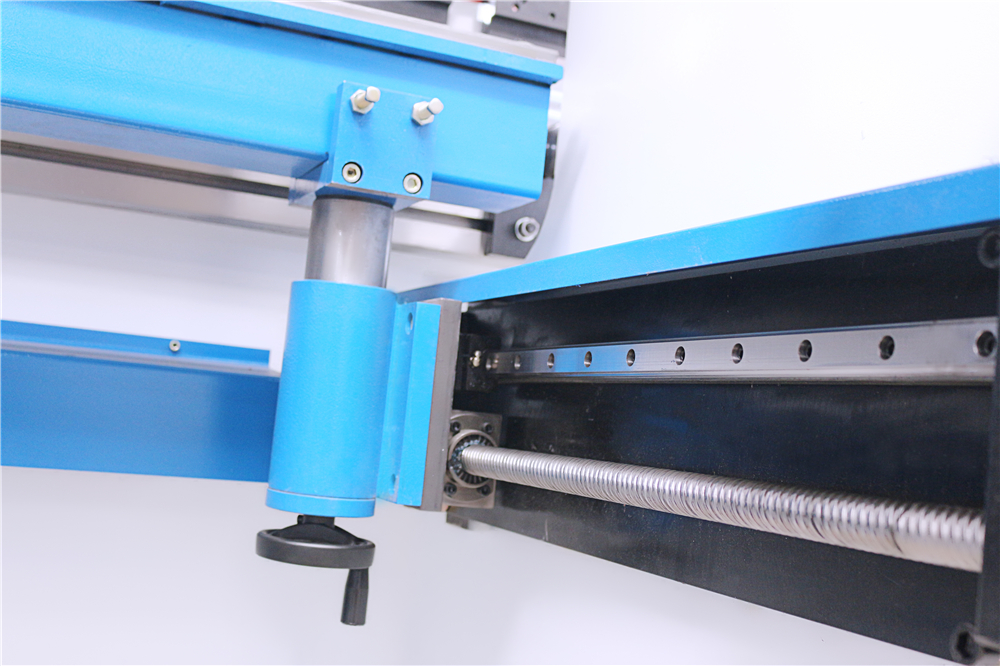

Hiwin Linear Guider and ball screw

Taiwan Brand. High Accuracy

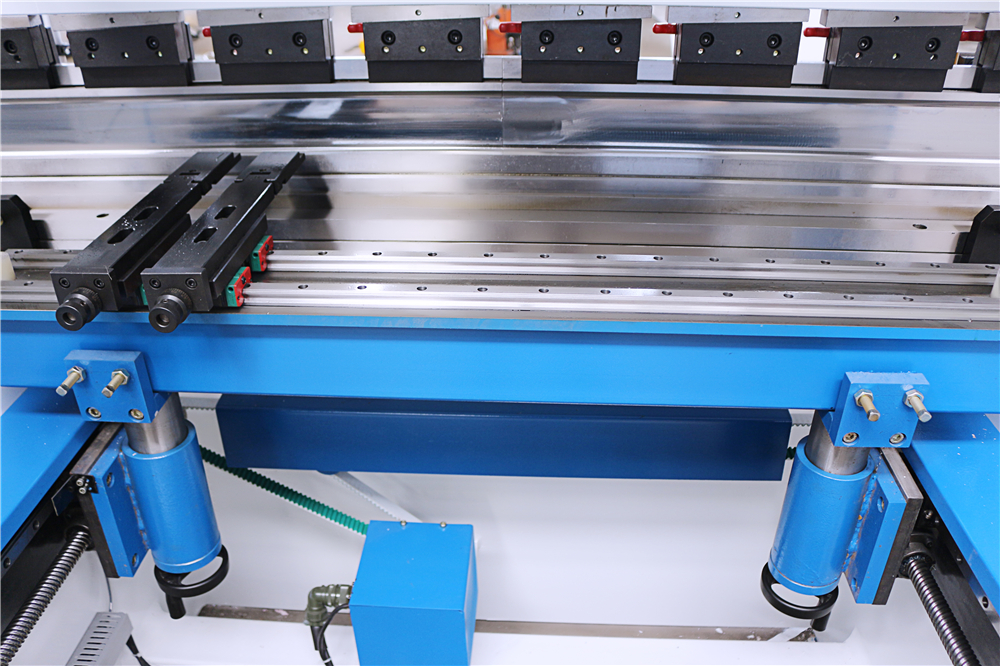

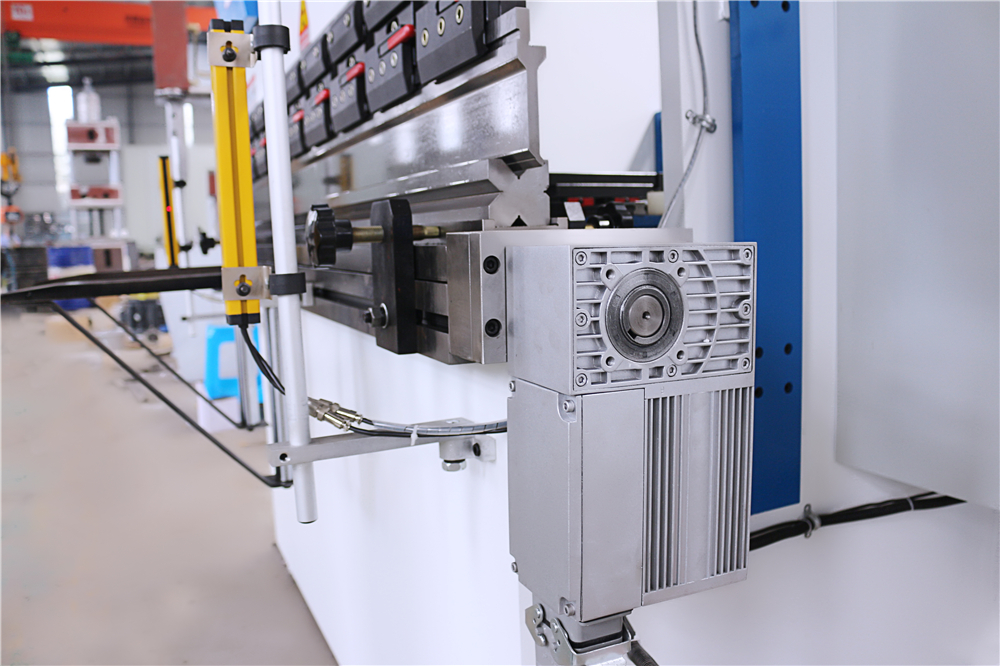

Backgauge

Controlled by servo motor. X axis

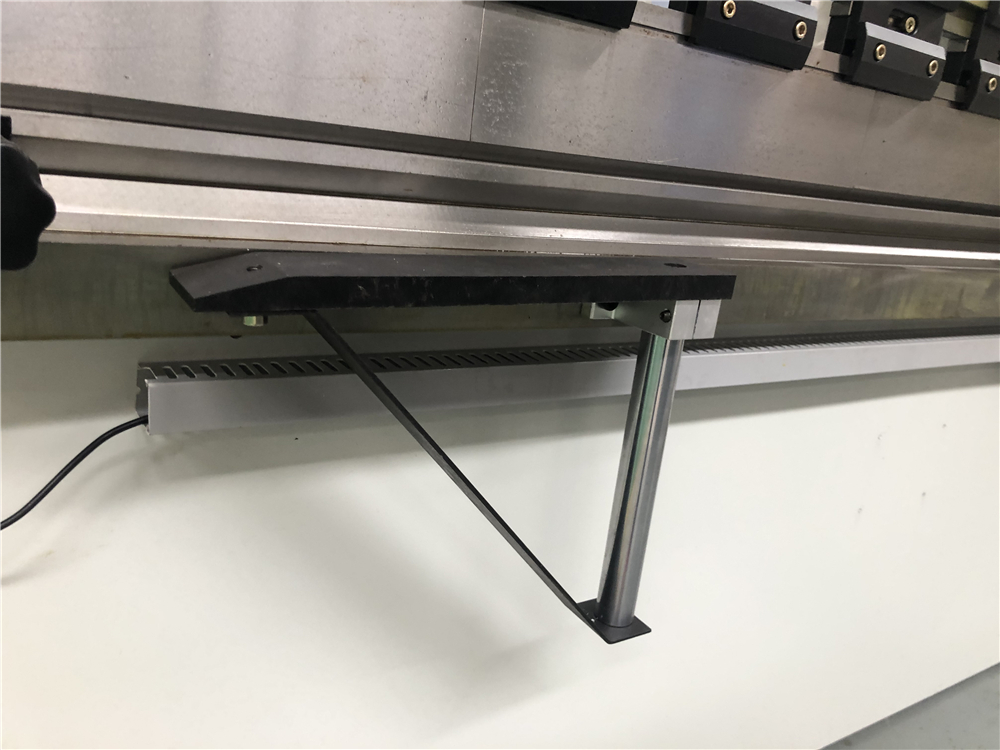

Front Supportors

2 Movable arms for plate

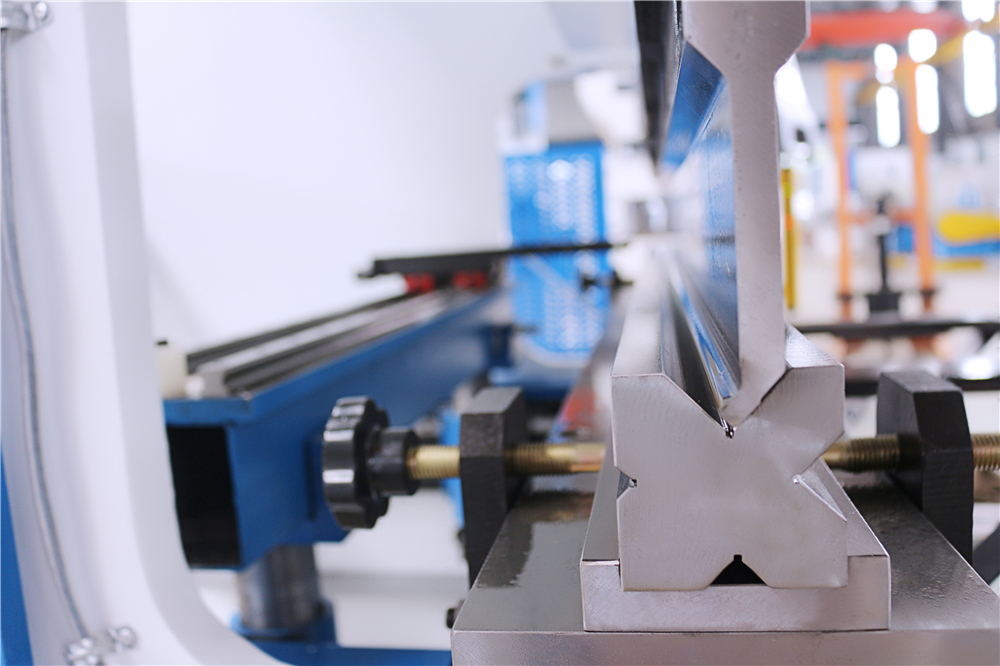

Standard Toolings

*Cr12MoV material ,HRC>55
*Standard Segmented in to 835mm length each
*one piece segmented for small part
*Left and Right side with L shape cut
*Optional AMADA type Toolings

Optional Parts

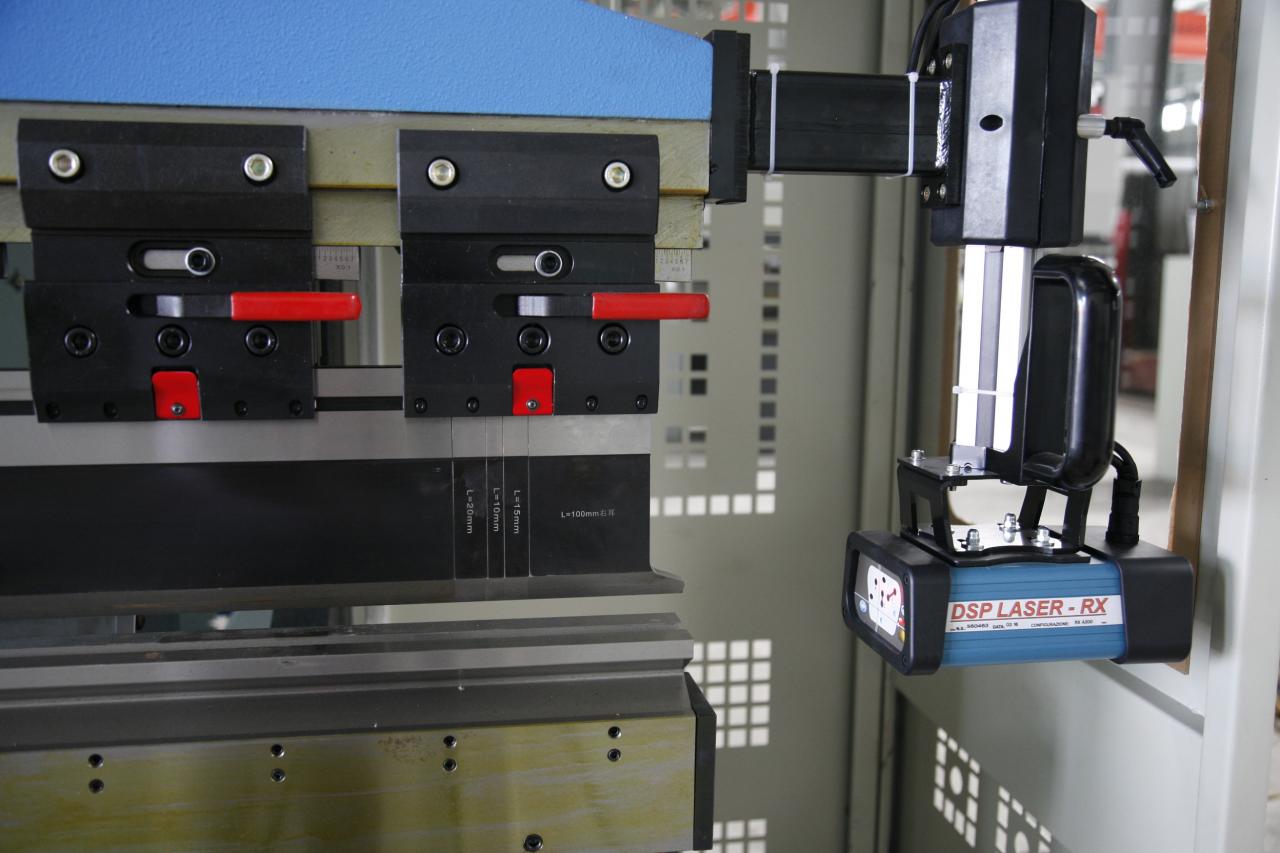

Laser Protection Device

For CE Standard use. Keep safety of finger

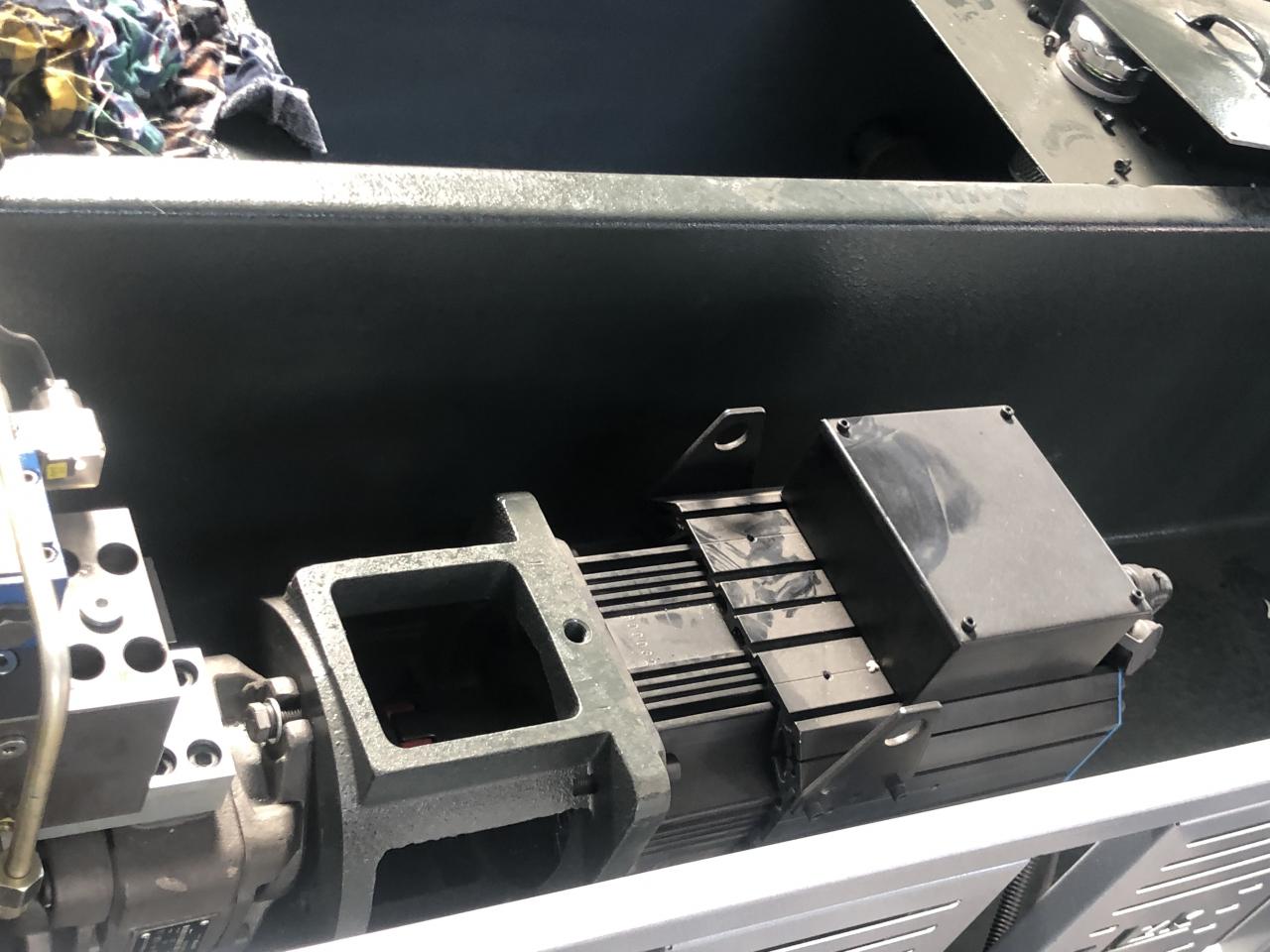

Servo Main Motor

Fast Speed. No Noise when machine works. Need less hydraulic oil.

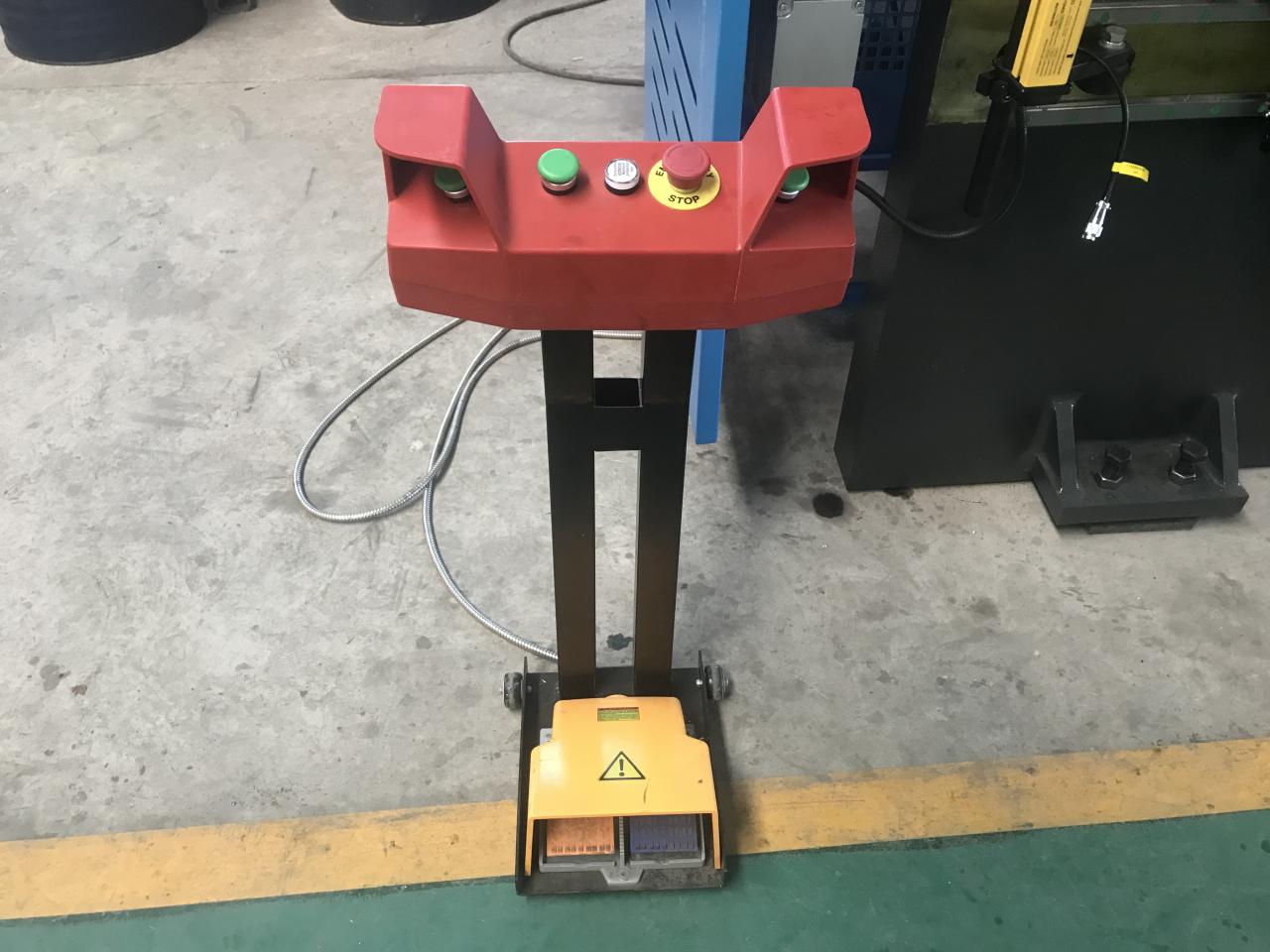

Two Hands Start Foot Switch

For CE Standard, keep safety.

Details

• Slider Stroke (mm): 120 mm
• Automatic Level: Fully Automatic
• Throat Depth (mm): 200 mm
• Machine Type: Synchronized
• Length of Working Table (mm): 1600 mm
• Width of Working Table (mm): 180 mm
• Dimension: 2200*1750*2000
• Condition: New
• Material / Metal Processed: Brass / Copper, Stainless Steel, ALLOY, Carbon steel, Aluminum, Brass
• Automation: Automatic
• Extra Services: End Forming
• Year: 2020
• Weight (KG): 6600
• Motor Power (kw): 5.5 kw
• Key Selling Points: Easy to Operate
• Warranty: 1 Year
• Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Construction works , Energy & Mining, Advertising Company
• Showroom Location: Egypt, Germany, Philippines, Kenya, South Africa
• Certification: ce
• After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
• After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
• Local Service Location: Egypt, Germany, Viet Nam, Philippines, Bangladesh, South Africa, Uzbekistan
• Nominal Pressure (kN): 1000 kN
