Product Description

4kw Fiber Laser Cutting Machine

With the rapid development of sheet metal processing technology, the China processing technology is also flourishing, and the gap between us and foreign developed region is getting smaller and smaller.

Meanwhile fiber laser cutting machine also has brought a lot of innovation ideas to the sheet processing industry. As laser
technology develops rapidly, fiber laser cutting machine has occupied the metal processing market in the global.

carbon steeel10mm18mm22mmOxygen
stainless steel5mm8mm10mmNitrogen

Product Application:

fiber laser cutting machine as one classic model, widely used in many common areas of our life, such as processing of stainless steel kitchenware, storage cabinet and other cabinets, is closely related to people's daily life.

Used for cutting a variety of metal plates, pipes (add pipe cutting device), mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, various alloy plate, rare metal and other metal materials.

Safety and No Pollution

With a fully enclosed design. The observation window adopts an European CE Standard laser protective glass. The smoke produced by cutting can be filtrated inside, it’s non-polluting and environmentally friendly 4kw Fiber Laser Cutting Machine

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed. 4kw Fiber Laser Cutting Machine

Plate Welding Heavy Work Bed

Annealed And Heat Treated Plate welding heavy work bed, no deformation in 20 years, suitable for ultra-high power 10,000-watt laser. The increase in weight is very beneficial to the laser cutting machine cutting speed.

Innovative Four Slings Working Bed

For reducing damage to the work bed during laser working, RAYMAX Innovated the new work bed by adding four slings, and the life span of the fiber laser cutting machine work bed will be doubled. 4kw Fiber Laser Cutting Machine


All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components.

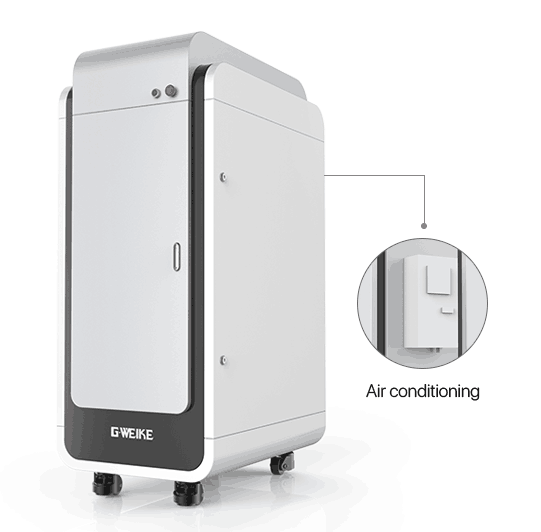

Automatic Thermostat

The control cabinet is equipped with air conditioner for automatic constant temperature. This can prevent excessive temperature damage to components in summer.

4kw Fiber Laser Cutting Machine

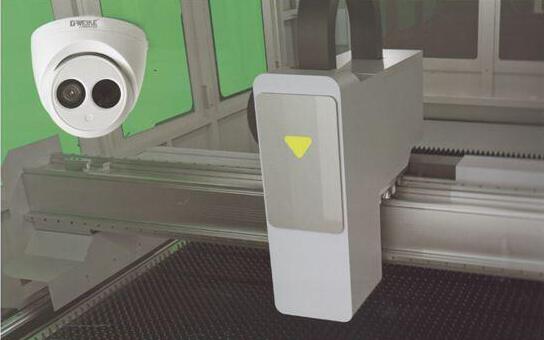

Monitored Control System

In the processing process, each dead corner area can be monitored at any time, the process can be controlled. 4kw Fiber Laser Cutting Machine

Clamp Design

It adopts an pneumatic clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-300mm.

4kw Fiber Laser Cutting Machine

Exchanging Platform

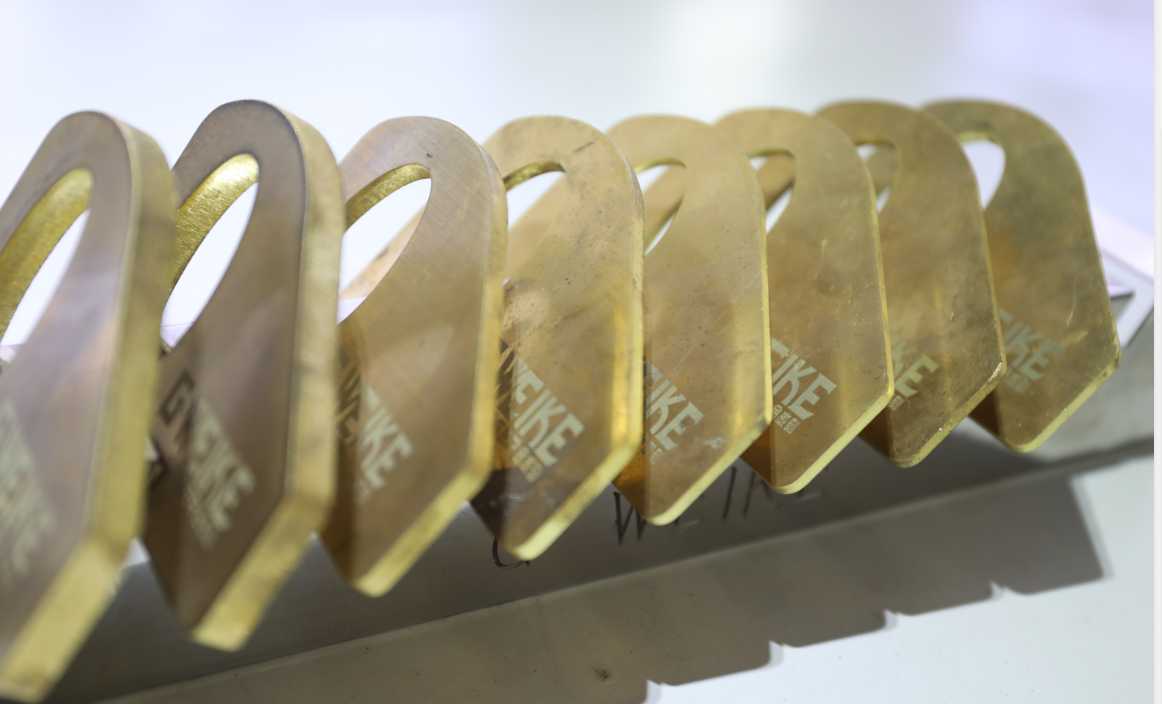

It adopts an up and down exchange platform, and the converter is responsible for controlling the exchanging motor. The machine is able to finish the platform Samples providing highly efficient and cost-effective laser cutting for a wide range of materials and thicknesses. Offering volume cutting and small batch production, cutting up to 6x faster than CO2 lasers at a fraction of the price, ensuring we are one of the Top supplier in the China with no compromise on quality.

Laser cutting is highly suitable for innovative applications in sheet metal processing, representing a unique quality. The high production flexibility combined with the great diversity of materials and shapes explain its worldwide recognition as an indispensable technology.

Advantages of Laser Cutting:

  • High productivity Versatility to cut any shape you need
  • No tooling costs
  • High precision with clean edges
  • CO2 lasers: for cutting all sheet metal thickness up to 20 mm
  • Fibre lasers: for cutting all sheet up to 50 mm - fast, precise and economical
  • Minimal heat distortion of parts

4kw Fiber Laser Cutting Machine 4kw Fiber Laser Cutting Machine


  • Application: LASER CUTTING
  • Applicable Material: Metal
  • Condition: New
  • Laser Type: Fiber Laser
  • Cutting Area: 4000*2000mm
  • Cutting Speed: 0-120m/min
  • Graphic Format Supported: AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
  • Cutting Thickness: Depends
  • CNC or Not: Yes
  • Cooling Mode: WATER COOLING
  • Control Software: Cypcut
  • Laser Source Brand: IPG
  • Laser Head Brand: Raytools
  • Servo Motor Brand: Yaskawa
  • Guiderail Brand: HIWIN
  • Control System Brand: Cypcut
  • Weight (KG): 12000 KG
  • Key Selling Points: Long Service Life
  • Warranty: 3 years
  • Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 1 Year
  • Core Components: Motor, Bearing
  • Electronic component: Schneider
  • Pneumatic parts: SMC and Airtac
  • Guide Rail: Taiwan Brand
  • Water chiller: Included
  • Voltage: 380V / 50Hz~60Hz
  • Certification: ce
  • Showroom Location: Canada, Turkey, United States, Germany, Peru, Saudi Arabia, India, Mexico, Thailand, South Korea
  • Marketing Type: New Product 2020
