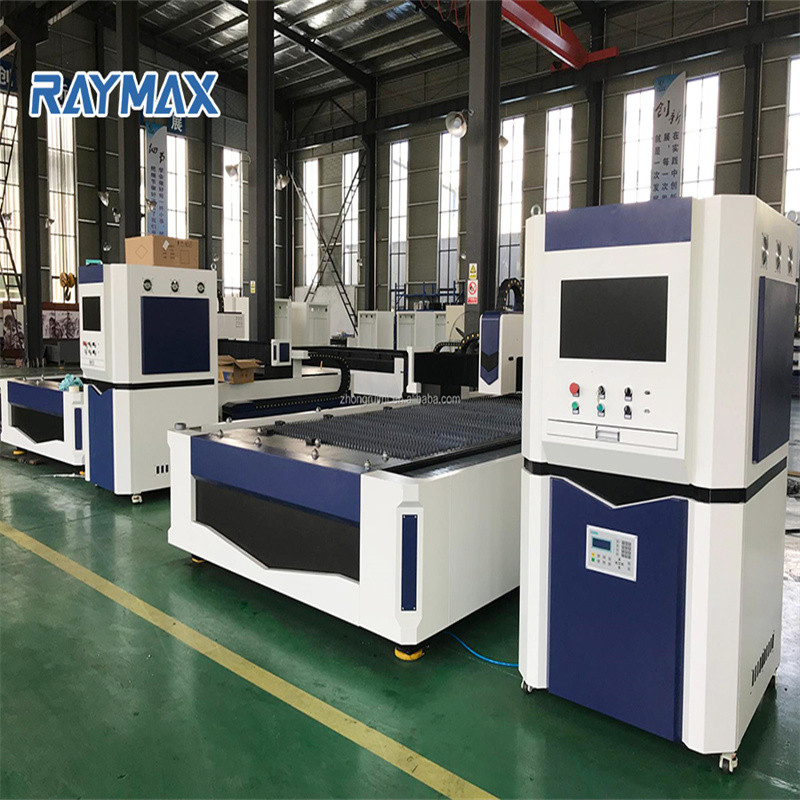

Fiber Laser Plate And Tube Integrated Cutting Machine

Product features

Advantages of machine:

1. Multi-function: can cut both metal plates and metal tubes.
2. Saving cost: one set of Integrated machine instead of purchasing two sets
3. saving space by more than 50%, and bringing higher productivity.

Applicable industry :

Used in Sheet metal processing, Automobile manufacturing, Fitness equipment, Chassis cabinets, Advertising metal characters, Stainless steel kitchenware, Environmentally household appliances and other mechanical equipment.

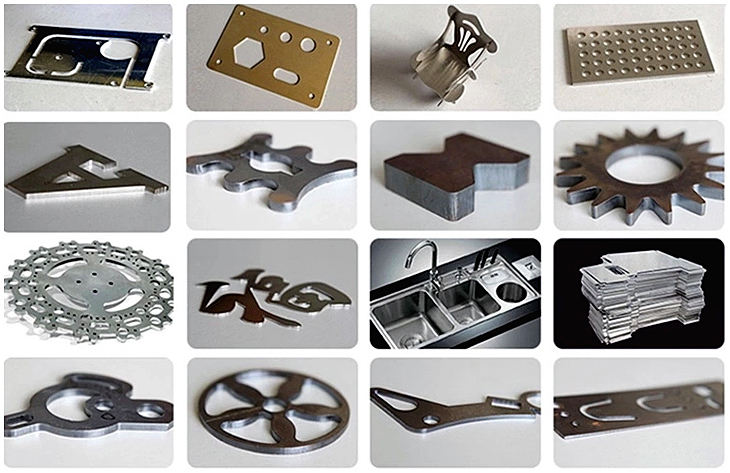

Cut materials:

Can cut a variety of metal plates and pipes (with tube cutting device), mainly suitable for stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass plate, aluminum plate, manganese steel, various alloy plates, rare Fast cutting of metal and other materials.

Fiber Laser Plate And Tube Integrated Cutting Machine


1. Sheet metal fabrication

2. Electrical cabinet

3. Kitchenware equipment

4. Elevator

5. Automotive Parts

6. Lighting lamps

7. Metal carfts & decoration

8. Hardware tools

9. Advertising

10. Fitness equpment

11. Furnitures

12. Agricultural and forestry machinery

13. Air conditioner

Fiber Laser Plate And Tube Integrated Cutting Machine

Technical parameter

NameFiber Laser Plate and Tube Integrated Cutting Machine
Laser typeFiber Laser
Laser Power1000W
Work size3000mm * 1500mm
Max. Move speed0-80000mm/min
Cutting Speed0-40000mm/min
Max acceleration speed1G
Location Precision≦±±0.02mm
Maximum machining depthStainless Steel:5mm Carbon Steel:10mm
Transmitting systemDouble rack gear drive
Graphics Format SupportAL, DXF, PLT, BMP, DST
Power Supply380V 50Hz/60Hz/60A
Work tableSawtooth Platfprm
Operating EnvironmentTemperature 0-45℃,Humidity:5-95%
Total machine power:<10KW
LaserRayco / IPG 500W-2000W
Rotary axis3m / 6m pneumatic chuck
Gear transmissionrotation axis servo is Yaskawa servo
Cutting headSwitzerland Raytools
Servo motorDelta
Pneumatic deviceJapan SMC solenoid valve Japan SMC / Taiwan Yadeke
Electronic element deviceSchneider
ReducerJapan Xinbao Reducer
RackAPEX dual drive
Control systemCYPCUT
Shanghai Baichu Chiller / Air Conditioner Tongfei /Standard for 1000 and above power

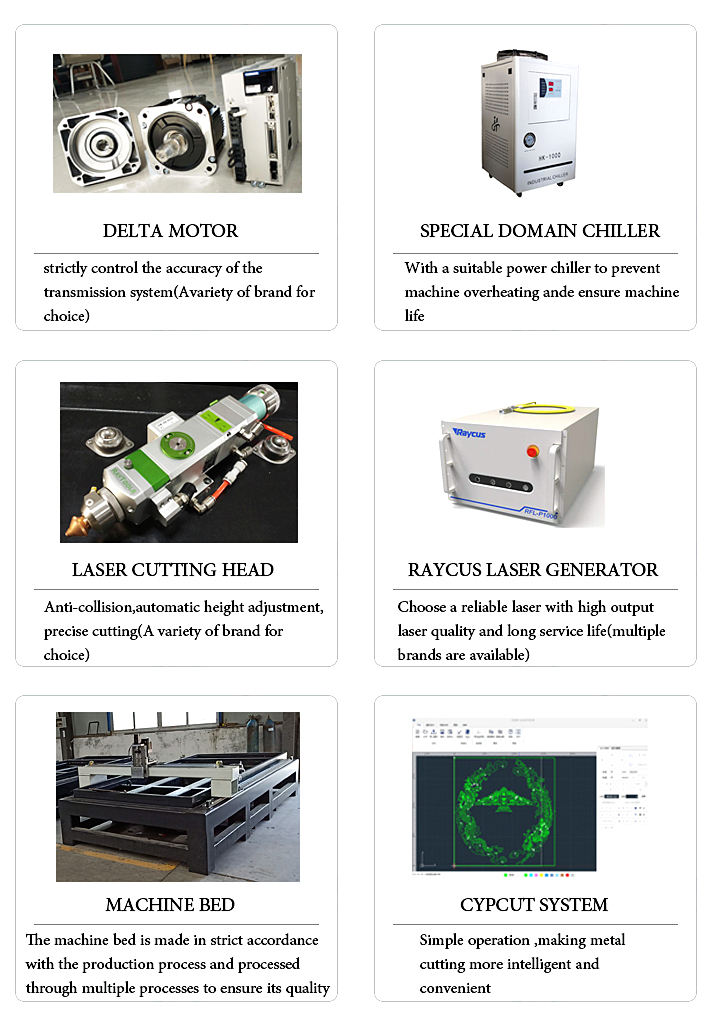

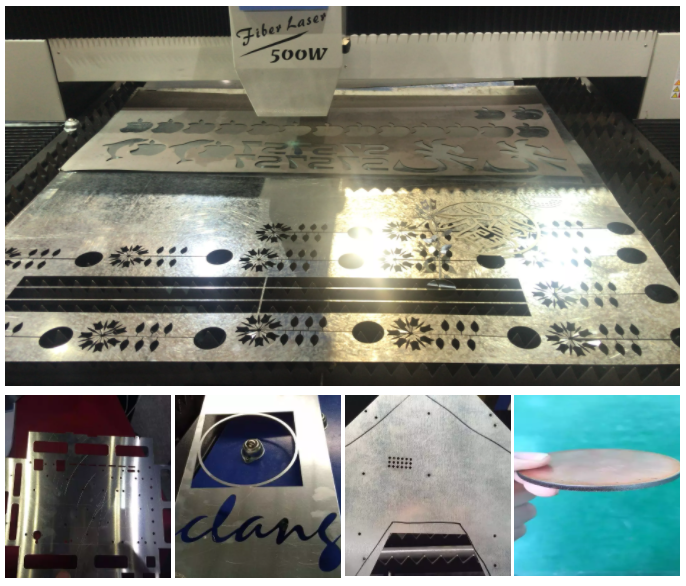

Detailed Images

Fiber Laser Plate And Tube Integrated Cutting Machine


Fiber Laser Plate And Tube Integrated Cutting Machine

Our advantage:

1. We have our own machining workshop. All machines frame, gantry and Z axis are made by our own workshop. In this way, we can ensure our good quality and lower the cost .

2. We can design and produce according to customer’s requirements. (including machine structure , type , color , spare parts and so on )

3. We can make OEM. ( with customers’ own logo on the machine )

4. We have rich experience for exporting, we will prepare well all customs documents and CO for making customs successfully.


  • Application: LASER CUTTING
  • Applicable Material: Acrylic, Glass, Leather, MDF, Metal, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood, Crystal
  • Condition: New
  • Laser Type: Fiber Laser
  • Cutting Area: 1500mm*3000mm
  • Cutting Speed: 40000
  • Graphic Format Supported: AI, PLT, BMP, Dst, DXP
  • Cutting Thickness: 10mm
  • CNC or Not: Yes
  • Cooling Mode: WATER COOLING
  • Control Software: CYPCUT
  • Laser Source Brand: Raycham
  • Guiderail Brand: HIWIN
  • Weight (KG): 3000 KG
  • Key Selling Points: High Safety Level
  • Warranty: 1 Year
  • Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 1 Year
  • Core Components: Other
  • Mode of Operation: Pulsed
  • Configuration: 4-axis
  • Products handled: Sheet Metal and Tube
  • Feature: Water-cooled
  • Max. Move speed: 0-80000mm/min
  • Location Precision: 0.01-0.02mm
  • Maximum machining depth: Stainless Steel:5mm Carbon Steel:10mm
  • Power Supply: 380V 50Hz/60Hz/60A
  • Operating Environment: Temperature 0-45℃,Humidity:5-95%
  • Dimensions: 4440*4790*1860mm
  • Control system: CYPCUT
