65 Ton 45 Ton Q35y-40 Q35-16 Single Cylinder Cnc Hydraulic Ironworker Machine

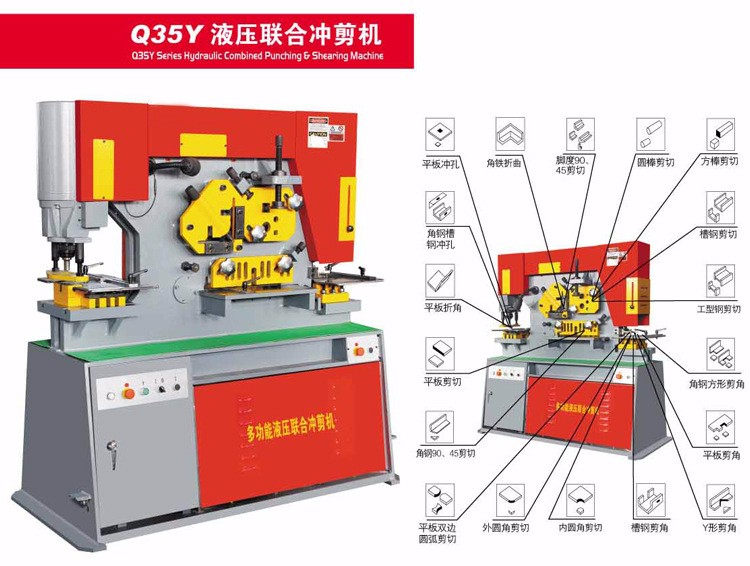

Q35Y hydraulic ironworker machine industrial-grade combined punching and shearing machine featuring multiple functions, including: round hole, square hole, oblong hole punching; steel plate, flat bar, angle steel, C-channel, H-beam punching; steel plate bending; angle steel shearing, notching and bending; flat, round, square bar, C-channel, I-beam, T-bar shearing/cutting; angle bending and pipe notching.

Features At A Glance

65 Ton 45 Ton Q35y-40 Q35-16 Single Cylinder Cnc Hydraulic Ironworker Machine

Hydraulic combined Ironworker punching machine

The machine adopts hydraulic driver,is the latest products in our country. It can shearand cut punch a hole and cut moulds for square steel, steel strip channel, "工" shapesteel and angle steel and equip with empress anticipate.

65 Ton 45 Ton Q35y-40 Q35-16 Single Cylinder Cnc Hydraulic Ironworker Machine

Product Specifications

Punching pressureT5575115140200250
Max.cutting thicknessmm162025304050
Plate strengthN/mm2W450W450W450W450W450W450
Cutting angel°
Slipper strokemm80808080100100
Travel timestimes/min888888
Throat depthmm300355400600700800
Punching thicknessmm162025263535
Max.punching diametermm253035384045
Main motor PowerKw45.57.5111518.5
Weight machinekg1600200048006800860012000

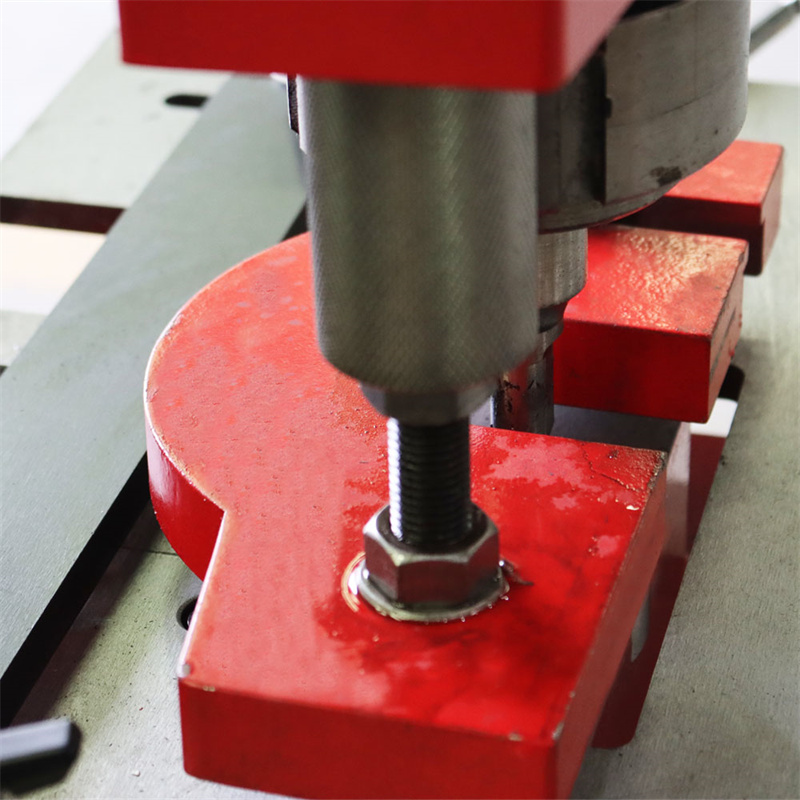

Punching In Ironworker Machine

The machine punches from 30 mm diameters (8 mm thickness) to 57 mm diameters (22 mm thickness) very efficiently. Punches and dies are easily changeable. We provide special punches at short notice.

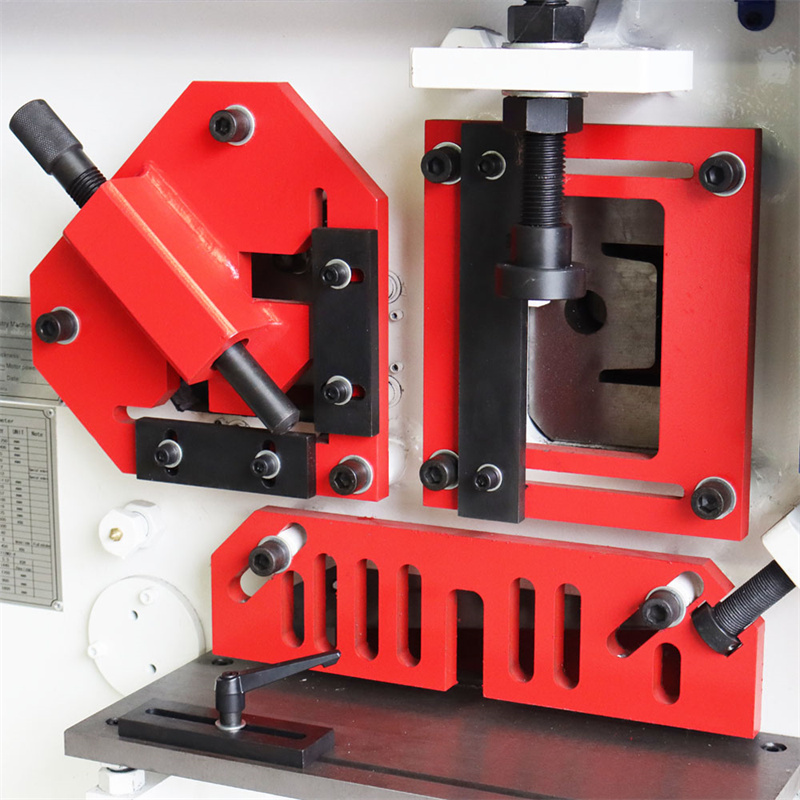

Steel Round Square Bar Shearing

With this part of machine, squares from 25 mm to 55 mm and rounds from 30 mm diameters to 65 mm diameters can be cut very fast. By changing the blades you can also U-I or T sections. We provide special blades.

65 Ton 45 Ton Q35y-40 Q35-16 Single Cylinder Cnc Hydraulic Ironworker Machine

Angle Shear In Ironworker

Here with the help of special blades you can cut several types of 90° – 45° angle sections efficiently.


The machine comes with a rectangular notching tool which you can use for your notching works. We provide special notching tools for you notching works.

A Multifaceted Tool

These universal machines are supplied with standard tooling including X,Y gauging support tables at punch,shear, and notch stations. There are easily adjusted hold downs at all five work stations. Each work station is also equipped with specially designed hold downs to ensure safety while providing precision alignment and ease of use.


  • CNC or Not: CNC
  • Condition: New
  • Nominal Force (kN): 650
  • Power Source: Hydraulic
  • Place of Origin: Anhui, China
  • Voltage: 220V&380V
  • Dimension(L*W*H): 1640*730*1770
  • Motor Power (kW): 4kw
  • Weight (T): 1660
  • Key Selling Points: High-accuracy
  • Warranty: 5 years
  • Showroom Location: Germany, Indonesia, India, South Africa
  • Applicable Industries: Building Material Shops, Machinery Repair Shops, Construction works
  • Machine Type: Hydraulic Ironworker
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 2 Years
  • Core Components: pump
  • Color: Customizable
  • Material: Q235
  • Frame: Frame Guide
  • Precision: 0.01mm
  • Control: Hydrulic
