Cnc Nc Hydraulic Press Metal Guillotine Shear Machine For Carbon Stainless Steel Sheet

Product Description

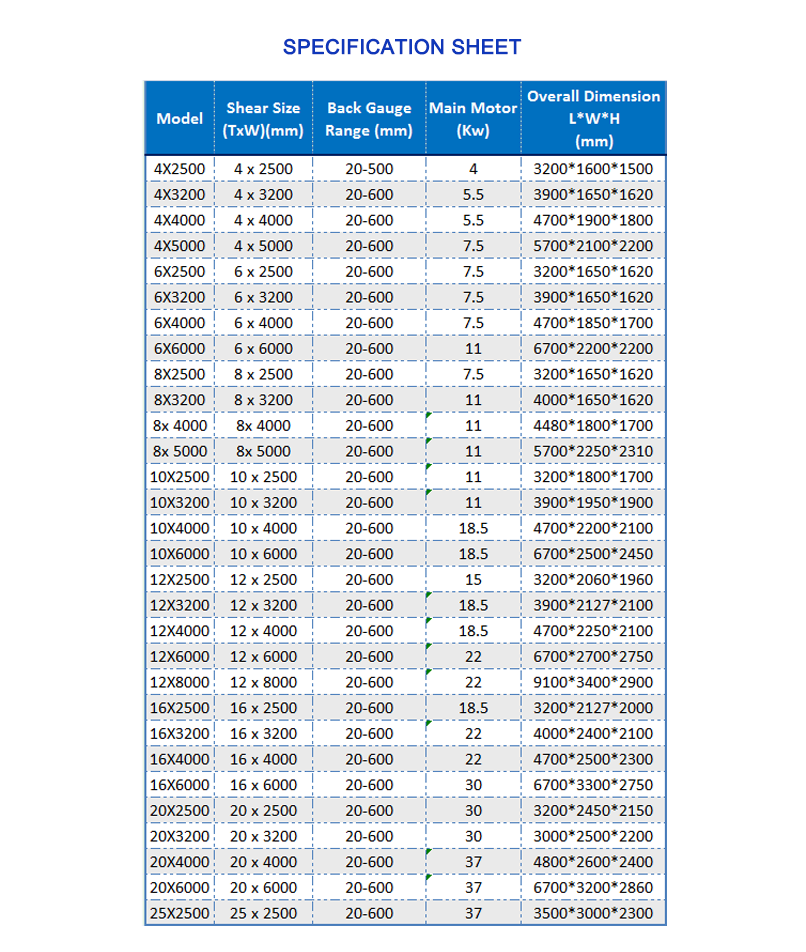

Specification

Cutting Area	6mm*3200mm
Motor Power	7.5kw
Shearing Angle	1.5
Automatic Level	Semi-automatic
Strokes	14n/min
Throat Depth	200mm
Backgauge Travel	5-600mm
Max. Cutting Thickness	8mm

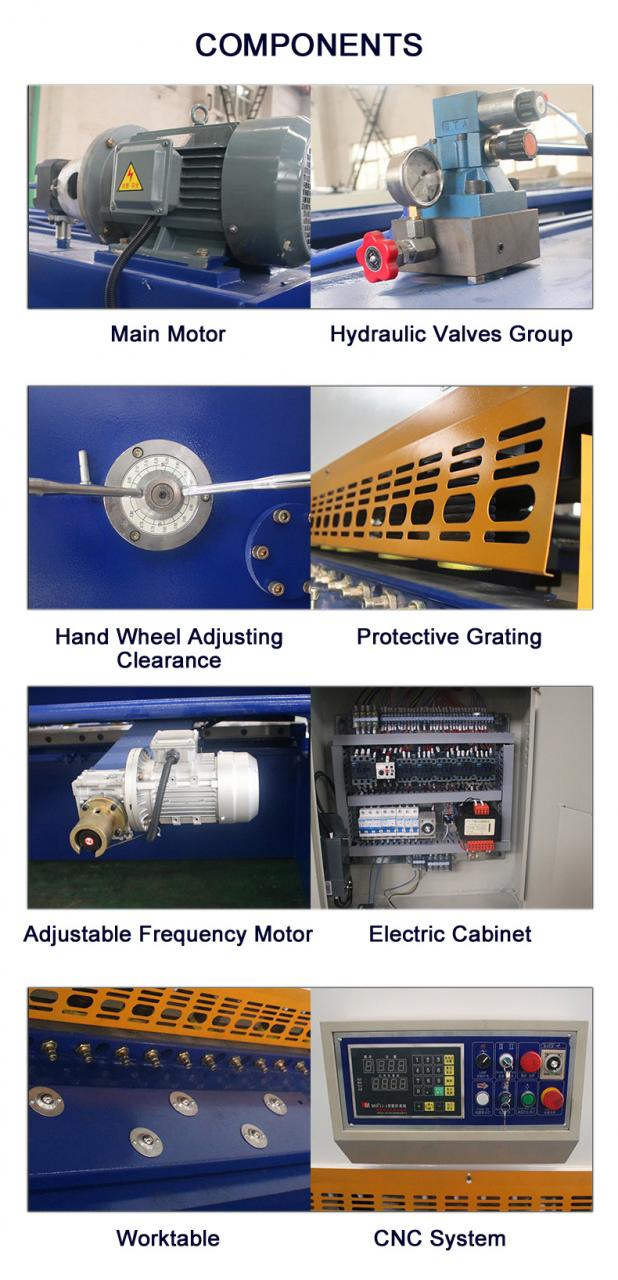

Core Components	Motor, Bearing, Gear, PLC, Pump, Pressure vessel, Engine, Gearbox and etc
Control System	MD11-1 / other option

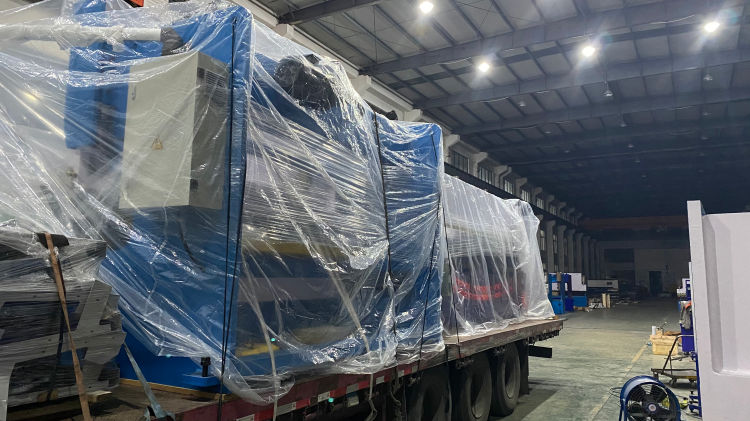

Packing & Delivery

 FAQ

Q1. How to get the most suitable machine and best pricePlease tell us what metal material you want to shear, the thickness and desired work table length and other information.

Q2. If we don't know how to use the machine, can you teach us?Yes, we will, English manual and video will come along with the machine. You also can contact our service team if you need any help during use our machines.

Q3. How about your after-sale service? We offer you 24 hours service by phone, Skype or What’s app.

Q4. Quality Control:The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory.Our machines all have passed CE Certificate, meet European and American standard, were exported to more than 100 Countries.

Q5. How we pay you?

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price, shipment, payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on the proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment and 100% quality check before shipping.

F. Send your order by air or by sea.

Details

• Max. Cutting Width (mm): 3200
• Max. Cutting Thickness (mm): 6 mm
• Automatic Level: Fully Automatic
• Shearing Angle: 0-1.5
• Blade Length (mm): 3200 mm
• Backgauge Travel (mm): 5 - 600 mm
• Throat Depth (mm): 200 mm
• Condition: New
• Brand Name: RAYMAX
• Power (kW): 7.5 kW
• Weight (KG): 5700 KG
• Voltage: CUSTOMIZED
• Dimension(L*W*H): 3900*1650*1620MM
• Year: 2022
• Warranty: 1 Year
• Key Selling Points: Easy to Operate
• Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works , Other, Advertising Company, Mechanical Equipment Factory
• Showroom Location: None
• Marketing Type: Hot Product 2021
• Machinery Test Report: Provided
• Video outgoing-inspection: Provided
• Warranty of core components: 3 Years
• Core Components: PLC, Gearbox, Motor, Pressure vessel, Gear, Pump, control system
• Strokes: 14n/min
• Control System: MD11-1 / other option
• After Warranty Service: Online support
• Certification: CE, ISO
