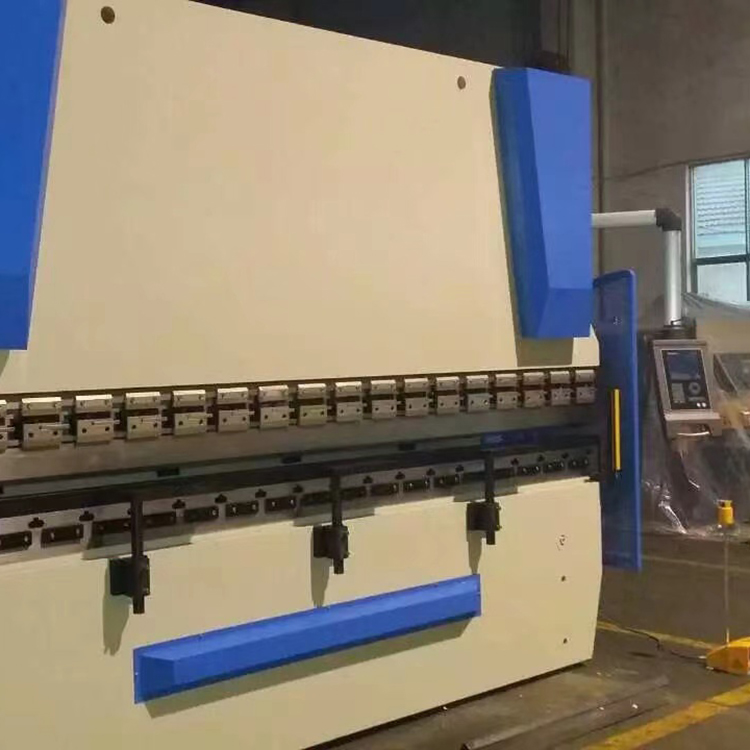

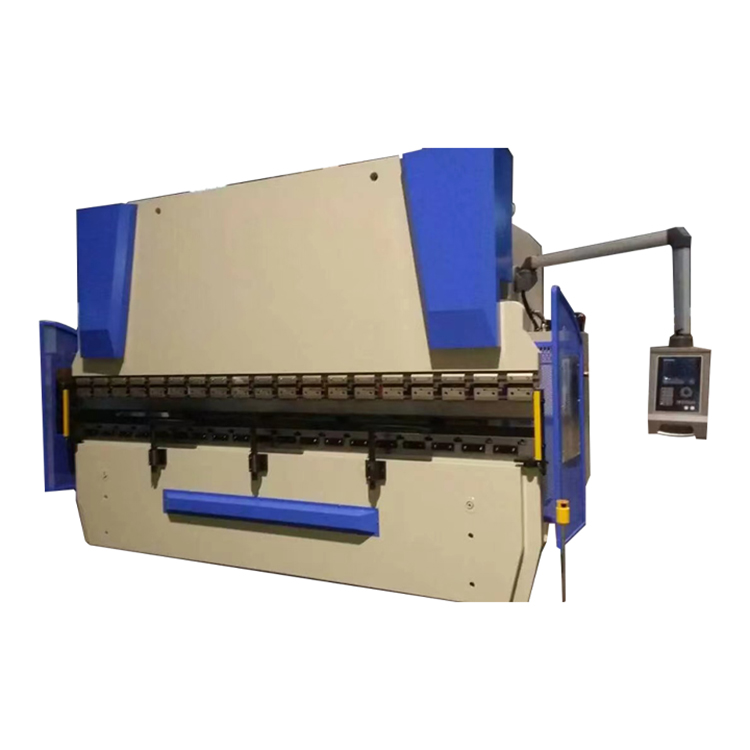

Hydraulic Press Brake Machine Acl Torsion Bar Synchro Mechanical Press Brake

Type	Nominal Force	Worktable Length	Poles Distance	Throat Depth	Stroke	Max Open	Power	Dimension
	(KN)	(mm)	(mm)	(mm)	(mm)	(mm)	(KW)	L×W×H(mm)
30T/1600	300	1600	1280	200	80	285	3	1600×1000×1600
35T/2000	350	2000	1480	200	80	285	4	2000×1100×1800
40T/2200	400	2200	1850	230	100	320	5.5	2200×1200×1910
40T/2500	400	2500	1850	230	100	320	5.5	2500×1200×1910
50T/2500	500	2500	1850	230	100	320	5.5	2500×1200×2000
63T/2500	630	2500	1900	250	100	320	5.5	2500×1300×2210
63T/3200	630	3200	2500	250	100	320	5.5	3200×1300×2210
80T/2500	800	2500	1900	300	100	320	7.5	2500×1400×2300
80T/3200	800	3200	2500	320	100	350	7.5	3200×1500×2300
80T/4000	800	4000	3000	320	100	350	7.5	4000×1500×2400
100T/2500	1000	2500	1900	320	120	320	7.5	2500×1600×2400
100T/3200	1000	3200	2500	320	120	370	7.5	3200×1600×2600
100T/4000	1000	4000	3000	320	120	370	7.5	4000×1600×2700
125T/3200	1250	3200	2500	320	120	370	7.5	3200×1600×2600
125T/4000	1250	4000	3000	320	120	370	7.5	4000×1600×2700
160T/3200	1600	3200	2500	320	200	460	11	3200×1700×2700
160T/4000	1600	4000	3000	320	200	460	11	4000×1700×2800
160T/5000	1600	5000	4000	320	200	460	11	5000×1900×3100
160T/6000	1600	6000	4940	320	200	460	11	6000×1900×3200
200T/3200	2000	3200	2500	320	200	460	11	3200×1950×2800
200T/4000	2000	4000	3000	320	200	460	11	4000×1950×2800
200T/5000	2000	5000	4000	320	200	460	11	5000×1950×3000
200T/6000	2000	6000	5000	320	200	460	11	6000×1950×3300
250T/3200	2500	3200	2500	400	250	590	18.5	3200×2000×3200
250T/4000	2500	4000	3000	400	250	590	18.5	4000×2000×3400
250T/5000	2500	5000	4000	400	250	590	18.5	5000×2000×3400
250T/6000	2500	6000	5000	400	250	590	18.5	6000×2000×3400
300T/3200	3000	3200	2530	400	250	590	22	3200×2000×3450
300T/4000	3000	4000	3000	400	250	590	22	4000×2000×3450
300T/5000	3000	5000	4000	400	250	590	22	5000×2000×3450
300T/6000	3000	6000	5000	400	250	590	22	6000×2000×3450
400T/4000	4000	4000	3000	400	250	590	30	4000×2180×3400
400T/5000	4000	5000	4000	400	250	590	30	5000×2180×3500
400T/6000	4000	6000	5000	400	250	590	30	6000×2180×3800
500T/5000	5000	5000	4000	400	250	590	45	5050×3500×3700
500T/6000	5000	6000	5000	400	320	590	45	6050×3500×3700
600T/4000	6000	4000	3000	400	320	590	55	4050×4500×3700
600T/6000	6000	6000	5000	400	320	590	55	6050×4500×3700
800T/6000	8000	6000	5000	400	320	590	55	6300×4500×6000

High precision, wide application, high performance and easy to operate

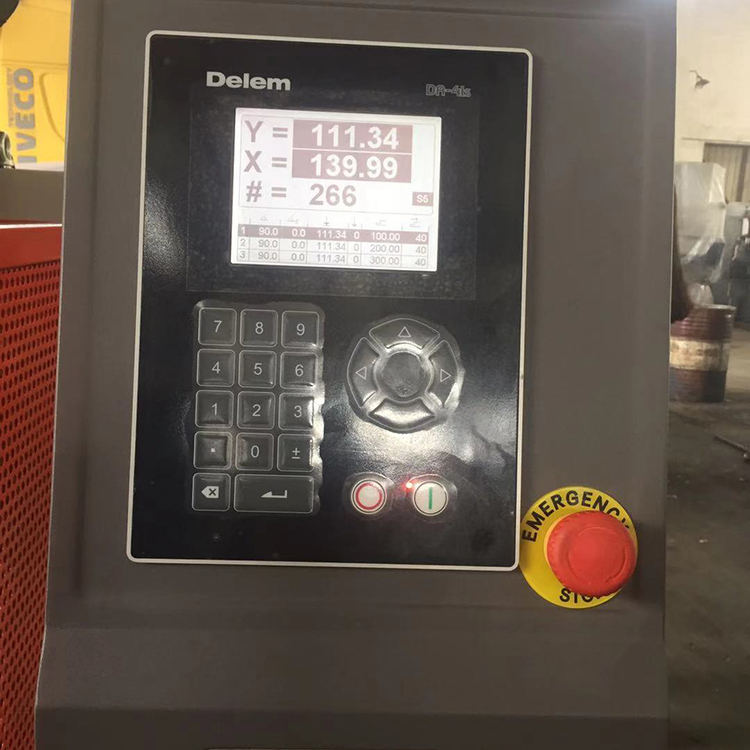

Main features: Special numeric-control syetem is fitted with mainframe of the bending machineMulti-work-step programming function is able to achieve an automatic operation and continous positioning of multi-step procedures, as well as an automatic precision adjustmemt for position of rear stopper and gliding block.

Hydraulic press brake is provided with bend counting function, for a real-time display of processing quantity and power-failure memory of positions of stopper and gliding block, as well as procedures and parameters.

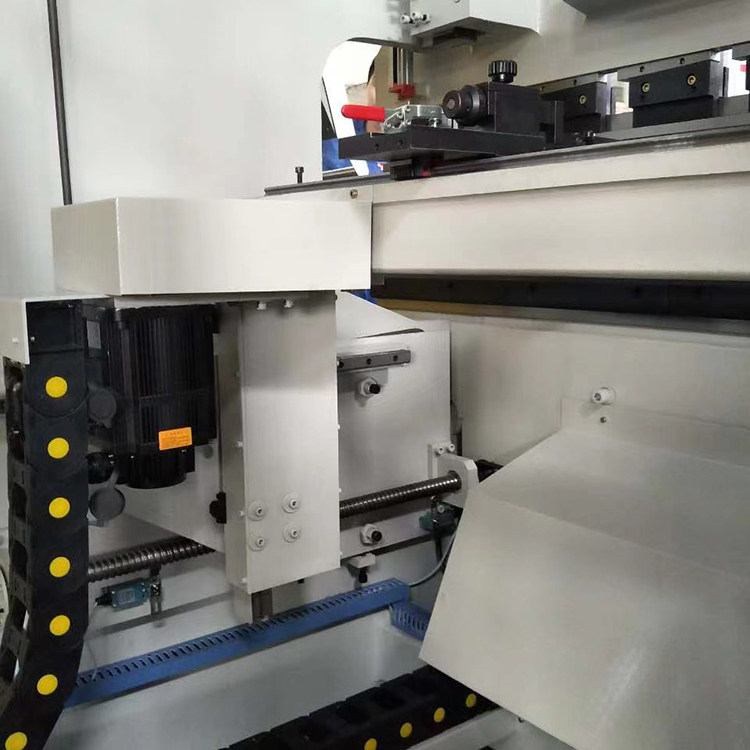

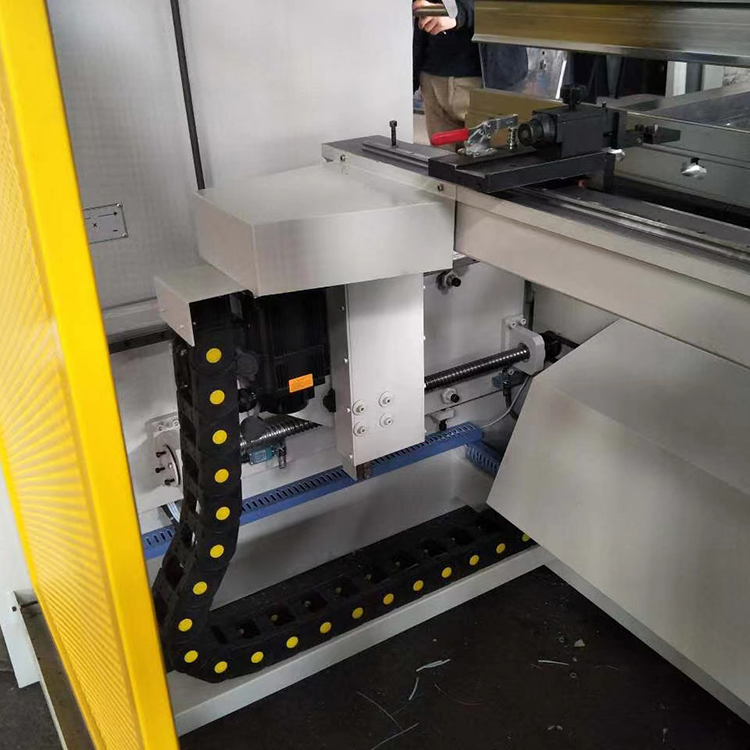

Imported ball bearing lead screw and linear guide rail are used for rear stopper, to ensure the positioning precision of rear stopper, for processing precision of cnc hydraulic press brake to be higher.

FAQ

Q1: After I buy the machine, what will you do if I don't know some of the function?

A1: We will show you how to use the machine perfectly. Technical support and the video is available.

Q2: Will you show me how to install the machine?

A2: Certainly, we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to service machinery overseas.

Q3: How about your after sales service?

A3: Our experienced engineers are waiting to make service for you. One-top service term made us survive from fierce competition.

Q4: What's the policy for guarantee and broken parts?

A4: Warranty period of equipment lasts two years, during which the broken parts and spares caused by quality can be offered free.
