Louver Making Hydraulic Ironworker Machine With High Quality And Best Price

Main advantage

1. Imported solenoid valve, effectively guarantee the stability of the machine running, and reduce the failure rate to a minimum.

2. The standard machine configuration is Single action, two cylinders can't work together. (The double valve structure for choose to make 2 cylinders work together)

3. With imported gear pump, low noise, small size, large flow, smooth operation.

4. Siemens motor, good stability, the failure rate is substantially zero. Meanwhile, effective in energy saving.

5. Adopts Schneider Electric (including circuit breakers, contactors, thermal overload, small relays, the stroke switch, buttons), cable clear enough to reduced electrical fault.

6. Using oil cooling device, open and close freely according to temperature conditions. When the temperature is too high, continuous overload working, it can keep oil temperature normal to ensure the feasibility of high pressure, long time working.

7. With three high-pressure tubing to ensure that no oil leakage

8. Cylinder block use 40 cr high strength alloy material integral forging, ductile iron piston guide sleeve mounted without a gap.

9. Resistance to high temperature (Limit 700 ℃) for a long time to prevent overheating, causing internal cylinder guide sleeve deformation, resulting in cylinder oil leakage.

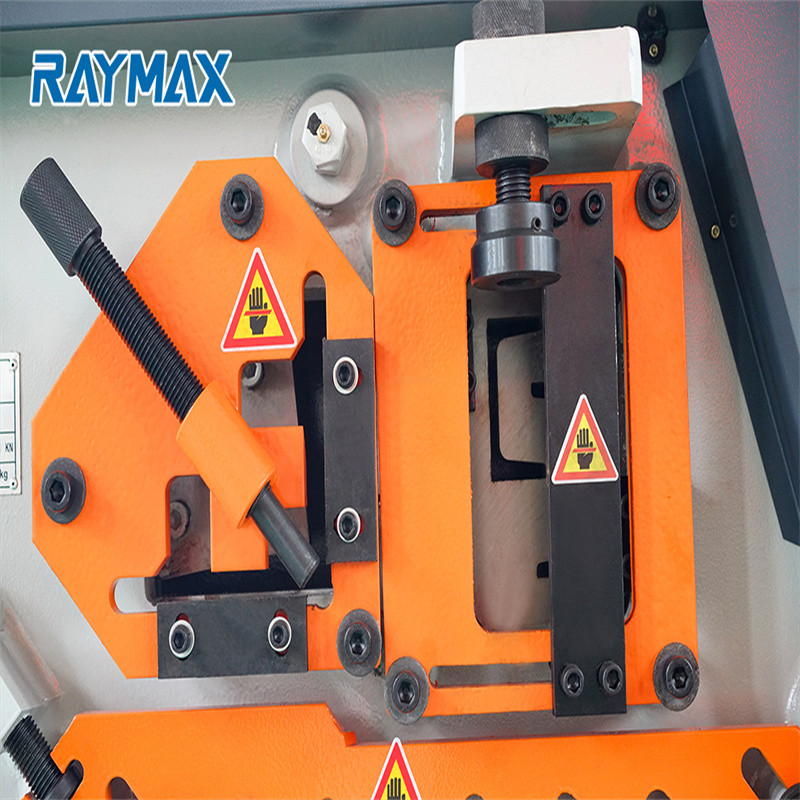

10. Multifunction manual backgauge to position within one meter length shear angle, channel, round bar, square steel, flat steel and other metal materials.
Louver Making Hydraulic Ironworker Machine With High Quality And Best Price

Technical parameter

2Pressure (Ton)160
3Maximum cutting thickness (mm)30
4One stroke shears size (D*W)(mm)30*330
5Slide stroke(mm)80
6Stroke frequency (beats/min)Cutting torch lifting height10
7Throat depth (mm)600
8Punching thickness (mm)26

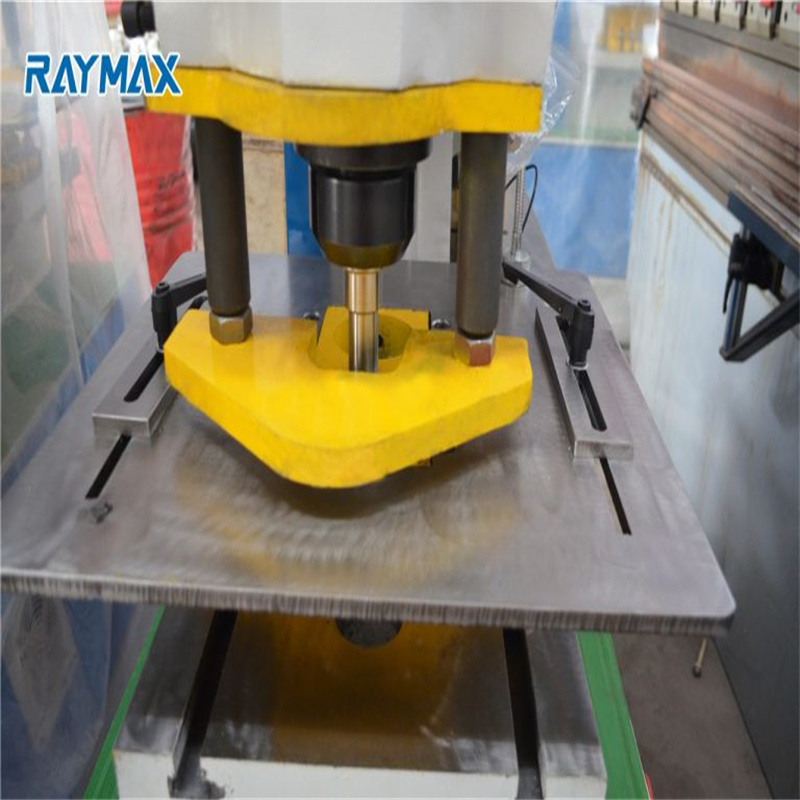

9Maximum Punching diameter(mm)38
10Main motor power (kw)11/22
11Dimensions (L*W*H)(mm)2680*1040*2300

Main configuration

Main electrical appliance1 setSCHNEIDER
Hydraulic part1 setTAIWAN HNC
Sealing element1 setJAPAN NOK
Main motor1 setSIEMENS
Hydraulic pump1 setTAIWAN HYDROMAX

Louver Making Hydraulic Ironworker Machine With High Quality And Best Price

Our Service

Pre-sales Service
1. Inquiry and consulting support.
2. Sample testing support .
3. Recommend the most suitable machine according to customer's purpose.
4. Factory visiting welcomed.
After-sales Service
1. Training how to install the machine .
2. Training how to use the machine .
3. Warranty 1 year.
4. Engineers available to service machinery oversea .


How about your machine quality? We are worry about the quality.

RE: RAYMAX company is a mature brand in CHINA,through our many years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.

Whether the machine price can be more discount?

RE:1. RAYMAX always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough quality standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.

RE:2. we are sure to provide quality=price and price=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.


  • CNC or Not: CNC
  • Condition: New
  • Nominal Force (kN): 160
  • Power Source: Hydraulic
  • Place of Origin: Anhui, China
  • Voltage: Customized
  • Dimension(L*W*H): 2680*1040*2300
  • Motor Power (kW): 11-22
  • Weight (T): 6.5
  • Key Selling Points: High-accuracy
  • Warranty: 3 years
  • Showroom Location: Australia, Viet Nam, Kenya, Morocco, Spain, South Africa, South Korea, Philippines, Canada, Malaysia, Italy, Tajikistan, Brazil, United Kingdom, None, Uzbekistan, Pakistan
  • Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works , Restaurant, Energy & Mining, Food & Beverage Shops, Garment Shops, Advertising Company, Food Shop, Retail, Hotels, Food & Beverage Factory
  • Machine Type: Hydraulic Ironworker
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: triangle oval hole punch for Multi Purpose Hydraulic Ironworker
  • Main electrical appliance: SCHNEIDER
  • Application: Profile steel process
  • Hydraulic part: TAIWAN HNC
  • Sealing element: NOK
  • Motor: SIEMENS
  • Control system: F2300T CNC system
  • Power(W): 5.5KW
