Q35y-16 Multi-Functional Stainless Steel Plate Ironworker Machine Equipment

Structure and performance introduction:

This series of products are ideal equipment for cutting all kinds of angle steel, I-beam, U-shape steel, right angle or 45 degree angle steel. Multi-workstations make it possible to finish series operations simultaneously on one machine, such as punching, shearing and notching, Dual-piston-type combined punching and shearing machine allows two-man operation at the same time (stamping another work station), German Rexroth’s integrated hydraulic valve block ensures the stability of the machine, Through Thermal Effect of annealing processing, the entire rack is able to keep its shape forever, without deformation. The introduction of imported brand accessories ensures the parts’ service life and use precision.

* Punching: effective punching can be achieved with the machine, and stamping die is easy to be replaced.

* Bar cutting: you can quickly cut the round bar and square steel, if you want to cut U-shaped, I-beam or T-profile section steel only by exchanging the cutting blade and the operation procedure is very simple.

* Angle cutting: you can cut several 90 ° and 45 ° angles with the help of special dies.

* Metal Sheet Bending: it is very easy to fulfill the daily metal sheet bending work by making the bending moulds.

* Notching: The machine is equipped with a large-shaped slotting blade head, which can meet your general use, as to, special shaping blade head can be customized.
Q35y-16 Multi-Functional Stainless Steel Plate Ironworker Machine Equipment

Main functions:

* 2 independent hydraulic piston rods and foot-pedal allows two people operating at the same time.

* More efficient stroke-control functions of piston rod.

* Central lubricating system

* Motor-driven rear stopper

* Lighting devices for work

* 5 independent work-positions: punch pin and die (standard punching dies),cutting blade group for round and square steel, shearing blades for steel plate, slotting and angle-cutting blade.
Q35y-16 Multi-Functional Stainless Steel Plate Ironworker Machine Equipment

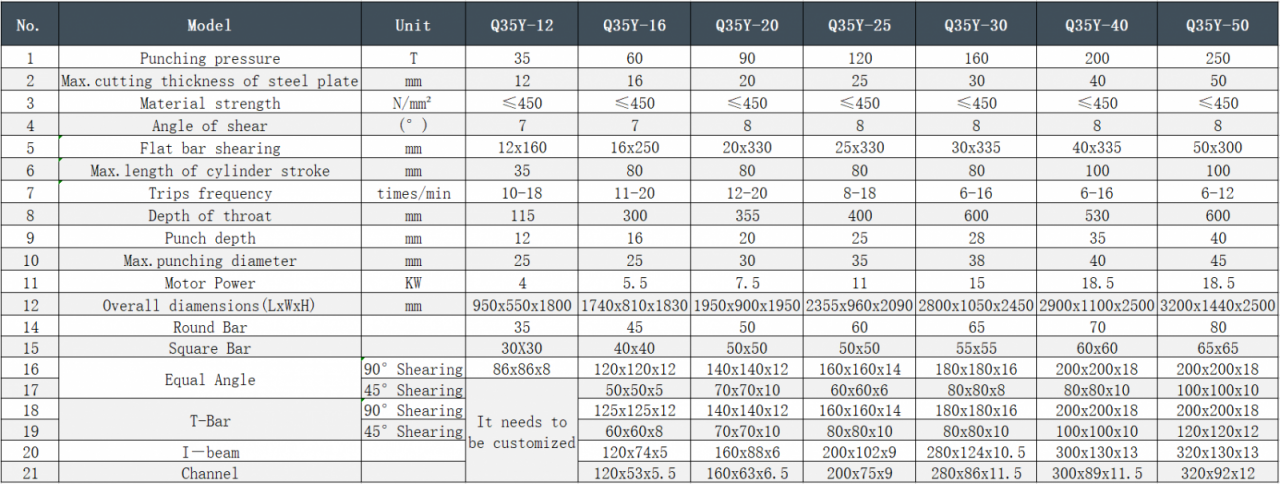

Size Information

Q35y-16 Multi-Functional Stainless Steel Plate Ironworker Machine Equipment

Pre-service:

1. We will help you confirm the model of our machine according to your offered sheet plate information.

2. You are very welcome to see our machine how to work in the factory before you place an order with us.

After Sales-service:

1. Free installation, trial start and adjustment, training.

2. We guarantee machine quality for 2 years. During this year, if spare parts of the machine were damaged, we can send the components to the customer by DHL,TNT freely.

3. Our factory provide the service for the customer forever, if the customer need operation help,we provide 24 hours on-line reply service.

Details

  • CNC or Not: Normal
  • Condition: New
  • Nominal Force (kN): 630, 600
  • Power Source: Hydraulic
  • Year: 2020
  • Voltage: 380V
  • Dimension(L*W*H): 1740*810*1830
  • Motor Power (kW): 5.5
  • Weight (T): 2.3
  • Key Selling Points: Multifunctional
  • Warranty: 2 years
  • Showroom Location: Egypt, Turkey, United States, Viet Nam, Philippines, Brazil, Saudi Arabia, Indonesia, Pakistan, India, Thailand, Chile, Sri Lanka, South Africa, Kazakhstan, Tajikistan, Malaysia
  • Applicable Industries: Building Material Shops, Construction works
  • Machine Type: ironworker machine
  • Marketing Type: Ordinary Product
  • Video outgoing-inspection: Provided
  • Hydraulic System: Boschrexroth Germany Brand
  • Electrical components: Schneider France
  • Tubing connector: EMB Form Germany Brand
  • Seal Ring: NOK Japan
