mechanical punch press machine

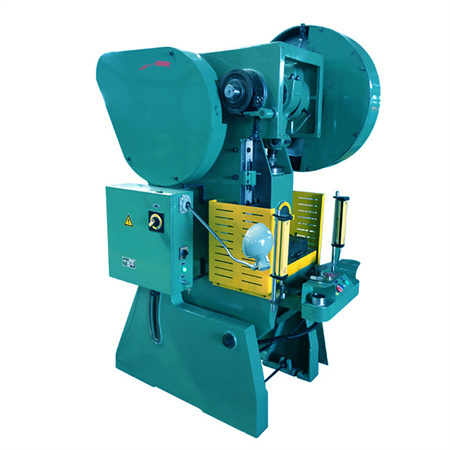

Main Features: 1) This series of press frames are welded by steel plates, small deformation, good rigidity. 2) This series of machines adopts pneumatic friction clutch-brake combination, long service life, low noise, stable transmission. The six surfaces of the guide rail, precision is high, can prolong the life of die, die height adjustment is convenient and reliable, with emergency stop, inching, single and continuous operation specification. 3) Optional: PLC electrical control system, air cushion, photoelectric safety protection device. Advantages: 1) Crankshaft can stop at any point during operation, Highest safety; 2) High precision; long life; low noise; Easy access to…

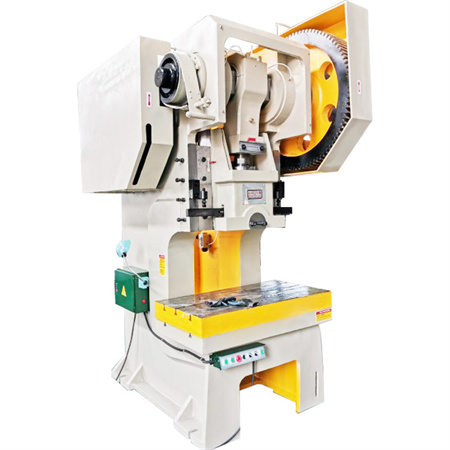

Features 1. This series of press adopts rotating key positive clutch,which has a simple structure and is convenient to operate and maintain,achieving smooth operation, low impact and low noise. 2. J23-25 open type inclinable press machine is the first to adopt rolling bearing rather than the commonly used sliding bearing(copper bearing) for the transmission gear, making the transmission gear more wear-resistant and avoiding loud noises of gears caused by the quickly worn copper bearing; 3. The 80T level and above press machine all adopt the structure of pneumatic dual balance cylinder, chich has small fluctuation of the balancec force and…

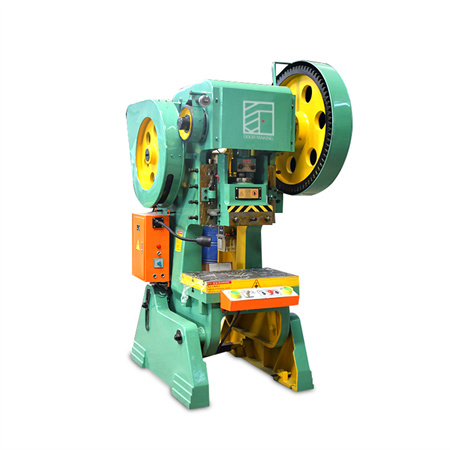

Product Description 1. It adopts horizontal crankshaft and open external gear, which is convenient for maintenance. 2. The sliding block of the cast box structure has good rigidity. 3. Built-in block collapsed overload protection device, the structure is simple if slider after overload, fuse collapsed destroyed to protect the machine and mold from damage. 4. It adopts hand and foot switch operation button design, which is convenient for continuous, single and adjustment operation. 5. Compatible with the automatic feeding system of corresponding presses, with feeding error detection, pre-cutting and pre-breaking devices, low cost and high efficiency. Specification Model J23-100A Norminal…

Product Description J23 Series Pneumatic High Speed Sheet Metal Punching Press Machine Perforating Machine 1. steel welding body, good stiffness, more stable accuracy. 2. Crankshaft longitudinal, compact structure, beautiful appearance. 3. Mold height to achieve electric adjustment, digital display adjustment height. 4. Slider with rectangular hexahedron extended rail, with bronze lining, high precision guide. 5.Brake with modular pneumatic friction clutch, smooth connection, action sensitive. 6. Press the collapse of the insurance, to ensure the safety of the whole overload. 7. Slider with lifting balance cylinder, to achieve the balance of the slider link. Model Nominal Pressure(kn) Slipper Stoke(mm) Slipper Stoke…
