sheet metal guillotine machine

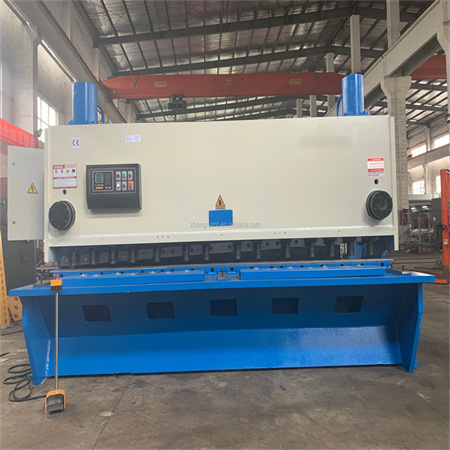

Product Information CNC Hydraulic Guillotine | QC11K 10 12 16 mm 3200 4000mm Metal Guillotine Shear CNC Guillotine Shearing Machine * Streamlined design originated from EU, the kind of machine tool consists of rack, cutter holder, oil cylinder, hydraulic controller,backgauge and other components. Finite-element analysis of main parts, welding parts uses tempering, vibration and other processing methods to eliminate stress ensuring the structural strength and rigidity of the rack and components; * Cutter holder use three-point support rolling guide rail, reducing the friction to the greatest extent and realizing seamless rolling during cutter holder moving. * Leftmost front holder configured…

Products Description 1. Main structure consists of 2 units oil cylinder, cutter holder, rack, hydraulic controller, backgauge and electric controller. Finite-element analysis of main parts, Welding parts uses tempering and high frequency vibration etc processing methods to eliminate stress ensuring the structural strength and rigidity of each component; 2. Cutter holder use three-point support rolling guide rail to reducing the friction to the greatest extent, and eliminate the support gap, improve cut quality. 3. Simple and effective blade adjusting mechanism , blade gap adjustment by a hand wheel, fast, accurate and convenient,improving the cutting quality. 4. Left-most front holder configured…

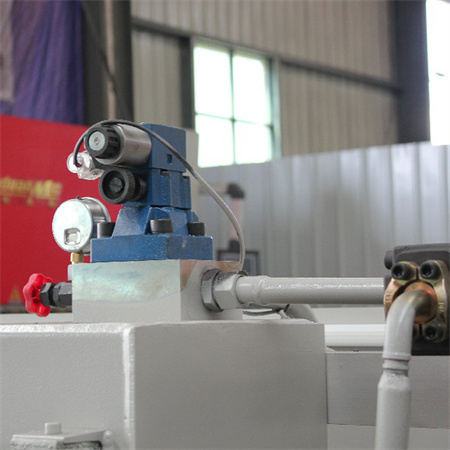

Main Features: * Estun E21S NC control system * Powered Back guage X-axis * DELTA Inverter controlled back guage * HIWIN Ball screws &Polished rod with 0,05mm accuracy * Squaring Arm and Front Support Arms * Germany Bosch-Rexroth Hydraulic * Germany EMB Tubing connector * Germany Siemens Main Motor * Telemecanique/Schneider Electrics * Hydraulic &Electrical overload protection * Top blade with two cutting edges and bottom blade with four cutting edges. (6CrW2Si) Type Cutting Length(mm) Throat Depth(mm) Moto Power(kw) Weight(kg) L*W*H(mm) 4*2500 2500 100 5.5 3800 3040*1610*1620 6*3200 3200 145 7.5 6000 3840*1610*1620 8*4000 4000 300 7.5 8800 4640*1700*1700 10*2500…

Hydraulic Shearing Machine Features include: Solid monolithic structure An avant-garde hydraulic system Blade carrier beam: Thrust cylinders on the cutting axis with blade carrying beam Blade pressure cylinders, with auto-regulating pressure, based on cutting force Blade carrying beam guide over the whole cutting length Rear regulator with recirculating ball screws Running wheels’ table and frontal support Cutting Angle & Blade Gap control by DAC310 DA360 Cutting line with LED illumination ESTUN NC control System DELEM DAC310 DA360 Frontal support frame complete with retractable adjustable guides, millimetre rule and running wheels HIWIN Ball screws & Polished rod with 0,01 mm accuracy.…
