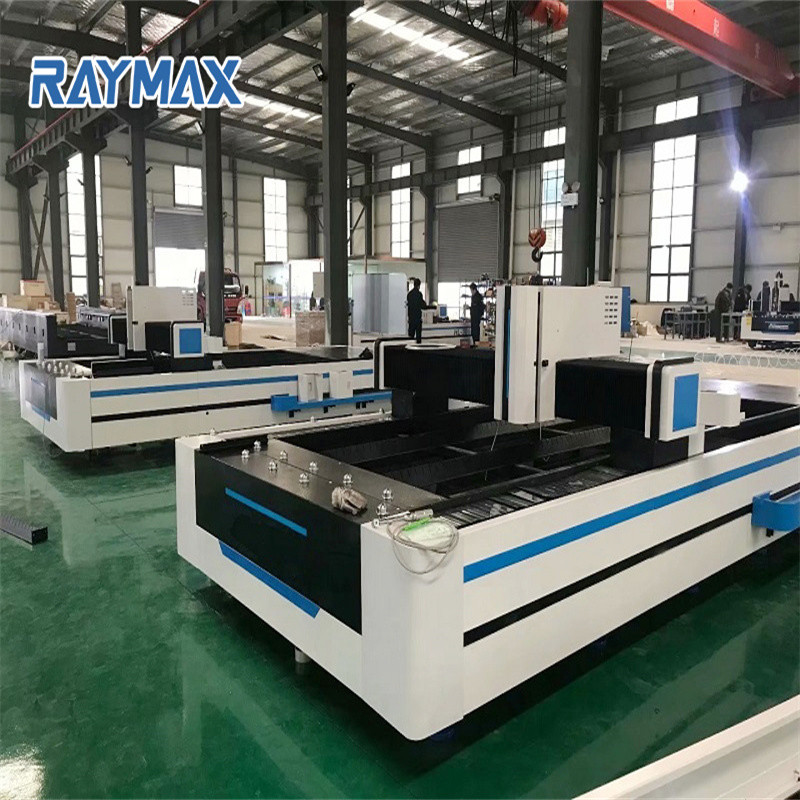

1530 Cnc Sheet Metal Fiber Laser Cutting Machine

Features

1.Low cost and the power consumption is 0.5-1.5kw/h; Customer can cut all kinds of metal sheets by blowing air;

2. High-performance. Imported the original packaged fiber laser, with stable performance and the lifespan is over 100,000 hours;

3.High speed and efficiency, the speed of cutting metal sheets close to tens of meters;

4.The laser maintenance free;

5. The cutting edge looks perfect and the appearance is smooth and beautiful;

6. Imported the transmission mechanism and servo motor, and high cutting accuracy; Dedicated software enables graphic or text to be instantly designed or processed.
1530 Cnc Sheet Metal Fiber Laser Cutting Machine
We are assemble their lasers cutting machine 2000w/3000w/4000w/6000w to the strictest quality standards with nothing but world class components to ensure lasting quality at an attractive price.

Smart LASER is the general purpose 2D laser cutting machine by RAYMAX utilized around the globe across a multitude of applications, manufacturing demands, and budgets. Available in five sizes and with laser powers ranging from 1,000W to 6,000W fiber Laser.

The following elements are included:

• Laser Cutting Head: Raytools laser cutting head;Precitec Cutting head

• CNC Controller:CypCut Fscut 2000 CNC System;

• Cutting Area: 3000x1500mm, 4000×20000mm, 6000x2000mm, 6000x2500mm

• Cutting Speed: Max 100m/min;Positioning: 140m/min; Accelerations:1.0G
1530 Cnc Sheet Metal Fiber Laser Cutting Machine

DescriptionTechnical parameters
Max cutting size (mm)3000x1500
Effective travelY axis(mm)3100
X axis (mm)1525
Z axis (mm)170
Positional accuracyX axis (mm/m)±0.05
Y axis (mm/m)±0.05
Z axis (mm/m)±0.01
repeated positioning accuracyX axis (mm)±0.03
Y axis (mm)±0.03
Z axis (mm)±0.005
Rapid positioning speedX axis (m/min)100
Y axis (m/min)100
Z axis (m/min)30
Accelerated speed (G)0.8
Dimension Lx wx H(mm)4150x2300x1400

CNC CONTROL SYSTEM

The FSCUT1000 laser cutting control system of an economical laser cutting control system.Widely used in the field of metal and nonmetal laser cutting. Because of its outstanding performance in the field of fiber laser cutting, by the vast number of high-end users.

Application Materials:

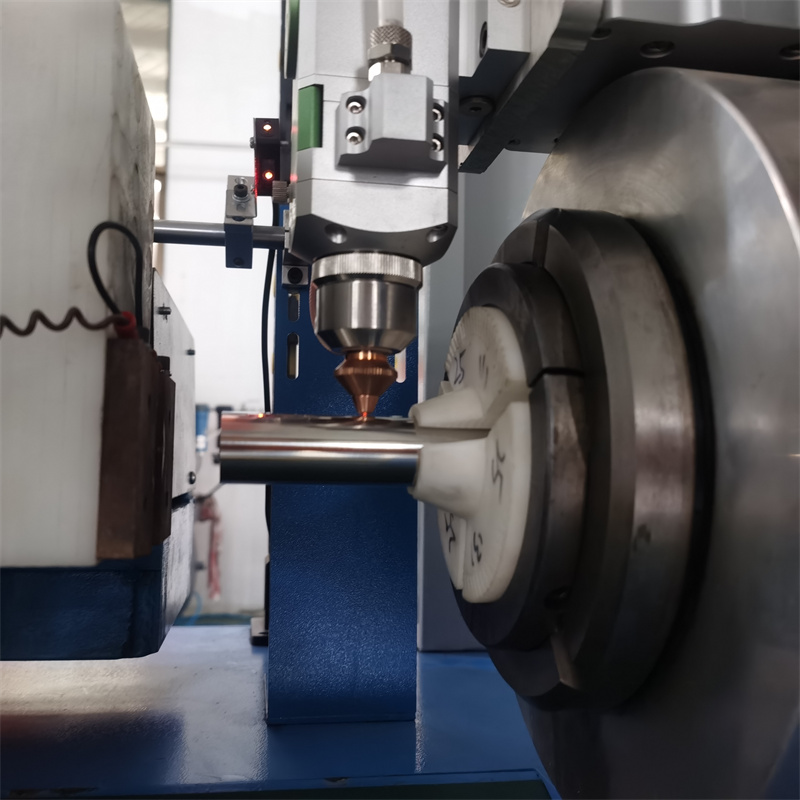

Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, If you equipped with the rotary axis, Metal Plate, Tubes and Pipes, all ok.

Our Service

Laser power: Two years warranty, Guaranteed by laser power manufacturer

Electronics and motion parts: One year warranty, Guaranteed by parts manufacturer

Free Warranty Service: We will send replacement parts on our cost first, keep customer's machine running is top concern.
If machine needs onsite service for quality issue, we send technician to anywhere on our cost. You may inquire any of our old international customers for reference! Complete machine has TWO years warranty. FIVE years warranty separately for machine table. Our machine table can secure you trouble-free at least 10 years!

FAQ

Q1: I know nothing about this machine, what kind of machine should I choose?

Don't worry, you just need to tell us below simple info, then we will give you professional suggestion and quote you price very soon.
a. What do you want to cut? Sheet, pipe or both?  b. Material of the metal  c. Max thickness

Q2: When I get this machine, but I don't know how to use it. What should I do?

We will send teaching video of both installation and operation, as well as the English manual. If you have further questions, we have engineers who can speak English can serve you on-line directly.

Q3: If the machine have problems or borken in the future, what can you do for me?

We guarantee machine quality for 13 months, during this period, if spare parts of the machine were not man-made damaged, we can send the component to the customer by DHL, TNT freely. Besides guarantee period, we still provide you free online services for life. If parts broken, you can order replacement parts from us.

Details

  • Application: LASER CUTTING
  • Applicable Material: Metal, Carbon Steel Stainless Steel Aluminum
  • Condition: New
  • Laser Type: Fiber Laser
  • Cutting Area: 1500mm*3000mm
  • Cutting Speed: 0-120000mm/min
  • Graphic Format Supported: DXF, Dwg, DXP
  • Cutting Thickness: depend on laser power
  • CNC or Not: Yes
  • Cooling Mode: WATER COOLING
  • Control Software: Cypcut
  • Laser Source Brand: IPG
  • Laser Head Brand: Raytools
  • Servo Motor Brand: DELTA
  • Guiderail Brand: THK
  • Control System Brand: Cypcut
  • Weight (KG): 1000 KG
  • Key Selling Points: Competitive Price
  • Warranty: 2 years
  • Applicable Industries: Machinery Repair Shops, Construction works
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 3 years
  • Core Components: Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox
  • Mode of Operation: Pulsed
  • Configuration: 3-axis
  • Products handled: Sheet Metal
  • Feature: SERVO-MOTOR
  • Product name: Fiber Laser Metal Cutting Machine
  • Keyword: Fiber Laser Cutting Machiens
  • Function: Cutting Metal Materials
  • Laser tube: IPG Fiber Laser
  • Laser head: Switzerland Raytools
  • Marketing Type: New Product 2020
