Product Description

Economic Single Double Worktable Cnc Sheet Metal Fiber Laser Cutting Machine


Type of the Laser GeneratorFiber Laser
Working DielectricYV04
Laser Wavelength1070nm
Rated Power Output2000W
Beam quality<0.37mrad
X-axis travel1500mm
Y-axis travel3000mm
Z-axis travel120mm
Effective cutting range1500mm×3000mm
Workbench axial positioning accuracy≤±0.03mm/m
Workbench repeat positioning accuracy≤±0.03mm/m
Max. positioning speed120m/min
Power supply rated voltage380V etc.
Workbench Max. bearing capacity1500KG
Main power protection gradeIP54

Packing & Delivery

Economic Single Double Worktable Cnc Sheet Metal Fiber Laser Cutting MachineEconomic Single Double Worktable Cnc Sheet Metal Fiber Laser Cutting Machine

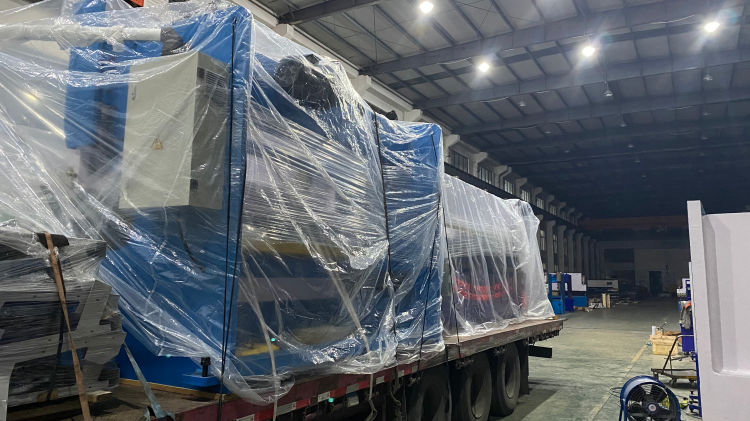

Before the shipment, the machine will be coated with antirust oil.

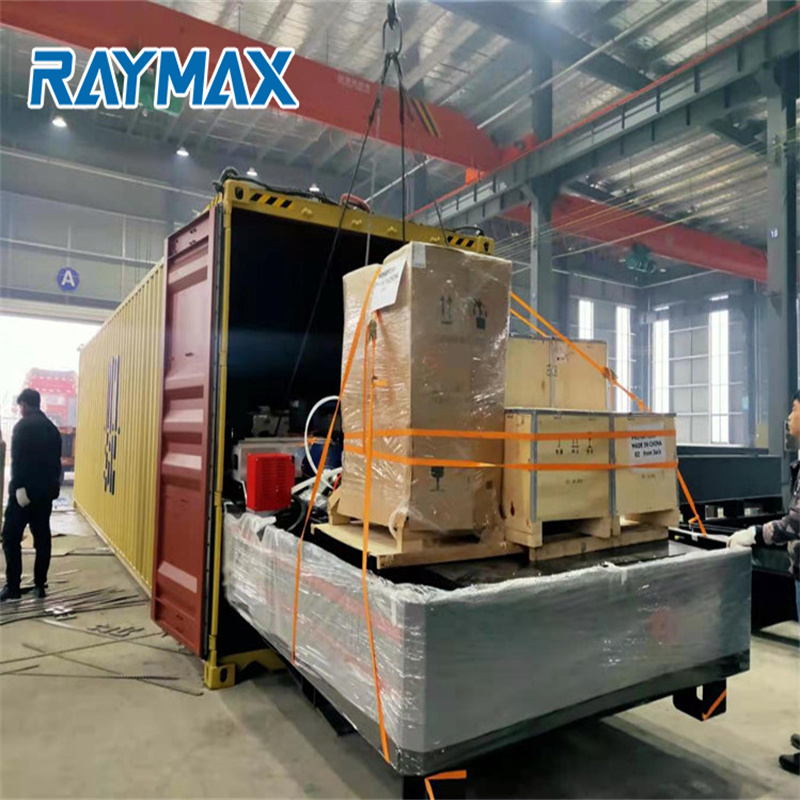

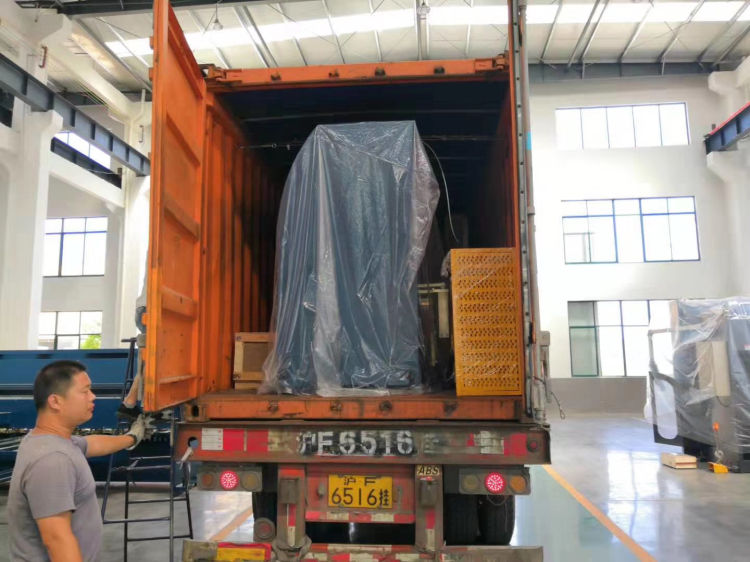

The machine is transported by standard container. Inside the container, we will use many wire ropes to fix the goods from multiple angles. We will also make videos to let you know how the equipment is loaded into the container. Please contact our sales consultant for the best shipping plan and accurate quotation. Economic Single Double Worktable Cnc Sheet Metal Fiber Laser Cutting Machine


Q1. How to get the most suitable machine and best price

Please tell us what metal sheet material, its thickness, cutting area and other information.

Q2. If we don't know how to use the machine, can you teach us?

Yes, we will, English manual and video will come along with the machine. You also can contact our service team if you need any help during use our machines.

Q3. How about your after-sale service?

We offer you 24 hours service by phone, Skype or What’s app.

Q4. Quality Control

The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. Our machines all have passed CE Certificate, meet European and American standard, were exported to more than 100 Countries.

Q5. How we pay you?

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price, shipment, payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on the proforma invoice.E. We prepare for your order in terms of the proforma invoice after confirming your full payment and 100% quality check before shipping.F. Send your order by air or by sea.


  • Application: LASER CUTTING, Metal Cutting
  • Applicable Material: Metal
  • Condition: New
  • Laser Type: Fiber Laser
  • Cutting Area: 1500mm*3000mm
  • Cutting Speed: Depand on workpiece material
  • Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
  • Cutting Thickness: Depand on workpiece material
  • CNC or Not: Yes
  • Cooling Mode: WATER COOLING
  • Laser Source Brand: RAYCUS
  • Laser Head Brand: Raytools
  • Servo Motor Brand: FUJI
  • Guiderail Brand: HIWIN
  • Weight (KG): 5500 KG
  • Key Selling Points: Long Service Life
  • Warranty: 1 Year
  • Applicable Industries: Building Material Shops, Manufacturing Plant, Construction works , Advertising Company
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 2 years
  • Core Components: Motor, Bearing, Gear, Pump, Engine, PLC
  • Laser Power: 2000W
  • Cutting Pipes: Yes, need extra components
  • Certification: CE ISO
  • After Warranty Service: Online support Video technical support
