This fiber laser cutting machine is widely used for carbon steel, stainless steel, aluminum and other metal materials cutting and forming, with high speed, high precision, high efficiency, cost-effective and energy saving. It is the first choice of the metal processing industry.
|Laser Power||300w 500w 1000w 1500w 2000w 4000w 6000w 8000w 12000w etc|
|Working Size||3015 (optional 4020 6020 etc)||Maximum Compound Velocity||120m/min|
|X-Axis Travel||3050mm||Peak Acceleration||1.8G|
|Y-Axis Travel||1520mm||X Y axis positioning accuracy||±0.05mm|
|Z-Axis Travel||130mm||X Y axis re-positioning accuracy||±0.03mm|
|Machine Weight||5000-9000kg||Maximum Load of Worktable||1000kg|
|Outside Size||4600*2300*1800mm||Power supply||3phase /380V/50Hz|
|Shared-edge Cutting / Leapfrog Cutting / Breakpoint Return / Backspacing Function / Follow-up Control / Micro-connect Function /Scan Cutting / Automatic Edge Finding|

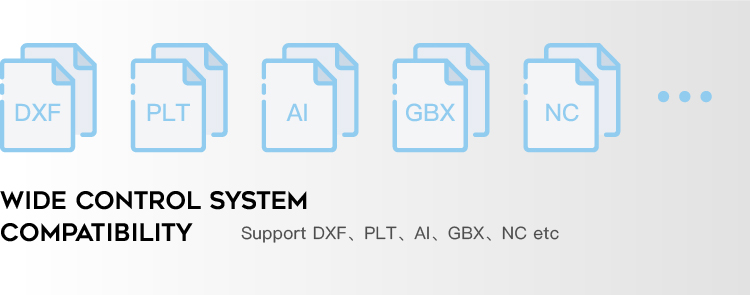

The format that our software can support on the fiber laser cutting machine.
The fiber laser cutting machine use the world top brand parts, Raytools fiber laser head ,the laser head can automatically focus, and imported Japan Yaskawa servo motors and drives, high precision, high speed, large torque, performance is stable and durable, ensure the high speed operation of the whole machine. Chinese top brand fiber laser source Raycus, high power , high precision. Top brand control system : Cypcut control system, with automatic layout optimization.

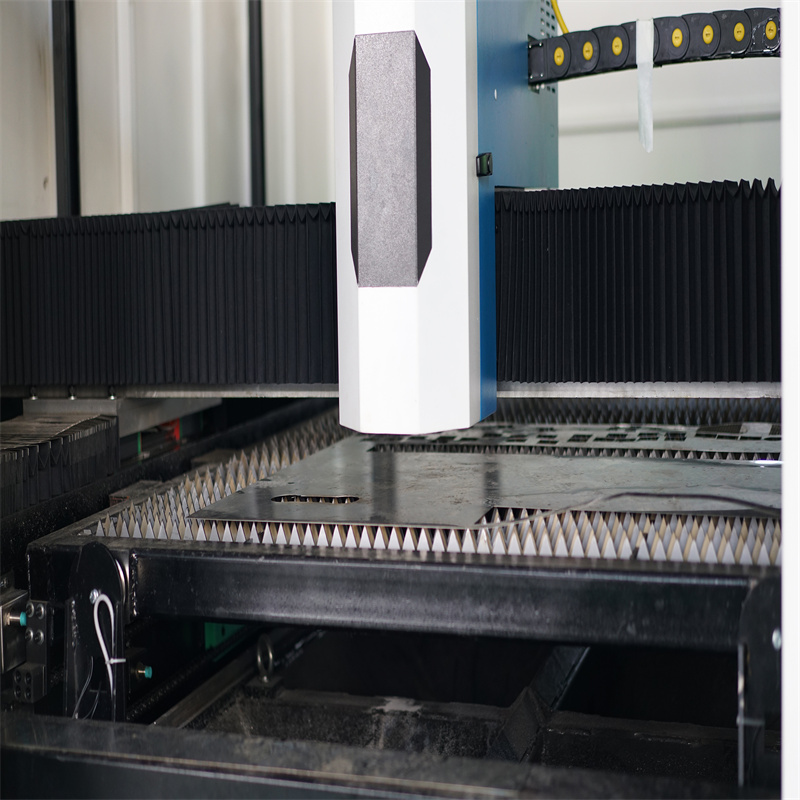

The machine is able to finish the platform exchanging within 15s.Less load time and more efficient.More stable and faster.
Fully enclosed,safer to cut,no pollution in the environment.Platform exchange time super fast, finish in 15S, high efficiency.
|Control System||Cypcut / Au3tech / NCStudio||Domestic professional and widely used laser cutting system|

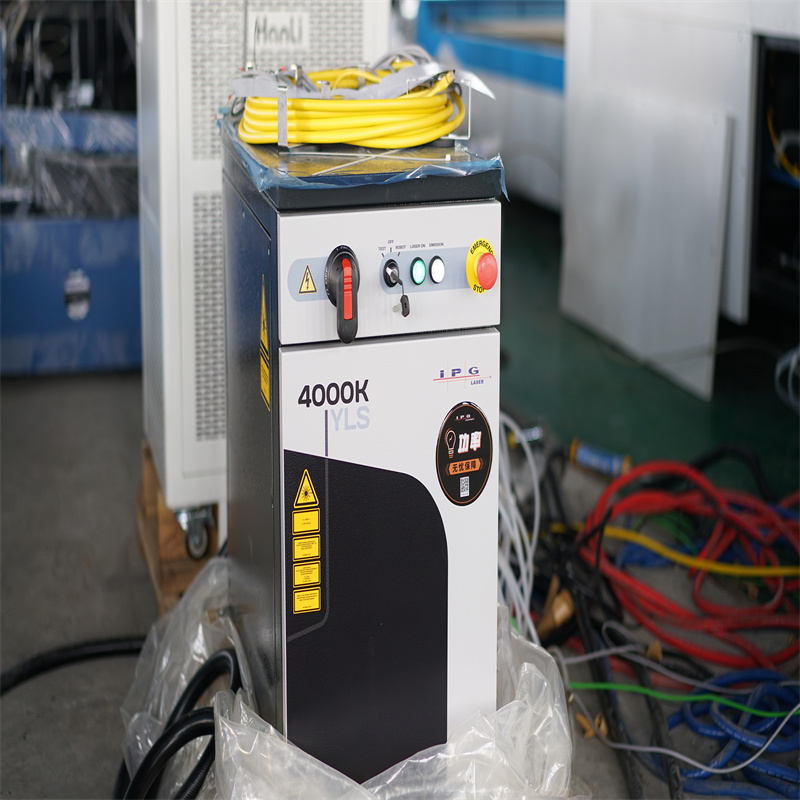

|Laser Source||Raycus/ Max /IPG/ N-light||Long life, efficient and safe|

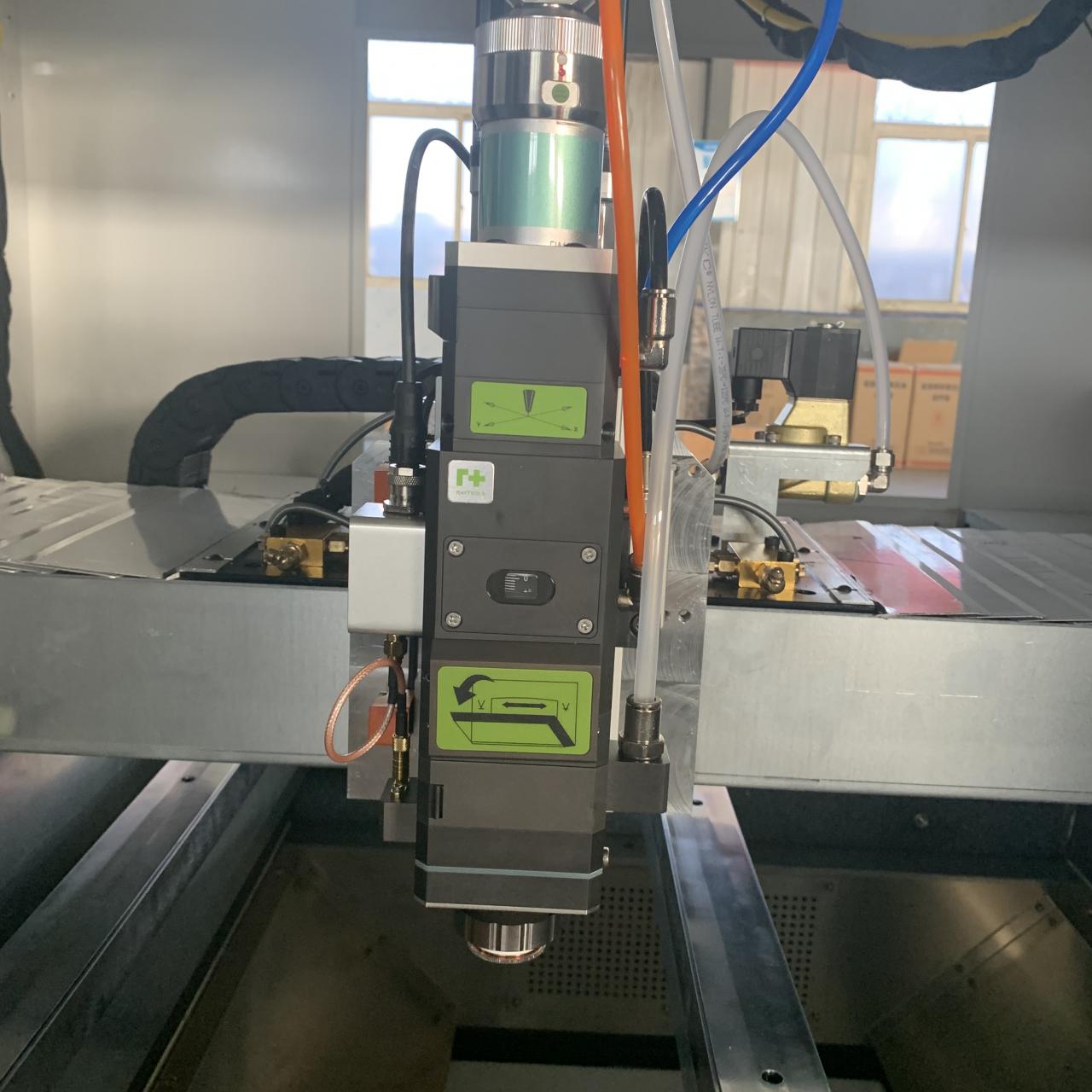

|Laser Cutting Head||Raytools/Au3tech||Stable, long life, easy replacement of lossy parts, simple focus adjustment, optical components imported from Germany|
|Dust Removal Fan||Powerful dust removal fan||Bass, powerful, good dust extraction effect|
|Bed Working Size||3000*1500mm/other||Suitable for most standard metal plates|
|Precision Gear Rack||YYC||High precision, high hardness and small error|
|Precision Linear Guide||HIWIN / THK||Original imported guide rail, high precision, stable, long life|
|Gear Reducer||MOTOREDUCER||48 hours long aging annealing to remove the effect of thermal stress on the machine tool|

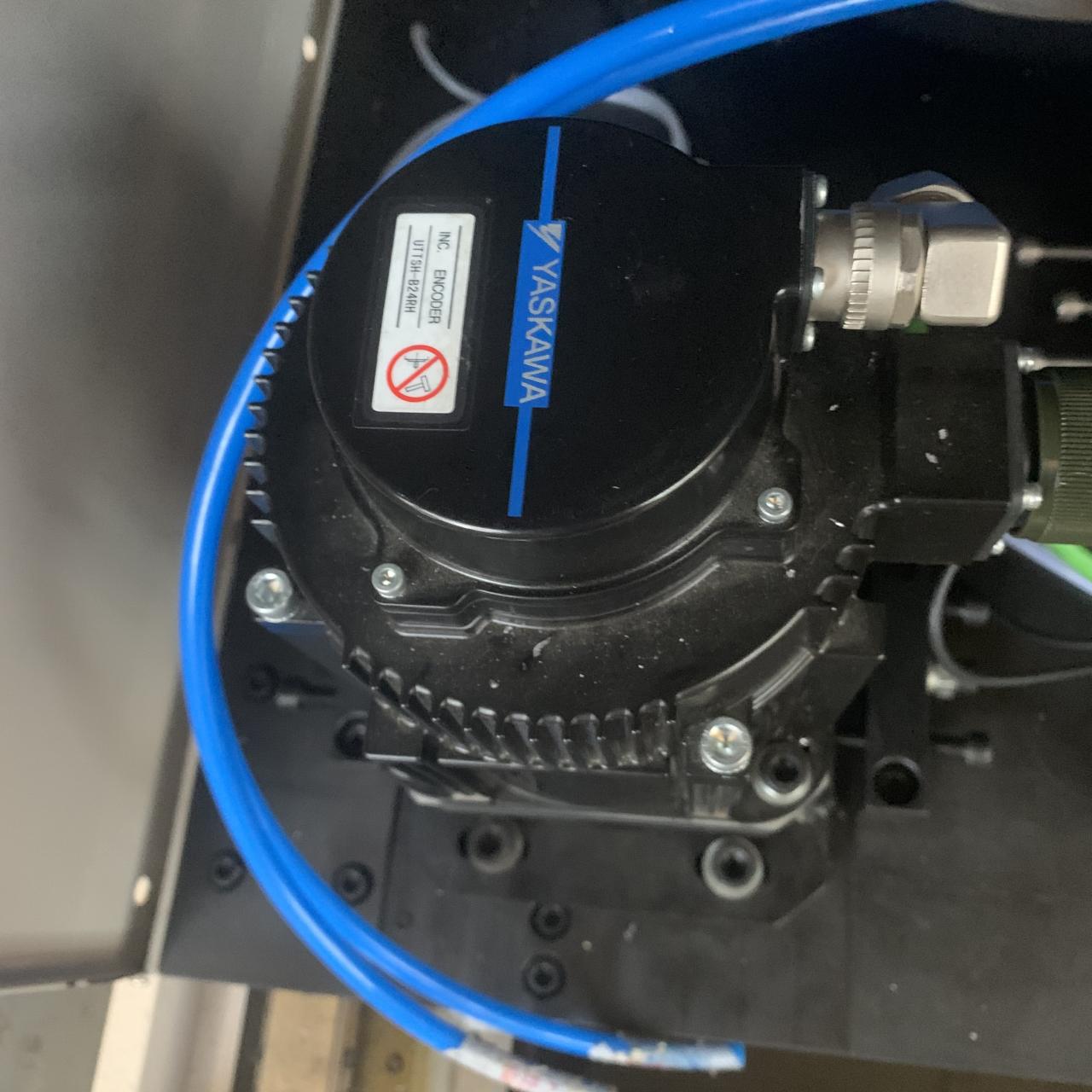

|Servo Motor||Yaskawa/Panasonic/delta||The original imported servo system has high precision, stability, long life, and large domestic consumption.|
|Air Control||SMC||Imported high temperature and low pressure proportional valve, Stable high and low pressure switching, more stable cutting|
|Laser protective glasses||one pair||Standard|
|Protective lenses||five pieces||Standard|
|Cutting software U disk||one||Standard|
Free Pre-Sales Consulting / Free Sample Marking Reci Laser offer 12 hours quick pre-sales response and free consulting. Any kind of technical support are available for users. Free Sample Making is available. Free Sample Testing is available. We offer progressing solution design to all the distributor and users.
1. 3 year guarantee for fiber laser cutting machine .
2. Full technical support by e-mail, call and video
3. Lifelong maintenance and spare parts supply.
4. Free design of fixtures as customers required.
5. Free training installation and operation for the staffs.
Packing & Shipping
1. Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool.
2. Fumigation wooden box: Our wooden box is fumigated, do not need to check the wood, saving the transport time.
3. Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust.The outermost is a wooden box with a fixed template.
4.Wooden box at the bottom of a solid iron socket for easy handling.
1. Q: Why should we choose you?
A: If you choose us, you will get top quality,best service,reasonable price and reliable warranty.
2. Q: I'm not familiar with the machine, how to choose?
A: Just tell us materials, thickness and working size, I will recommend the suitable machine.
3. How to operate the machine?
A: We will deliver English manual and video with the machine to you.If you still need our further help,please contact us.
4. Q: Can I get the sample to check quality of machine?
A: Of course.Please provide your logo or design to us, free samples can be provided for you.
5. Q: Can the machine be customized according my requirements?
A: Sure,we have a strong technical team and have rich experience. Our goal is to make you satisfied.
6. Q: Can you arrange the shipment for us?
A: Of course.We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, CFR are available.
- Application: LASER CUTTING
- Applicable Material: Metal
- Condition: New
- Laser Type: Fiber Laser
- Cutting Area: 1300*2500
- Cutting Speed: 0-20m/min
- Graphic Format Supported: AI, PLT, Dst, Dwg
- Cutting Thickness: 0-20mm
- CNC or Not: Yes
- Cooling Mode: WATER COOLING
- Control Software: Cypcut
- Laser Source Brand: RAYCUS
- Laser Head Brand: Raytools
- Servo Motor Brand: Yaskawa
- Guiderail Brand: HIWIN
- Control System Brand: Cypcut
- Weight (KG): 4500 KG
- Key Selling Points: Long Service Life
- Optical Lens Brand: Wavelength
- Warranty: 2 years
- Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction works
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 2 years
- Core Components: laser source
- Mode of Operation: continuous wave
- Configuration: gantry type
- Products handled: Sheet Metal
- Feature: Water-cooled
- Product name: 1kw 2kw good price fiber laser cutting machine for sheet metal
- Laser power: 500W / 1000W / 2000W / 3000W
- Working area: 1500mmX3000mm / 2000mmX4000mm / 2000mmmX6000mm
- Cutting materials: Stainless Steel Carbon Steel Etc( Metal Laser Cutting Machine )
- Control system: Cypcut Control System
- Working table: Blade Table
- Driving system: Stepper Motor
- Cutting head: American Lasermech
- Cooling system: Water Cooling System
- Weight: 4500kg
