80 Ton Cnc Punching Machine Price C Frame Power Press Small Hydraulic Press Machine

Product Application

Machine is used for sheet metal parts stamping, combined with stamping molds and auto feeders, the automatic production line is formed. It’s applied for Home appliances, Air conditioner, Air cooler, refrigerator, Auto parts, Automotive parts, Car parts, Filters, Washing machine, Kitchen sinks, Kitchen products,Kitchenware, Kitchen appliances, Kitchen utensils, Kitchen supplies, Gas stove, Gas cooker, Mobile parts, Mobile phone parts, Microwave oven, hinge etc.

Main Features

※ High precision pneumatic press machine

※ Steel welded machine body with heat treatment

※ Multi language touch screen control system

※ High level precision, low voice, smooth running

※ CE certification European standard electric box with multi functions

※ Dry or wet clutch as option, speed inverter, overload protection and auto lubrication

※ Photoelectric light curtains, anti-vibration pads, local voltage transformers

80 Ton Cnc Punching Machine Price C Frame Power Press Small Hydraulic Press Machine
80 Ton Cnc Punching Machine Price C Frame Power Press Small Hydraulic Press Machine

Machine Configurations

Standard AccessoriesOptional Accessories
1PLC HMI1Die cushion
2Dry clutch or wet clutch as option2Quick die change(Die lifter, die clamp, die arm etc.)
3Miss feeding detector3Coil decoiling machine
4Anti-vibration pads4Coil straightener
5Auto grease lubrication5Coil servo feeder
6Overrun protection device6Stamping dies(single stage die, progressive die, transfer die)
7Photoelectric protection device/Light curtains7Automation/manipulator arms
8Die height indicator
9Motor inverter
10Balancer
11Cam switch
12Knock-out device
13Air ejector
14Die light
15Local voltage transformer
16Maintenance tools and tool box

Press Machine Components

80 Ton Cnc Punching Machine Price C Frame Power Press Small Hydraulic Press Machine

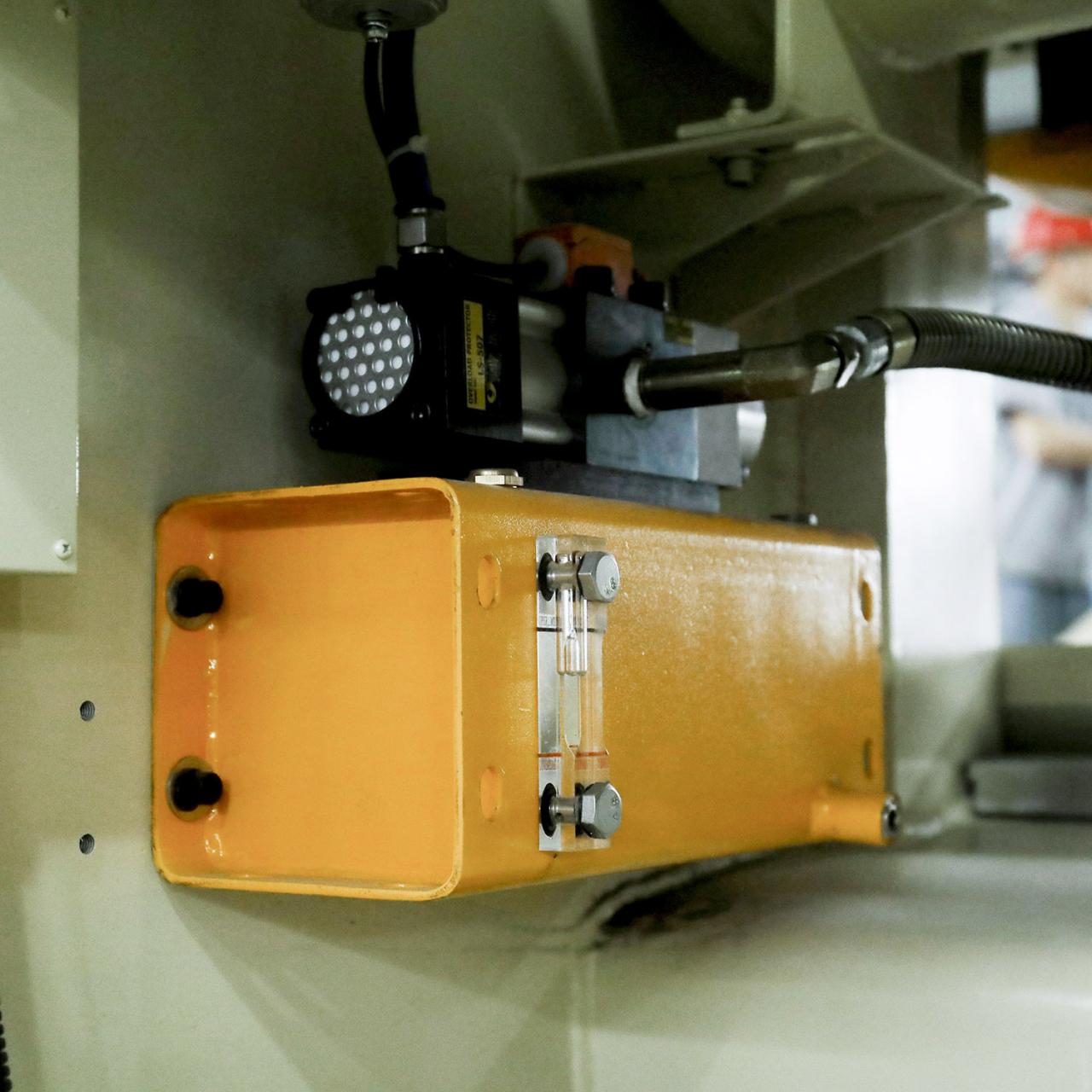

Hydraulic overload protection pump

When the pressure of slider exceeds its specified pressure, the overload pump will relieve the pressure to protect the stressed part of press machine from damage.80 Ton Cnc Punching Machine Price C Frame Power Press Small Hydraulic Press Machine

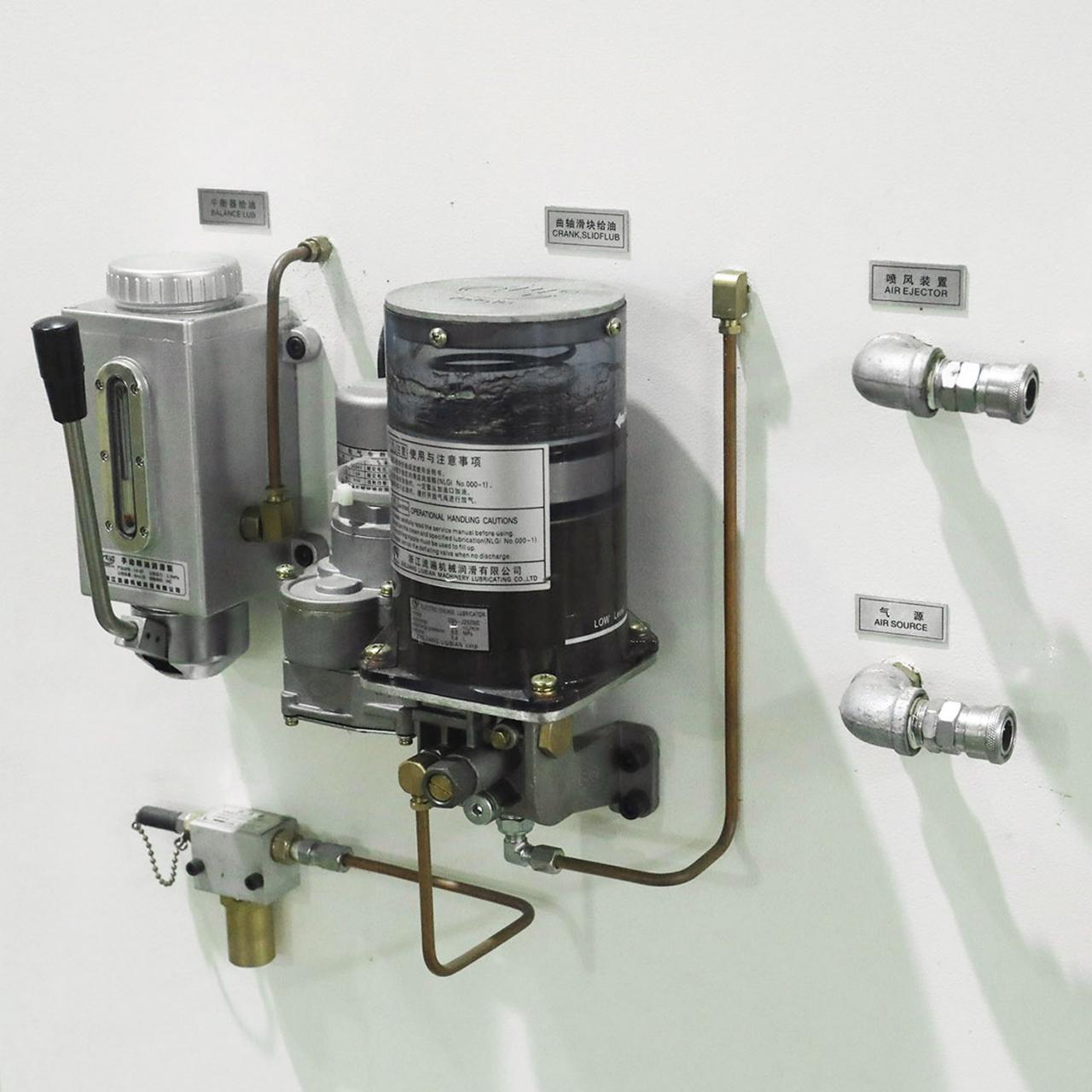

Auto grease lubrication device

It works under PLC control, providing lubrication for guide rails, crankshaft bearing bush, etc. without manual interference, realizing automatic lubrication.80 Ton Cnc Punching Machine Price C Frame Power Press Small Hydraulic Press Machine

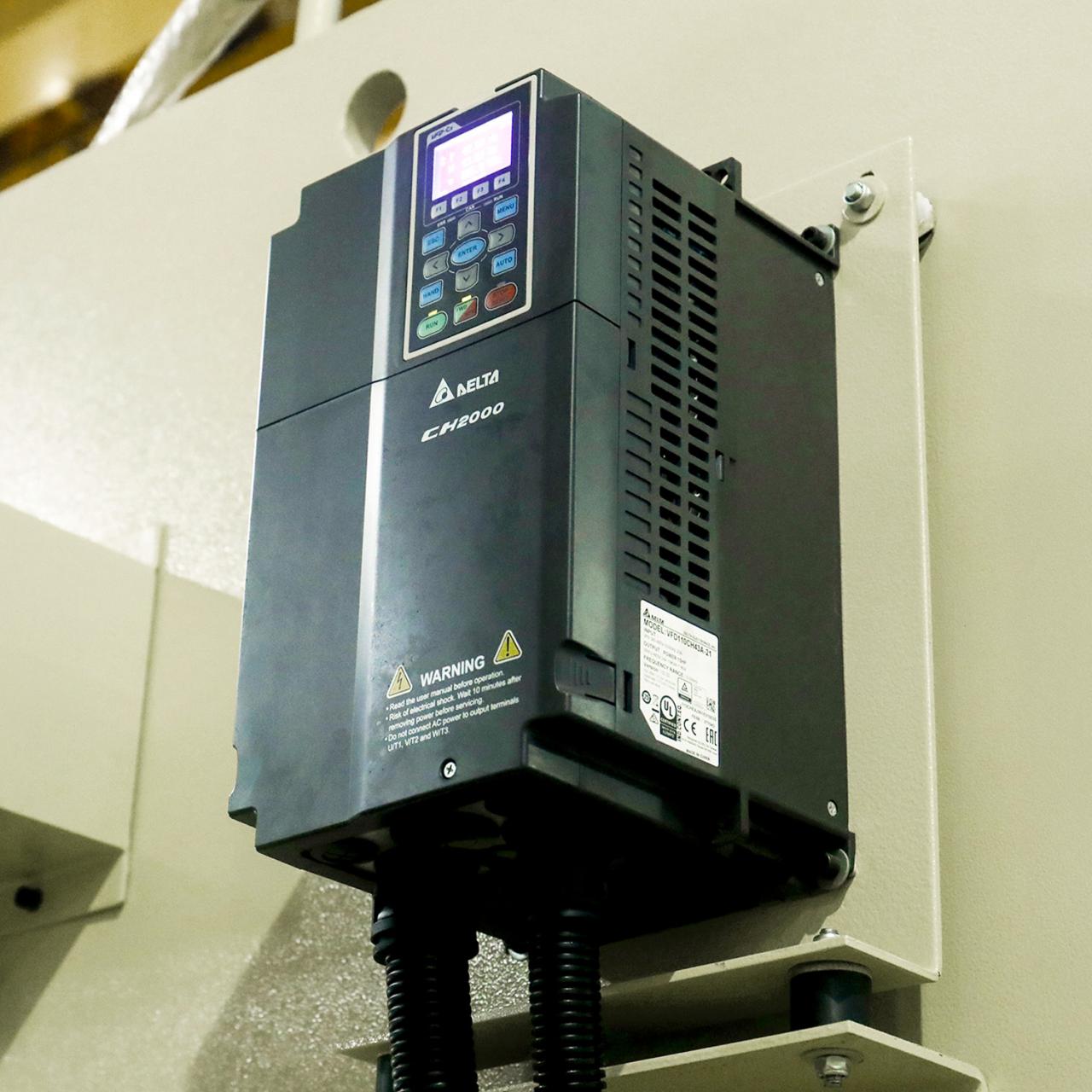

Inverter

It works mainly for speed regulation, convenient for mold installation and trial by operators as well as machine maintenance. 80 Ton Cnc Punching Machine Price C Frame Power Press Small Hydraulic Press Machine

Clutch and brake integrated

The function of clutch and brake is to control the movement and stop of slider, its sensitivity directly relates to safety issues, it works on the purpose of protecting the operators and press machine.80 Ton Cnc Punching Machine Price C Frame Power Press Small Hydraulic Press Machine

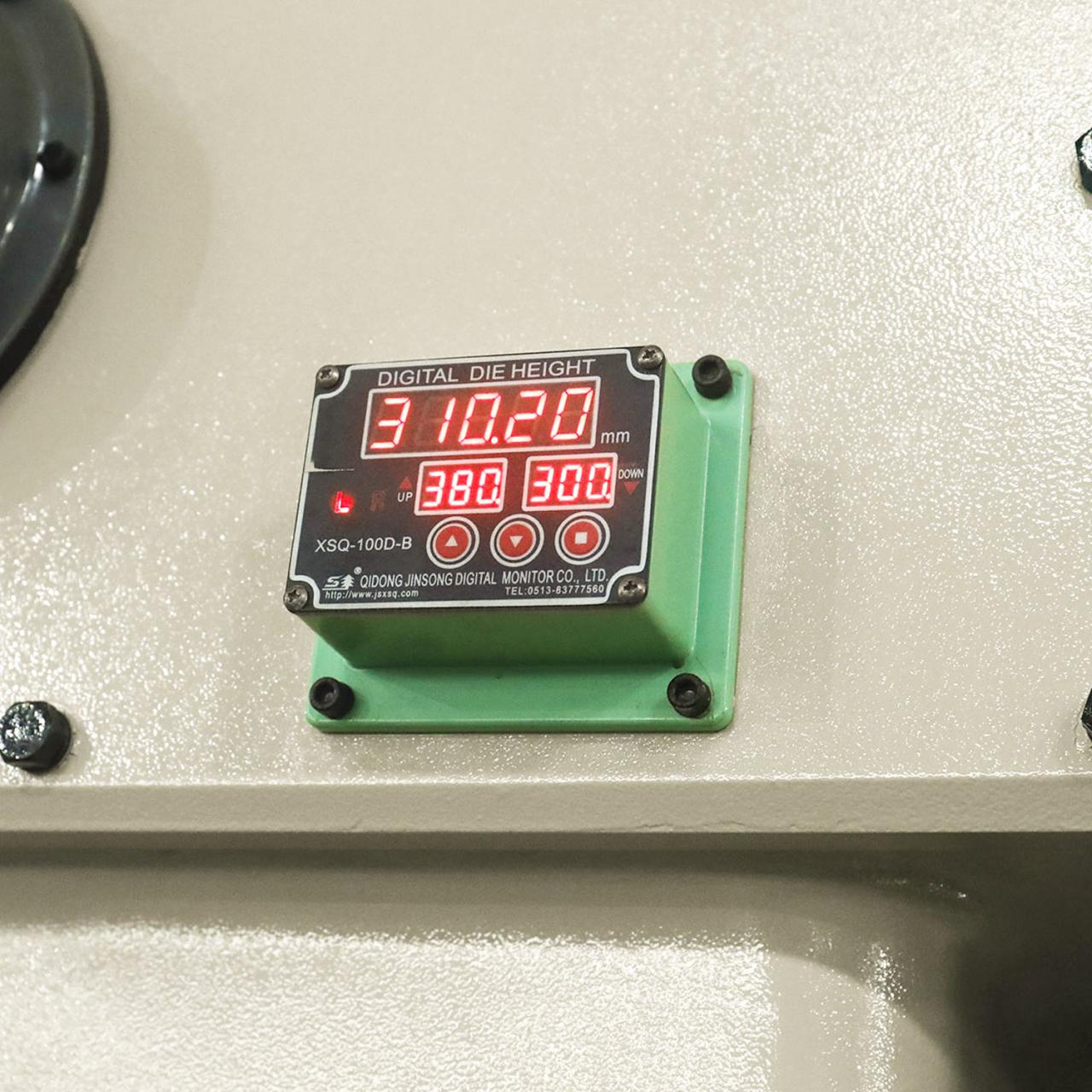

Digital die height indicator

Die height display is an instrument to show the height of the die. It has upper and lower limits to protect the height of die within a certain range.80 Ton Cnc Punching Machine Price C Frame Power Press Small Hydraulic Press Machine

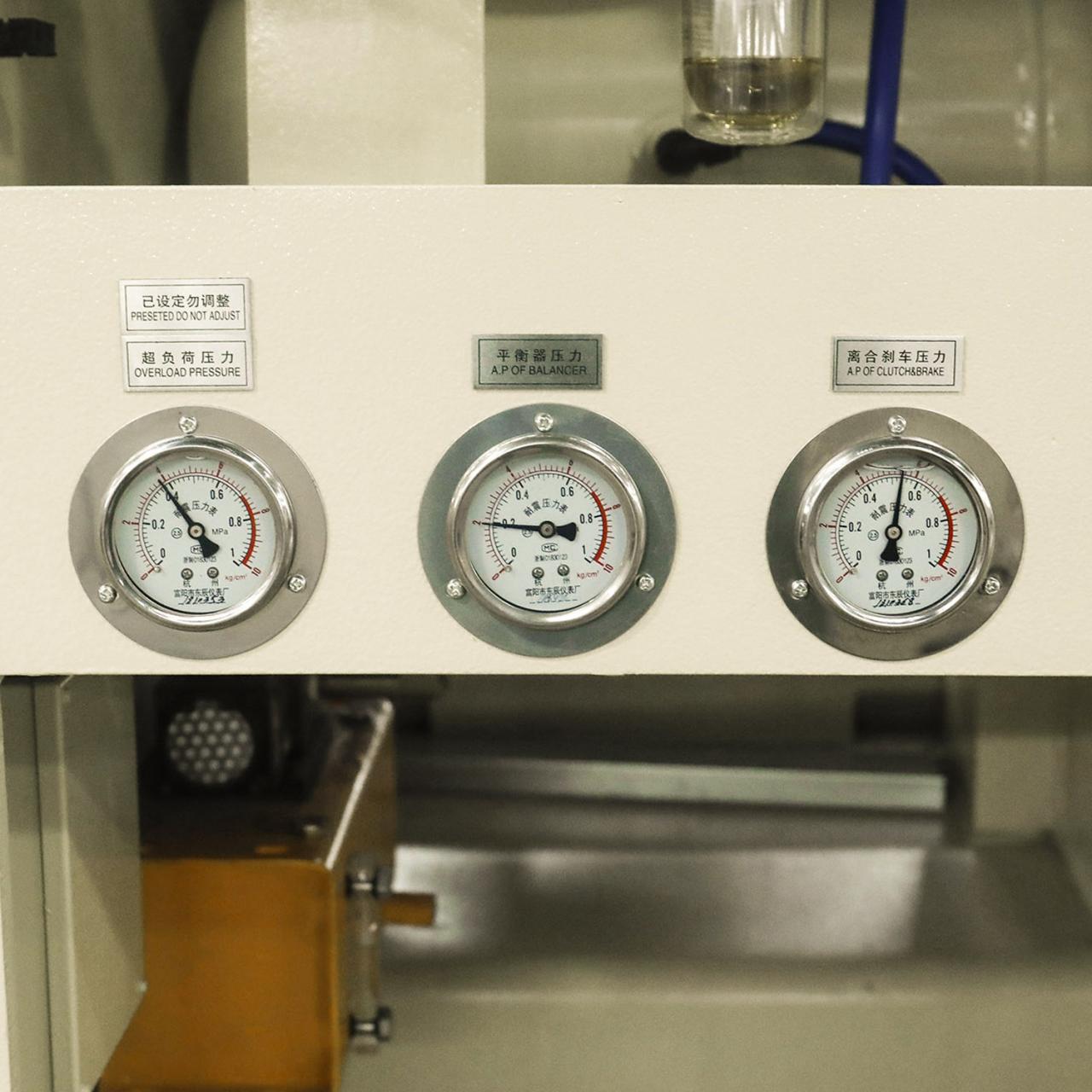

Balancer and clutch pressure meter

The pressure of overload protection pump is generally adjusted at 0.4MPa, clutch and brake pressure at 0.6MPa, balancer pressure at 0.4MPa. 80 Ton Cnc Punching Machine Price C Frame Power Press Small Hydraulic Press Machine

Slide adjustment motor

The motor drives the slider, which moves up and down to adjust the distance between slider and working table. When the distance is adjusted well, motor stops working.

Touch screen

Multi language touch screen control system. It displays a series of press parameter, such as SPM (strokes per minute), electronic cam angle etc. You may set other corresponding data through this touch screen.80 Ton Cnc Punching Machine Price C Frame Power Press Small Hydraulic Press Machine

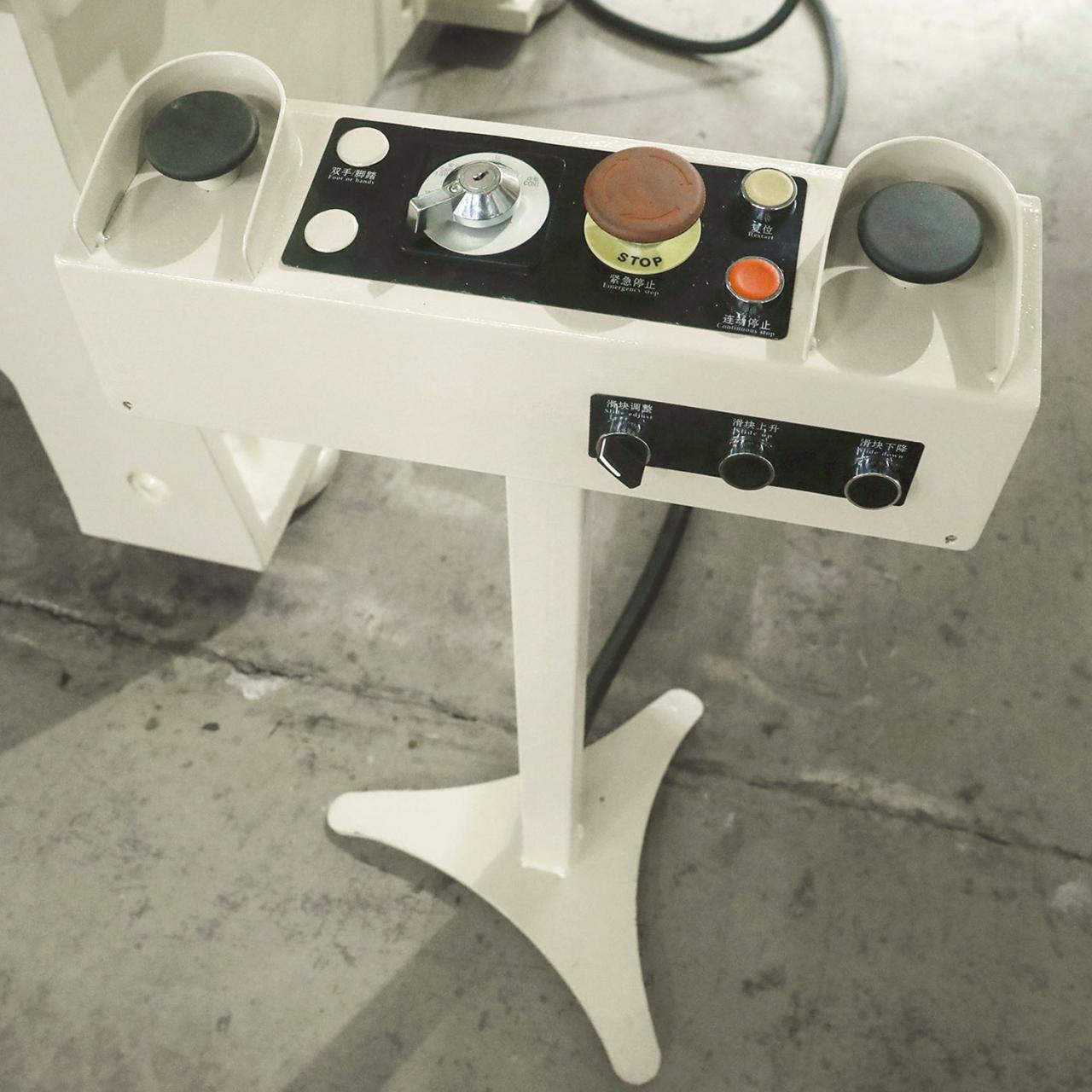

Hands operation panel

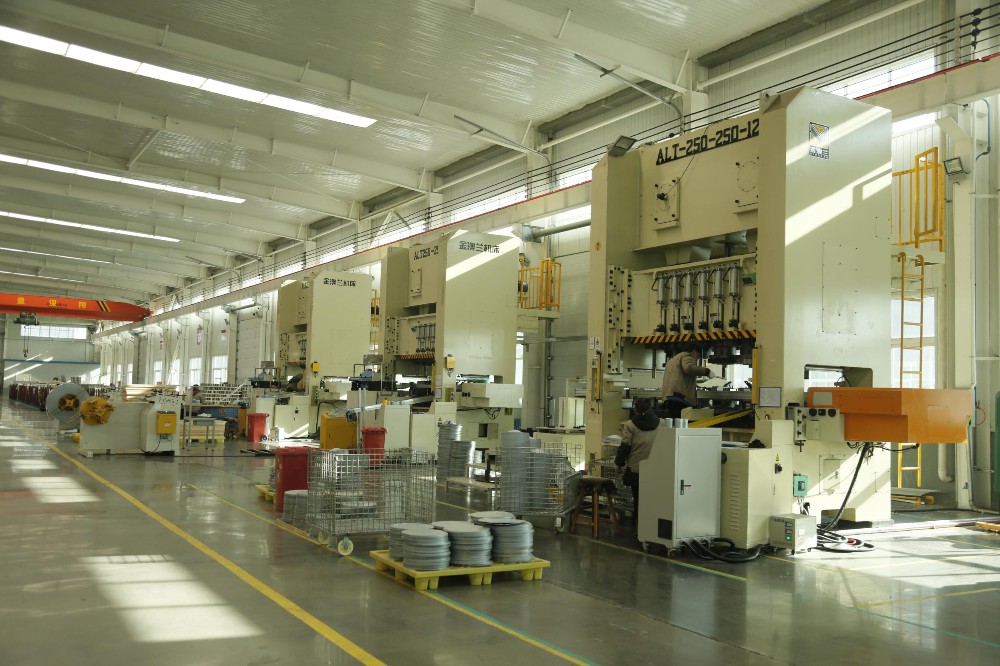

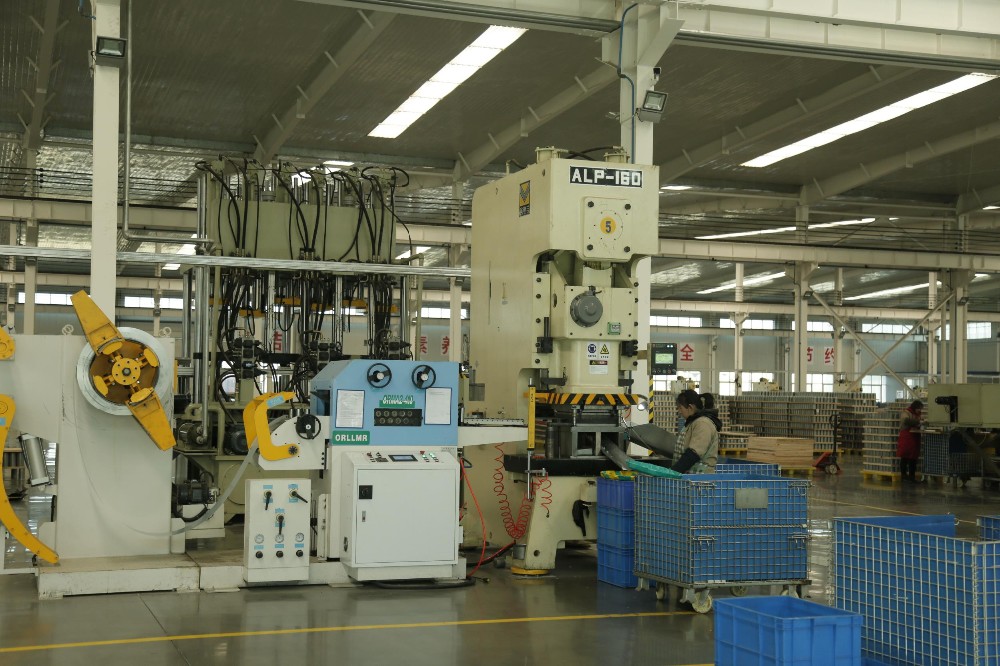

When operators start the machine, they need to press the left and right buttons at the same time, which is to avoid potential safety risks when operators start the button while operating the machine. Press Lines 80 Ton Cnc Punching Machine Price C Frame Power Press Small Hydraulic Press Machine80 Ton Cnc Punching Machine Price C Frame Power Press Small Hydraulic Press Machine80 Ton Cnc Punching Machine Price C Frame Power Press Small Hydraulic Press Machine 80 Ton Cnc Punching Machine Price C Frame Power Press Small Hydraulic Press Machine

Pre-sales service After-sales service

※ Understand customer needs and give consulting support

※ Catalog review, confirm specifications and select right machine model, provide official offer

※ Factory field visit or online visit※ Provide machine manual in English both in software and hardware

※ Training how to install and operate machine

※ Engineers available for overseas markets ※ Warranty period is one year since the date installation and commissioning finished in user factory.

※ If any components damaged during guarantee period, we can send free parts to user by DHL, TNT, or other international logistics.

※ Engineers available for free installation, commissioning and training in user factory.

※ Online after-sales services available lifelong, if customer needs service support, can contact us by Email, Wechat, Whatsapp, Line, Zalo and Telephone at any time, we provide 24 hours on-line service.

Details

  • Condition: New
  • Voltage: 380V or Customized
  • Weight (T): 25
  • Key Selling Points: High-accuracy
  • Warranty: 1 Year
  • Applicable Industries: Manufacturing Plant
  • Showroom Location: Egypt, Turkey, United States
  • Marketing Type: Ordinary Product
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 2 years
  • Core Components: PLC
  • Power Source: Pneumatic, Pneumatic
  • Structure: C Frame
  • PLC: Delta or Customized
  • Die height: 510
  • Slide adjustment: 110
  • Stroke length: 200
  • Table size: 1400*820
  • Slider: 850*630
  • Motor power: 18.5x4
  • Air pressure: 5~6
  • CNC or Not: CNC
  • Machine Type: Punching Machine
  • After-sales Service Provided: Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
  • After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
  • Local Service Location: Egypt, Turkey, United States
  • Certification: CE/ISO9001:2008
