Y32 315 Ton Deep Drawing Four Column Vertical Hydraulic Press

Product Application

Mainly used in metal tensile,punching,rummaged,cold extrusion and other stamping process, Can also be used for correction, press-fit. pressed powder products and plastic molding products and insulation materials molding. Applicable to process metal non-metallic materials (watches, metal products, bicycles, motorcycles, tableware, kitchen utensils, automobiles, electrical appliances, rubber, grinding wheel, buttons, gold and silver jewelry, ceramics, powder metallurgy, etc.)

Feature:

Ultra quiet:  Pressure system to optimize the upgrade, and finally close to perfect, remove your worries.

Do not leak oil: Precision mechanical combination, the perfect overall cooperation.

Ultra High Pressure: The pressure output is stable and the stamina is sufficient.

Super custom: With the user's needs continue to improve the design, accumulated experience, to achieve perfect custom.

Super performance: Compared to the product itself, super low price, high cost.

Super solid: Fine materials, patiently repeated processing, fully craft support to ensure the strength of the machine structure.

Product main technical specifications:

Specification63t100t160t200t-A250t315t-A500t-A
Liquid working pressure(Mpa)25252525252525
Slide effective stroke(mm)400400400400400400600
Max. Opening height7007008008008007001000
Working table size(mm*mm)520*520700*620800*800660*660800*800700*7001500*1500
Descent speed(mm/s)545430303260100
Compact speed(mm/s)15-2416-248-158-128-1578-12
Return speed
(mm/s)		42462820266080
Motor Power(KW)5.57.57.57.5151537
Pump displacement(mL/r)252540406363126
Net weight(T)1.6T2.4T3.4T3.0T4.2T5.7T21T
Ejection force(T)202030355050100
Ejector stroke(mm)200200250250300300300

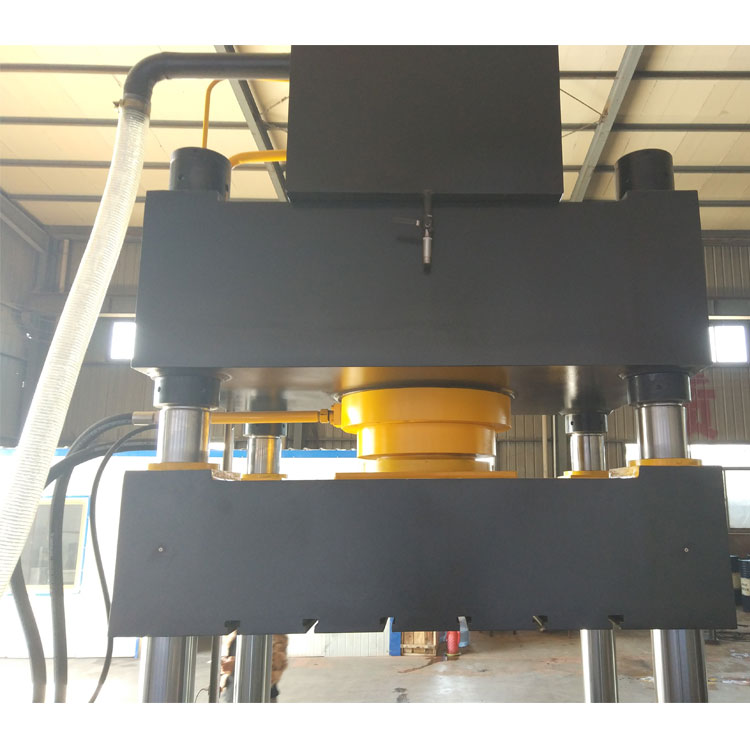

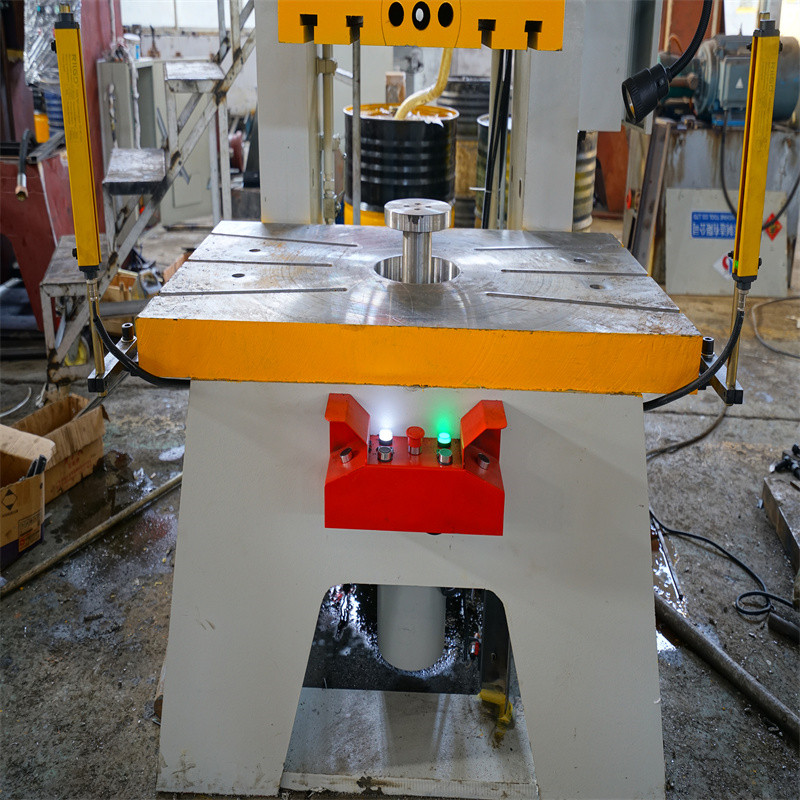

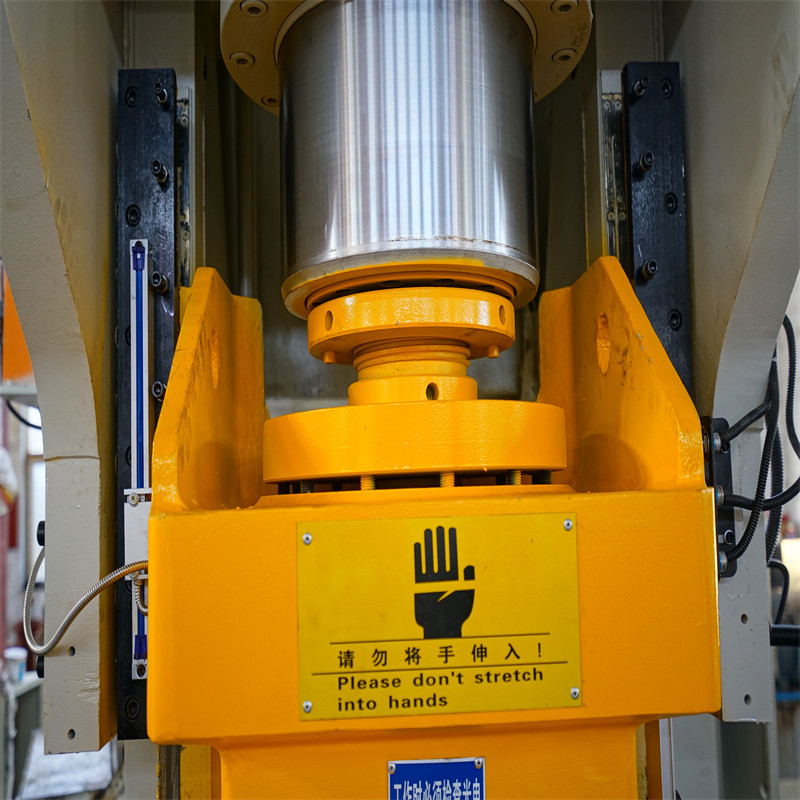

Detailed Images

Y32 315 Ton Deep Drawing Four Column Vertical Hydraulic PressY32 315 Ton Deep Drawing Four Column Vertical Hydraulic Press
Y32-315 Ton Deep Drawing Four Column Vertical Hydraulic Press

FAQ

1. What is the payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.

2. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

3. When is the delivery time?

A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.

4.  What is your trade terms?

A : FOB, CFR,CIF or others terms are all acceptable.

5.  What is your minimum order quantity and warranty?

A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.

6.  What is the package of the machines?

A: The machines standard will be packed in plywood case.

Details

  • Slide Stroke (mm): 800
  • Machine Type: Four-column Three-beam Hydraulic Press
  • Ejector Force (kN): 315
  • Return Force (kN): 400 kN
  • System: Normal
  • Year: 2022
  • Voltage: customized
  • Dimension(L*W*H): 3400*1400*4150mm
  • Weight (T): 1.45 T
  • Model Number: Y32-312
  • Motor Power (kw): 22 kw
  • Key Selling Points: High Safety Level
  • Warranty: 1 Year
  • Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Retail
  • Showroom Location: Canada, Turkey, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Pakistan, Mexico, Russia, Thailand, Chile
  • After-sales Service Provided: Online support, Video technical support, Free spare parts
  • After Warranty Service: Video technical support, Online support, Spare parts
  • Local Service Location: Egypt, Canada, Italy, Germany, Viet Nam, Brazil, Pakistan, Russia, Thailand, Chile
  • Nominal Force (kN): 315 kN
  • Certification: ISO CE
  • CNC or Not: Normal
  • Power Source: Hydraulic
  • Knock out force: 630KN
  • Back stroke pressure: 600KN
  • Ram stroke length: 800MM
  • Knock out stroke: 300MM
  • Max.opening height: 1250MM
  • Product name: Power Press Machine
  • Function: Punching Ang Press
  • Application: Metal Sheet Stamping
