4 Columns Hot Forging Hydraulic Press For Transmission Shafts 300 600 630 1000 1500 Tons

Product Description

The main advantage of the hot forging hydraulic press is that the material enters at a slower pace inside the die and thus fills it in a more complete and accurated manner; in this way the following machining works are minimised. Furthermore hydraulic presses, when compared to power hammers, can complete the whole job in one cycle (when having a constant force independent from the moving table position), thus allowing an increased production rate. For the hot upsetting process RAYMAX has developed a type of press that can be used with multiple intermediate forging, allowing the progressive roughing of pre-heated billets, significantly cost- and time- saving. In the field of upsetting, requirements depend on the product and on the sector. The process takes place with high temperature material (e.g. up to 1150 ° C for steel). The high temperature is necessary to avoid the work hardening of the metal during deformation. This process is always preliminary to further (polishing, coating, finishing) that will define the final product.

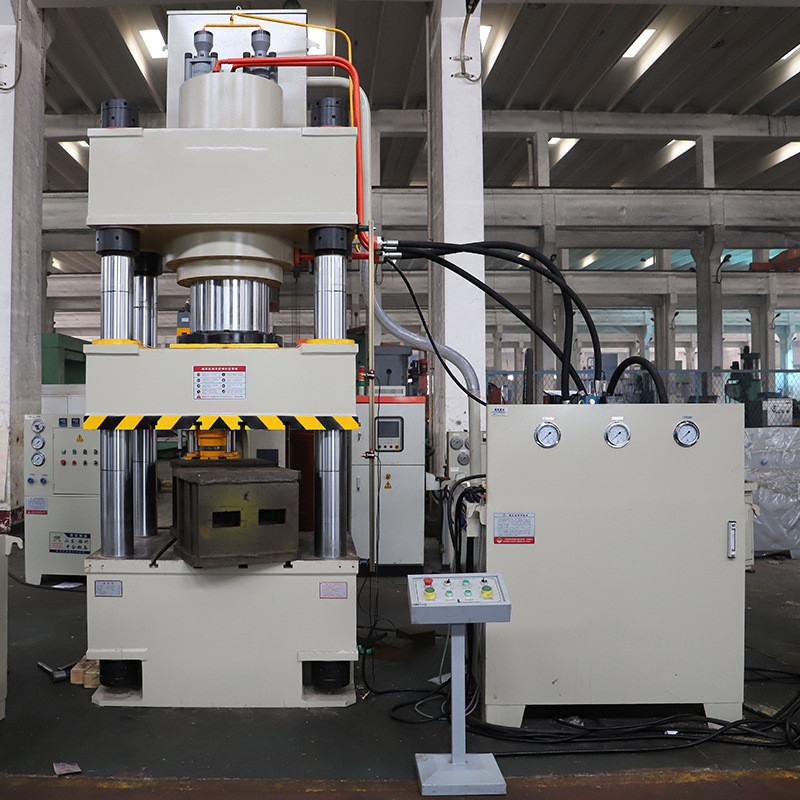

This hydraulic press is a four column /4 beams with 600 ton force. RAYMAX is an Chinese manufacturing company that has been producing deep-drawing hydraulic presses for 65 years. Do not hesitate to contact us for a quotation!

Specification

Machine Type	Four-column Four-beam Hydraulic Press
Ejector Force (kN)	50
Return Force (kN)	500kN
System	Normal
Condition	New
Place of Origin	China
Brand Name	RAYMAX
Voltage	400/50
Dimension(L*W*H)	3100*1700*5300
Certification	CE
Weight (T)	60T
Model Number	G4 3 effects
Motor Power (kw)	290kw
Key Selling Points	High Rigidity
Warranty	2 years
	Field installation, commissioning and training, Online support, Video technical support
After Warranty Service	Video technical support, Online support, Spare parts
Applicable Industries	Manufacturing Plant
Local Service Location	Italy, United Kingdom, Canada, Germany, Spain, France
Showroom Location	Italy
Marketing Type	Ordinary Product
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Warranty of core components	1 Year
Core Components	Motor, Pump, PLC, moving table, moving table with sliding tools, upper ejector, lower ejector, heat-exchanger, electrical cabinet, cylinders, balcony, ladder
Material	Aluminium, Carbon Steel, Stainless Steel
Model G4 600/3	3 effects, working and moving table size 900x900 mm

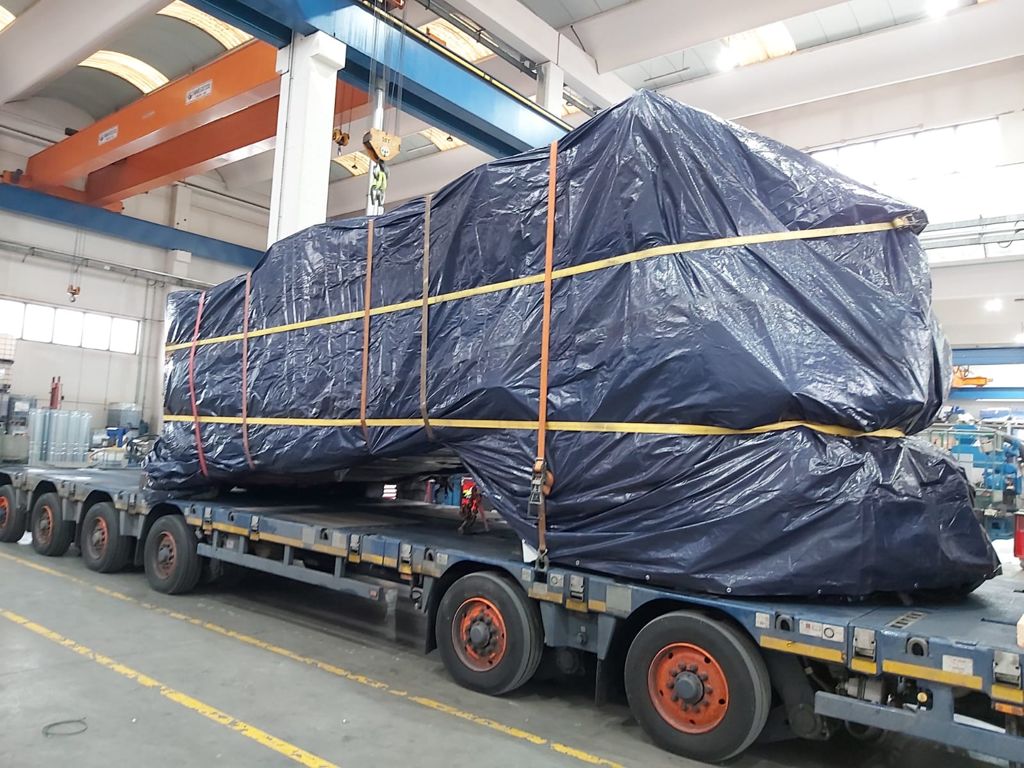

Packing & Delivery

FAQ

1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2. what can you buy from us?

drawing hydraulic presses, h-frame presses, c-frame presses, customized hydraulic presses, hydraulic presses for metal sheet forming

3. why should you buy from us not from other suppliers?

RAYMAX is a hystorical Italian brand that is specialised in manufacturing hydraulic presses customized to the client's productive needs. RAYMAX works with R&D partners to find the best solution to each productive technological need.

Details

• Machine Type: Four-column Four-beam Hydraulic Press
• Ejector Force (kN): 50
• Return Force (kN): 500 kN
• System: Normal
• Condition: New
• Voltage: 400/50
• Dimension(L*W*H): 3100*1700*5300
• Weight (T): 60 T
• Model Number: G4 3 effects
• Motor Power (kw): 290 kw
• Key Selling Points: High Rigidity
• Warranty: 2 years
• Applicable Industries: Manufacturing Plant
• Showroom Location: Italy
• Marketing Type: Ordinary Product
• Machinery Test Report: Provided
• Video outgoing-inspection: Provided
• Warranty of core components: 1 Year
• Core Components: Motor, Pump, PLC, moving table, moving table with sliding tools, upper ejector, lower ejector, heat-exchanger, electrical cabinet, cylinders, balcony, ladder
• Material: Aluminium, Carbon Steel, Stainless Steel
• Model G4 600/3: 3 effects, working and moving table size 900x900 mm
• After-sales Service Provided: Field installation, commissioning and training, Online support, Video technical support
• After Warranty Service: Video technical support, Online support, Spare parts
• Local Service Location: Italy, United Kingdom, Canada, Germany, Spain, France
• Certification: CE
