Product Description
Characteristics of the equipment

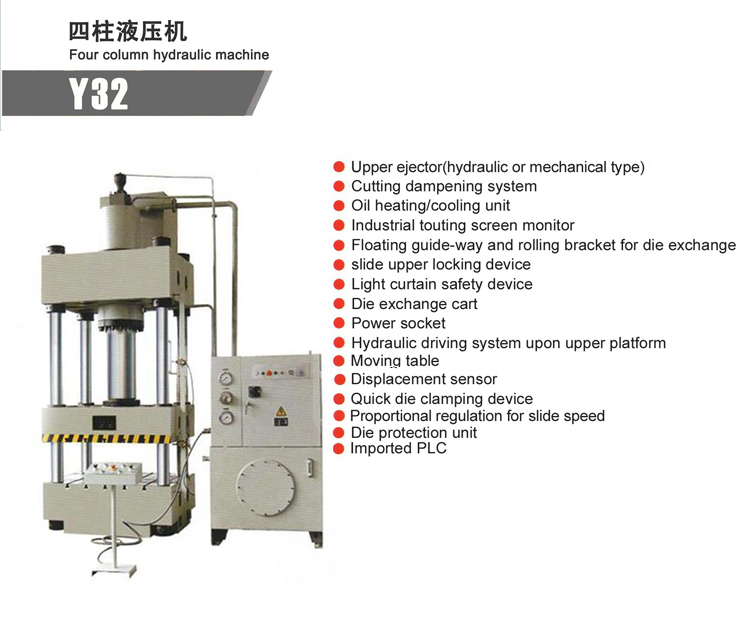

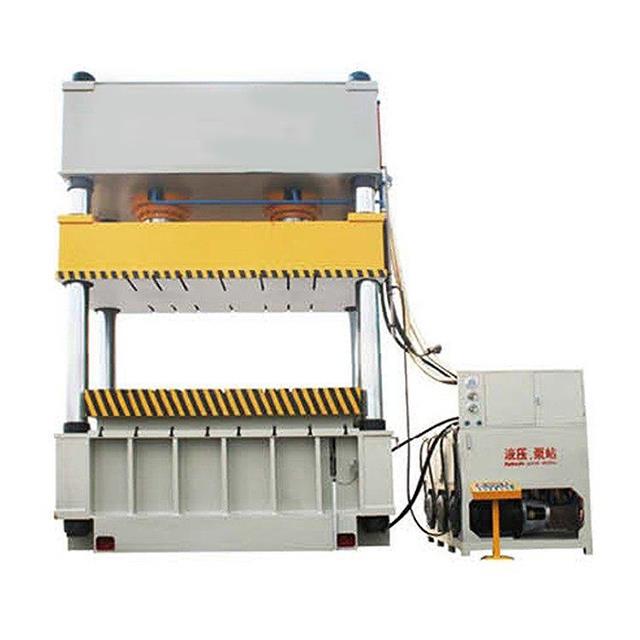

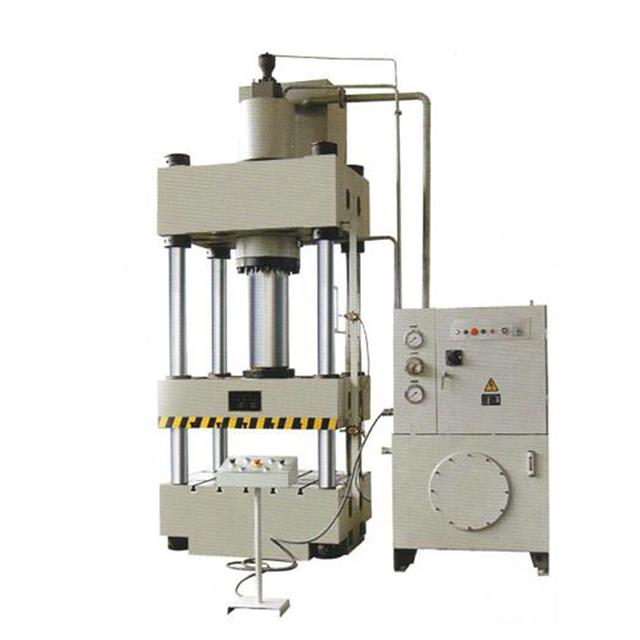

Hydraulic four-column structure of the hydraulic press is one of the most common structural forms of the hydraulic press, its remarkable characteristics is spacious work space, convenient for four bodies to observe and close to the mold, the machine structure is simple, good technology.
Its fuselage is composed of beam, beam, lower beam and four support, working within the cylinder installed on the beam, beam and working cylinder piston connection into a whole, guided by post to do up and down, and the power transfer within the working cylinder, pressure of parts processing, four-column hydraulic press fault is worse under eccentric load.
Performance characteristics of four - column hydraulic press
● Low power consumption, high tightness, reduce production costs.
● Simple structure, simple operation.
● Comprehensive safety protection and noise reduction, to provide a quality production environment.
Low maintenance cost, low failure rate, safe and convenient
Fully automated operating system/manual control system, centralized button control

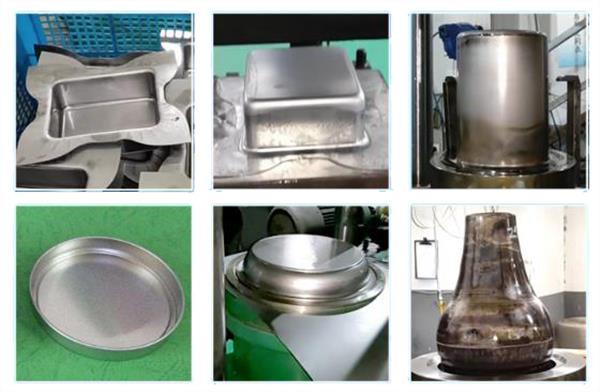

Can make finished products
YT32 series hydraulic press is suitable for pressing of materials of all kinds of plastic type, such as punching, bending,
rummaged through also can engage in calibration, pressure equipment, wheel molding, plastic products, rubber products and powder products forming technology, this series of products of work pressure, pressing speed, range can be adjusted within the prescribed scope according to process requirements, which can realize constant pressure and fixed distance of two processes, workbench installed with ejection device, in addition to the ejection products, all can be used as hydraulic cushion in tensile stamping forming process.
Oil pump: axial piston pump with oil distribution pan and cylinder rotation. As a result of sliding boots and variable head, oil plate and cylinder between the use of hydraulic static balance structure,compared with other types of pumps, with simple structure, low noise, high efficiency, long life, strong self-priming ability and other advantages.
Oil cylinder: adopt advanced blind hole forging technology of aero-die, double seal of sealing parts imported from Taiwan, high wear resistance, long service life and reliable quality.
Plug and install valve: generally choose domestic well-known businessmen, with clever design, smaller size, better controllability, higher reliability, higher pressure, higher working efficiency and effectively eliminate the leakage and reduce the internal leakage, pollution resistance is greater, longer service life, easy to maintain.

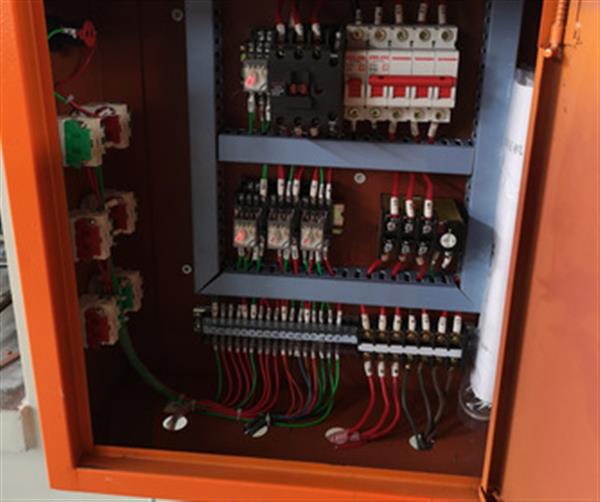

Electrical: the main electrical brands at home and abroad, reliable performance, electrical box lines clean, clear label.
Can make finished products
YT32 series hydraulic press | ||||||||
project | 630t-A | 630t-B | 630t-C | 800t | 1000t | 1250t | 1600t | 2000t |
Max Pressure Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Effective stroke of the slider mm | 400 | 900 | 900 | 900 | 900 | 900 | 900 | 900 |
Maximum opening height mm | 1200 | 1500 | 1500 | 1500 | 1500 | 1600 | 1600 | 1600 |
Table effective surface mm*mm | 1200*1000 | 1600*1600 | 2200*1600 | 1500*1500 | 1500*1500 | 1700*1600 | 2000*1600 | 2000*2000 |
Space descent speed mm/s | 100 | 100 | 100 | 100 | 80 | 80 | 80 | 80 |
Pressing speed mm/s | 5--12 | 5--12 | 5--12 | 5--12 | 10 | 6--10 | 6--11 | 6--12 |
return speed mm/s | 60 | 60 | 60 | 60 | 50 | 45 | 40 | 40 |
Motor Power KW | 45 | 45 | 45 | 37*2 | 37*2 | 37*2 | 37*2 | 45*2 |
Pump displacement mL/r | 160 | 160 | / | / | / | / | / | / |
Ejector Force t | 100 | 100 | 100 | 125 | 125 | 200 | 200 | 250 |
Ejector Stroke mm | 350 | 350 | 350 | 350 | 350 | 450 | 450 | 450 |
Use conditions of head stretcher:
1. Temperature of equipment working area: 0~50℃ (±)
2. Power supply: three-phase four-wire system 380V, 50HZ, voltage fluctuation range 380V± 10%
3. Cooling method: water cooling device
4. Medium used in the hydraulic system: No. 46 anti-wear hydraulic oil
Details
- Machine Type: Four-column Two-beam Hydraulic Press
- Return Force (kN): 4000 kN
- System: Servo
- Condition: New
- Voltage: 380V/220V Optional
- Dimension(L*W*H): 1300x1000x3600mm
- Weight (T): 8 T
- Motor Power (kw): 44 kw
- Key Selling Points: Competitive Price
- Warranty: 1 Year
- Applicable Industries: Building Material Shops, Food & Beverage Factory, Advertising Company, Retail, Energy & Mining, Construction works
- Showroom Location: United States, Brazil, Peru, Indonesia, Pakistan, India, Russia, Spain, Chile, UAE, Sri Lanka, Ukraine
- Marketing Type: New Product 2020
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Other, Gearbox
- Power Source: Hydraulic
- After-sales Service Provided: Engineers available to service machinery overseas, Field installation, commissioning and training, Online support, Free spare parts, Video technical support, Field maintenance and repair service

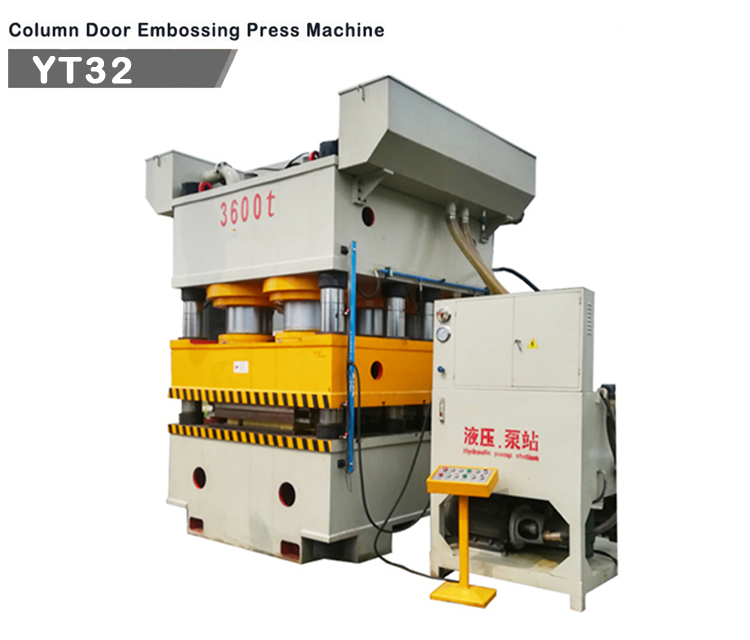

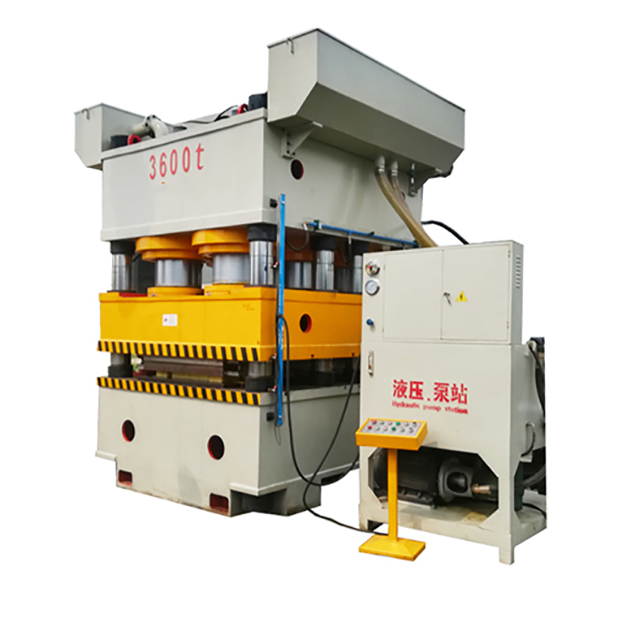

- Name: hydraulic embossing press machine
- Keyword: hydraulic embossing press machine
- Application: Metal Sheet Stamping
- Function: Metal Processing
- Usage: Pressing Metal Products
- Material: Stainless Steel
- Color: Optional Color Hydraulic Press
- Weight: 6-13T
- After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
- Local Service Location: United States, Brazil, Peru, Pakistan, Russia, Malaysia, Australia, Kenya, Argentina, Chile
- Certification: CE ISO
