Products Description

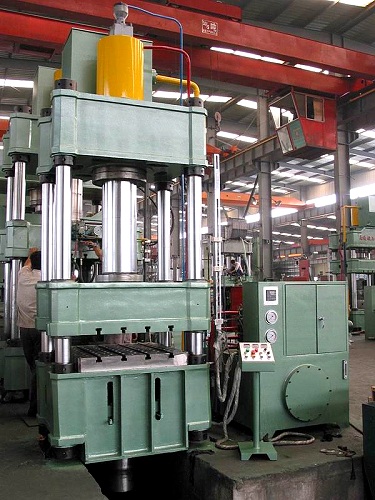

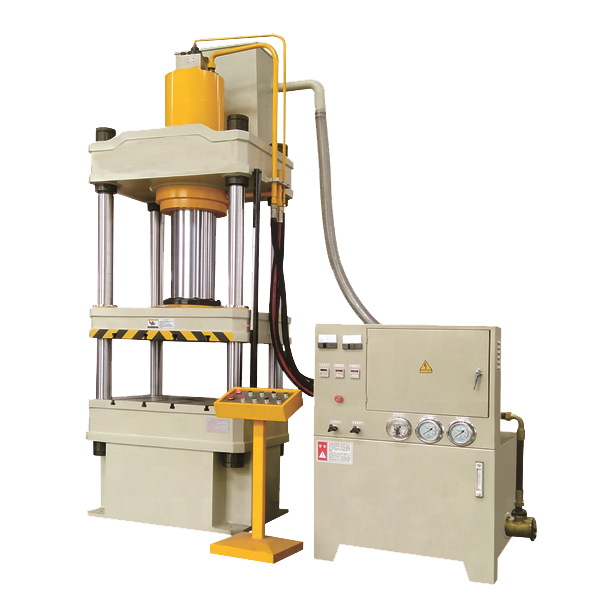

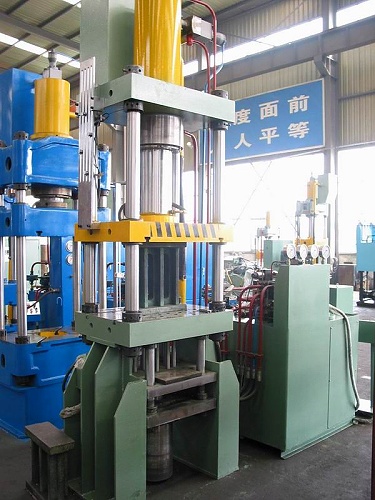

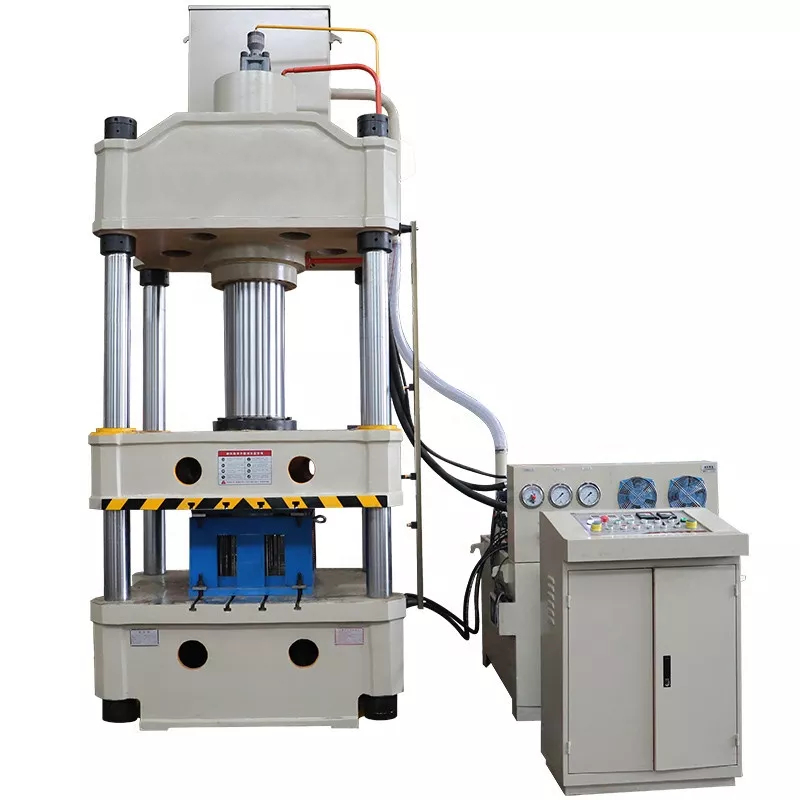

Metal Hole Punching Machinery Deep Drawing 100 Ton Four Column Hydraulic Press Machine
Hydraulic press is a kind of machine which uses liquid as working medium and is made according to Pascal principle to transfer energy to realize various processes. The hydraulic press is generally composed of the main machine, power system and hydraulic control system.

Characteristic

Metal Hole Punching Machinery Deep Drawing 100 Ton Four Column Hydraulic Press Machine

Hydraulic press is a kind of machine which uses liquid as working medium to transfer energy to realize various processes. In addition to forging, hydraulic press can also be used for straightening, pressing, packing, pressing block and pressing plate.

The basic principle is that the oil pump sends the hydraulic oil to the integrated cartridge valve block, and the hydraulic oil is distributed to the upper or lower cavity of the oil cylinder through each one-way valve and relief valve. Under the action of high-pressure oil, the oil cylinder moves. The hydraulic press is a device that uses liquid to transfer pressure.
Metal Hole Punching Machinery Deep Drawing 100 Ton Four Column Hydraulic Press Machine Metal Hole Punching Machinery Deep Drawing 100 Ton Four Column Hydraulic Press Machine Metal Hole Punching Machinery Deep Drawing 100 Ton Four Column Hydraulic Press Machine

Specifcation

Nominal force16000
Knock-out force2000
Max. workinghydraulipressure25
Slide- stroke900
Knock-out stroke450
Max. Daylight1600
Descent80
Working6`10
Return50
Left-right2000
Front-back1600
Left-right5800
Front-back4000
Heightabove ground6200
Total motor power75.5
Weight82000

Details

  • Slide Stroke (mm): 900
  • Machine Type: Hydraulic punching
  • Ejector Force (kN): 2000
  • Return Force (kN): 16000 kN
  • System: Servo
  • Condition: New
  • Year: 2021
  • Voltage: 380V
  • Dimension(L*W*H): according to model
  • Weight (T): 82 T
  • Model Number: YAN32-1600
  • Motor Power (kw): 75.5 kw
  • Key Selling Points: High Safety Level
  • Warranty: 1 Year
  • Applicable Industries: Food & Beverage Shops, Machinery Repair Shops, Manufacturing Plant
  • Showroom Location: Egypt, Canada, Algeria
  • Marketing Type: New Product 2020
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 1 Year
  • Core Components: Motor, PLC, Gearbox
  • Nominal force: 16000
  • Knock-out force: 2000
  • Max. workinghydraulipressure: 25
  • Slide- stroke: 900
  • Knock-out stroke: 450
  • Max. Daylight: 1600
  • Descent: 80
  • Left-right: 2000
  • Heightabove ground: 6200
  • Total motor power: 75.5
  • After-sales Service Provided: Field installation, commissioning and training, Online support, Video technical support, Field maintenance and repair service
  • After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
  • Local Service¬†Location: Egypt, Canada, Algeria
  • Certification: CE ISO
