High Quality Plate Bending Cnc Hydraulic Iron Worker Machine Punching Press Machine

Product Description

Double cylinders hydraulic punch & shear machine

Five independent stations for punch, shear, notcher, section cut

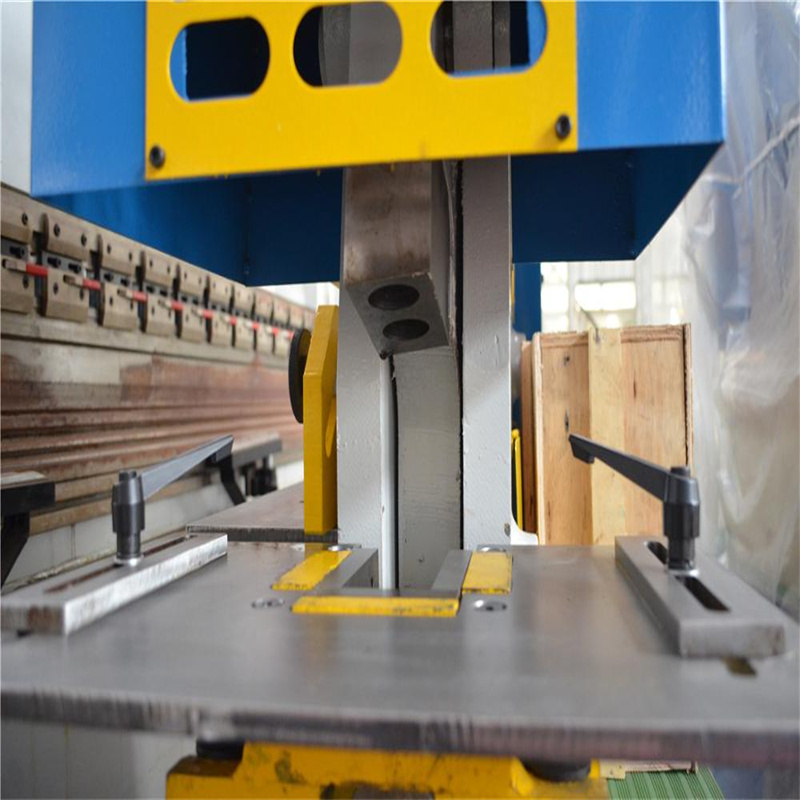

Large punch table with multi-purpose bolster

Removable table block for overhang channel / joist flange punching applications

Universal die bolster, easy change punch holder fitted, punch adapters supplied

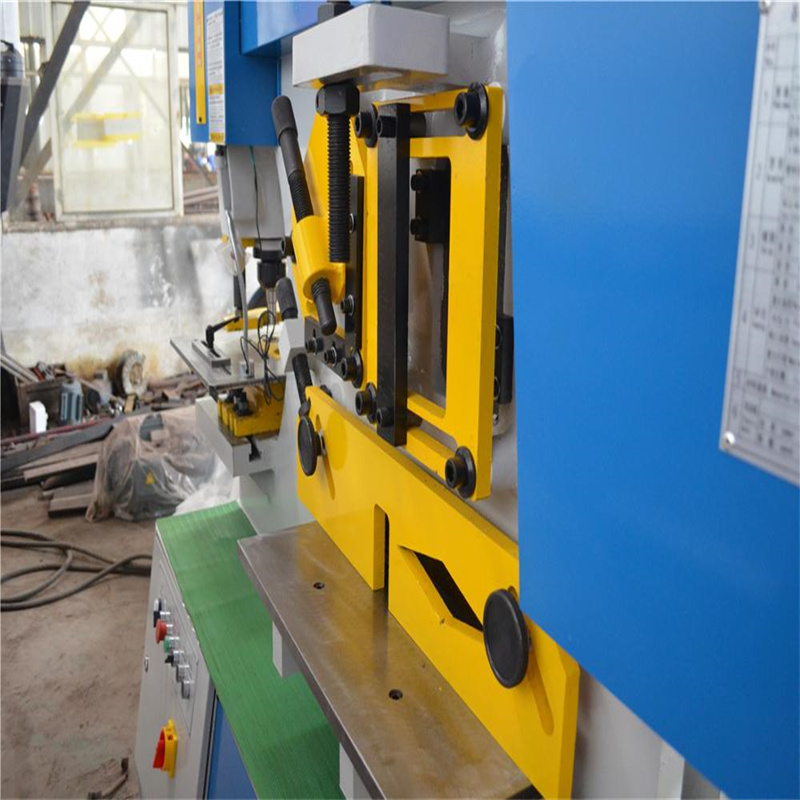

Angle, round & square solid monoblock crop station

Rear notching station, Low power inching and adjustable stroke at punch station

Centralised pressure lubrication system

Electric panel with overload protaction elements and ingetrated controls

Safety movable foot pedal
High Quality Plate Bending Cnc Hydraulic Iron Worker Machine Punching Press Machine

Parameters

ModelQ35Y-20Q35Y-25Q35Y-30Q35Y-40Q35Y-50
Processing Capacity (KN)9001200160020002500
Material Tensile Strength (Mpa)≤450≤450≤450≤450≤450
Flat ShearingMax. Shearing Capacity20×33025×33030×35535×40040×450
(thickness* width) (mm)10×48016×60020×60025×70030×750
Bar ShearingSquare Bar(mm)4550556065
Round Bar (mm)5060657080
C-channel (mm)160200280300320
I-beam (mm)160200280300320
Angle shearing90° shearing (mm)140×12160×14180×16200X18200×20
45° shearing (mm)70x1080x780x1080x1080x10
Hole PunchingMax. Punching Capacity
(diameter* thickness) (mm)
Φ30*20Φ35*25Φ38*26Φ40*35Φ40*40
Motor (KW)5.57.5111518.5
Dimension(mm)Length19502350268028003200
Width900980106012601440
Height19302100238024202450
Weight260044006600750010800

High Quality Plate Bending Cnc Hydraulic Iron Worker Machine Punching Press Machine

Our Mission, Your Solution

1. Our guarantee time is 5 years from B/L date. If any component is damaged during guarantee time, we can deliver the component to the customer by courier without any extra charge .

2. Our factory provide oversea engineer service training freely. The customer provide the double trip tickets, engineer salary ,
and accommodation for our engineer. The customer also can send the engineer to our factory for learning .

3. Our factory provide the service for the customer forever, if the customer need operation help, can contact us by wechat, Skype, Email , whatsapp and Telephone at any time, we provide 24 hours on-line service.

Details

  • CNC or Not: Normal
  • Condition: New
  • Nominal Force (kN): 60
  • Power Source: Hydraulic
  • Year: 2020
  • Voltage: 380V or customized
  • Dimension(L*W*H): 1640*730*1770
  • Motor Power (kW): 4KW
  • Weight (T): 1.6
  • Key Selling Points: mult-function
  • Warranty: 5 years
  • Showroom Location: India, Argentina, Australia, Viet Nam, Japan, South Africa
  • Applicable Industries: Manufacturing Plant, Construction works , Advertising Company, Machinery Repair Shops, Building Material Shops
  • Model: Q35y-16 Ironworker
  • Max cutting thickness: 16 mm
  • Plate Strength: 450 N//mm2
  • Cutting angle: 7 °
  • Shearing size of one stroke: 16x250mm /8x400
  • Ram stroke: 80 mm
  • Number of strokes: 8 times /min
  • Throat depth: 300 mm
  • Punching thickness: 16mm
  • Max punching diameter: 25 mm
  • After-sales Service Provided: Free spare parts, Online support, Field maintenance and repair service, Video technical support, Field installation, commissioning and training
  • After Warranty Service: Video technical support, Field maintenance and repair service, Spare parts, Online support
  • Local Service Location: Philippines, Indonesia
  • Certification: CE, ISO
