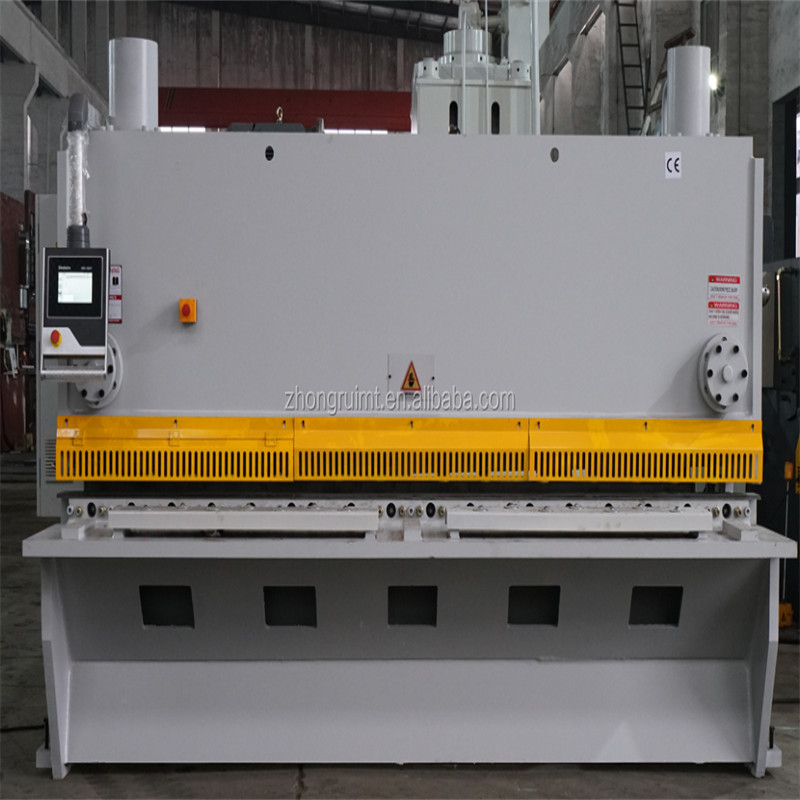

Qc12y 6x3200 Hydraulic Plate Sliding Table Saw Guillotine Shear Cutting Machine

Product Description

Multi-function iron worker goes along with Automatic Holding System and Temperature Cooling System. Hydraulic iron worker can punch, cut, notch and bend for flat bar, square bar,round bar,equal angle,channel.It is the latest product of the punching and shearing machine at home and abroad.
Qc12y 6x3200 Hydraulic Plate Sliding Table Saw Guillotine Shear Cutting Machine

 Max. cut thickness (ordinary steel)4
Max.width can be cut2500
Sheet strength450
Shearing angle1°30’
Stopper Adjust Range20-500
Travel Times16
Main motor power5.5
Machine dimensions(L×W×H)(mm)3040×1550×1550
Weight (kg)3100

Qc12y 6x3200 Hydraulic Plate Sliding Table Saw Guillotine Shear Cutting Machine


1. The machine body adopts integrally weld structure, and uses the vibration aging technology to eliminate stress, which is typical of excellent rigidityand stability.

2. Advanced hydraulic integrated valve bloke is employed, which decreases the istallation of pipe lines in a compact structure, enhancing the reliabilityand maintainability of the machine.

3. The oil cylinders in series ensure that the shearing angle do not change during the shearing processing.

4.The accumulator returns accurately and rapidly, and the blade clearance can be adjusted in an accurate, rapid and convenient way by the hand wheel.

5. The shearing angel is adjustable, which decreases the distortion of sheet. And the electric backgauge and position display machine make it convenientand accurate.

6. The rlling material support ball decreases scratch of sheet and reduces frictional resistance.

Operation process:

Class talents, first-class technology, first-class equipment and first-class management constitutes a first-class production lines.

The company can ensure the operation with multi-mode and multi-channel.By cultivating technical talents to improve equipment operation and automation levels. Improving the efficiency of every workshop,every team and every department to achieve the production of high efficiency and standards.

Details Images

Qc12y 6x3200 Hydraulic Plate Sliding Table Saw Guillotine Shear Cutting MachineDAC360

1.The panel control high brightness LCD screen;

2.Controlling moving and concession of backgauge;

3. Setting cutting angles and gaps;

4.Managing shearing stroke and pressure;

5.Axis can do manual movement.
Qc12y 6x3200 Hydraulic Plate Sliding Table Saw Guillotine Shear Cutting MachineDAC 310

1. Servo control technology;

2. Bright LCD display, 128x64 pixels;

3. Blades gaps controlling;

4. Cutting length limiting;

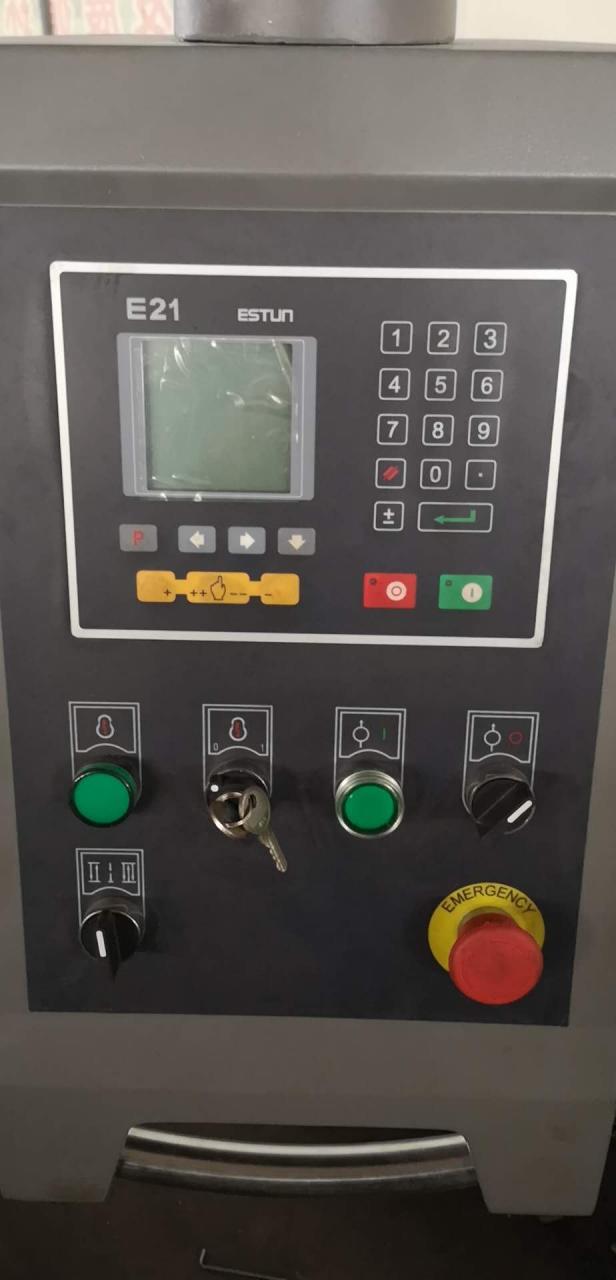

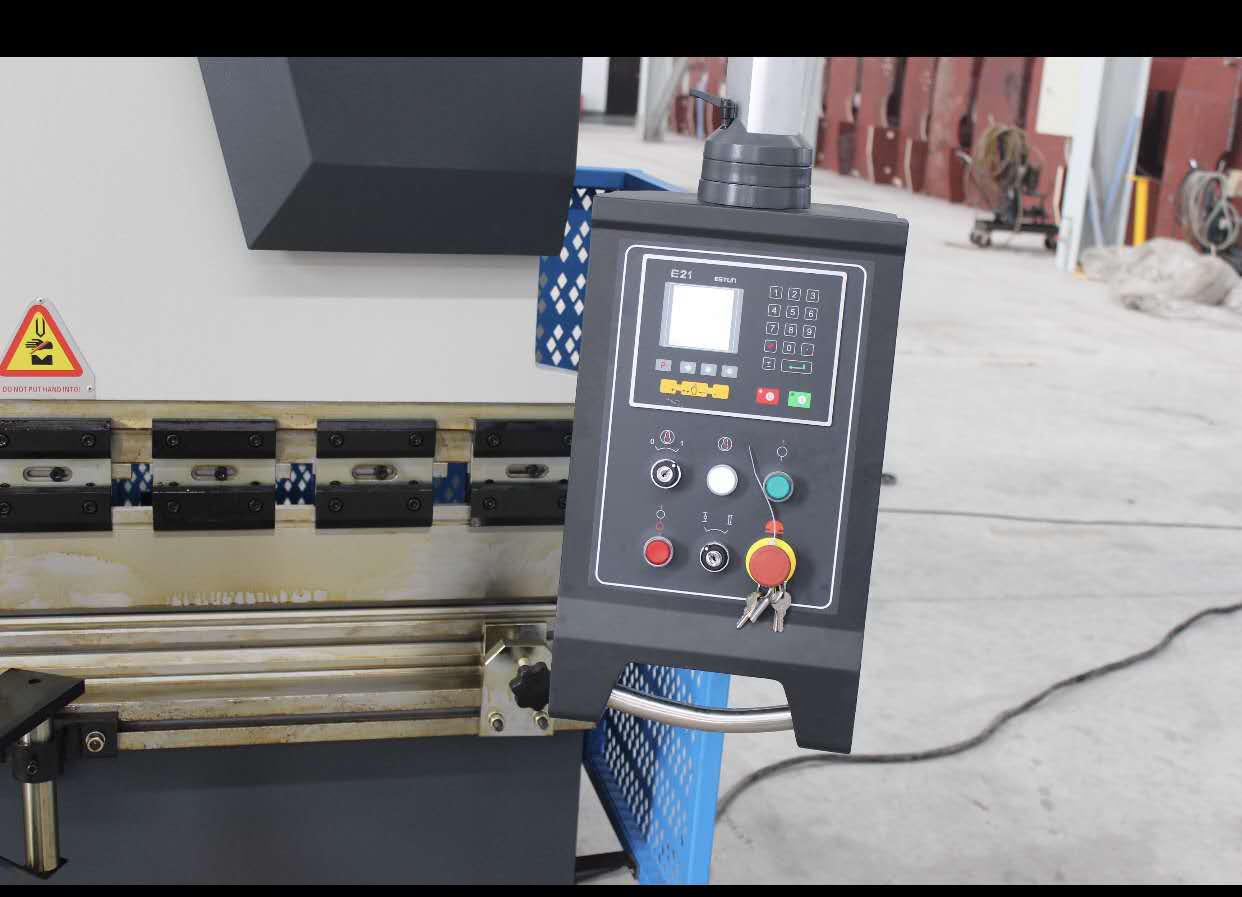

5. Backgauge actual and programmed position Displaying. Qc12y 6x3200 Hydraulic Plate Sliding Table Saw Guillotine Shear Cutting MachineE21S

Backgauge controlling;

General motors or inverter control;

Intelligent positioning;

Two programmable digital output;

Artifacts count;

40 program storage, 25 steps for each program;

Unilateral positioning;

Concession function;

One key to parameter backup and recovery;

Metric system;Chinese/English.

Our Services & Strength

After-sales service:

Machine is simple, generally, user can understand how to operate. There is operation instruction and disc. Welcome to our factory to learn how to operate our machine, we will give good training and it's for free. Our engineer is available for user. If there is requirement, our engineer can go to user factory, and adjust machine, give good training to user.  Long History Our company was founded in 2002,has a history of nearly 20 years.We have been in a leading position in China's machinery manufacturing industry.

We are the first enterprise in Anhui province to produce hydraulic ironworker machines. Factory Direct Sale We have a large factory and all the machines are sold directly from the factory. Ensuring the quality of each machine.In addition,we have a complete after-sales service system.

Good Reputation Alibaba assessed 12 years Gold Supplier for ironworker.

Best Quality & Best Service with Competitive price.

Inspected by the Inspection Institution of Bureau Veritas Certification.

100% QC inspection Before Shipment.


  • Max. Cutting Width (mm): 2500
  • Max. Cutting Thickness (mm): 4 mm
  • Automatic Level: Fully Automatic

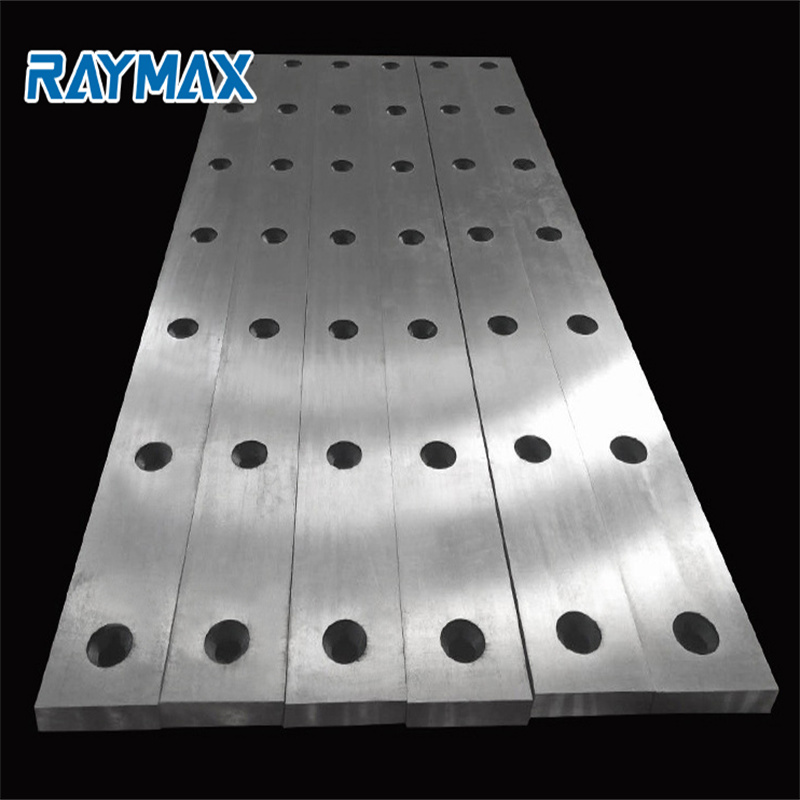

  • Blade Length (mm): 450 mm
  • Throat Depth (mm): 320 mm
  • Condition: New
  • Power (kW): 5.5 kW
  • Weight (KG): 3100 KG
  • Place of Origin: anhui
  • Warranty: 1 Year
  • Key Selling Points: Easy to Operate
  • Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Food & Beverage Shops
  • Showroom Location: United States, Philippines
  • Marketing Type: New Product 2020
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 1 Year
  • Core Components: Motor
  • After-sales Service Provided: Field maintenance and repair service
  • After Warranty Service: Video technical support, Online support, Spare parts
  • Local Service Location: United States
  • Certification: ISO 9001:2000
