Hydraulic Press Brake Wc67y-125tons 3200mm

Features At A Glance

Standard two axis control(Y, X)

Mechanical torque synchronization

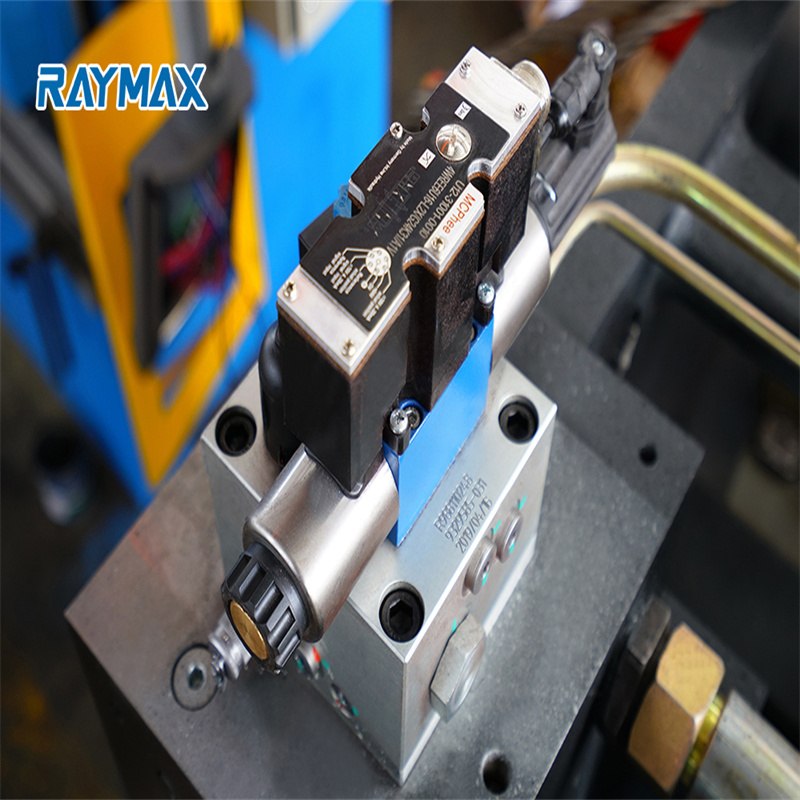

Famous hydraulic integrated system

Schneider or Siemens low-voltage electrical

Inverter control motor operation

Imported seals

Ball screw back gauge operation control

Standard upper and lower molds(upper inclined block type deflection compensation)

Front material supporting frame
Hydraulic Press Brake Wc67y-125tons 3200mm

Product Specifications

NoItemData
1Nominal force1250KN
2Worktable length3200mm
3Distance between columns125Ton
4Throat depth320mm
5Stroke120mm
6Opening380mm
7Main power7.5kw
8Dimension3450x1450x2380mm

Hydraulic Press Brake Wc67y-125tons 3200mm
Two years quality guarantee on whole machine! In order to guarantee the proper operation of your equipment, our company has professional after-service team for providing instruction of installation, commissioning and other service for client. And our company will provide complete service for the machine your purchased. Our company will provide users free of charge to technical consultation, training, answering and other issues relative with our product. Once receiving your questions(calls, E-mail, or WhatsApp, WeChat), we will solve the problem in the shortest possible time, and ensure the normal operation of the equipment.

Details

  • Slider Stroke (mm): 120 mm
  • Automatic Level: Semi-automatic
  • Throat Depth (mm): 250 mm
  • Machine Type: Synchronized, Press Brake
  • Length of Working Table (mm): 3200
  • Width of Working Table (mm): 200 mm
  • Dimension: 3450x1450x2380mm
  • Condition: New
  • Brand Name: RAYMAX
  • Material / Metal Processed: Brass / Copper, Stainless Steel, ALLOY, Carbon steel, Aluminum
  • Automation: Automatic
  • Extra Services: Machining
  • Year: 2021
  • Weight (KG): 6300
  • Motor Power (kw): 7.5 kw
  • Key Selling Points: Long Service Life
  • Warranty: 2 years
  • Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works¬†, Advertising Company
  • Showroom Location: Egypt, United States, Viet Nam, Philippines, Brazil, Saudi Arabia, India, Mexico, Russia, Argentina, Bangladesh, Malaysia
  • Marketing Type: New Product 2020
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 1 Year
  • Core Components: Motor, Pump
  • Raw Material: Sheet / Plate Rolling
  • Power: Hydraulic
  • Voltage: 220-450V

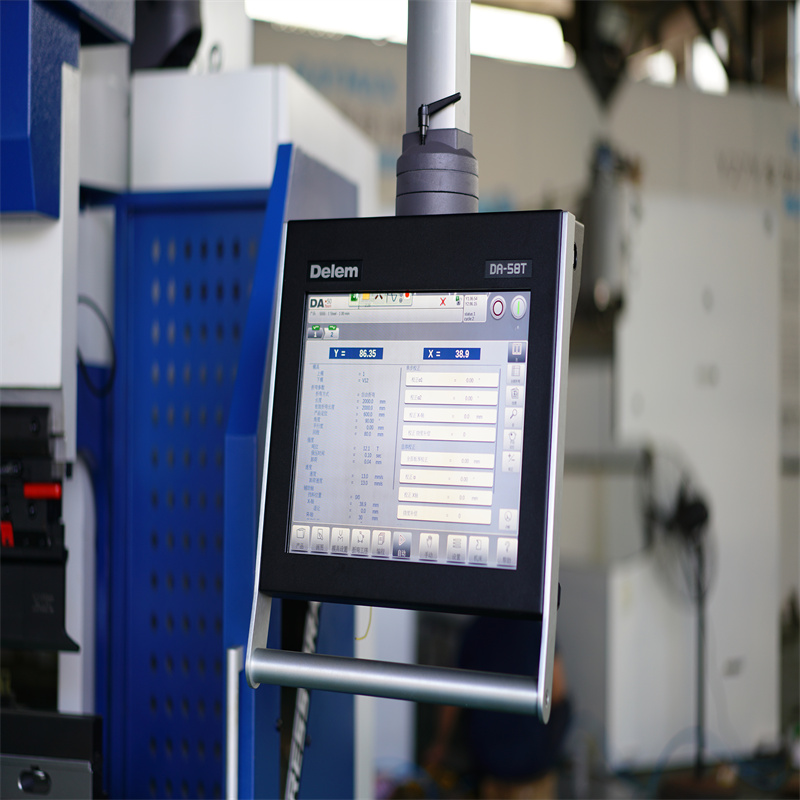

  • Control system: E21/DElEM/CYBELEC
  • Hydraulic System: Brand in China or world
  • Processing material: Steel, Alimunum, SS,MS
  • Color: Blue white, Grey white, Black red
  • OEM service: Provided
  • Electrical components: SCHNEIDER, SIEMENS
  • Certification: ISO 9001:2000
  • After-sales Service Provided: Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
  • After Warranty Service: Video technical support, No service, Spare parts, Field maintenance and repair service
