20 ton press brake

Type Nominal Force Worktable Length Poles Distance Throat Depth Stroke Max Open Power Dimension (KN) (mm) (mm) (mm) (mm) (mm) (KW) L×W×H(mm) 30T/1600 300 1600 1280 200 80 285 3 1600×1000×1600 35T/2000 350 2000 1480 200 80 285 4 2000×1100×1800 40T/2200 400 2200 1850 230 100 320 5.5 2200×1200×1910 40T/2500 400 2500 1850 230 100 320 5.5 2500×1200×1910 50T/2500 500 2500 1850 230 100 320 5.5 2500×1200×2000 63T/2500 630 2500 1900 250 100 320 5.5 2500×1300×2210 63T/3200 630 3200 2500 250 100 320 5.5 3200×1300×2210 80T/2500 800 2500 1900 300 100 320 7.5 2500×1400×2300 80T/3200 800 3200 2500 320 100…

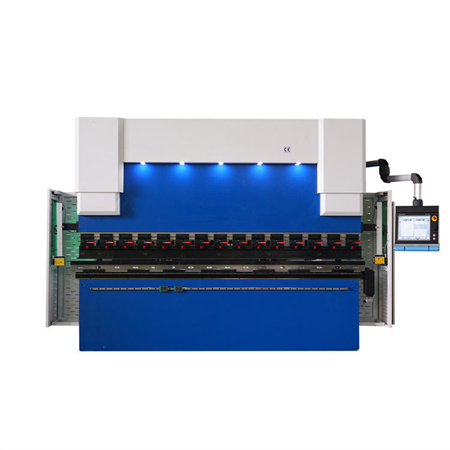

Products Description Press Brake is a new CNC bending machine launched by RAYMAX in 2020, and is suitable for manufacturers with high precision and cost performance requirements. 4-axis CNC Bending Machine is our most popular model by volume and a true workhorse, which is constructed of high quality parts and offers serious reliability. Y1 & Y2 Synchronization technology ensure high approach, bend and return speeds. It's bending length capability and pressure range can be customized to meet various producing requirements. Stable and durable performance of the machine body 1, The machine frame integrated welding. 2, The machine frame formed by…

A machine that presses workpieces into different shapes according to requirements and bends thin plates. It is an important equipment for bending workpieces in the sheet metal industry. The bending machine is composed of a worktable part, a sliding block part, a back gauge part, an oil cylinder part and so on. Parameters and specifications Seri-al NO. Name Unit Remark /Number 1 Nominal Pressure KN 2 Worktable Length mm 3 Poles Distance 4 Throat Depth 5 Slider Travel 6 Slider Travel Adjustment 7 The max. Opening height between worktable and slider 8 Oil Cylinder diameter 9 The max.work pressure of…

Product Description Torsion axis CNC bending machine This machine is economical and easy to operate. It can be equipped with Estan E21 or e200p system，It can be used for the bending of sheet metal. Detailed Images Ball screw and linear guide (Optional) High precise backguage,equipped with Taiwan HIWIN ball screw and polishedrod structure. Back Stop After the block material is divided into ordinary type and precision type It can be selected according to the needs Precision back stop is equipped with ball screw and linear guide It is controlled by servo motor Oil pump and Motor Guarantees the machine service…
