Press Brake is a new CNC bending machine launched by RAYMAX in 2020, and is suitable for manufacturers with high precision and cost performance requirements. 4-axis CNC Bending Machine is our most popular model by volume and a true workhorse, which is constructed of high quality parts and offers serious reliability. Y1 & Y2 Synchronization technology ensure high approach, bend and return speeds. It's bending length capability and pressure range can be customized to meet various producing requirements.

160t-4000 Cnc Hydraulic Bending Machine Press Brake

Stable and durable performance of the machine body

1, The machine frame integrated welding.

2, The machine frame formed by the CNC three-dimensional machining center in one process,which ensures the parallelism and verticality of each mounting surface.

3, Internal stress lamination by tempering Shot blast to remove rust and anti-rust treatment.

4,Shot blast to remove rust and anti-rust treatment.

Scientific design

1, Synchronous movement of Y1 and Y2 axes each controlled by independent cylinder.

2, Possibility to add options and upgrades on the configuration, at later stage.

Environmental friendly

Low noise during waiting and fast down (less than 25 decibels), pressing and return, as the pressure in the hydraulic system is the closed loop control of the servo main motor. Energy consumption lower than general machine by 60% by using servo motor.

Technical Parameters

For more machine models please contact us, we will reply to you ASAP!
ModelPoles distance
(mm)
Throat depth
(mm)
Slider stroke
(mm)
Max height
(mm)
Power
(kw)
Weight
(kg)
Demension (mm)
63T/250019002501003205.540002500x1300x2210
63T/320025602501003205.548003200x1300x2210
80T/250019903001003207.550002500x1400x2300
80T/320025603201003507.560003200x1500x2300
80T/400032003201003507.570004000x1500x2400
100T/250019903201203507.560002500x1600x2400
100T/320026003201204007.568003200x1600x2600
100T/400032003201204007.580004000x1600x2600
125T/320026003201204007.570003200x1600x2600
125T/400032003201204007.585004000x1600x2600
160T/3200258032012046011100003200x1700x2700
160T/4000290032016046011110004000x1700x2800

Control System

160t-4000 4-axis Cnc Hydraulic Bending Machine Press Brake

Amuda CNC bending machine can be equipped with various control systems. Our high-efficiency backgauge system provides our customers with different automation solutions.

Machine display

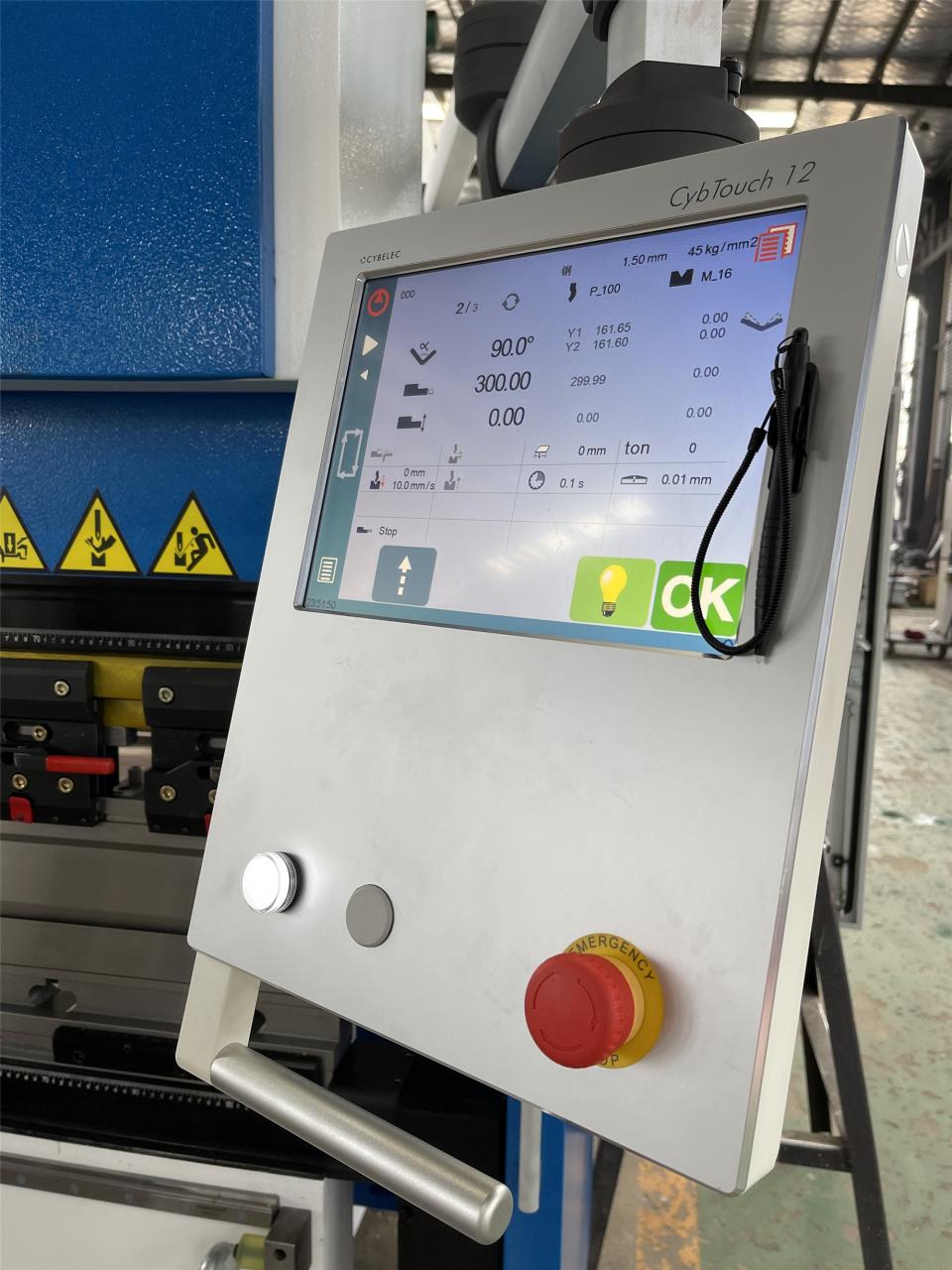

160t-4000 4-axis Cnc Hydraulic Bending Machine Press BrakeCybtouch-12 Controller System

1. Controls 4 axis.

2. Automatic bend sequencing (option).

3. Bend allowance calculation.

4. Pressure - crowning calculation.

5. Modular tools for each part or bend.

6. Angle and back gauge correction.

7. Tele-maintenance via wireless connection with PC or notebook.

8. USB port for memory stick for data transfer/backup.

High Efficient Working Table
160t-4000 4-axis Cnc Hydraulic Bending Machine Press Brake
1, You can use the whole bending length as there are no interference contours.
160t-4000 4-axis Cnc Hydraulic Bending Machine Press Brake
2, CNC customized mold
160t-4000 4-axis Cnc Hydraulic Bending Machine Press Brake

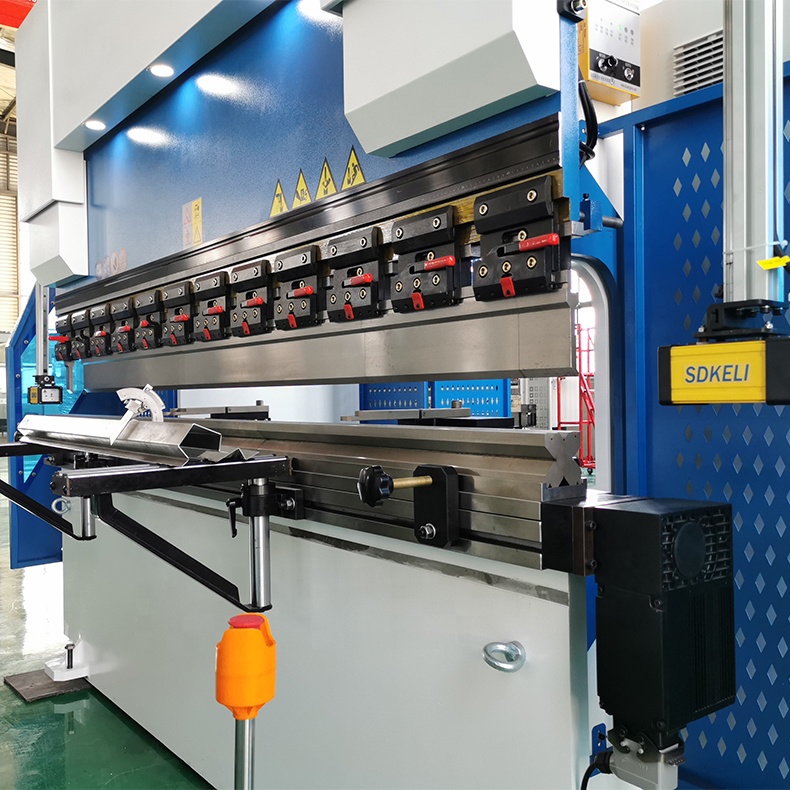

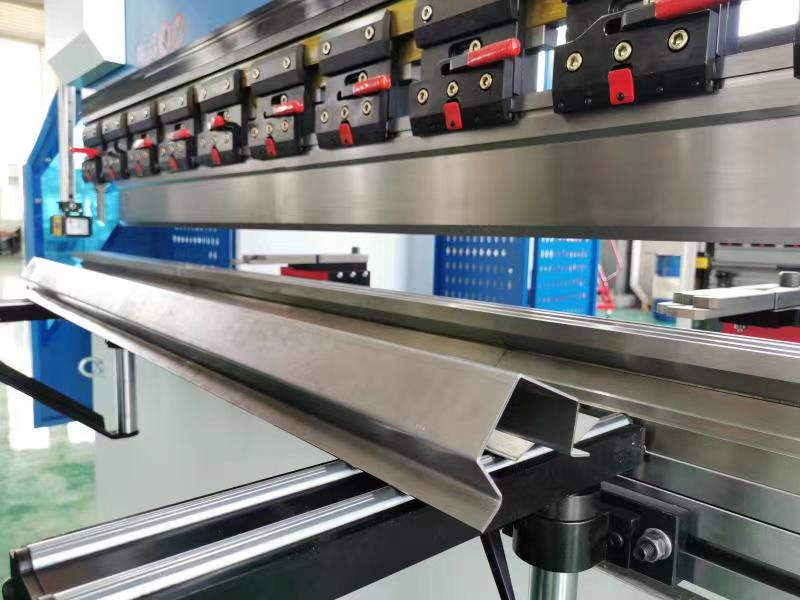

3, Quick clip: fast tool changes thanks to vertical set up, to reduce your set up times.
160t-4000 4-axis Cnc Hydraulic Bending Machine Press Brake
4, Supporting arms: The ergonomic support brackets and led work area illumination serve to maximize your operating ease.
160t-4000 4-axis Cnc Hydraulic Bending Machine Press Brake

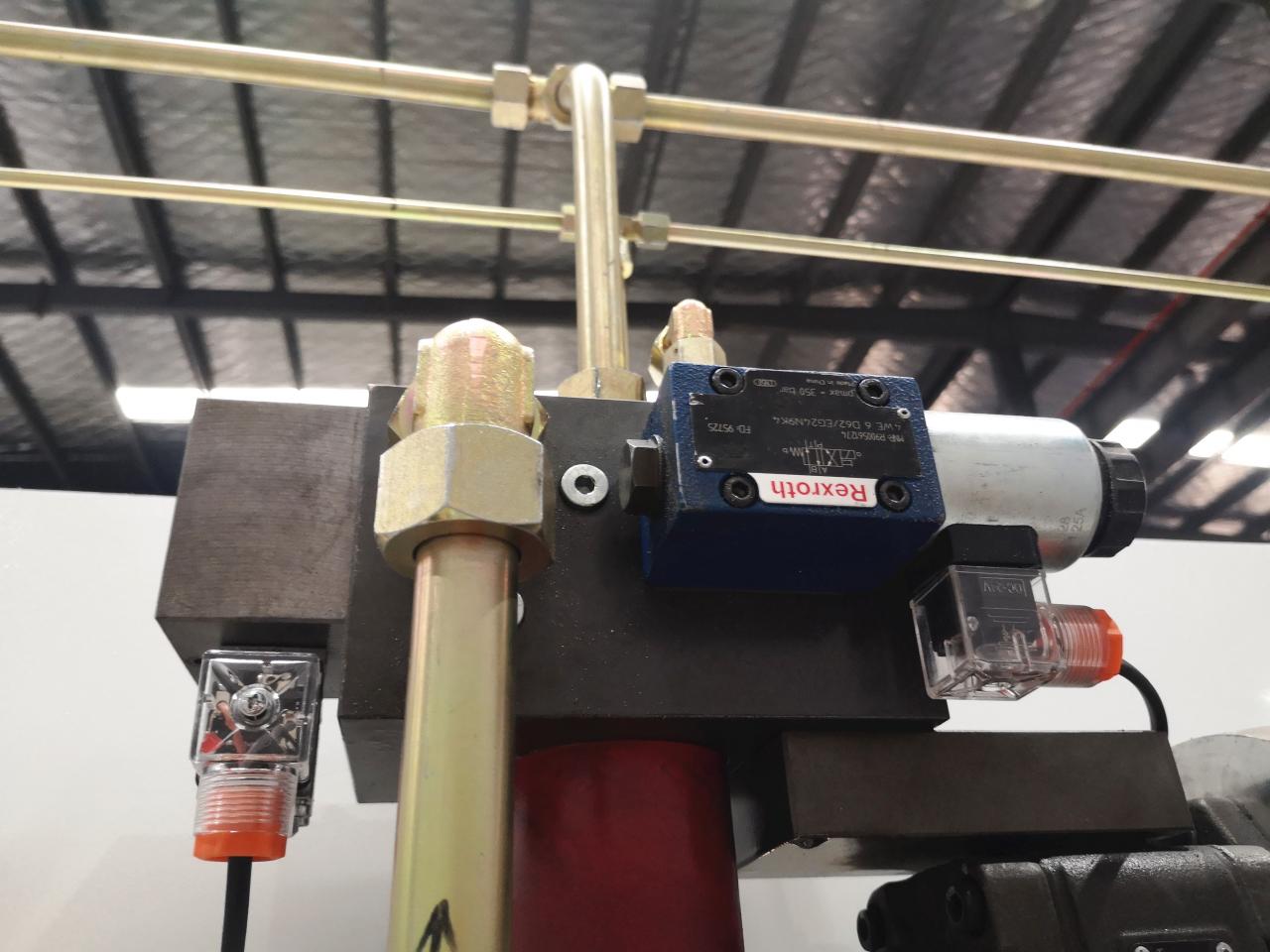

5. Hydraulic Valve (Rexroth from Germany)
160t-4000 4-axis Cnc Hydraulic Bending Machine Press Brake

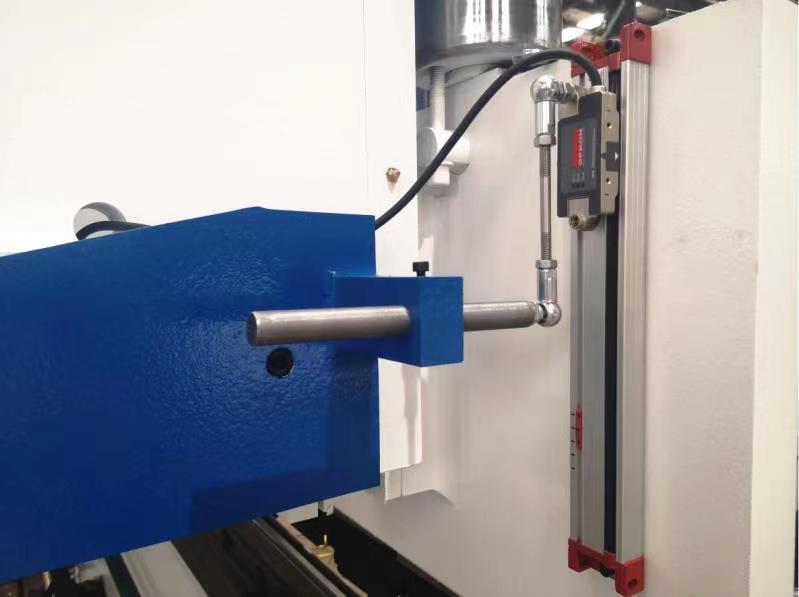

6, GIVI Grating ruler(from Italy): precise positioning stroke travel
160t-4000 4-axis Cnc Hydraulic Bending Machine Press Brake
7, Automatic Crowning System: To give more accurate bending angle
160t-4000 4-axis Cnc Hydraulic Bending Machine Press Brake
8, Laser safe High efficient and powerful back gauge
160t-4000 4-axis Cnc Hydraulic Bending Machine Press Brake

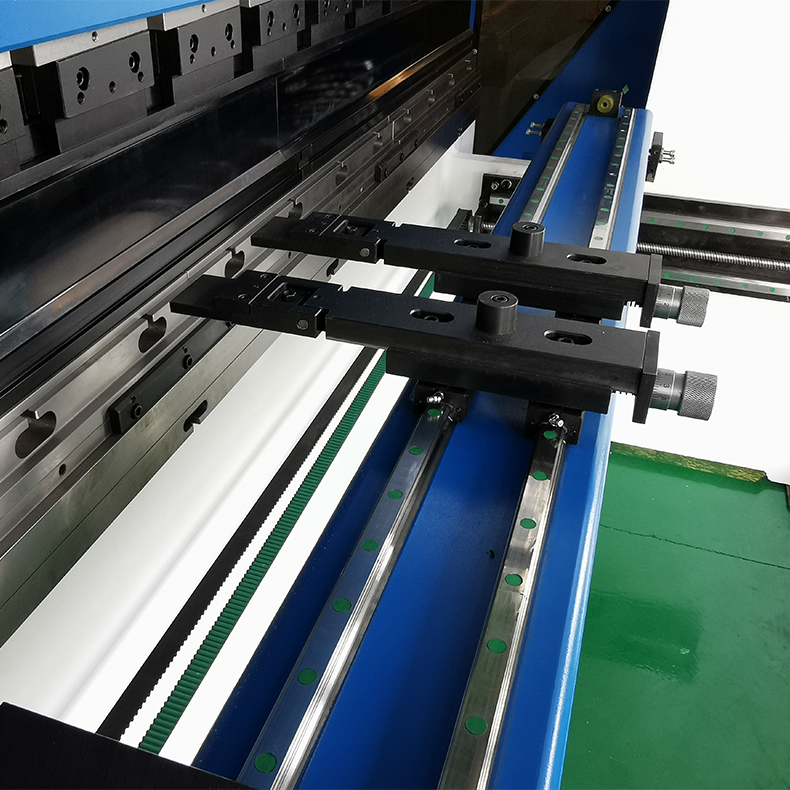

1, Servo motor drive back gauge: Servo drive back gauge system to increase speed.and energy saving.
160t-4000 4-axis Cnc Hydraulic Bending Machine Press Brake

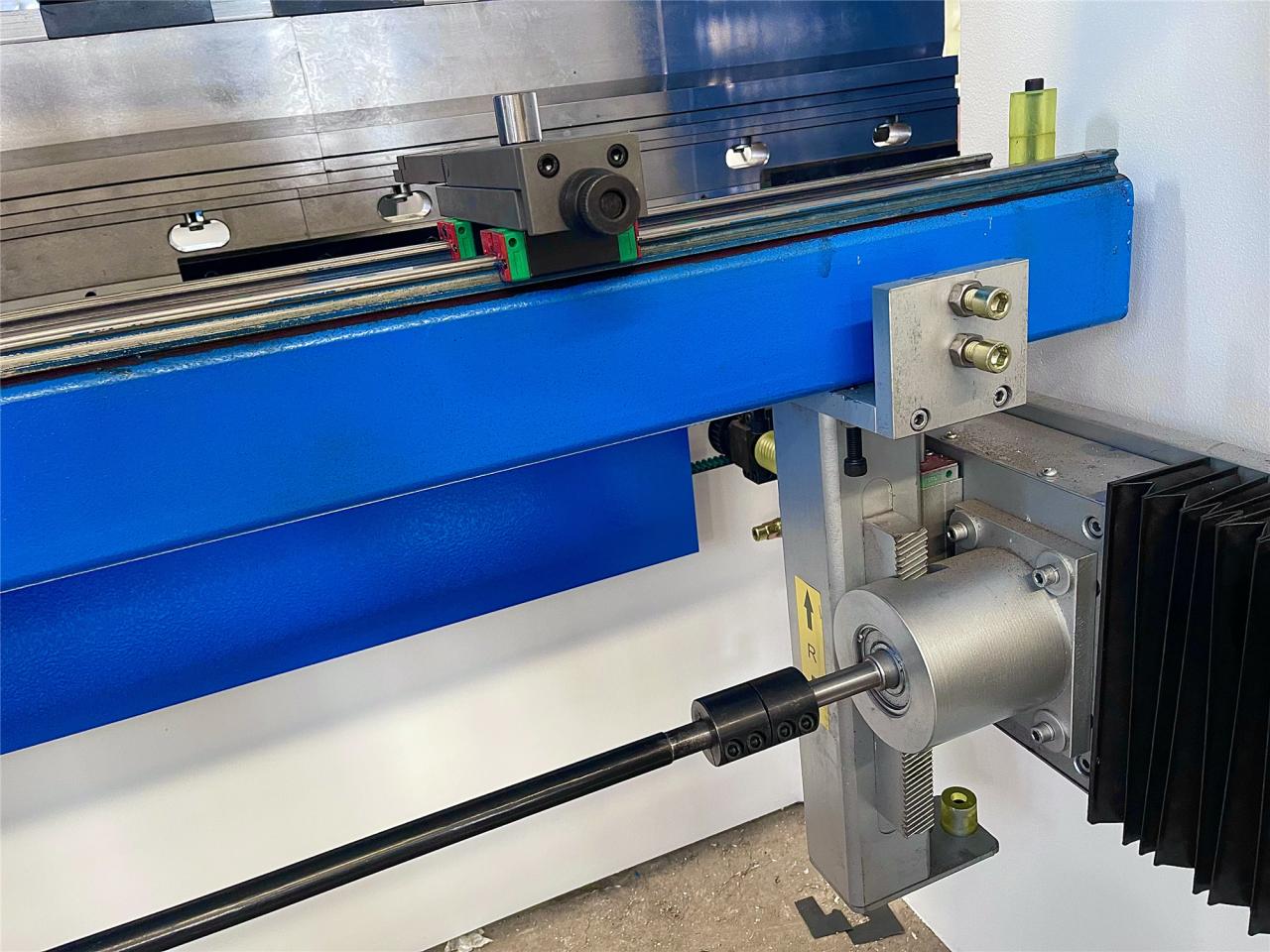

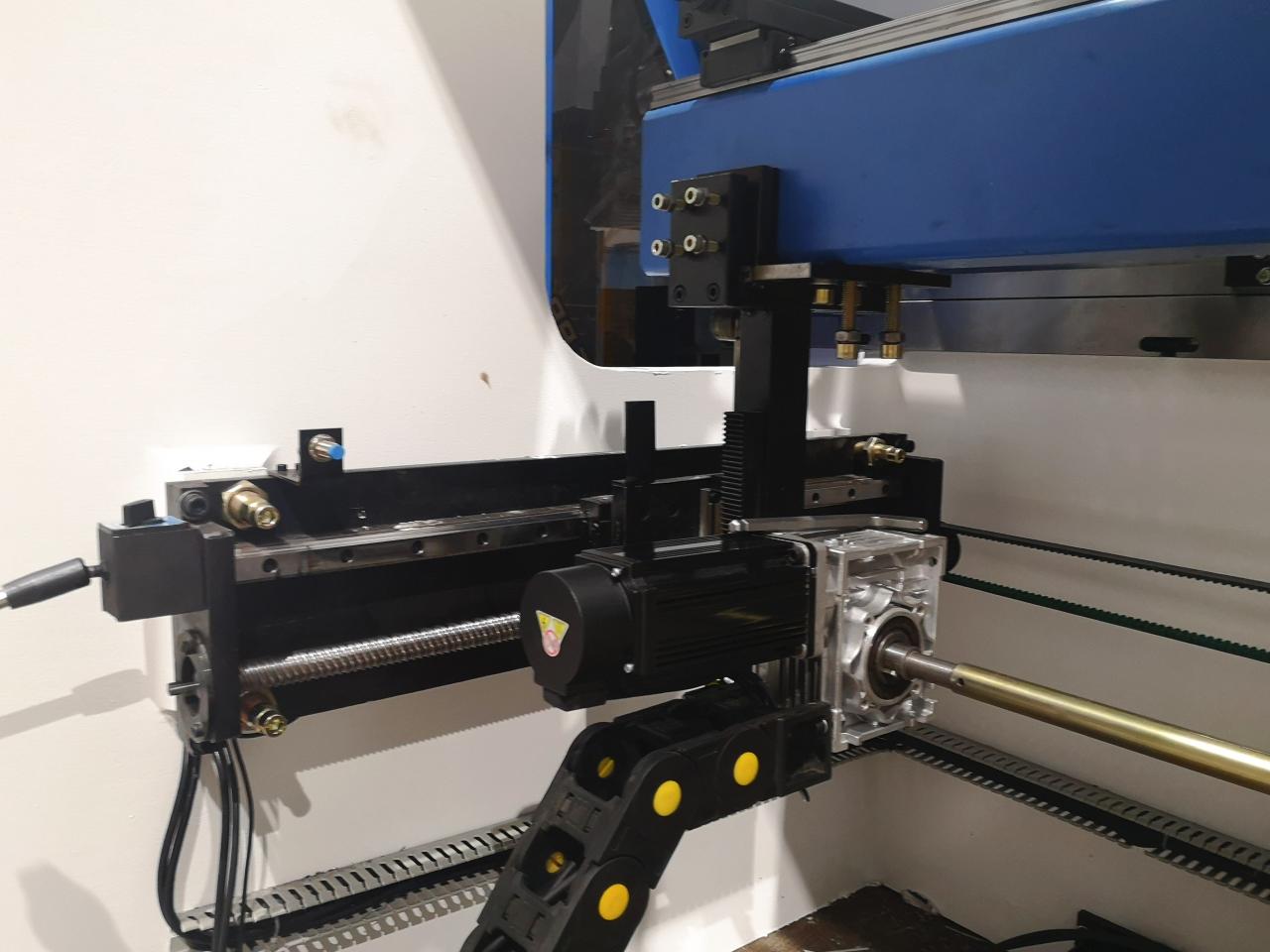

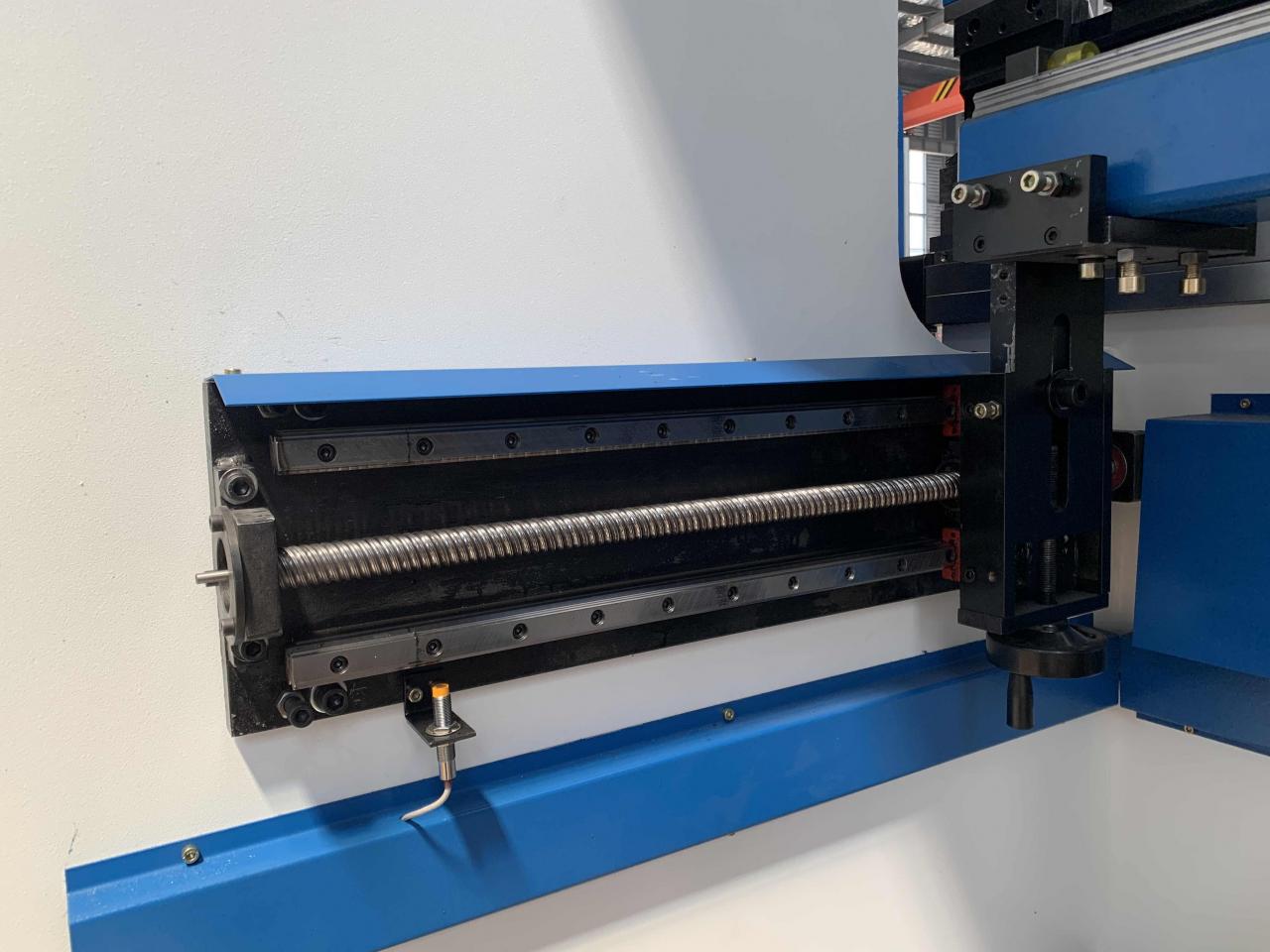

2, The ball screw and linear guideDynamic back gauges and the high speed axis thanks to the ball screw and linear guide.
160t-4000 4-axis Cnc Hydraulic Bending Machine Press Brake

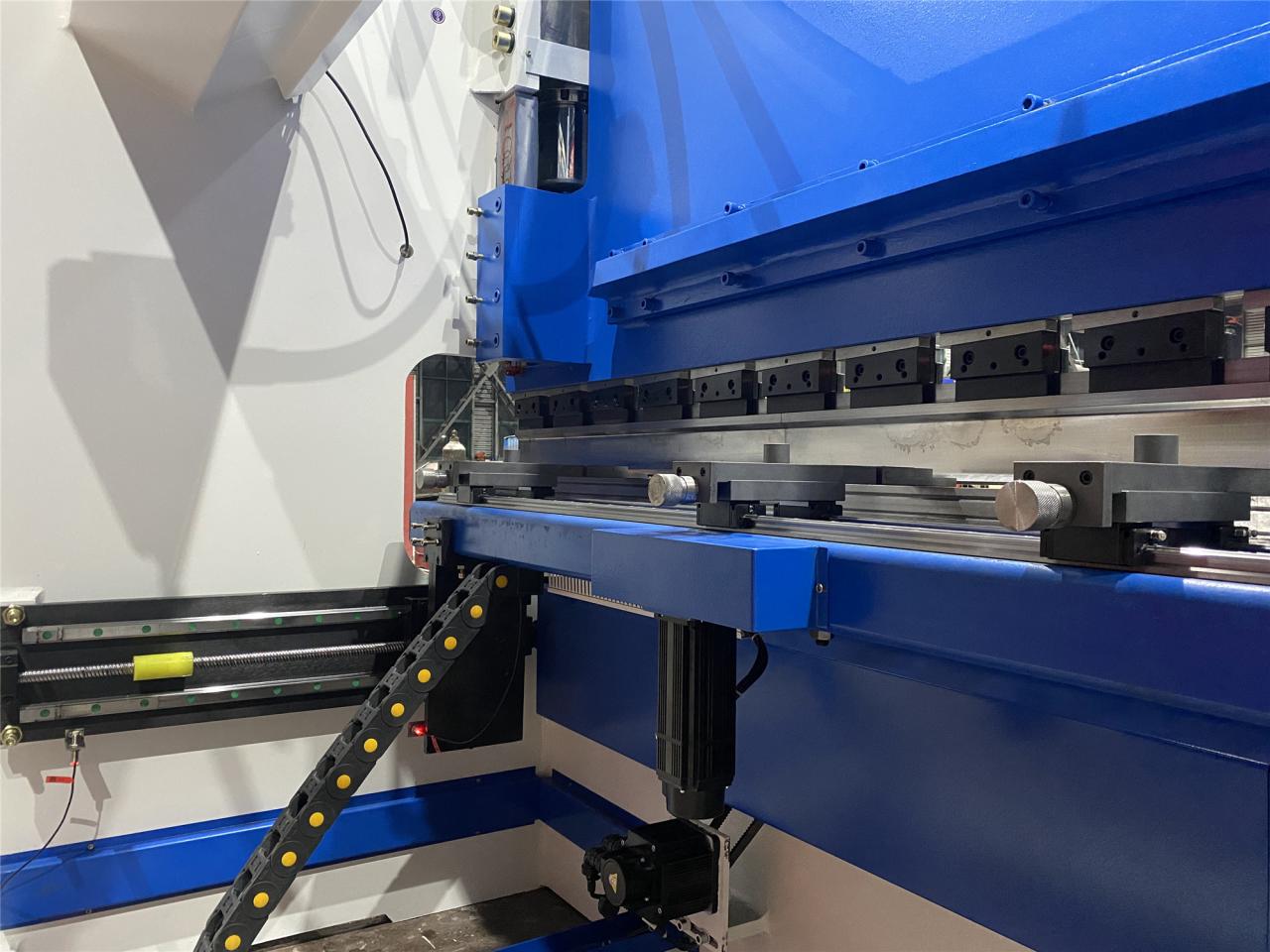

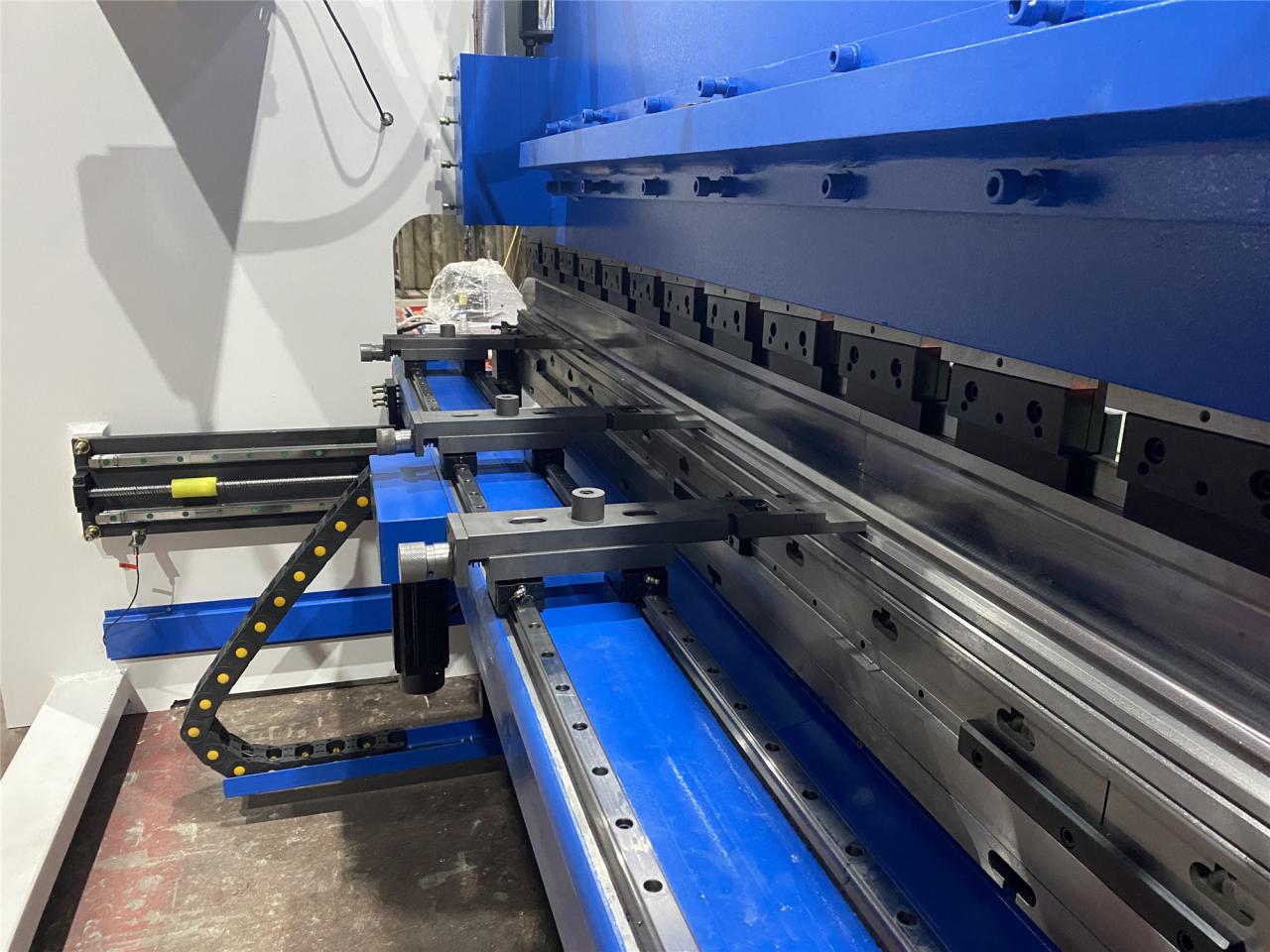

3, Double linear guides and integrated support beam to improve finger movement accuracy.
160t-4000 4-axis Cnc Hydraulic Bending Machine Press Brake
160t-4000 4-axis Cnc Hydraulic Bending Machine Press Brake
160t-4000 4-axis Cnc Hydraulic Bending Machine Press Brake
International Brand Endorses
160t-4000 4-axis Cnc Hydraulic Bending Machine Press Brake

Main Configuration

Main motorSiemens, Germany
ElectricsSchneider, France
Hydraulic valveRexroth, Germany
Oil PumpSunny, U.S.A
Seal ringEMB, Germany
ControllerDELEM DA66T
Foot switchSanyuan HongKong
CylinderJining Taifeng, Shandong
The ball screw and linear guideHIWIN, Taiwan
Servo driverDELTA, Taiwan
Grating rulerGIVI, Italy

Safety & Reliability

All components are certified in accordance with European standards, mainly from Germany, USA, Holland, Italy and Switzerland. All structural parts are calculated by the finite element method and only high quality steel S275 and S355 JR namely J2 ( N) is used.

Workbench protection

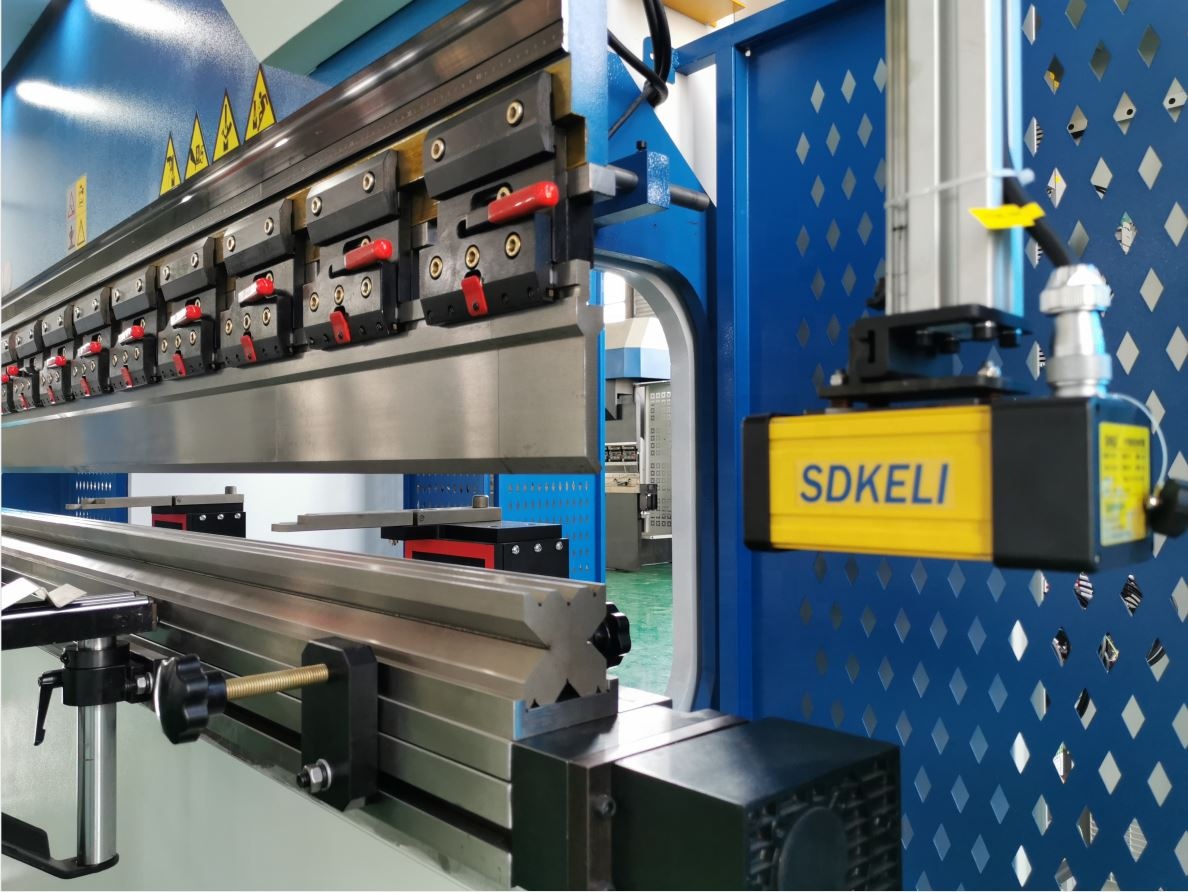

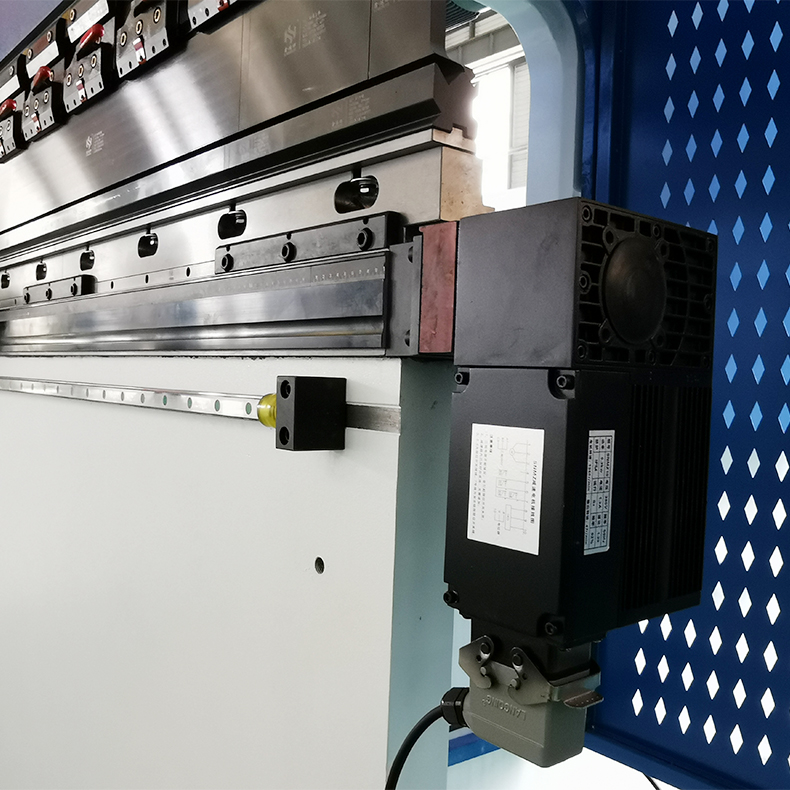

Laser protection: The blade stops when obstacle detected by laser.

Mechanical back

Light curtain protection or Point protection or safety fence, to warn people the dangerous working areas.

Worktable sides

Safety Fence to prevent people from careless entry.

Details

  • Slider Stroke (mm): 160 mm
  • Automatic Level: Fully Automatic
  • Throat Depth (mm): 320 mm
  • Machine Type: Synchronized
  • Length of Working Table (mm): 4000
  • Width of Working Table (mm): 140 mm
  • Dimension: 4000 x1700 x2800mm
  • Condition: New
  • Place of Origin: Anhui, China
  • Material / Metal Processed: Brass / Copper, Stainless Steel, ALLOY, Carbon steel, Aluminum
  • Automation: Automatic
  • Extra Services: Machining
  • Year: 2022
  • Weight (KG): 11000
  • Motor Power (kw): 11 kw
  • Key Selling Points: Competitive Price
  • Warranty: 2 years
  • Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works¬†, Energy & Mining, Food & Beverage Shops, Advertising Company
  • Showroom Location: Canada, Russia
  • Marketing Type: New Product 2022
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 2 years
  • Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine
  • Control system: DELEM CT8
  • Model: 160T-4000
  • Electrical Components: Schneider from France
  • Color: Customized
  • Usage: Metal Sheet Bending
  • Control Axes: 4 1
  • Certification: CE ISO SONCAP
  • Main Motor: Siemens from Germany
  • Lead Time: 30days
  • After-sales Service Provided: Free spare parts, Field installation, commissioning and training
