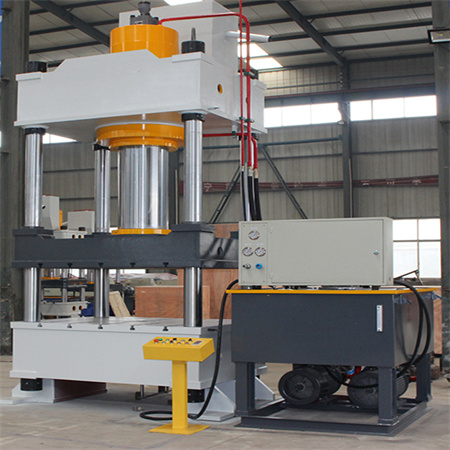

800 ton press machine

Product Description HP series hydraulic press are applied for assembling,disassemble, straightening, mouled pressing, tension, bending and punching works. It is one real multifunctional pressing machine. The machine adopted Italy CNK and CBZ oil pump combination supply oil for saving 60% energy compared with the traditional hydraulic press. It is small volume, simple structure, light weight with high pressure. The movable worktable expand its opening height and convenient. Technical Specifications MODEL HP-10S HP-20S HP-30S HP-40S HP-50S CAPACITY(KN) 100 200 300 400 500 PRESSURE(MPa) 50 50 50 60 60 TRAVEL (mm) 180+450 200+450 200+450 250+450 250+450 TABLE SIZE (mm) 200*300 200*300 300*400…

Main functions and features This machine has independent power sector and electrical systems, and the use of relay control, can implement adjustment and semi-automatic operation. The machine working pressure, sliding fast stroke range can be adjusted according to process requirements; and to complete the process of constant pressure forming two processes given way. Constant pressure molding method after the suppression of the process, with the holding pressure and delay automatic return action. PRODUCT SPECIFICATIONS NO. Item 63ton 1 Max, liquid pressure 25 2 Max, opening height 700 3 Slide stroke 400 4 Working table size 520*520 5 Ejecting force 20…

The main performance characteristics: Economical and Practical, Hydraulic control adopts to insert set valve integrated system, decrease let out Point.Movement reliability, durable and long life span, Itis constant pressure to realize with calm in the first place and calm procedure two develop technology, have to insure press the function of delay time, The route of working pressure may be regulated in assigned scope, adopt buttons for centralized control, Can realization manual, Semi-automatic, automatic 3 operate form. Application field : This series of hydraulic presses is suitable for the pressing process of plastic materials, such as stamping, bending, flanging and thin…

Product Application This series press has the black-white controland PLC controls two kind of electrical thecontrol system. Has theadjustment, manual and the semiautomatic three operating mode may realize the constant pressure and decide there gulation two craft ways. When constant pressure formation, after suppression has guarantees when the rolling and automatic return trip movement. In the work table is loaded with goes against the installment, besides goes against the product. Still permissible use in as fluid pressure pad instead stretching workpiece formation craft, its working pressure and the traveling schedule, may accord-inq to the craft need, adjust in the stipulation…
