Cnc Metal Press Brake Machine

Main Configuration

1. Full EU streamlined design, heat treatment rack,high rigidity worktable.

2. Estun NC controller E21/DA41for Y axis and X axis control.

3. Working-piece counting function.

4. Bending retraction function

5. Backgauge with ball screw and Manual R axis

6. Optional V axis for compensation function.

7. light curtain for safty, optional DSP laser protection.

8. CE certificate and ISO9001*2008

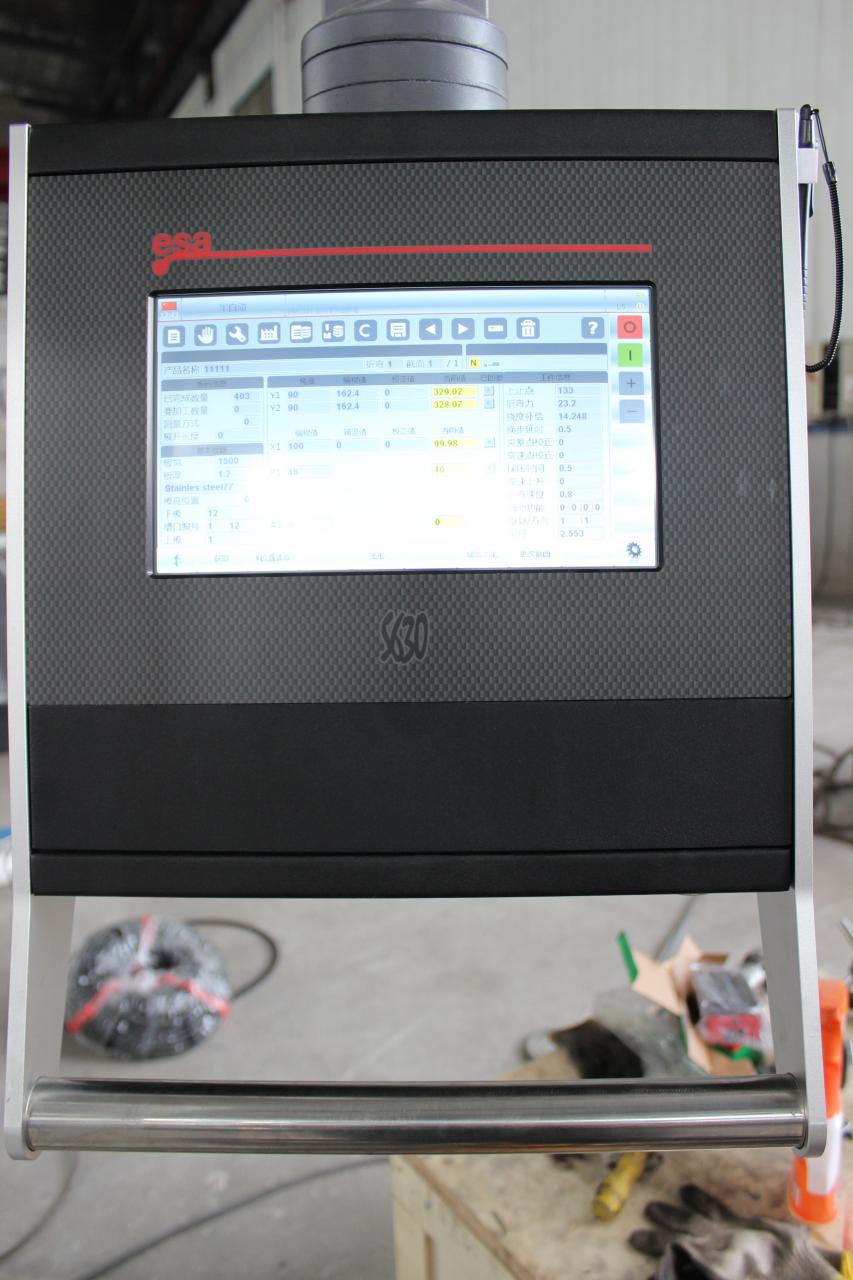

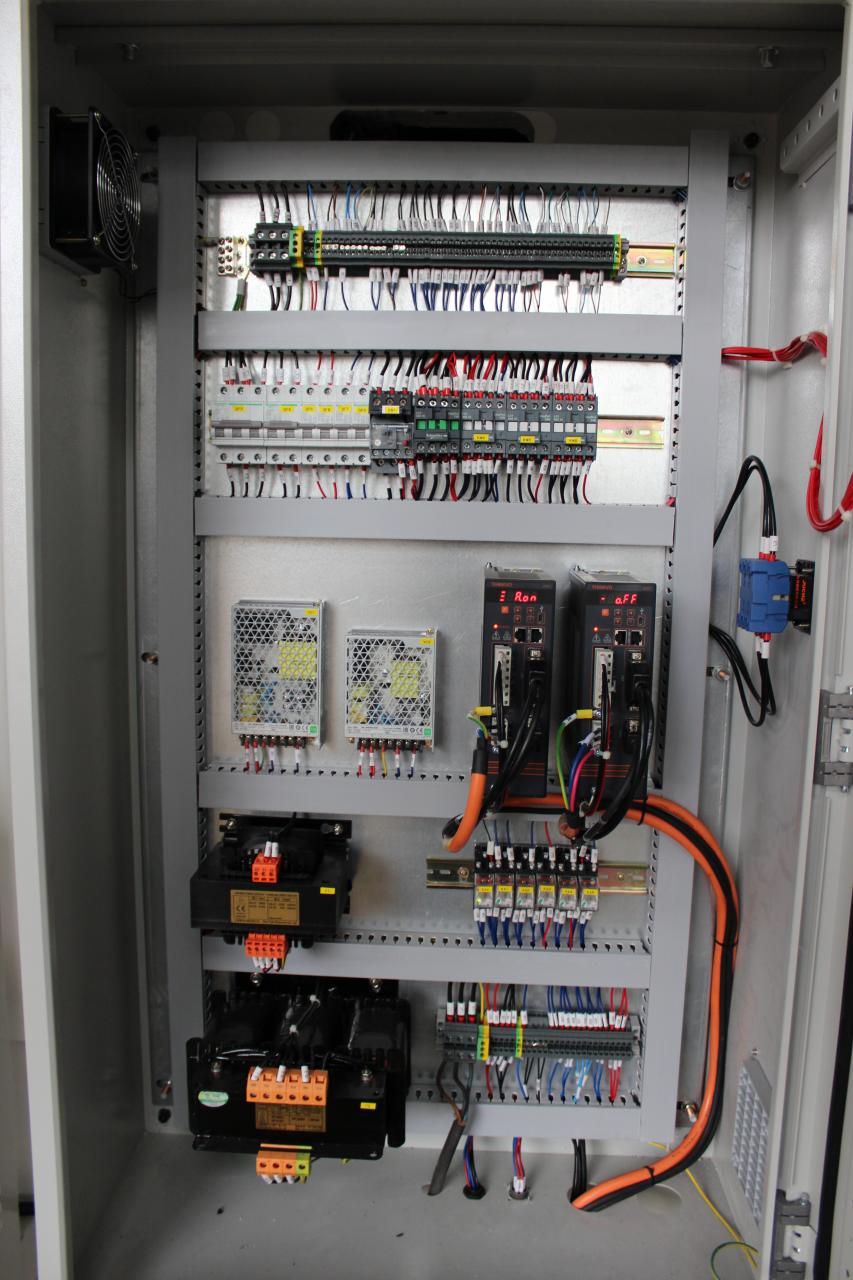

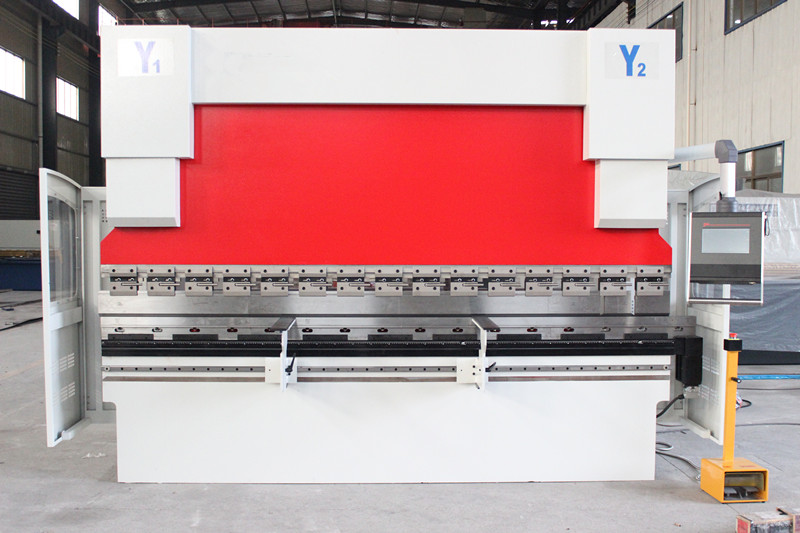

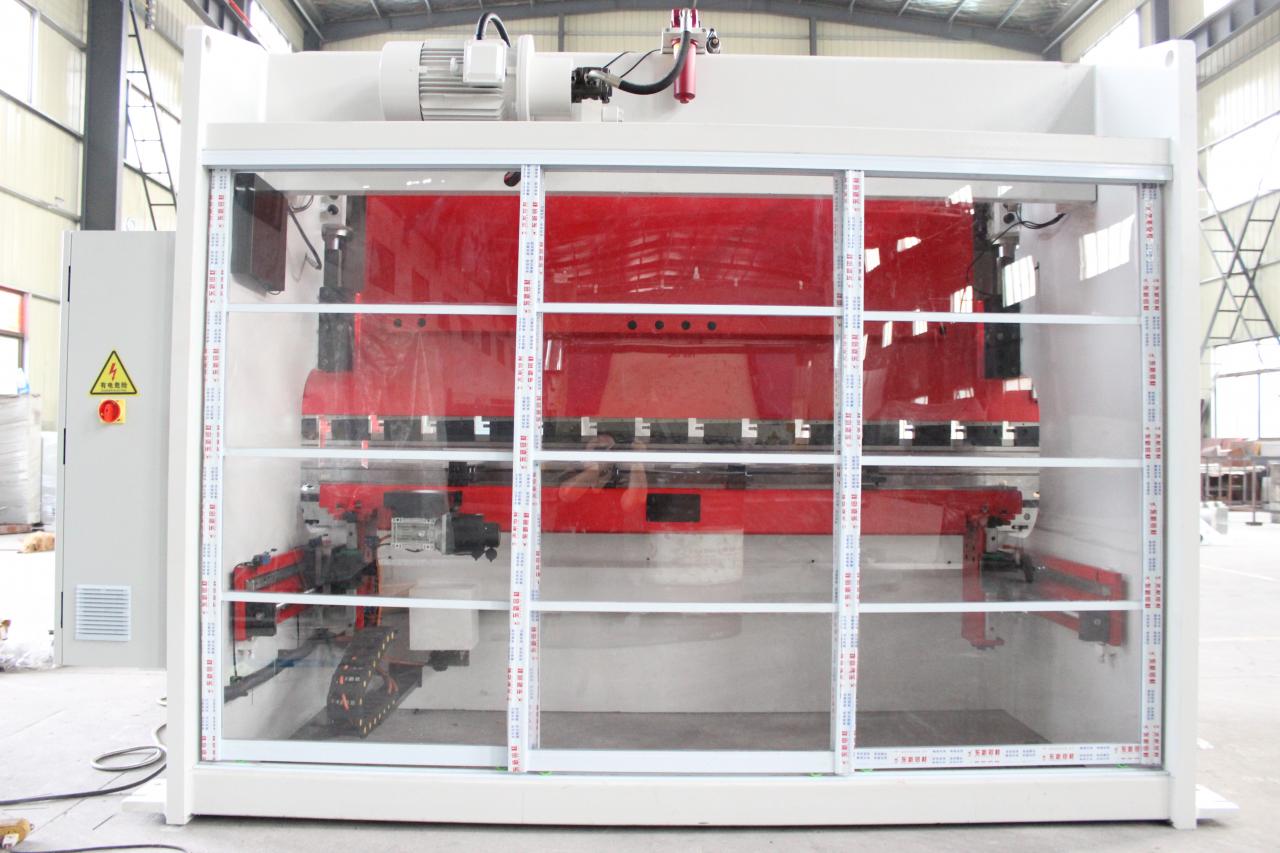

Cnc Metal Press Brake Machine Cnc Metal Press Brake MachineMachine BackCnc Metal Press Brake MachineController(ESA,DELEM,ESTUN)Cnc Metal Press Brake MachineElectric Box(Siemens,Schneider)

Bending Capability80/3200100/3200100/4000125/3200125/4000160/3200160/4000
Nominal Force(KN)800100010001250125016001600
Worktable Length(mm)3200320040003200400032004000
Column Distance(mm)2490249030002490300024903000
Throat Depth(mm)250320320320320320320
Ram Stroke(mm)120120120120120180180
Main Motor Power(KW)
Bending Capability160/6000200/3200200/4000200/6000250/3200250/4000250/6000
Nominal Force(KN)1600200020002000250025002500
Worktable Length(mm)6000320040006000320040006000
Column Distance(mm)4100249030004600250030004600
Throat Depth(mm)320320320320350350350
Ram Stroke(mm)200200200200250250200
Main Motor Power(KW)11111115151515
Bending Capability300/3200300/4000300/6000400/4000400/5000400/6000500/4000
Nominal Force(KN)3000300030004000400040005000
Worktable Length(mm)3200400060004000500060004000
Column Distance(mm)2500300046003100360046003100
Throat Depth(mm)350350350350350350350
Ram Stroke(mm)250250250250250250250
Main Motor Power(KW)18.518.518.522223030
Bending Capability500/6000500/8000600/6000600/8000800/6000800/80001000/6000
Nominal Force(KN)50005000600060008000800010000
Worktable Length(mm)6000800060008000600080006000
Column Distance(mm)4600610046006100460061004600
Throat Depth(mm)350350400400400400500
Ram Stroke(mm)250300300300300300400
Main Motor Power(KW)30303745455555

Product Configuration

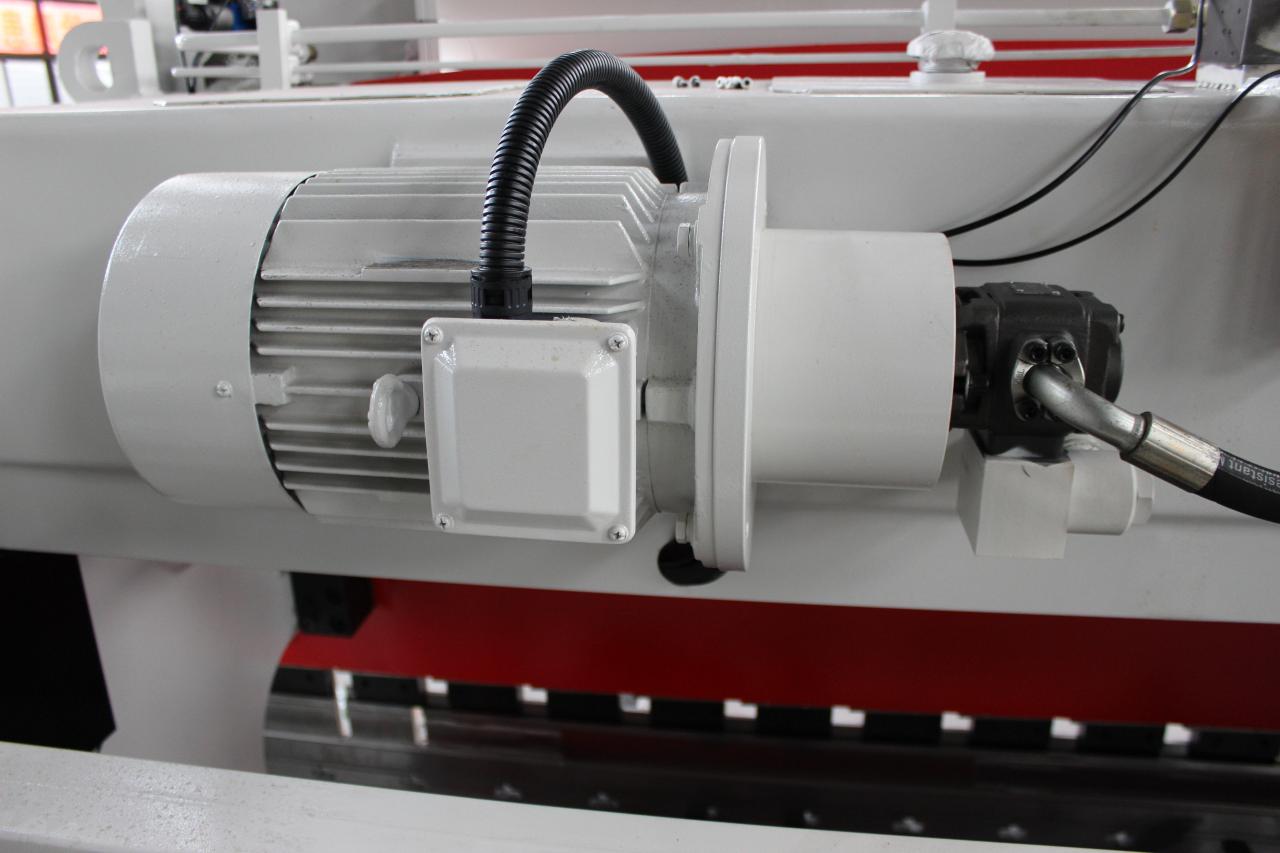

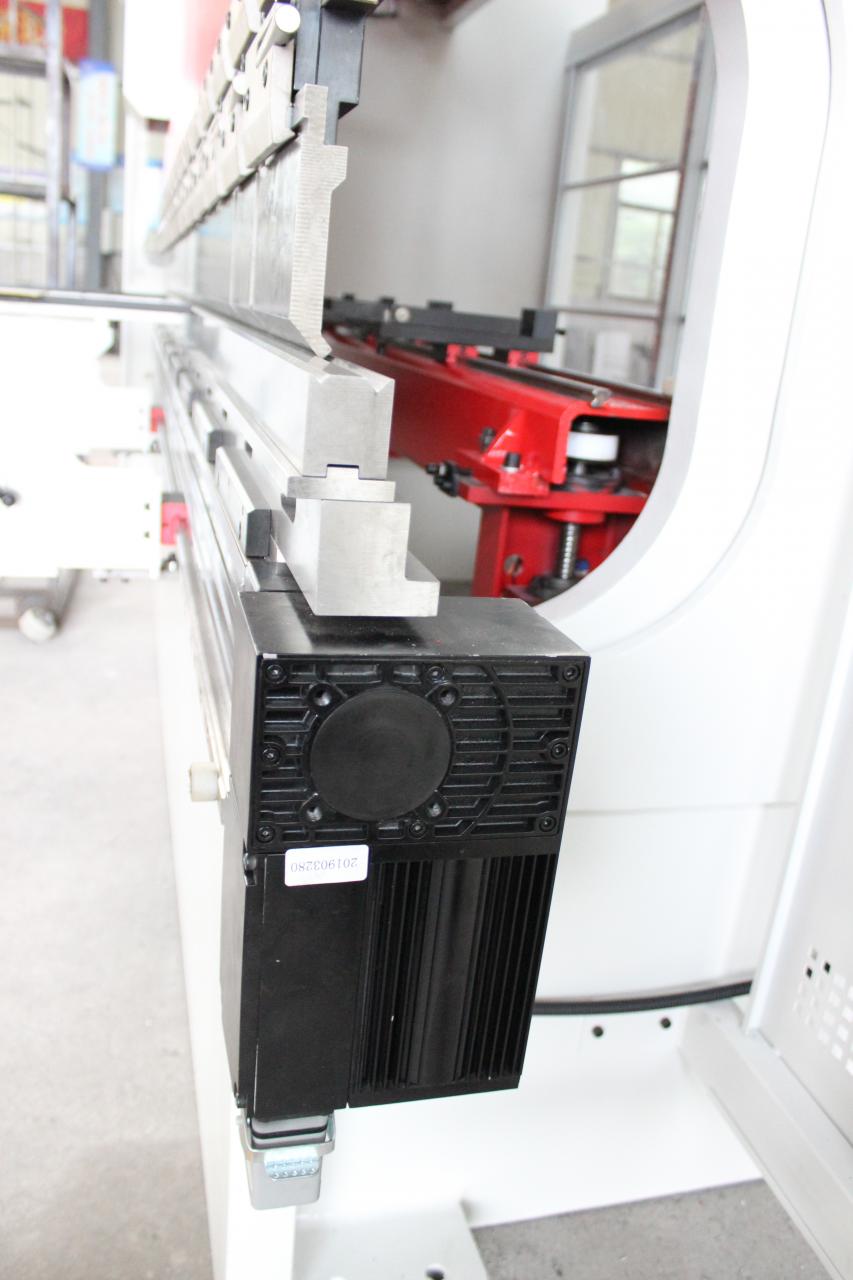

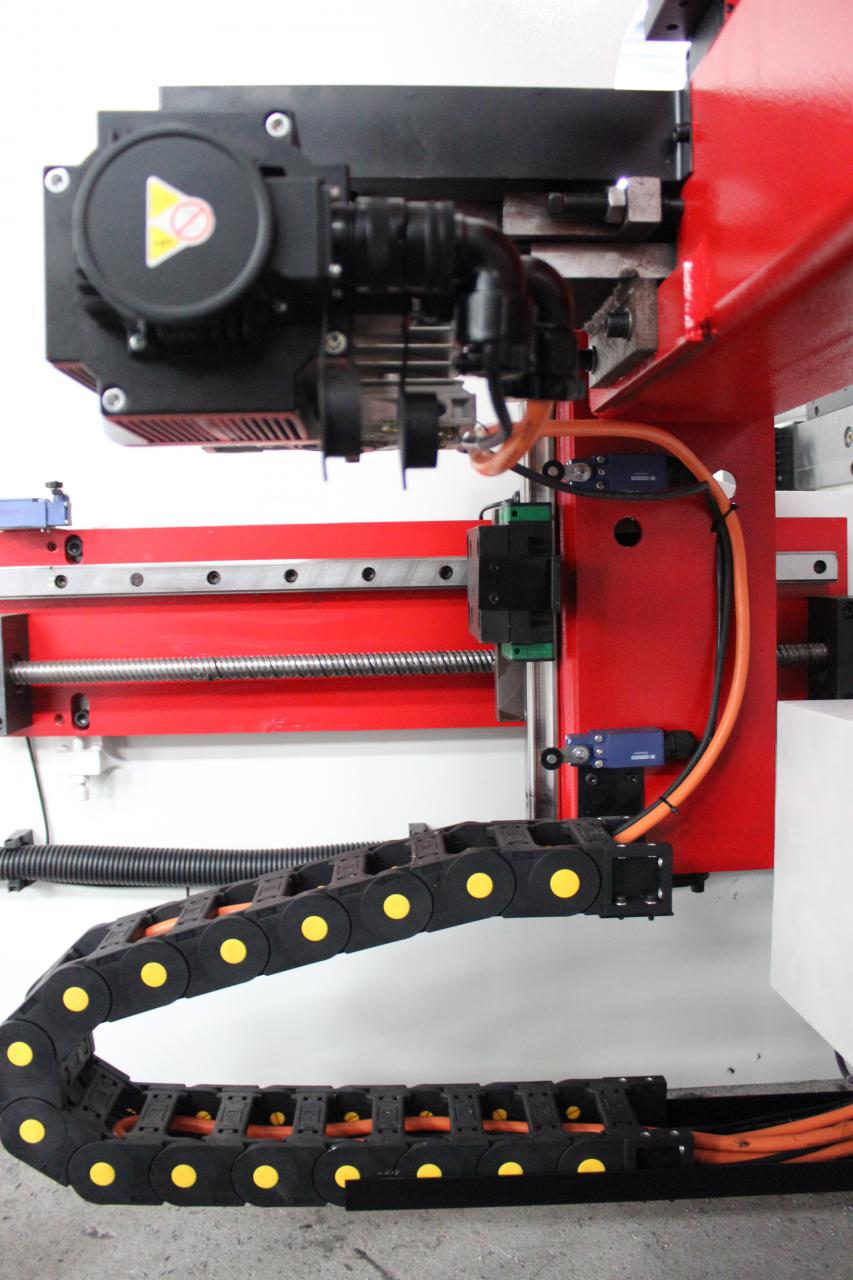

Cnc Metal Press Brake MachineMechanical compensationCnc Metal Press Brake MachineSiemens Motor and sunny pumpCnc Metal Press Brake MachineBackguage


1. Can you supply the relevant documentation?

Yes, we can provide most documentation including Certificates of Analysis/Conformance; Insurance; Origin, and other export documents where required.

2. What is the average lead time?

For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment.The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.

3. What kinds of payment methods do you accept?

You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance against the copy of B/L.

4. What is the product warranty?

We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone’s satisfaction.

5. Do you guarantee safe and secure delivery of products?

Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.

6. How about the shipping fees?

The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way. By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.


  • Slider Stroke (mm): 140 mm
  • Automatic Level: Semi-automatic
  • Throat Depth (mm): 320 mm
  • Machine Type: bending machine
  • Length of Working Table (mm): Other
  • Width of Working Table (mm): 100 mm
  • Dimension: 3300 * 1000 * 1000
  • Condition: New
  • Material / Metal Processed: Carbon steel, Aluminum
  • Automation: Automatic
  • Extra Services: Buffing / Polishing
  • Year: N/A
  • Weight (KG): 9000
  • Motor Power (kw): 7.5 kw
  • Key Selling Points: Automatic
  • Warranty: 1 Year
  • Applicable Industries: Manufacturing Plant
  • Showroom Location: None
  • Marketing Type: Other
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 1 Year
  • Core Components: Bearing, Motor, Pump, Gear, Engine, Gearbox
  • Power: Hydraulic
  • Raw Material: Sheet / Plate Rolling
  • Color: Customized
  • Type: CNC Hydraulic
  • Material: Stainless Steel
  • Usage: Metal Sheet Rolling Cutting Bending
  • Voltage: 220V/380V
  • Product name: YALIAN/USKY cnc press brake ,presse plieuse,metal press brake machine
  • Application: Stainless Plate Bending
  • keywords: metal bending machinery
  • Certification: ISO 9001:2000
  • After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
  • After Warranty Service: Video technical support, No service, Online support, Spare parts, Field maintenance and repair service
