Laser Metal Machinery Cnc Steel Plate Laser Cutter Fiber Laser Cutting Machine
RAYMAX's metal sheet fiber laser stands out on precise cutting of complex, intricate contours.Perfect industrial design is more in line with man-machine engineering.The machine is affordable and tailored for sheet metal processing enterprises. It works great with CS, SS, MS, aluminum, brass, copper, bronze, gold, silver, titanium alloy, galvanized plates, etc.


● Configuration--Stand-alone electrical cabinet, wireless remote control.

● Low consumption--The power is more than 30% lower than the ordinary cutting machine.

● Environment friendly--Laser cutting will not create any gases for the special cutting technology for steel sheet.

● Maintenance-free--For the fiber laser cutter, the reflect lens is not needed. It will help to save a lot of time when the optical path is adjusted. The laser generator with a longer life which no need maintenance during usage, stable performance.

Machine Parameter

Equipment modelMT-L1530F / MT-L2040F / MT-L2560F
Laser typeFiber laser
Laser power1000W-30000W optional
Effective cutting range1500*3000mm/2000*4000mm/2500*6000mm optional
Reposition accuracy0.02mm
Laser wavelength1080±5nm
Laser sourceRaycus/IPG/MAX
Laser cutting headRaytools/Ospir/Precitec
Control systemCypcut
ReducerJapan Shimpo
Drive systemFUJI / YASKAWA
Pneumatic elementsJapan SMC
Electrical partsAmerican Honeywell
Guide railTaiwan square guide rail
Cooling systemConstant temperature controller water chiller
Oiling systemAutomatic oiling system
Electrical requirement3 Phases 380V±10% 50HZ/60HZ

Machine Details

Free your hands with auto focus laser head

Auto focus laser head cuts half of your focusing time by automatically adjusting the focus to a suitable position. You even profitmore from piercing thick plates.

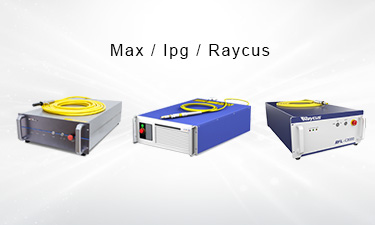

Raycus laser source

Free maintenance;High electro-optical conversion efficiency (up to 25-30%), excellent beam quality, high energy density, and reliability, a wide modulation frequency; Low energy consumption, only 20%-30% of the traditional machine.

Intuitive operation system with touch control

Integrating CAD, Nest and CAM modules in one, from drawing, nesting to workpiece cutting, metal processing is just a few clicks away.

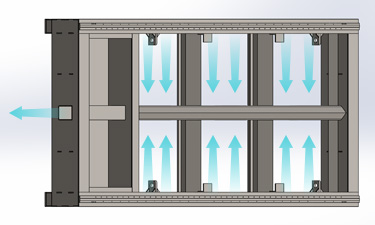

Partitioned smoke and dust exhaust system

Enjoy a better cutting environment with our partitioned smoke and dust exhaust system. Each suction port opens and closes independently to exhaust smoke of a particular area, considerably enhancing smoke removal efficiency.

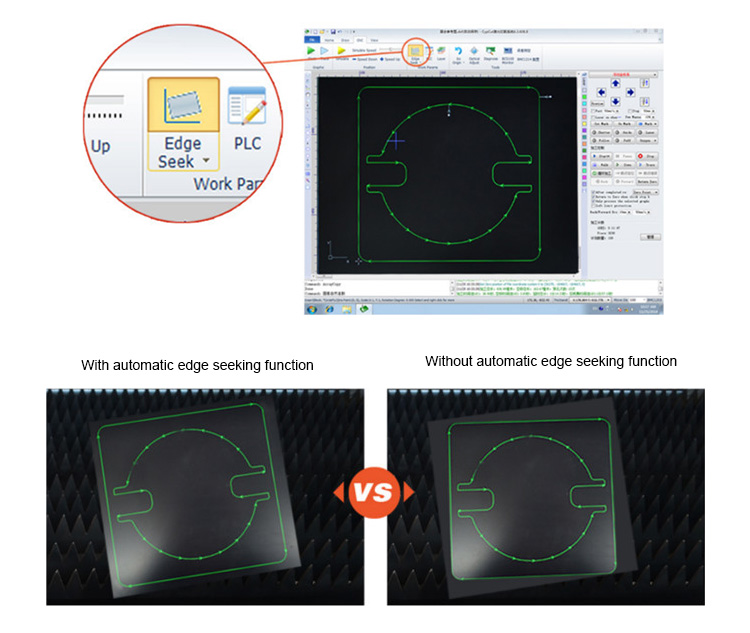

Automatic edge seeking function

Auto-induct materials cutting edge and adjust cutting range according to their inclination angle automatically in case of any incorrect position.

Application & Sample

Favored by fabricators of sheet metal, electrical cabinet, elevator and escalator, kitchen appliance metal doors and windows, this sheet laser cutting machine effortlessly cuts stainless steel sheets, carbon steel sheets, galvanized sheets, etc.



Q: I don’t know which one is suitable for me ?

A: Just tell us below information

1) Max work size:choose the most suitable model.

2) Materials and Cutting thickness: Power of laser generator.

3) Business industries: We sell a lot and give advice on this business line.

Q: If some problems happen to this machine during the warranty period, what should I do?

A :We will supply free parts during the machine warranty period if the machine has some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according toquantity.

Q: Do you have a CE document and other documents for customs clearance?

A: Yes, we have Original. At first we will show you and after shipment we will give you CE / Packing list / Commercial Invoice / Sales contract for customs clearance.


  • Application: LASER CUTTING
  • Applicable Material: Metal
  • Condition: New
  • Laser Type: Fiber Laser
  • Cutting Area: 3000*1500mm
  • Cutting Speed: 140m/min
  • Graphic Format Supported: AI, BMP, Dwg, DXP
  • Cutting Thickness: 0-20mm
  • CNC or Not: Yes
  • Cooling Mode: WATER COOLING
  • Control Software: Cypcut
  • Laser Source Brand: IPG/MAX
  • Laser Head Brand: Raytools
  • Servo Motor Brand: Yaskawa
  • Guiderail Brand: PMI
  • Control System Brand: Cypcut
  • Weight (KG): 2100 KG
  • Key Selling Points: Remote Control
  • Warranty: 2 years
  • Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Printing Shops, Construction works , Energy & Mining, Other, Advertising Company, industry
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 2 years
  • Core Components: Laser source
  • Mode of Operation: continuous wave
  • Configuration: 5-axis
  • Products handled: Sheet Metal
  • Feature: Programmable
  • Laser type: Fiber laser
  • Rated output power: 1000w-30000w optional
  • Effective cutting range: 1500*3000mm
  • Reposition accuracy: 0.02mm
  • Laser wavelength: 1080±5nm
  • Laser source: Raycus
  • Laser cutting head: Raytools
  • Control system: Cypcut
  • Oiling system: Automatic oiling system
  • Electrical requirement: 3 Phases 380V±10% 50HZ/60HZ
