four column press

Product Description The main advantage of the hot forging hydraulic press is that the material enters at a slower pace inside the die and thus fills it in a more complete and accurated manner; in this way the following machining works are minimised. Furthermore hydraulic presses, when compared to power hammers, can complete the whole job in one cycle (when having a constant force independent from the moving table position), thus allowing an increased production rate. For the hot upsetting process RAYMAX has developed a type of press that can be used with multiple intermediate forging, allowing the progressive roughing…

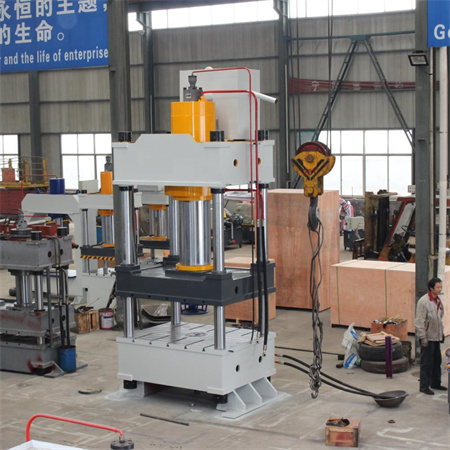

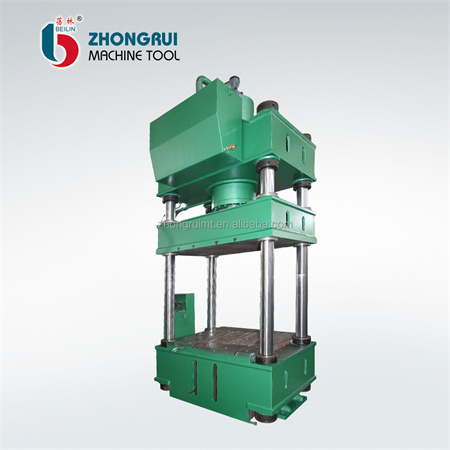

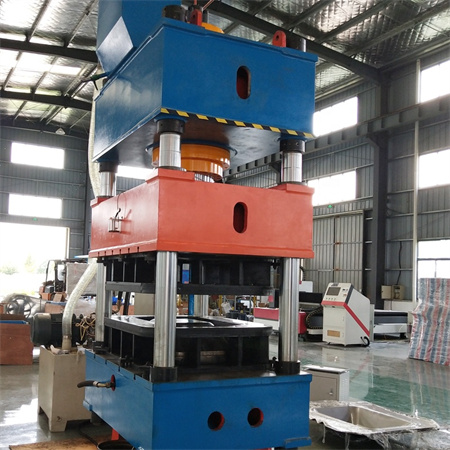

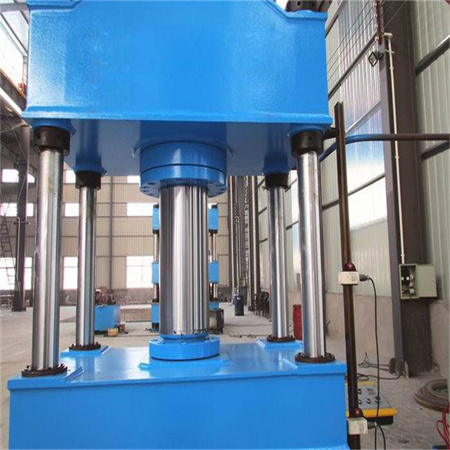

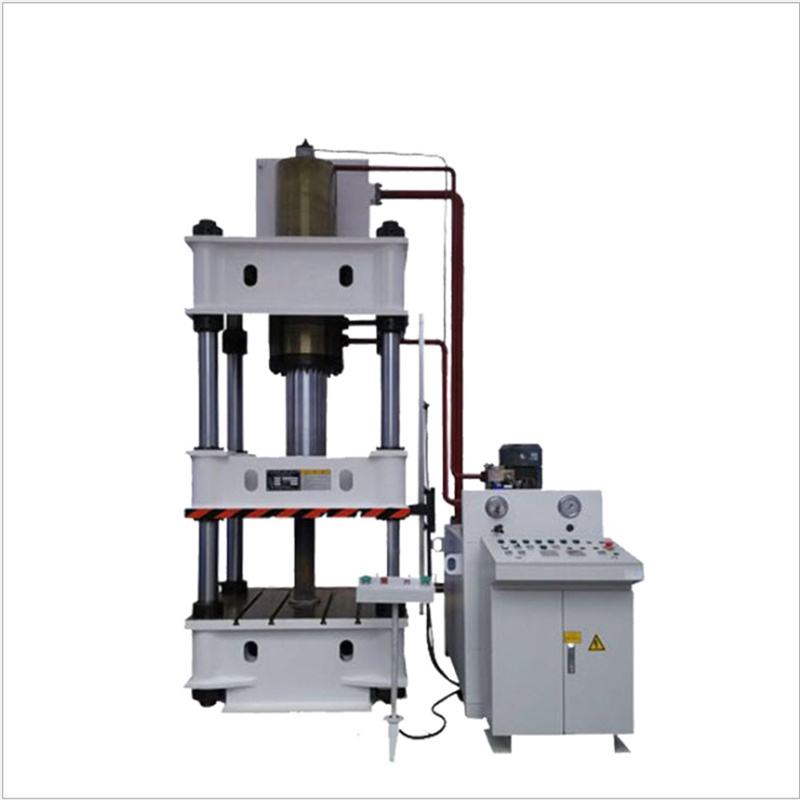

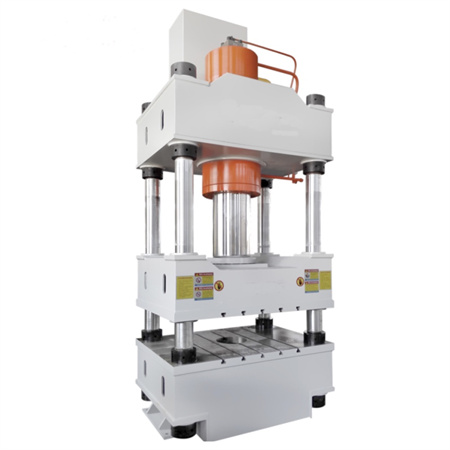

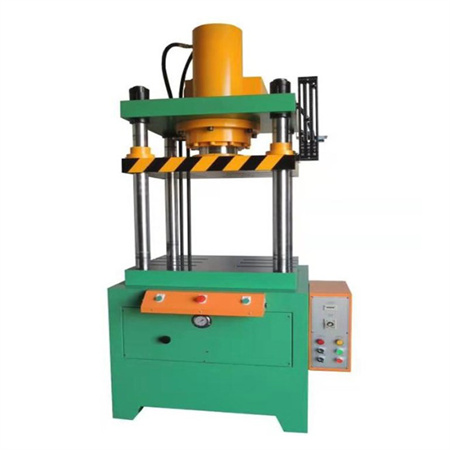

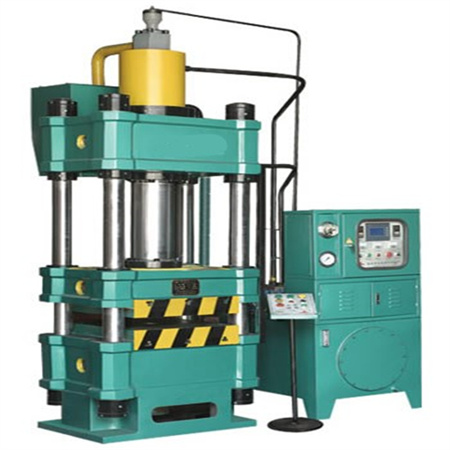

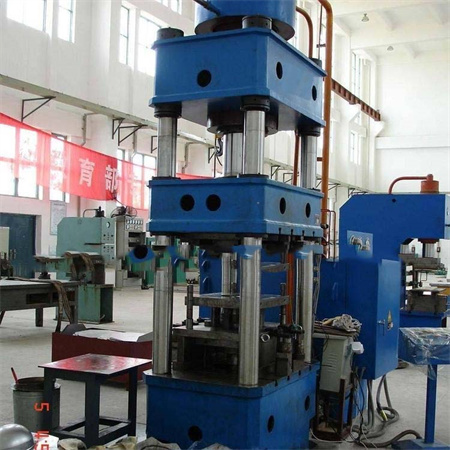

Product Description Characteristics of the equipment Hydraulic four-column structure of the hydraulic press is one of the most common structural forms of the hydraulic press, its remarkable characteristics is spacious work space, convenient for four bodies to observe and close to the mold, the machine structure is simple, good technology. Its fuselage is composed of beam, beam, lower beam and four support, working within the cylinder installed on the beam, beam and working cylinder piston connection into a whole, guided by post to do up and down, and the power transfer within the working cylinder, pressure of parts processing, four-column…

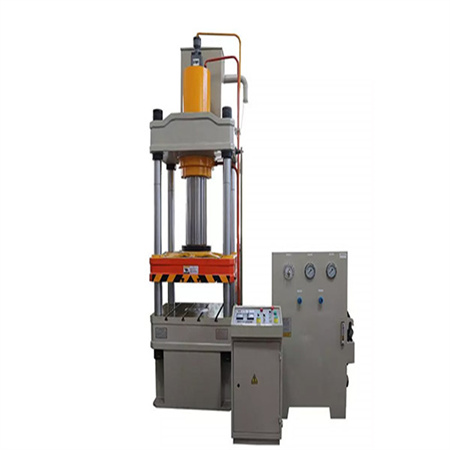

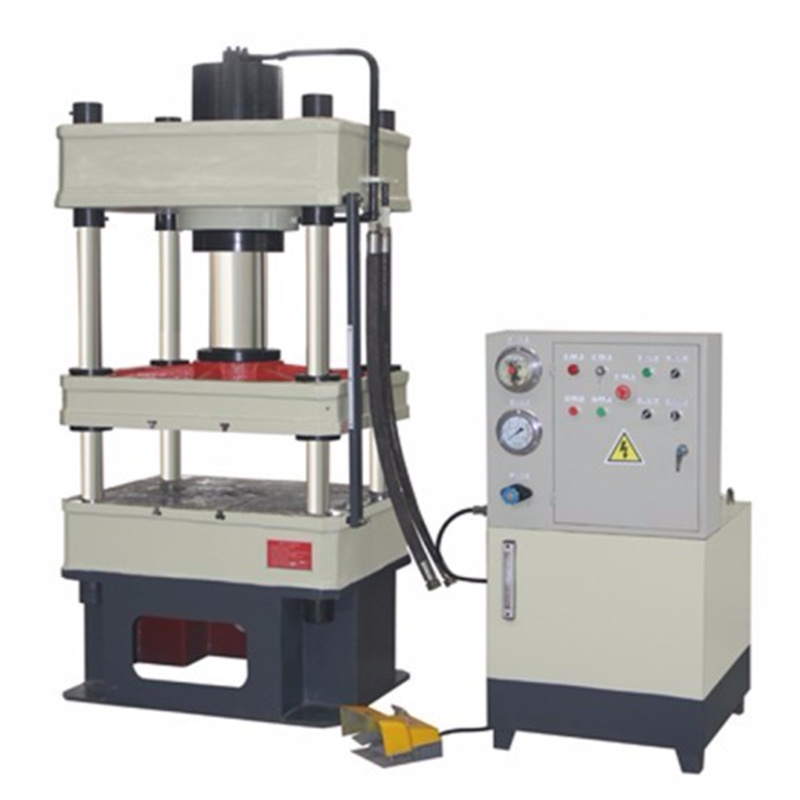

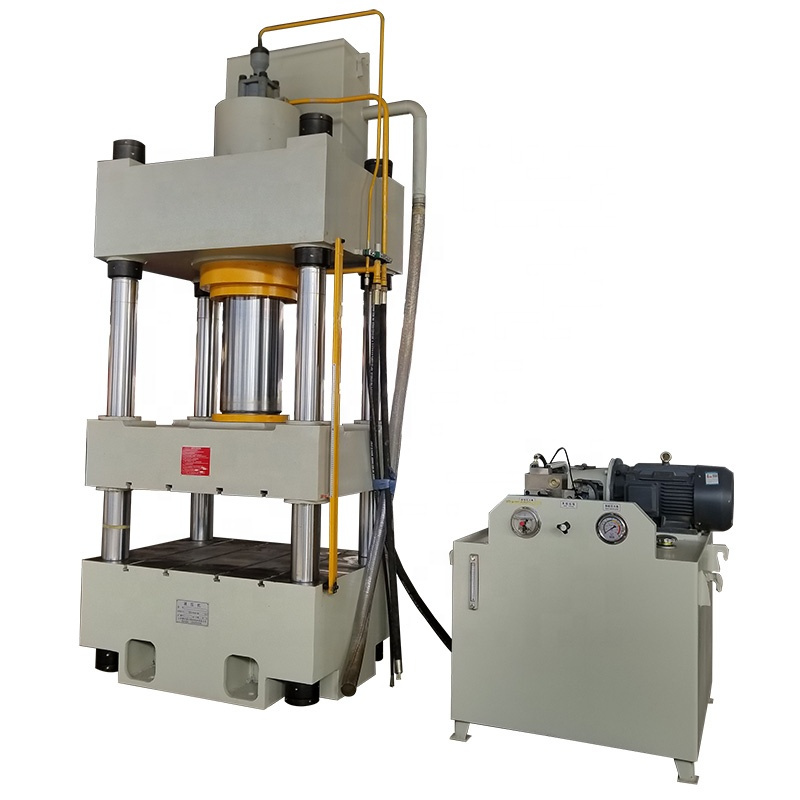

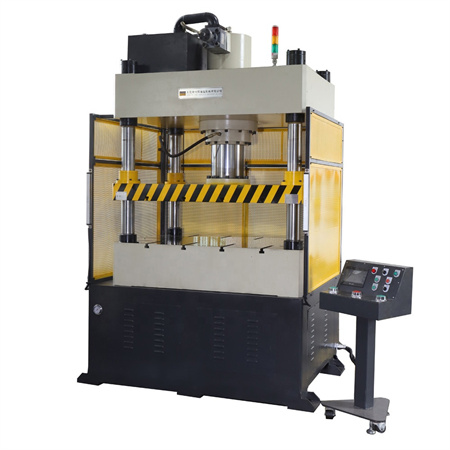

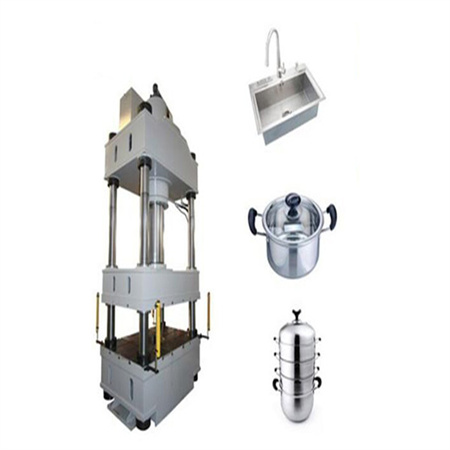

Four-column hydraulic press Optional: #Optoelectronic protective device #Moving table #Floating guide-way and rolling bracket for die exchange #Blanking buffer device #Quick die clamping mechanism #Industrial touching screen monitor #Stroke,pressure,speed digital control device #Water cooler device Displacement sensor #Blank holder slide,hydraulic cushion corners respectively regulating device(stretching asymmetric parts) Scope Of Application Drawing, bending, flanging, cold extruding,blanking processes for metal materials;straightening,press-in and forming processes for power and abrasive products,plastic and insulation materials. Size Information Type Unit 63T 100T 160T 200T 315T 630T 1000T 2000T Nominal Pressure KN 630 1000 160 2000 3150 6300 10000 20000 Ejecting Force KN 100 200 250 400…

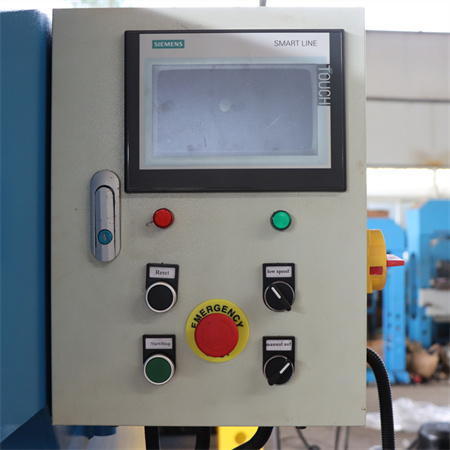

FEATURES： 1. Strcuture design is optimized by computer, with three-beam and four column structure; this equipment is simple, economic and useful. 2. Hydraulic control adopt insert type compact valve system, with reliable operation, long service life, minimized hydraulic shock, minimized duct connection and possible leak point. 3. Independent electric control sustem which is reliable, direct-in-runing, and convenient for maintaining. 4. Adopt concentrated button control system, which is adjustable and has two operation models, viz. both hands model and single circulation model. 5. Two operation model, viz. pressure regulation and stroke regulation which can be selected through operational panel, and has the…
