Four-column hydraulic press |
Optional: |
#Optoelectronic protective device |
#Moving table |
#Floating guide-way and rolling bracket for die exchange |
#Blanking buffer device |
#Quick die clamping mechanism |
#Industrial touching screen monitor |
#Stroke,pressure,speed digital control device |
#Water cooler device Displacement sensor |
#Blank holder slide,hydraulic cushion corners respectively regulating device(stretching asymmetric parts) |
Scope Of Application
Drawing, bending, flanging, cold extruding,blanking processes for metal materials;straightening,press-in and forming processes for power and abrasive products,plastic and insulation materials.
Size Information
Type | Unit | 63T | 100T | 160T | 200T | 315T | 630T | 1000T | 2000T |
Nominal Pressure | KN | 630 | 1000 | 160 | 2000 | 3150 | 6300 | 10000 | 20000 |
Ejecting Force | KN | 100 | 200 | 250 | 400 | 630 | 1000 | 1000 | 2000 |
Max.working pressure | Mpa | 25 | 26.2 | 26 | 25 | 25 | 26 | 26 | 27 |
Slide stroke | mm | 500 | 500 | 500 | 700 | 800 | 900 | 900 | 1400 |
Max.opening height | mm | 700 | 900 | 900 | 1120 | 1250 | 1500 | 1500 | 1600 |
Table Size(F.B.) | mm | 500 | 580 | 800 | 900 | 1200 | 1500 | 1600 | 2000 |
Table Size(L.R.) | mm | 500 | 710 | 800 | 900 | 1200 | 1500 | 1600 | 2800 |
Ejecting stroke | mm | 160 | 200 | 200 | 250 | 300 | 400 | 400 | 450 |
Idle stroke | mm/s | 76 | 100 | 100 | 100 | >100 | >100 | >100 | >100 |
Pressing | mm/s | 10 | 8-15 | 8-15 | 8-15 | 8-15 | 10 | 12 | 10 |
Return | mm/s | 60 | 60 | 60 | 70 | 70 | 65 | 80 | >75 |
Power of motor | KW | 5.5 | 7.5 | 15 | 18.5 | 22 | 45 | 68 | 134 |
Total Weight | T | 2.5 | 4 | 7 | 12 | 15 | 30 | 48 | 145 |
Product Details

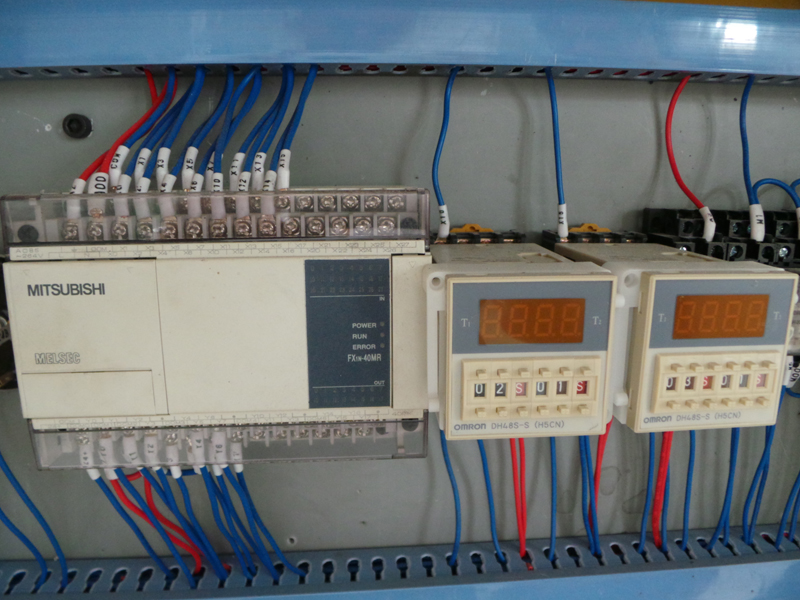

Electrical Diagrams

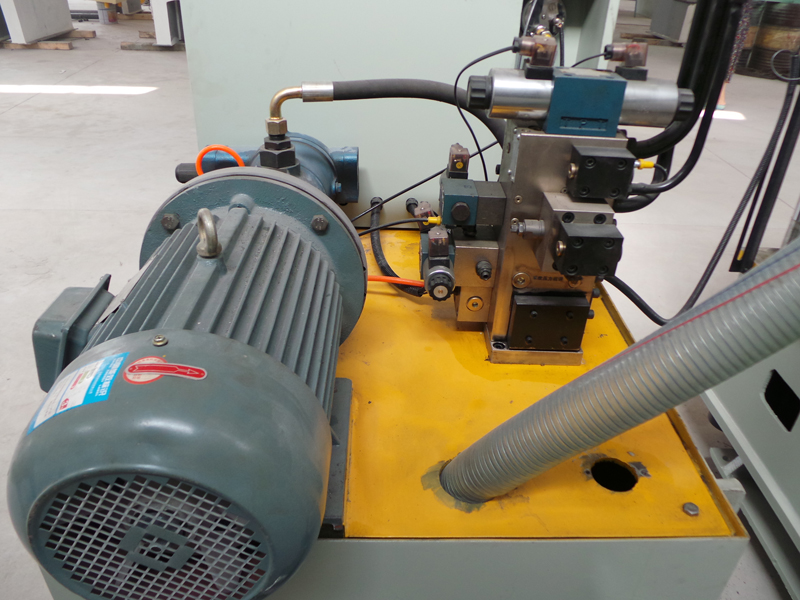

Siemens Motor

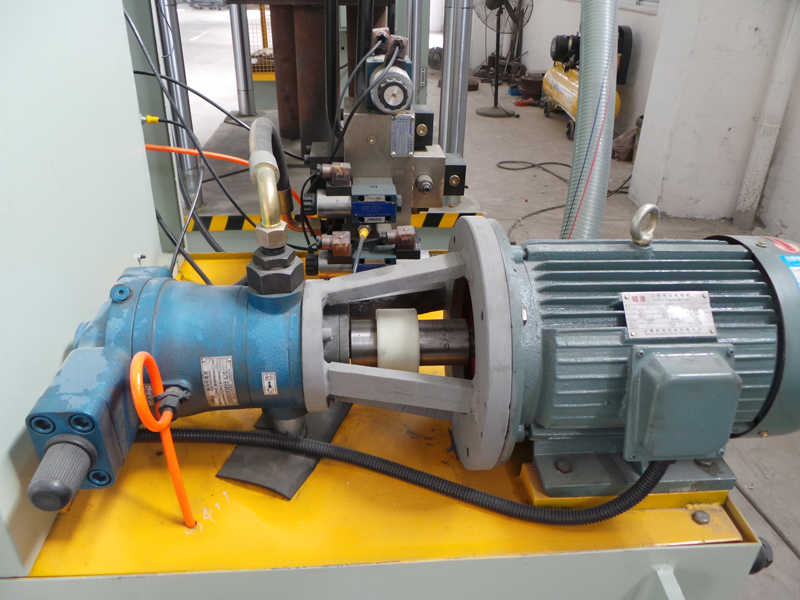

Oil Pump

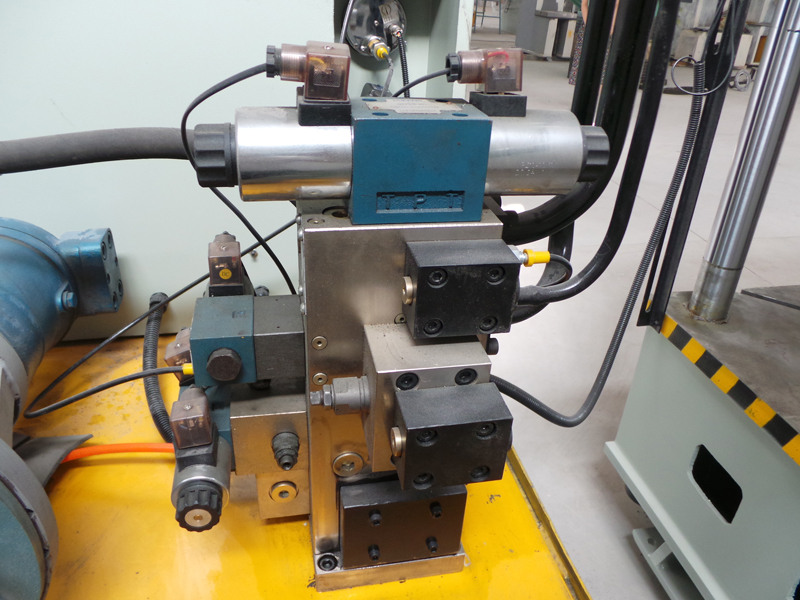

Rexroth Valve
Our service
1. Product quality control and delivery time is strictly controlled;
2. Direct manufacturing factory offering competitive price;
3. All the inquiries will be replied within 12 hours;
4. OEM & ODM service are available;
5. Providing first-class after-sales services to the customers.
FAQ:
Q1: How can I get a quotation?
A1: Pls tell us the machine you need, including quantity, raw materials and other requirements.
Q2: After I buy the machine, what will you do if I don't know some of the function?
A2: We will show you how to use the machine perfectly. Technical support and the video is available.
Q3: What can I do if the machine troubled after I buy it?
A3: We provide completely after sales service, and our engineers are available to service machinery overseas.
Q4: Will you show me how to install the machine?
A4: Certainly, we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to service machinery overseas
Details
- Slide Stroke (mm): 800
- Machine Type: Four-column Three-beam Hydraulic Press
- Ejector Force (kN): 600
- Return Force (kN): 600 kN
- System: Normal
- Condition: New
- Voltage: 220V/380(According to your local voltage)
- Dimension(L*W*H): 5800mm*2600mm*5350mm
- Weight (T): 40 T
- Model Number: Y27-500T
- Motor Power (kw): 44 kw
- Key Selling Points: Multifunctional
- Warranty: 2 yesrs after delivery
- Applicable Industries: Manufacturing Plant
- Showroom Location: None
- Marketing Type: Ordinary Product
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 2 years
- Core Components: Motor, Pump, PLC
- After-sales Service Provided: Engineers available to service machinery overseas
- Power Source: HYDRAULIC
- CNC or Not: Cnc
- Product name: Y27 hydraulic press machine for wheel barrow 500 ton
- Color: Customized
- norminal force: 5000KN
- slide stroke: 900mm
- Opening height: 1500mm
- Power motor: 22KW
- Name: Y27 hydraulic press machine for wheel barrow 500 ton
- After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
- Local Service Location: None
- Nominal Force (kN): 4000
- Certification: CE,ISO
