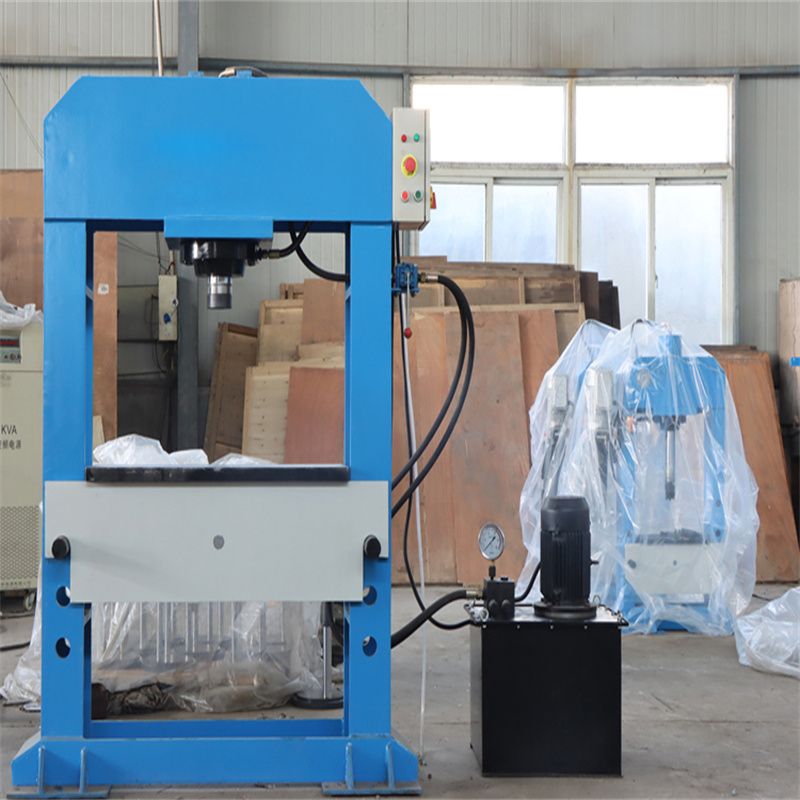

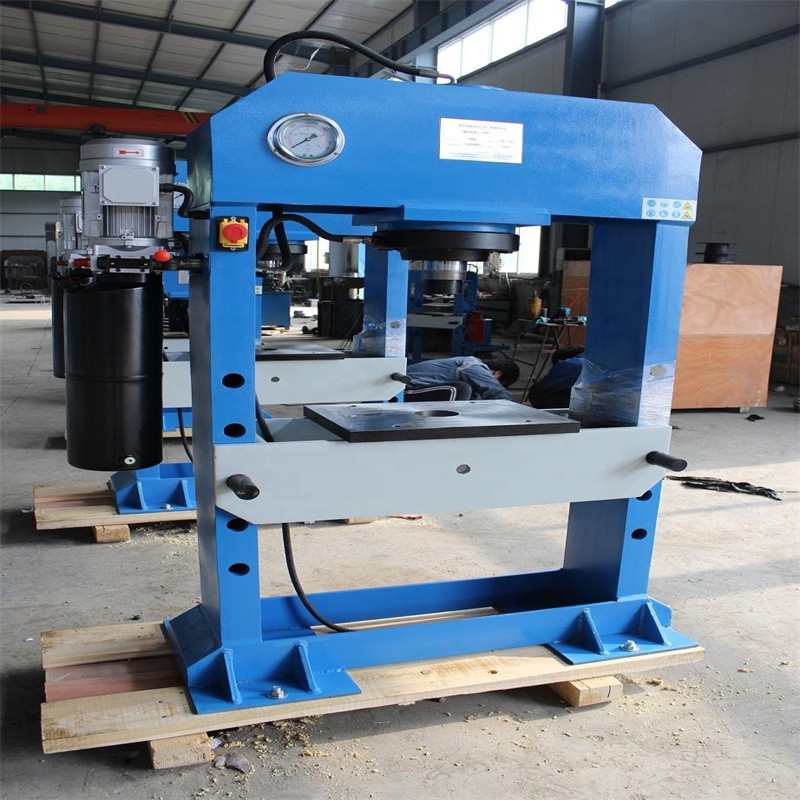

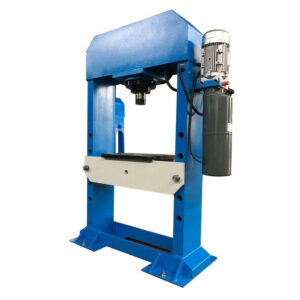

20 Ton 30 Ton 50 Ton Stable Forging Small Hydraulic Press Machine

Products Description

Hydraulic press is a machine that uses hydrostatic pressure to process metal, plastic, rubber, wood, powder and other products. It is commonly used in pressing process and pressing forming process

The equipment is especially suitable for bending, forming, flanging and other processes of central load parts. After being equipped with blanking buffer device, it can also be used for punching and blanking processing. It is the first choice for shipbuilding industry, pressure vessel industry, chemical industry and other industries.

It is used for the processes of stretch forming, turning over, bending and stamping of sheet metal parts, as well as general pressing processes. Devices such as blanking buffer, blanking and moving worktable can be added according to the needs of users.

Optional Accessories

Auto tool-Lifter

Auto down-feeder

Rotary table

Dividing head

Specification

MODEL	HP-100	HP-200	HP-300	HP-500
CAPACITY（KN）	1000	2000	3000	5000
PRESSURE（MPa）	30	40	42	45
TRAVEL（mm）	250+405	300+405	300+405	300+405
TALE SIZE（ mm）	400*980	500*1000	700*1200	900*1200
DIMENSION（mm）	1840*750*2250	1940*900*2300	2100*950*2700	2300*1000*2900
	730*630*960	900*800*1060	1100*1200*1350	1100*1200*1350
WEITHT（KG）	1220/1420	2200/2400	3900	6500

FAQ

Q. What are your normal lead times?

A.Our company typical lead times range from 3-4weeks after receipt of order.

Q. What are the terms of payments you offer?

A. We accept payment of T/T, L/C, and Western Union, cash, O/A etc.

Q. What kind of package do you offer?

A. Normally in plywood case, to make sure all goods in good condition.

Q. What is the MOQ for your production?

A.The MOQ depends on your requirements for color, logo and so on. For some normal items, we have in stock, the MOQ is 1 set.

Q. Do you have CE certification

A. Yes, we have CE certification, machine quality is one year guaranteed.

Q. How to control the quality of the products?

A. We have always placed great emphasis on the quality level is maintained. Moreover, the principle we always maintain is "to provide customers better quality, better price, and better service

Details

• Slide Stroke (mm): 405
• Machine Type: H Frame Hydraulic Press
• Ejector Force (kN): 2000
• Return Force (kN): 2000 kN
• System: Servo
• Condition: New
• Voltage: 220v
• Dimension(L*W*H): 1940*900*2300
• Weight (T): 2200 T
• Model Number: HP-200
• Motor Power (kw): 1.5 kw
• Key Selling Points: Competitive Price
• Warranty: 1 Year
• Applicable Industries: Food & Beverage Shops, Building Material Shops, Garment Shops, Machinery Repair Shops
• Showroom Location: Egypt, Canada, Algeria
• Marketing Type: New Product 2020
• Machinery Test Report: Provided
• Video outgoing-inspection: Provided
• Warranty of core components: 1 Year
• Core Components: Motor, PLC, Gearbox
• MODEL: HP-200
• CAPACITY(KN): 2000
• PRESSURE(MPa): 40
• TRAVEL(mm): 300x405
• TALE SIZE( mm): 500*1000
• DIMENSION(mm): 1940*900*2300
• WEITHT(KG): 2200/2400
• brand: almaco
• defects liability period: 1 year
• country of origin: china jiangsu
• After-sales Service Provided: Field installation, commissioning and training, Online support, Free spare parts, Video technical support, Field maintenance and repair service
• After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
• Local Service Location: Egypt, Canada, Algeria
• Certification: ce
