Features:
1. The four-column three-plate steel structure is adopted, the movable plate is parallel to the working surface and the
four-column is matched with a precision guide sleeve, which has high precision;
2. The hydraulic station is in the frame, with compact structure, beautiful appearance, simple hydraulic circuit design, and easy maintenance;
3. Pressure, stroke, speed, pressure holding time, etc. can be adjusted according to the requirements of the system;
4. The temperature of the upper and lower heating plates is controlled separately, using RKC intelligent temperature controller, the temperature control is accurate to ±1℃;
5. Using Taiwan brand hydraulic and electrical components and Japanese NOK seals, durable;
6. Two-hand operation, equipped with emergency stop button and inching function, easy to install and adjust the mold, high safety;
7. There are casters and foot cup holders under the workbench, which are portable, labor-saving and efficient;
8. Another optional safety photoelectric protection device, humanized, safer and more assured work;
9. Special requirements such as non-standard worktable size and high-pressure models can be customized.
Scope of application:
1. Hot stamping forming of concave and convex surfaces such as membrane switch and speaker film;
2. Plastic pellet pressing test, thin film thermal bonding and crimping;
3. It is suitable for the production and use of large-area thermoformed products.

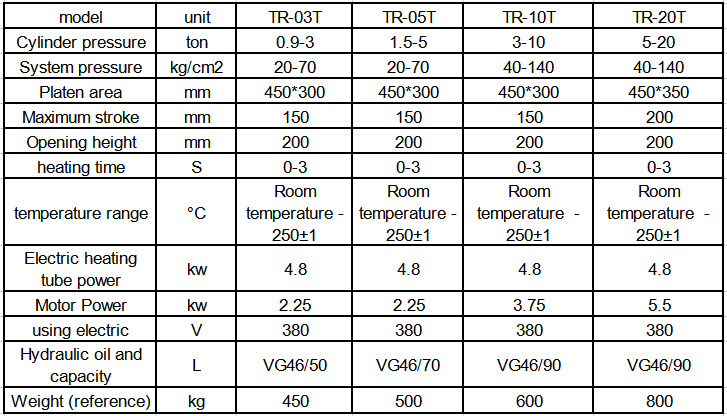

Specification
Slide Stroke (mm) | 150 |
Machine Type | Hot Forging Hydraulic Press |
Return Force (kN) | 150kN |
System | Servo |
Condition | New |
Place of Origin | China |
Voltage | 380V |
Weight (T) | 0.5T |
Motor Power (kw) | 2.25kw |
Key Selling Points | Multifunctional |
Warranty | 1 Year |
Applicable Industries | Building Material Shops, Manufacturing Plant |
Showroom Location | None |
Marketing Type | New Product 2020 |
Machinery Test Report | Not Available |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Motor |
After-sales Service Provided | Online support |
Product name | Power Press Machine |
Table size | 450*300 |
Details
- Slide Stroke (mm): 150
- Machine Type: Hot Forging Hydraulic Press
- Return Force (kN): 150 kN
- System: Servo
- Condition: New
- Place of Origin: China
- Voltage: 380V
- Weight (T): 0.5 T
- Motor Power (kw): 2.25 kw
- Key Selling Points: Multifunctional
- Warranty: 1 Year
- Applicable Industries: Building Material Shops, Manufacturing Plant
- Showroom Location: None
- Marketing Type: New Product 2020
- Machinery Test Report: Not Available
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- Core Components: Motor
- After-sales Service Provided: Online support
- Table size: 450*300
