630 Tons Manhole Covers Four Column Hydraulic Press Machine

Main feature:

Manual and semi-automatic operation methods

The working pressure, travel range of slider can be adjusted according to process requirements. Two process modes for choose: constant pressure process and constant stroke process

The slider has two speeds, fast and slow speed mode, is convenient for the operator to control the workpiece.

Sliders and tables have T –slots, easy for installation of molds.

Four-column guides ensure stable accuracy and easy maintenance .

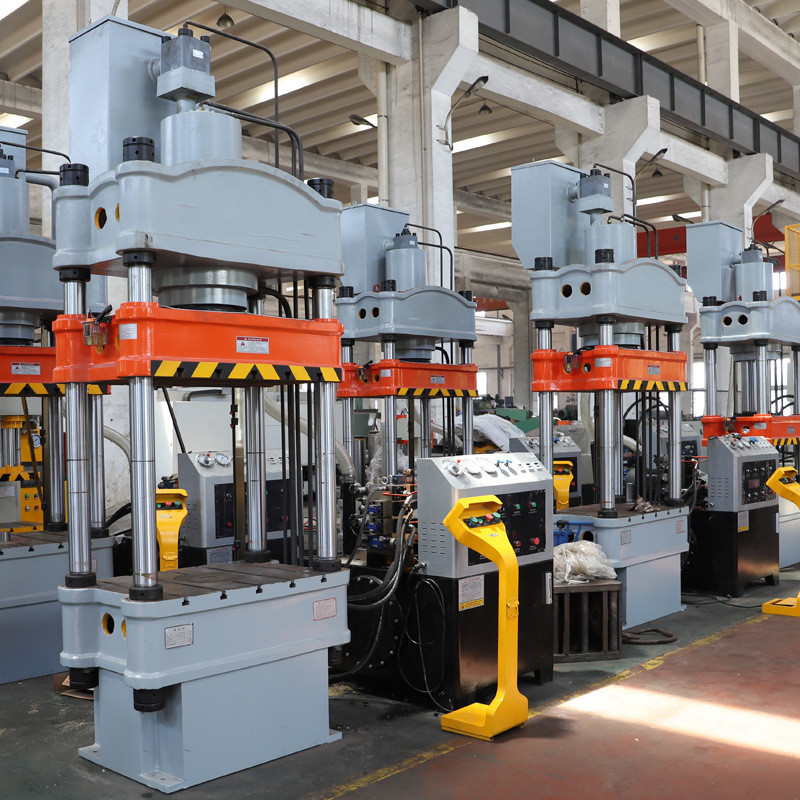

630 Tons Manhole Covers Four Column Hydraulic Press Machine 2

Machined:

Machine frame will be putted into the tempering furnace to remove the internal stress after welded, machine lifetime will be much longer.

Modern five-sided machining center and CNC boring and milling machines perform machining to ensure the highest precision of the workpiece .

Cylinder:

The master cylinder is designed for high speed, small motor power, fast lifting speed and high efficiency.

The piston rod is made by heat treatment, using high quality imported seal, high wear resistance and durability. High guidance accuracy .

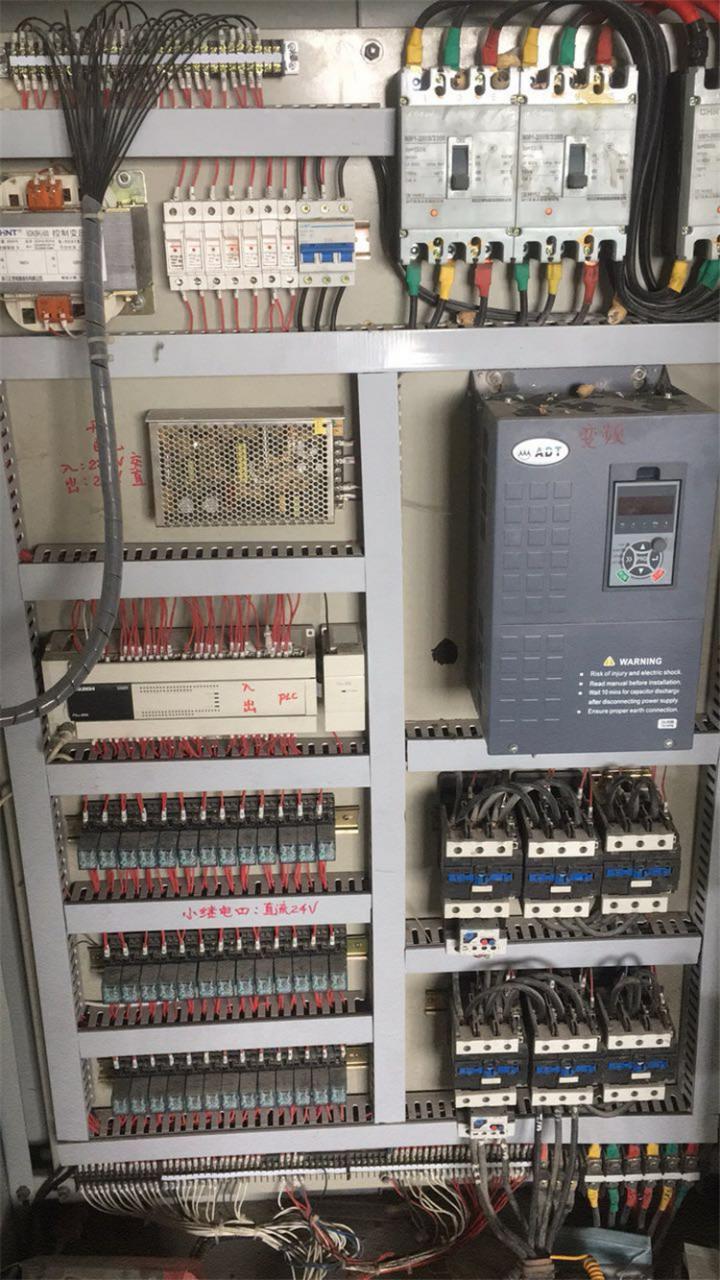

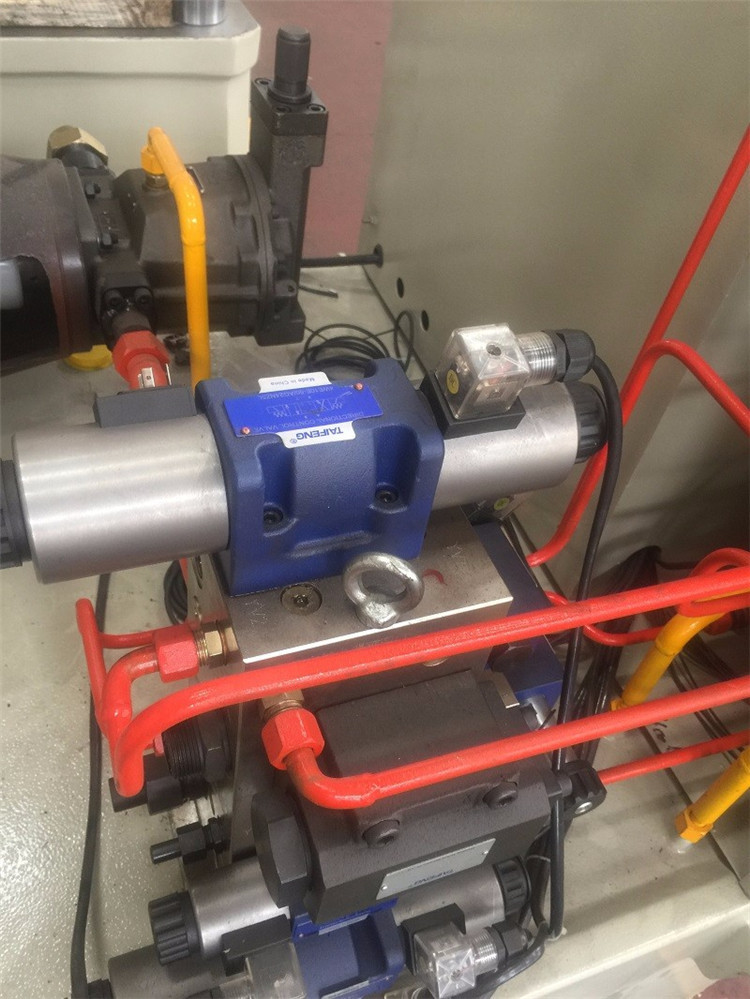

Hydraulic and electric:

All pipelines and flanges have been subjected to vibration and oil leakage tests , which greatly reduce oil leakage from pipelines, and are easy to maintain and safe.

The hydraulic system is equipped with overload overflow protection to ensure no leakage and level gauge for direct reading and checking of the oil level.

Variable pump provides high pressure, high speed, durability and low noise.

The suction port of the oil pump is equipped with an oil filter to ensure the cleanliness of the pump and hydraulic system

All electrical, hydraulic and mechanical components are in line with industry standards and products are spread throughout North America and Europe.

Safety:

In order to prevent the slider from falling down, the machine is provided with hydraulic support safety circuit

Technical detail:

Application:Metal Sheet Stamping
Function:Punching And Press
Color:Optional Color
Material:Steel Material
Type:Hydraulic Punching Press
Nominal Force:200kn/300kn/500kn
Product name:Hydraulic Press
Customizable:Customizing accord
Product Keywordssteel water tank stamping machine hydraulic press

Detailed Images

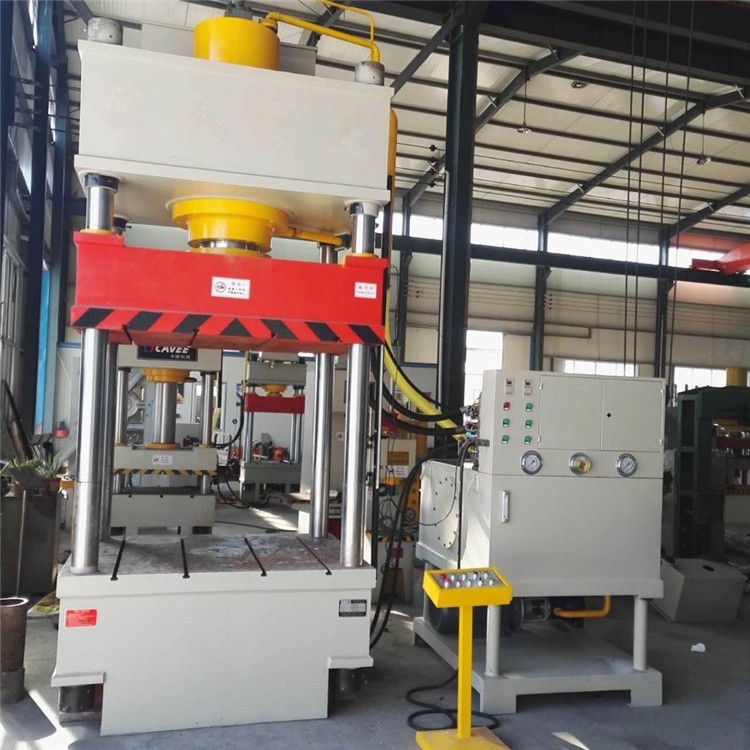

630 Tons Aluminum Extrusion Four Column Hydraulic Press Machine630 Tons Aluminum Extrusion Four Column Hydraulic Press Machine 630 Tons Aluminum Extrusion Four Column Hydraulic Press Machine

Our Service

Pre-Sales Service

1) Customized serviceSizes can be customized per client's request.
2) Professional sales and technical team to provide complete solution including construction suggestion.
3) High quality and on-time delivery per our qualified worker, muture technology and factory big capacity.

After-Sales Service

1) Guarantee period: 1 years based on our good.
2) Video, on-line support on installation.
3) Prefessional logistic dept to make products arrival to client on-time and even to door.
4) If client doesn't satisfy, we can accept product return or change.

FAQ

Q: Are you a trading company or a manufacture factory?

A: Our factory is one of the biggest FRP products, FRP machines manufacturer in China

Q: Can your factory customize the machine for clients ?

A: Yes, we can.

Q: What is your payment terms ?

A: Normally,50% as the deposit first by T/T, the rest 50% will be paid before shipping by T/T.

Q: How about after-sales service ?

A: 1 year free warranty, Lifetime technical service support.

Q: How can I install the production line and get a commissioning ?

A: We may send our engineer for installation and commissioning, but relevant cost will be paid by you.

Q:Have you some videos where we can see the line producing?

A: Yes, we can provide some videos

Details

  • Machine Type: Four-column Two-beam Hydraulic Press
  • Return Force (kN): 620 kN
  • System: Normal
  • Condition: New
  • Voltage: 380V/220V Optional
  • Dimension(L*W*H): 4480X1700X1600mm or cuatomized
  • Weight (T): 16 T
  • Motor Power (kw): 50 kw
  • Key Selling Points: Energy saving
  • Warranty: 1 Year
  • Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Energy & Mining, Construction works
  • Showroom Location: None
  • Marketing Type: Hot Product 2019
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 1 Year
  • Core Components: cylinder, sealing parts
  • Power Source: HYDRAULIC
  • Nominal Pressure: 1000kn/100t
  • Top of the output: 250KN
  • Liquid maximun working pressure: 25mpa
  • Open height: 800mm
  • The slider range: 500mm
  • Ejection stroke: 200mm
  • the worktable size: 630mm
  • machine dimension: 2100*1300*2870mm
  • Nominal Force (kN): 5000
  • After Warranty Service: Video technical support, Online support, Field maintenance and repair service
  • Local Service Location: None
  • Certification: CE ISO
